System components for the DALI ONETRACK track system Eutrac

System components as accessories for DALI track "ONETRACK DALI" from ALS

NEW: Eutrac changes its DALI rail system - ONETRACK by EUTRAC REPLACES EUTRAC 3 WITH DATA BU
Attention: Please note the compatibility of DALI spotlights with the respective track systems (ONETRACK new, TRACK previously).

For the successful use of the ONETRACK DALI power rail, other components are necessary in addition to the rails themselves, depending on the requirements and specifications. On our website you will find all available system components via the selection menus, you will find an overview in the download (data sheet for the various ONETRACK system components).

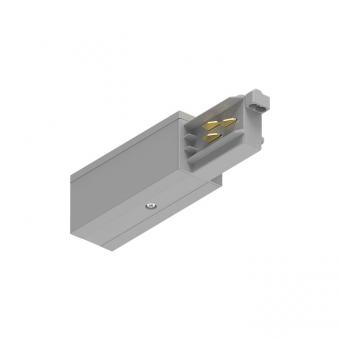

The system components include the respective feeders (protective conductor on the right or left) as well as various connectors, each with a feed option. The following variants are available in white, grey, black:

• Straight connector, in all three colors
• I-connector, in all three colors
• I-connector with protective conductor on the outside, in all three colors
• L-connector with protective conductor inside, in all three colors
• FLEX connector, in all three colors
• T-connector with protective conductor inside right, in all three colors
• T-connector with protective conductor inside left, in all three colors
• T-connector with protective conductor outside right, in all three colors
• T-connector with protective conductor outside left, in all three colors
• X-Connect,r in all three colors

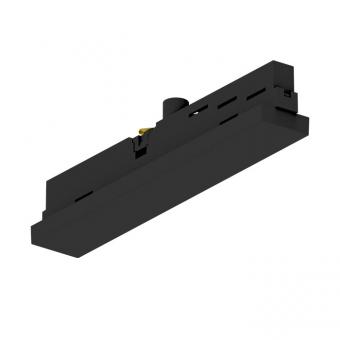

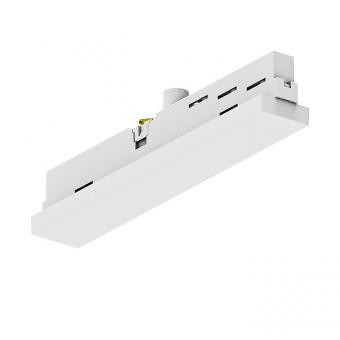

• Central feeder, in white and black

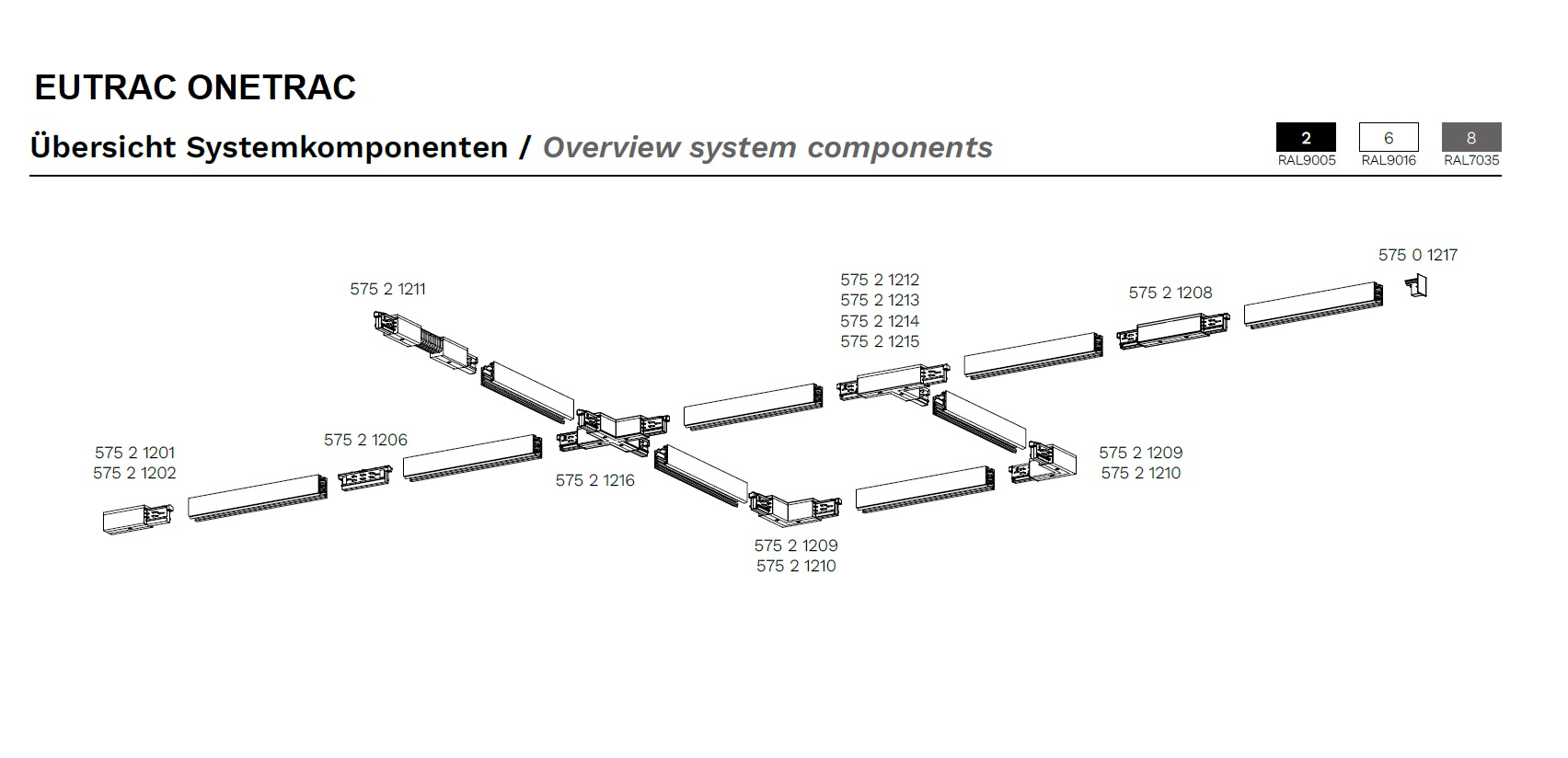

Below the picture table you will find some application examples to help you with your own configuration. You can download the detailed instructions in the download area as a PDF file.

Planning example for the DALI track:

Example 1: Requirement: 3m black track, surface mounting with DALI data bus, end feed
At least you need:

• 1x 3-phase mounting rail 1m --> 575 2 1101 2
• 1x 3-phase mounting rail 2m --> 575 2 1102 2
• 1x electrical longitudinal connector --> 575 2 12062
• 1x end feeder with data bus --> 575 2 1201 2(depending on the orientation of the protective conductor)

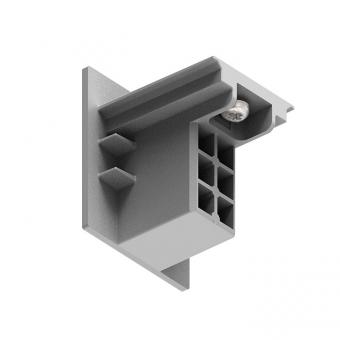

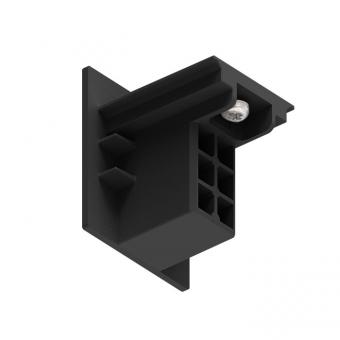

• 1x end cap for the other side --> 575 0 3217 2

Example 2: Requirement: 2 x 90° arrangement of U-shaped busbar with partial lengths of 2m - 4m - 1m, white, feed in the middle of the 4m section, structure with DALI bus

• 1x 3-phase mounting rail 1m --> 575 2 1101 6
• 1x 3-phase mounting rail 2m --> 575 2 1102 6
• 1x 3-phase mounting rail 4m --> 575 2 1142 6
• 2x corner connector protection. inside --> 575 2 32106
• 1x DALI center feeder --> 575 2 52036
• 2x end cap --> 575 0 3217 6
