LED Track Spotlights DALI BWS30-DA
€177.61*
net-price: €149.25 % €283.22* (37.29% saved)delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "LED Track Spotlights DALI BWS30-DA"
LED track spotlights with DALI

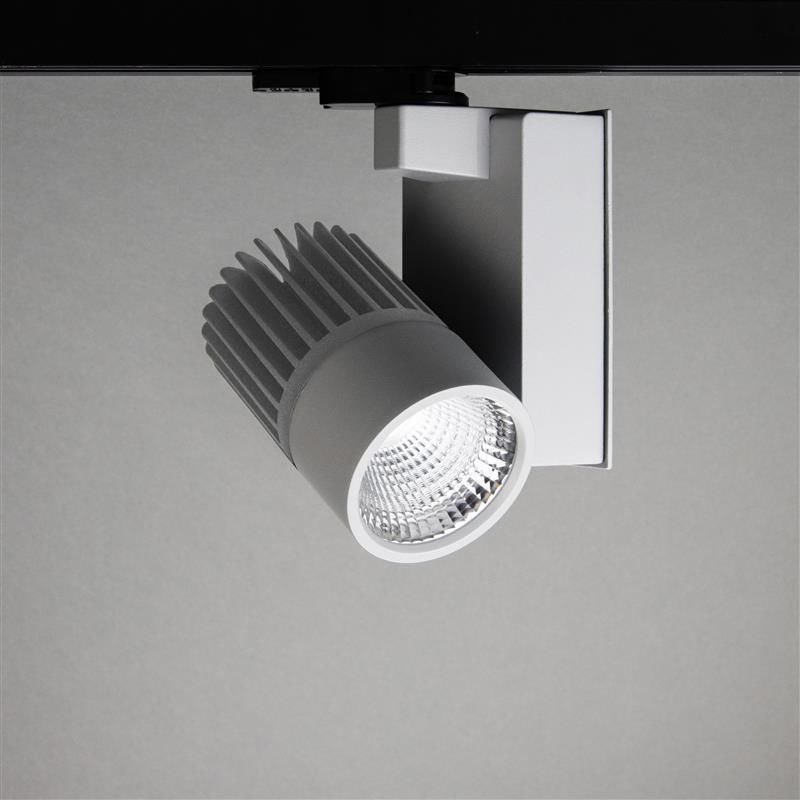

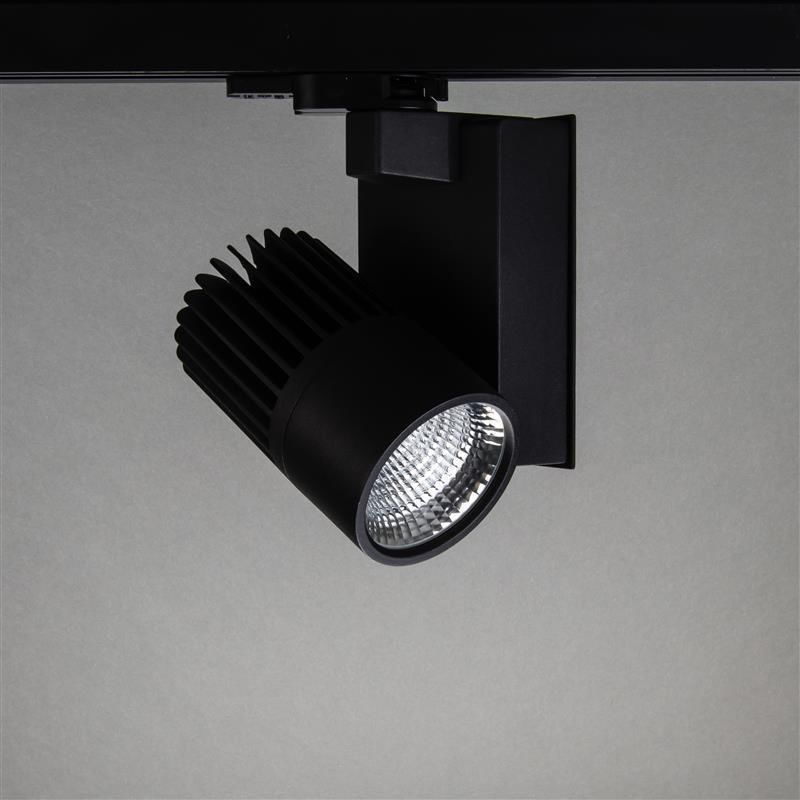

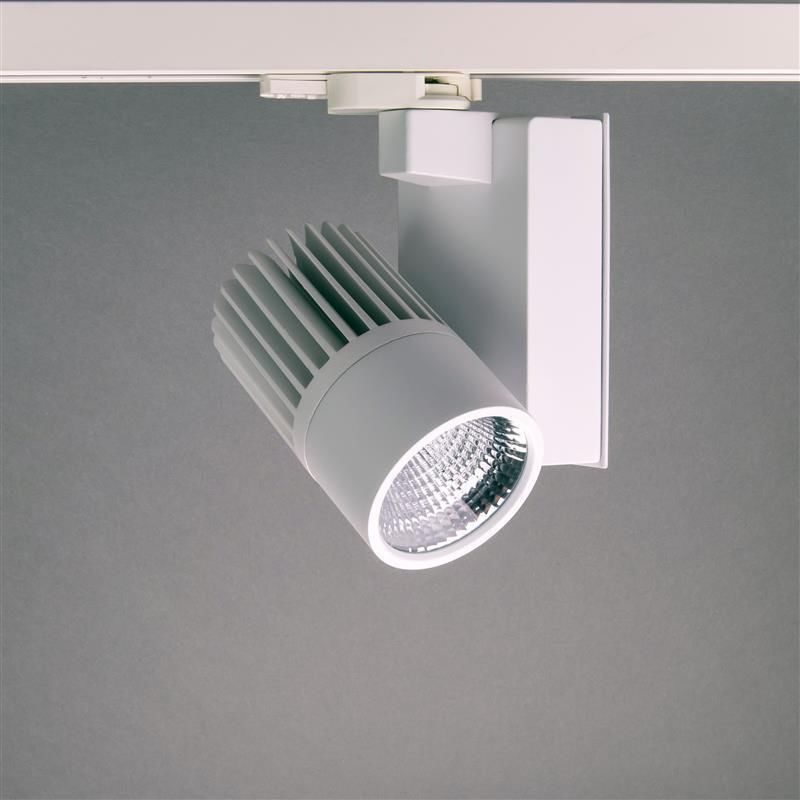

This version of the BWS30 LED track spotlight features a DALI dimming function. It can be purchased in CoB LED module with 4 different beam angles (15°, 24°, 40° and 60°). The BWS30 has a housing made of painted die-cast aluminum and a clear protective glass. This LED track spotlight is available in 4 housing colors.
Data for the BWS30 DALI track spotlight:
- Protection class I
- Supply voltage: 220-240V
- Integrated electronic power supply
- LED operating current: 700mA
- Eutrac®-3-phase electronic adapter
- CRI > 90
- Energy efficiency: A++ -A
Attention: Is available in CRI97 on demand
Ideal for lighting food (vegetables, meat and bakery products) and is also used in shops for object lighting. In particular, due to the very good color rendering index, it is ideal for eg. clothing stores.
Variation-specific data of the LED track spotlight BWS30 with DALI dimming:
| Colour temperature | 2700K | 3000K | 3500K | 4000K | ||||||||||||
| Beam angle | 15° | 24° | 40° | 60° | 15° | 24° | 40° | 60° | 15° | 24° | 40° | 60° | 15° | 24° | 40° | 60° |
| System power | 26W | 26W | 26W | 26W | ||||||||||||
| Luminous flux (lm) | 2290 | 2276 | 2342 | 2315 | 2382 | 2367 | 2436 | 2408 | 2417 | 2401 | 2473 | 2443 | 2418 | 2403 | 3135 | 2445 |
| pivotable | 130° | 130° | 130° | 130° | ||||||||||||
| System efficacy (lm/W) | 89 | 88 | 91 | 90 | 92 | 92 | 95 | 93 | 94 | 93 | 96 | 95 | 94 | 93 | 96 | 95 |
| UGR | 19,35 | 18,45 | 18,80 | * | 19,55 | 18,60 | 18,95 | * | * | * | * | * | 19,65 | 18,70 | 19,05 | * |
| Dimensions (H x B) | 176mm x 126mm | 176mm x 126mm | 176mm x 126mm | 176mm x 126mm | ||||||||||||
| Outside diameter | 79mm | 79mm | 79mm | 79mm | ||||||||||||
* Data not available yet
For further information please refer to the data sheet in the Download-Tab.
| ·Color Temperature/Color: | 3000K, 4000K |
|---|---|
| ·Dimmable/Control: | DALI |
