LED Downlights Line DIL 7W COB
Original images, see data sheet or manufacturer’s website
Variant
30 %
€39.15*
net-price: €32.90 % €55.93* (30% saved)delivery time 3-5 Working days*
Product number: DIL7-WW-K
Manufacturer: ALS GmbH
Manufacturer product number: DIL-7WW1-K
Weight: 0.111 kg
Min. order quantity: 1
Our benefits
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "LED Downlights Line DIL 7W COB"
Well-designed LED downlight 7W in COB technology
This 7W LED downlight is the ideal lighting in living rooms. Pleasant and bright light provide an atmospheric and comfortable ambiance in your rooms. Even single areas can be effectfully put in scene, like resp. plants, pictures, show cases, decorative items and many more.
A further advantage of the LED technology is the small power consumption and the long service life.
For the operation you can use one of our numerous LED drivers 700mA constant current. With the appropriate selection you have an unlimited dimmability via 1-10V or even DALI.
In addition, we offer you a comprehensive selection of accessories, so you can customize your downlight to your liking.
Further information and recommendations for the operation with our LED ballasts, you find on the category side of our LED-Downlights&Einbauleuchten.
Our LED Downlights 7W in COB* are available in the following versions and with versatile accessories:
- Various light engines 7/13W with protection glass, aluminium die cast body, white
- All kind of mounting frames, designs available
- Protection type: IP20
- Protection class: II
- Delivery: with or without power supply (depending on the selection)
Technical Data of the LED Downlight DIl 7W:
| Light source | COB-LED* | COB-LED* | COB-LED* |
| Colour temperature | 2700K | 3000K | 4000K |

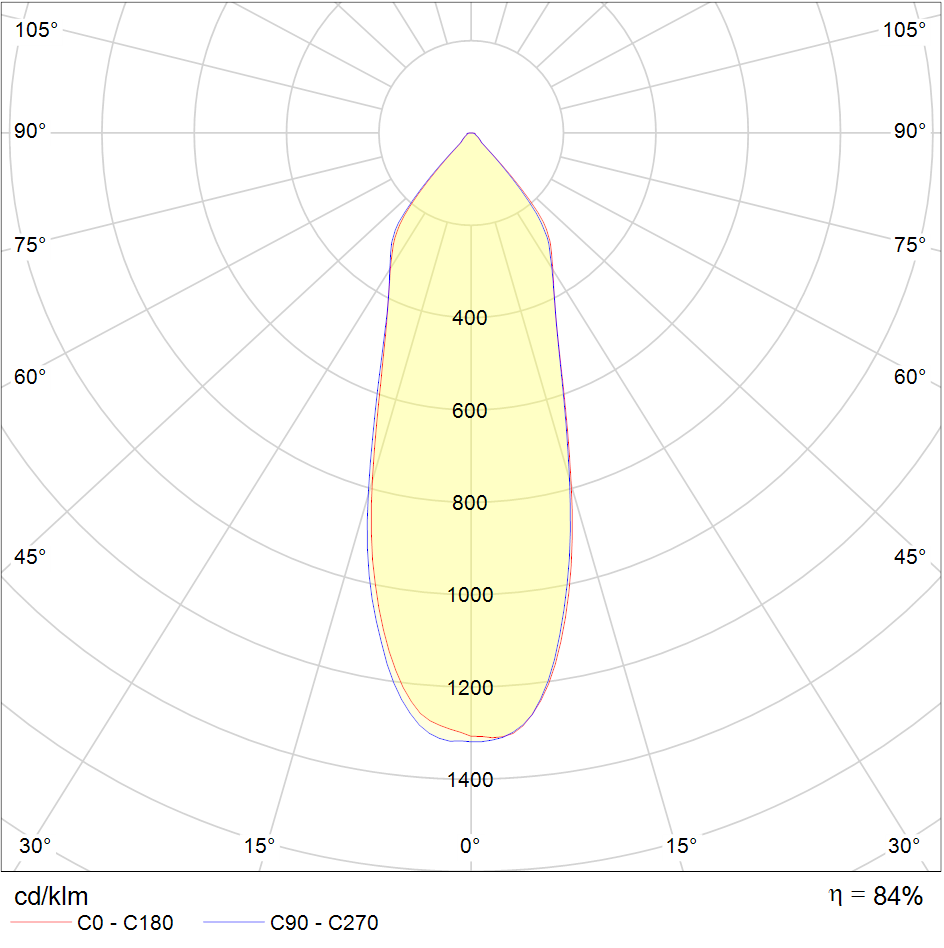

| Beam angle | 38° | ||
| Article No. | DIL-7SW1-K | DIL-7WW1-K | DIL-7NW1-K |
| Luminous flux | 487 lm | 526 lm | 566 lm |
| System performance | 7 W | ||
| Operating current | 700 mA | ||
| Colour reproduction index | CRI >80 | ||
| System efficiency | 69 lm/W | 75 lm/W | 81 lm/W |

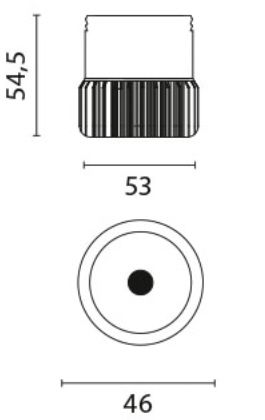

| Outer diameter | 53 mm | ||
| Installation depth | 55 mm | ||
| Weight | 0,111 Kg | ||
(Without ballast,with Standard-driver, 1-10V Dimming or DALI Dimming).
*COB - LED stands for Chip-On-Board-LED. Many LED chips together create a LED area. This, in connection with a reflektor imitates the familiar halogenspots e.g. MR16 excellently.
For further information please refer to the data sheet (Download-Tab).
Properties "LED Downlights Line DIL 7W COB"
| ·Color Temperature/Color: | 3000K, 4000K |
|---|---|
| ·Dimmable/Control: | 1..10V, DALI |
Manufacturer "ALS GmbH"
A.L.S. GmbH
is a supplier and manufacturer of lighting systems as well as a service provider of lighting concepts.The main focus at A.L.S is the production of lighting elements, lamps and accessories.
For more than 10 years we have been offering more than 100 products form the manufacture ALS worldwide.
Below is our Portfolio of products. Tip: Use the filter function to quickly find the Light source you Need, or give us a call.
A.L.S. Architektonische Lichtsysteme GmbH.
Mastorter Straße 31 - 88069 Tettnang - Germany
Related links of the manufacturer
Login
From: Kunde
20 February 2022 11:46
Gute telefonische Beratung, kompetent und freundlich. Zeitnahe Lieferung.
Idealer Shop für komplizierter Projekte
In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl
Where can I get support and advice on recessed ceiling spots/downlights?
Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
