wDALI Relay 8A permanent, 80A Inrush, built in

Variant

€251.28*

net-price: €211.16

Prices incl. VAT plus shipping costs

delivery time 2-4 Working days*

Product number: 3787-86459542+T

Manufacturer: Lunatone Industrielle Elektronik GmbH

Manufacturer product number: 86459542+T

Weight: 0.05 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "wDALI Relay 8A permanent, 80A Inrush, built in"

Wireless switching relay for DALI radio control with transmitter and receiver

The wDALI RM8 is a DALI control module, which is wirelessly connected to the DALI bus.
This enables the integration of spatially separated switchable loads such as floor lamps and outdoor luminaires into the DALI system.
The loads can be switched on and off with DALI commands.

Overview:

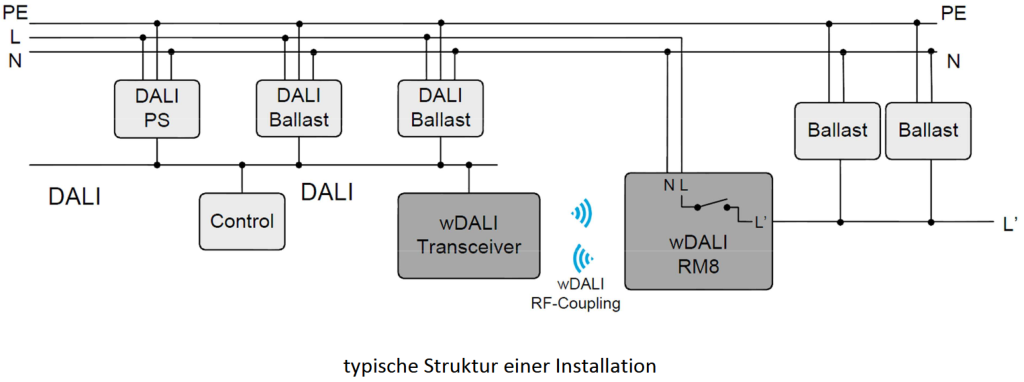

2 components: a transmitter unit connected to the DALI-line and a receiver module with relay.
The transmitter is supplied directly by the DALI-line, the receiver is supplied by mains.
The module can be addressed and assigned to groups and scenes.
Simple installation and configuration with the DALI-Cockpit software tool.

Electrical data transmitter
Supply	via DALI Bus
typ. current consumption	3,8 mA
Input	DALI
Power on behaviour	programmable, here the Power On is the return of the DALI-line supply voltage
Frequency-range	2,5 GHz
Technical data transmitter
Ambient temperature	-10°C to + 50°C
Protection class	IP20
Connection wire cross section	max. 1,5mm²
Mounting	black box

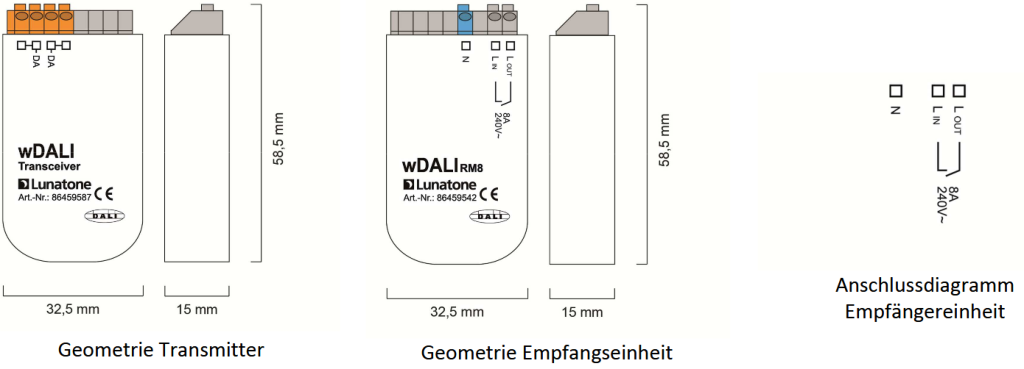

Dimensions L x B x H	59 x 33 x 15 mm

Electrical data switch relay
Supply	210-250V AC / 50-60Hz
Rated load	1000VA
max. switching current	8A
max. power on current	80A
Relay contact	1 on / off, max. 30000 operations at nominal load resistive, max. Switching frequency 1Hz
Frequency-range	2,4Ghz
Technical data switch relay
Ambient temperature	0°C to + 45°C
Protection class	IP20
Connection wire cross section	max. 1,5mm²
Mounting	black box
Dimensions L x B x H	59 x 33 x 15 mm

For further information on the wDALI RM8 radio switching relay, please refer to the data sheet in the Download tab.

Properties "wDALI Relay 8A permanent, 80A Inrush, built in"

·Dimmable/Control:	DALI, WDALI (Lunatone)

Datasheet & further Infos about this product

Data sheet wDALI RM 8

Manufacturer "Lunatone Industrielle Elektronik GmbH"

Lunatone Industrielle Elektronik GmbH

Lunatone started off in 1993 as a development office and spin-off from the Vienna University of Technology. A few years later, in 2000, Lunatone Industrielle Elektronik GmbH was founded due to the growing demand. From the beginning, customized solutions were offered in the areas of DALI lighting systems, electronic information technology and industrial electronics. Customer satisfaction has always been our highest Goal. The range extends from operating modules, control units & sensors, phase dimmers, actuators & signal converters, 230VAC, 48V, 24V operating devices, DALI bus supplies & extensions through to interfaces, tools & Gateways. For more than 10 years we have been offering more than 100 products from the manufacturer Lunatone worldwide.Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

Lunatone GmbH
Paukerwerkstraße 5 - 1210 Vienna - Austria

E-Mail: supportteam@lunatone.at

Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
