Product information "wDALI GR Receiver PS20"
DALI-Receiver from Lunatone

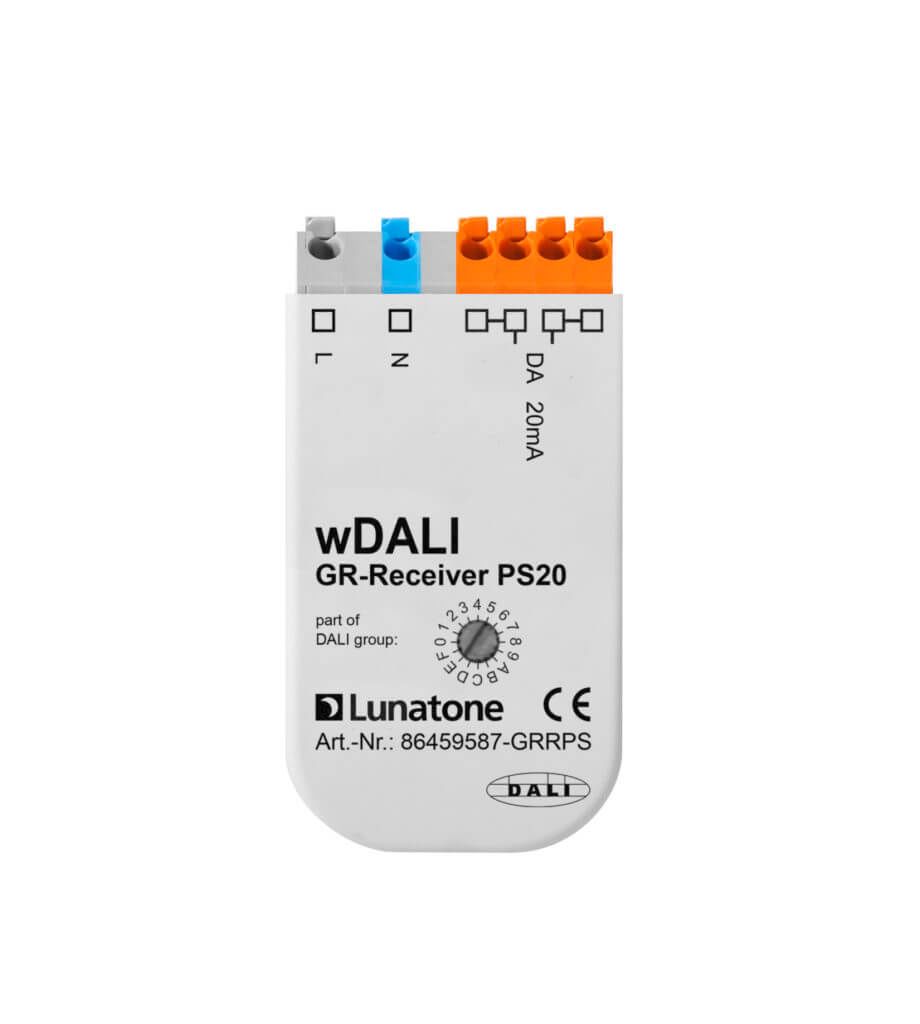

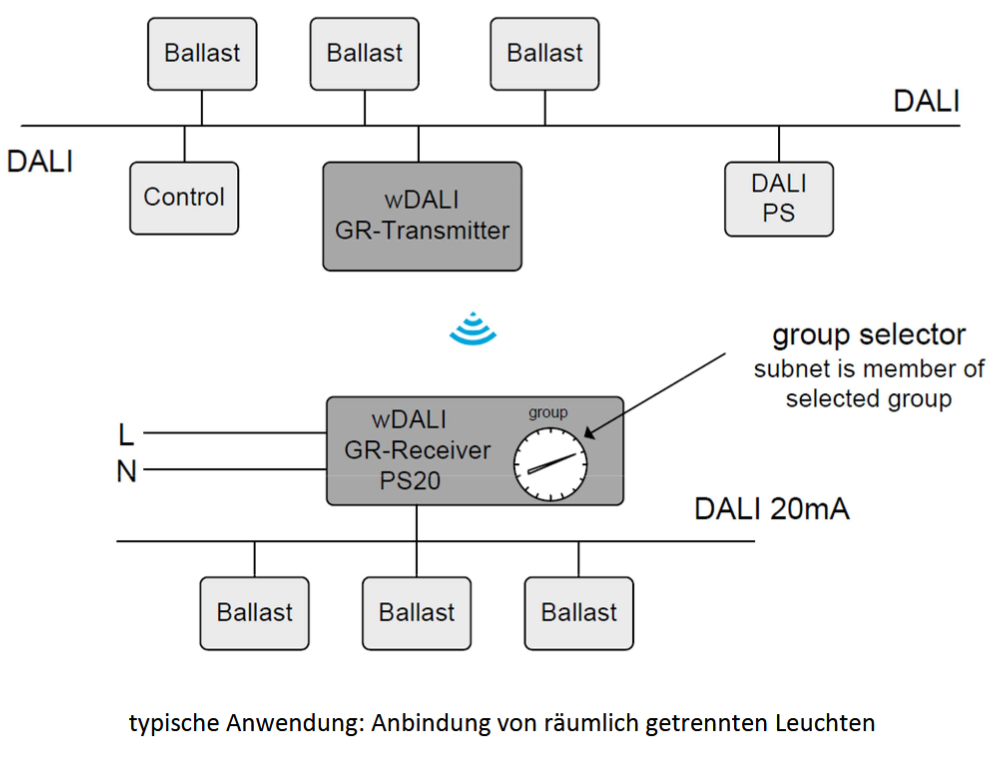

Module to wirelessly tether spatially divided DALI ballast to a DALI system. The GR transmitter, connected to the DALI line, wirelessly sends DALI commands to one or more receivers. The wDALI Receiver PS20 has got an integrated 20mA bus supply for the DALI subsystem. Using the dial on the back of the receiver an address for the DALI subsystem can be selected. The devices in the subsystem can be controlled via broadcast or the set group address.We also offer the wDALI GR Transmitter (86459587-GRTM) from Lunatone.
Overview:
- Module for the wireless integration of spatially separated DALI ballasts in a DALI system
- For the wireless connection at least two components are required: one transmitter and one receiver
- Range of wireless connection up to 300m outdoors, indoors typically 10m-20m
- Easy group assignment to G0...G15 with the help of a rotary group selector on the receiver: all commands sent to the selected group or broadcast are forwarded to the receiver subnet
- The commands are sent broadcast on the subnet
- The transmitter is supplied from the DALI-line, the receiver is supplied by mains and provides a 20mA DALI bus power supply for the subnet
- A DALI-Expander can be used on the subnet for higher DALI loads

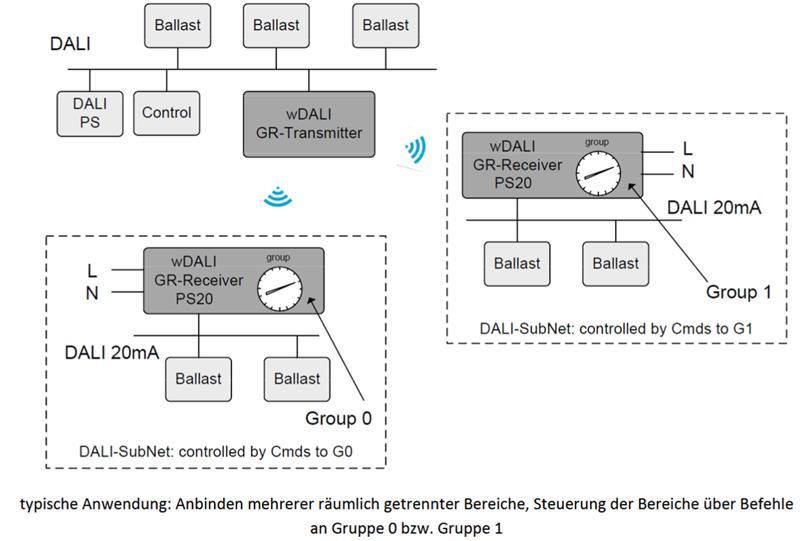

- A transmitter can control finitely many DALI subnets with a separate transceiver for each subnet
- Double DALI terminals – the DALI signal line is connected through
| Electrical data receiver | |
| Supply | 210-250V AC / 50-60Hz |
| Output | DALI, 20mA (for up to 10 DALI ballasts) |
| Function | Receiving DALI-commands via RF Group selection with rotary switch Broadcast-forwarding of commands to selected group on DALI subnet |
| RF range | 2,4 GHz |
| Technical data receiver | |
| Ambient temperature | -10°C bis + 50°C |
| Protection class | IP20 |
| Connecting wire cross-section | max. 1,5mm² |
| Mounting | Back box |

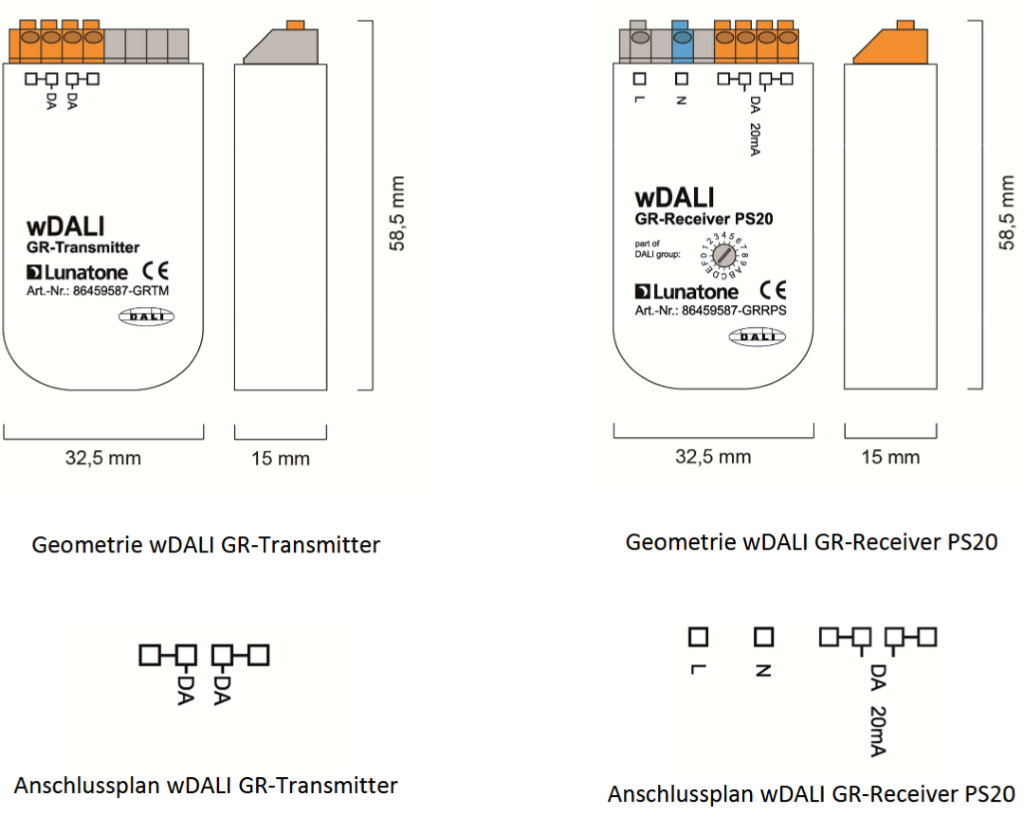

| Dimensions L x W x H | 59 x 33 x 15 mm |
More information about this product can be found in the data sheet in the Download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | DALI, WDALI (Lunatone) |
