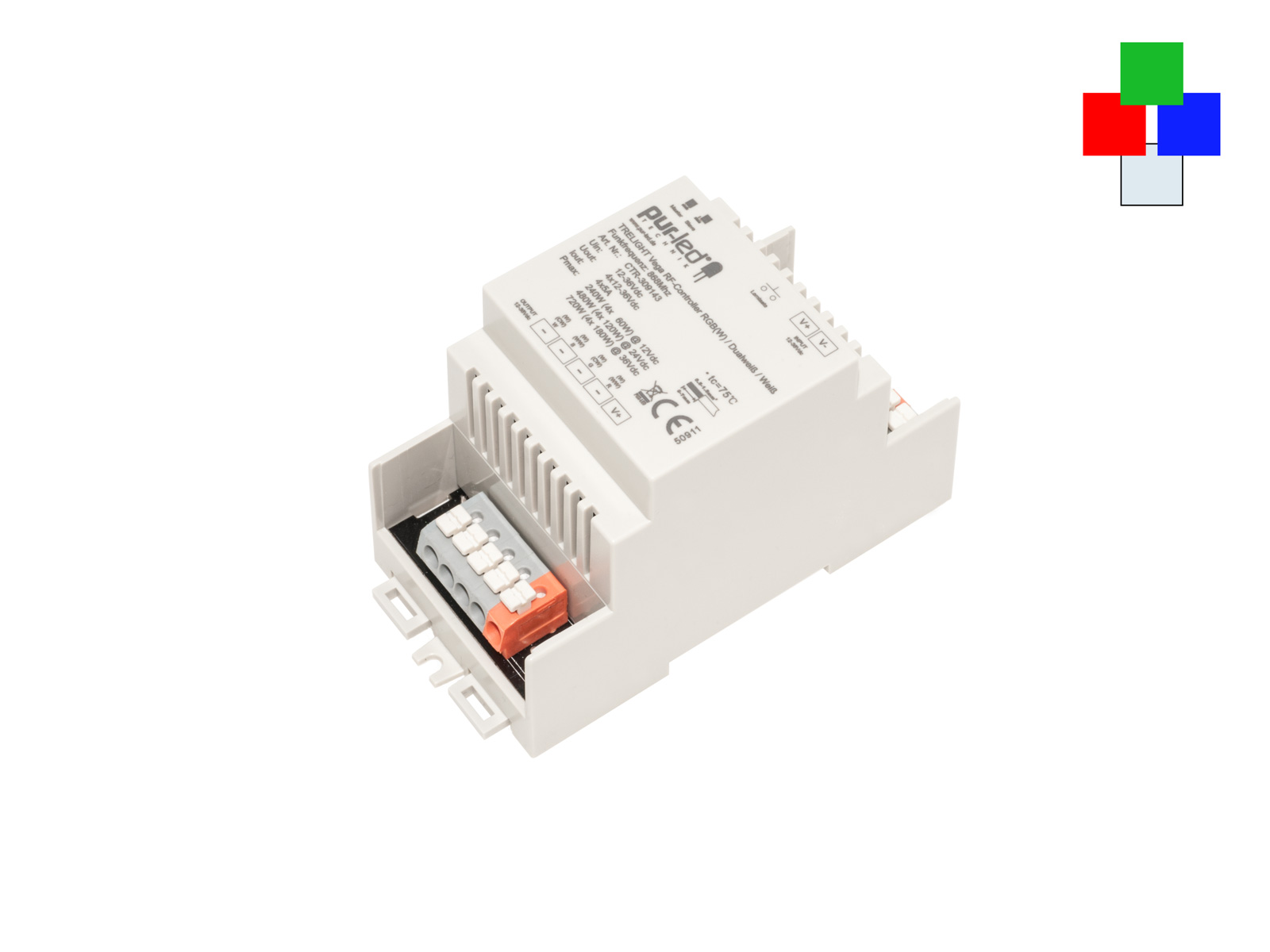

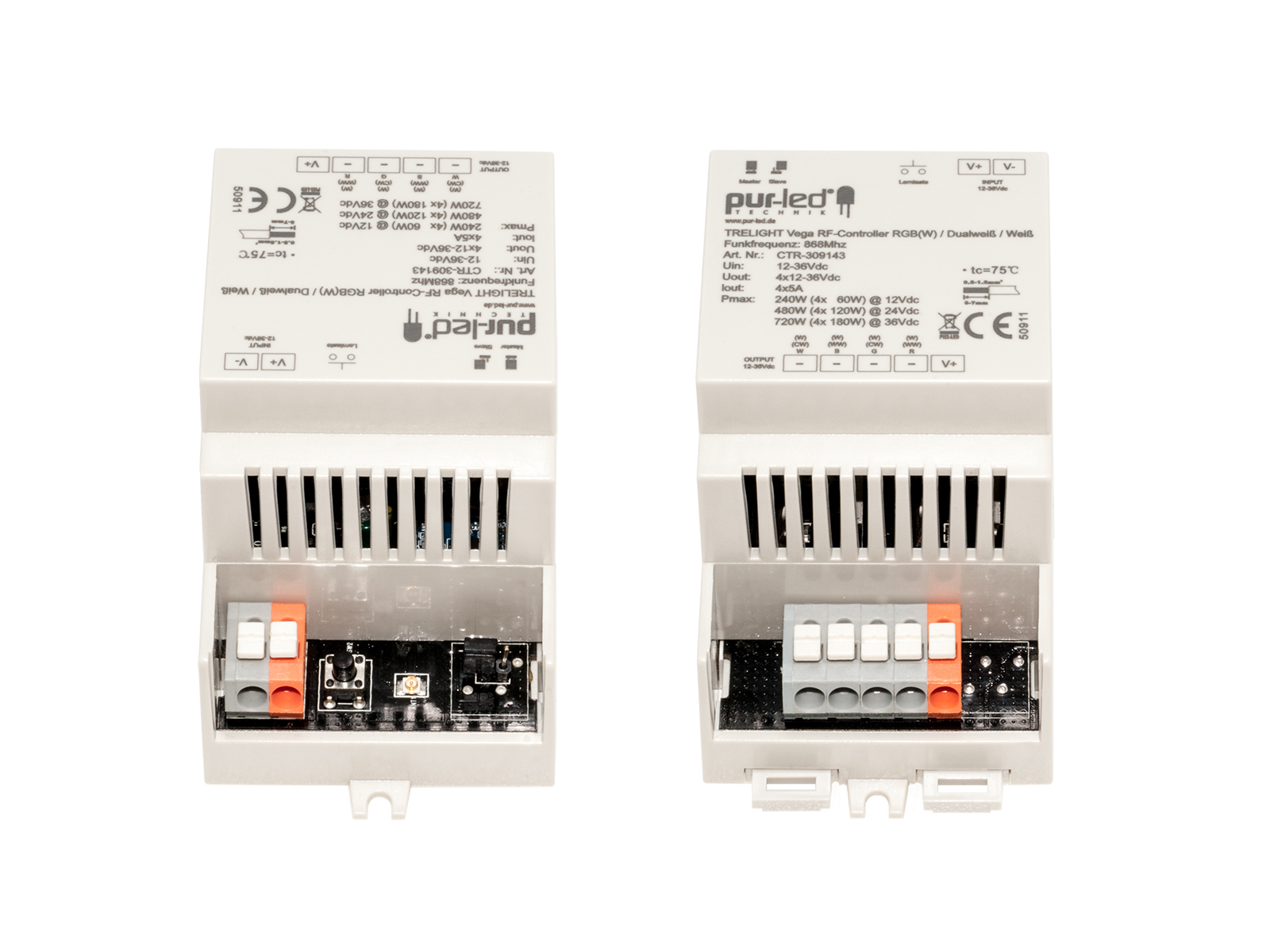

TRELIGHT Vega Funk Controller RGBW 4x5A DIN Rail
€97.28*
net-price: €81.75delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "TRELIGHT Vega Funk Controller RGBW 4x5A DIN Rail"
RGBW Radio Controller RGBW 12-36Vdc/4x5A DIN Rail TRELIGHT Vega
Experience the new TRELIGHT Vega series, which finally enables modern lighting control by radio and APP via Wifi/WLAN. With the TRELIGHT Vega radio controller here in the variant with 4 x 5A DIN _Rail, you have the ideal basis for intelligent lighting control in your home. With the practical control via smartphone, tablet, wall control or remote control, you can conveniently control your home in up to 8 zones.
The TRELIGHT Vega series offers you a variety of control options for your LED light sources. You can optionally integrate your lighting technology in your own WLAN network and thus enjoy the full comfort of modern lighting technology.
Thanks to the TRELIGHT Vega Bridge, a control option via Wifi/WLAN with your smartphone or tablet is possible. Simply via your router (WLAN router and TRELIGHT Vega Bridge is required) you can access the controller and control your lighting.
Use the TRELIGHT Vega Memory Line or the Vega Multicomfort remote control for convenient control via radio. With the TRELIGHT Vega wall control RGBW or dual white, you also have the option of controlling your light sources directly on the wall.
The TRELIGHT Vega radio controller RGBW CCT is the perfect choice for anyone looking for simple and convenient lighting control. Discover the TRELIGHT Vega series now and make your home a smart home.
This multifunctional combinable system fulfils almost every wish. Control and dim
- Single color LEDs
- Dual white LEDs
- Tri-colour white LEDs
- RGB LEDs
- RGBW LEDs
Overview TRELIGHT Vega Serie
| Controller | connection | operation via |
| RGBW Wireless Controller 4x 5A RGBW Wireless Controller 4x 8A RGBW Wireless Controller 4x 5A DIN Rail RGB-Dual LED Controller 12-36Vdc/5x8A | TRELIGHT Radio | radio remote control 1 Zone |
optional via: | Tablet or smartphone via router WLAN, LAN, WAN |
Technical data TRELIGHT Controller RGBW DIN rail:
| Power supply | 12-36 Vdc |
| Maximum load 4-channel Operation: | 4x 5A |
| Maximum load 3-channel operation: | 3x 5A |
| Output power | max. 240 W @ 12 Vdc / 480 W @ 24 Vdc / 720 W @ 36 Vdc |
| Channel polarity | R- / G- / B- / W- / common positive pole |
| PWM frequency | 750 Hz |
| Operating temperature | -10 to + 60 °C |
| Storage temperature | -20 °C to + 60 °C |
| Dimensions (LxWxH) in mm | 109x53x63 |
For further technical data and information please refer to Downloads.
| ·Color Temperature/Color: | RGB/3-Ch, RGBW/4-Ch, Tuneable White |
|---|---|
| ·Dimmable/Control: | TRELIGHT wireless |
PUR-LED GmbH & Co.KG
was founded in 2004 and transformed into PUR-LED GmbH & Co. KG IN 2009. The company specializes in LED strips, LED panels, power supply units, control units/controllers and LED aluminium profiles.
For more than 10 years we have been offering products from the manufacturer PUR-LED worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the Items you need, or give us a call.
PUR-LED GmbH & Co. KG
Dr.-Dieter-Curschmann-Str.9 - 55278 Undenheim - Germany
