Product information "Thanos EVO room control unit"

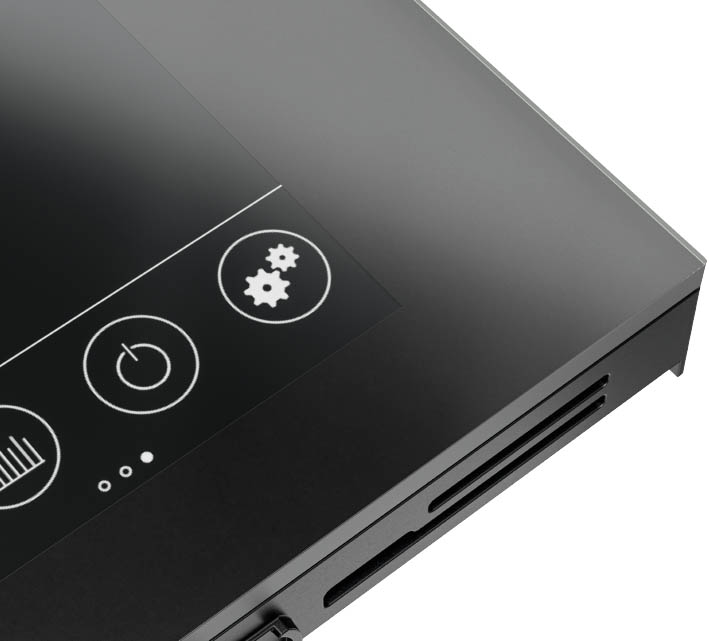

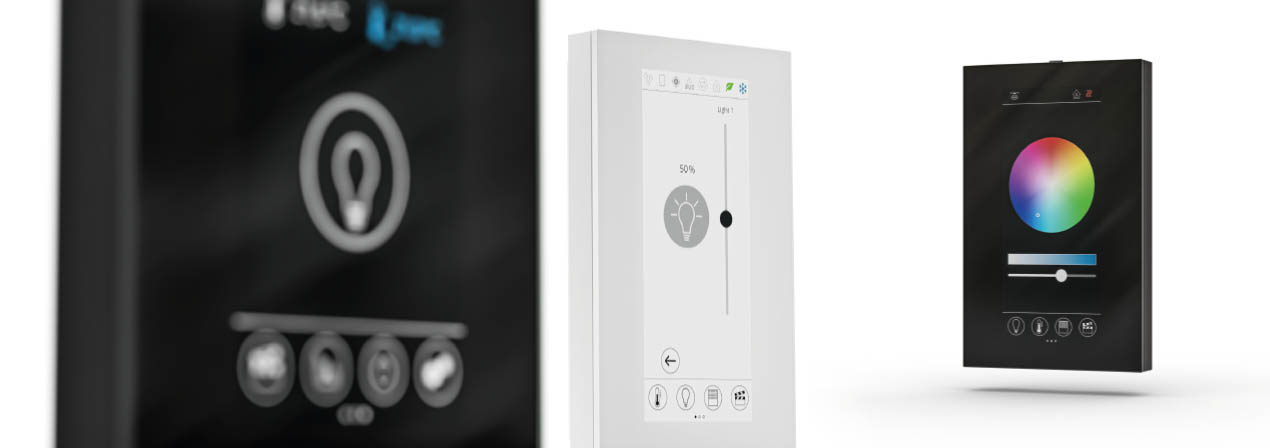

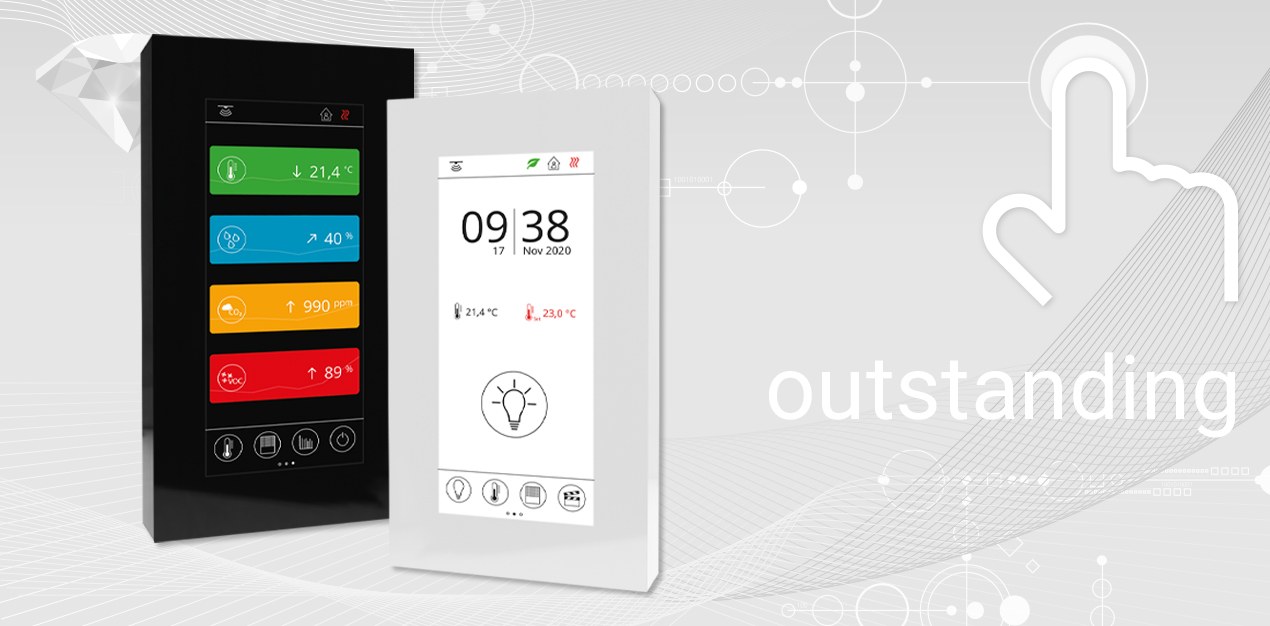

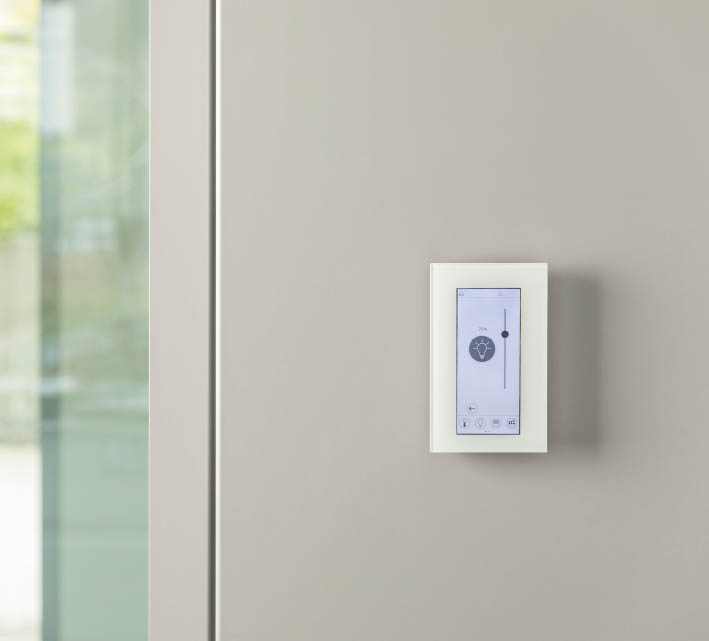

thanos EVO modern room control unit with touch display
With the modern and elegant room control unit thanos EVO you get a premium solution for intelligent room automation that convinces with elegance, value and innovation. A simple and self-explanatory room control is just as convincing as the innovative features and the noble real glass Surface.
The intuitive operation is done via a high-resolution 4.8 inch touch display with unique look and feel. In addition to temperature and humidity, there is the option (depending on the model on request) to measure the air quality parameters CO2 and VOC. A convenient blind control is just as convincing as the display of short text messages, the use of 2D room graphics or changing user groups for lighting Control.

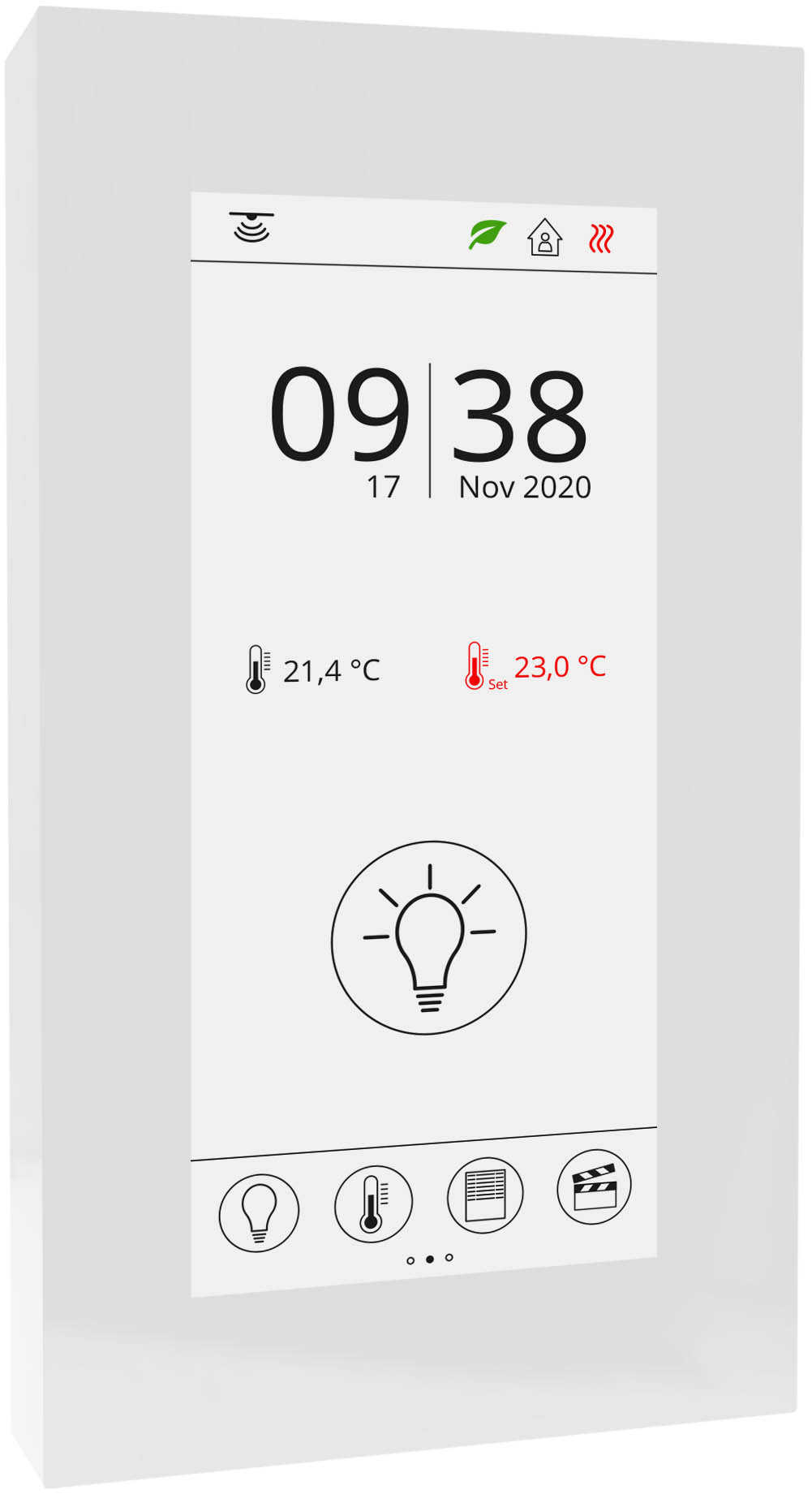

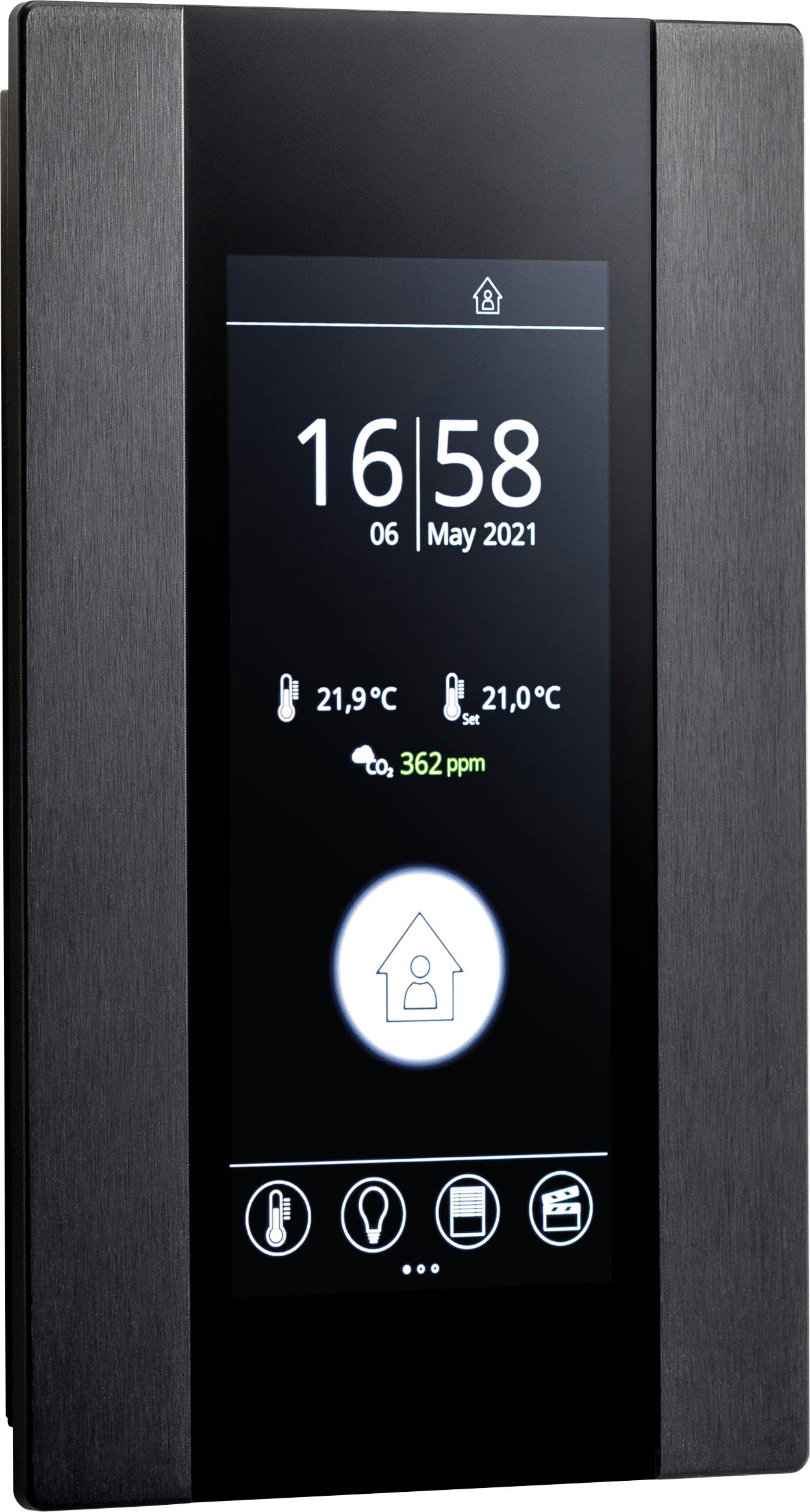

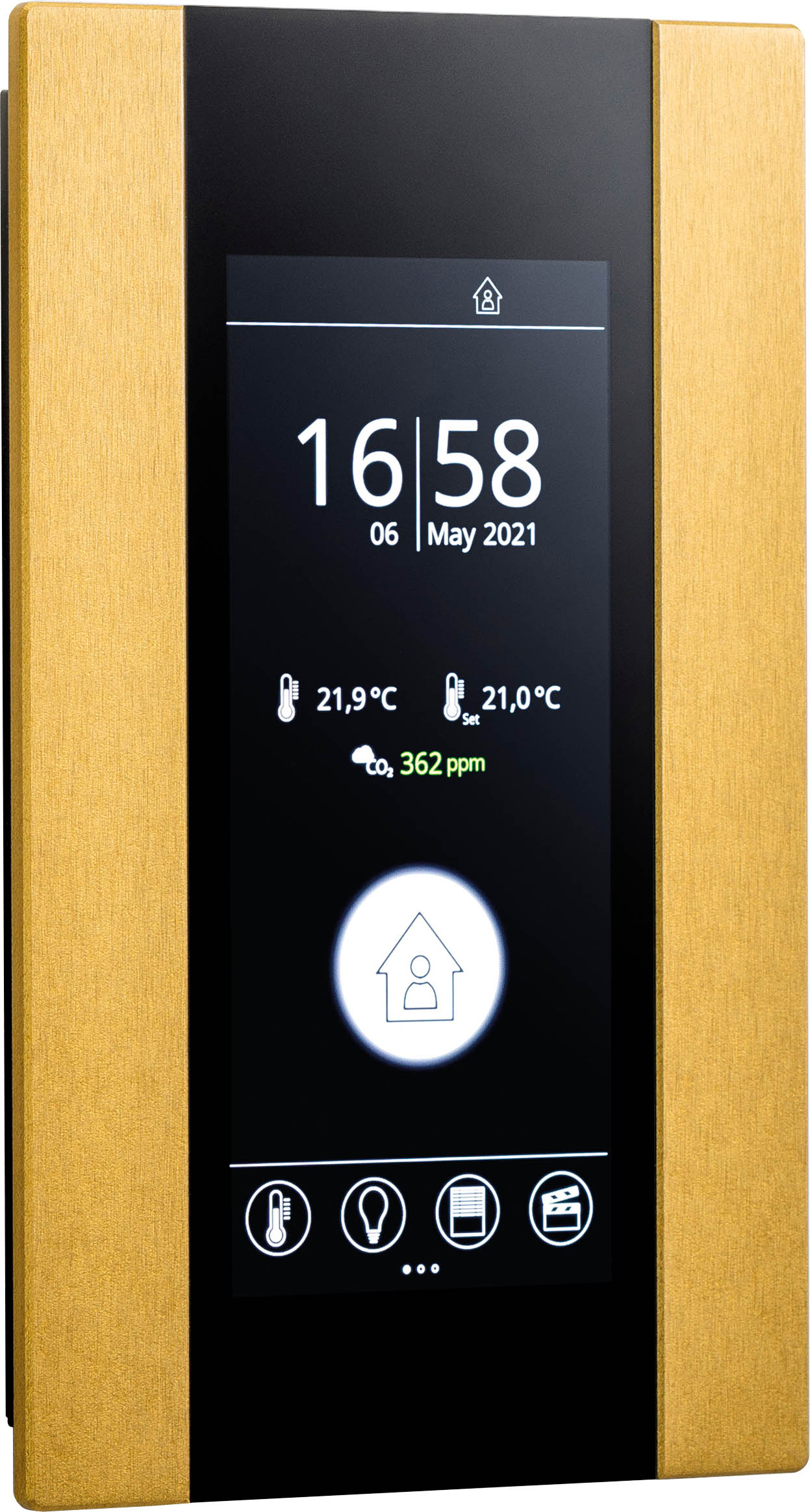

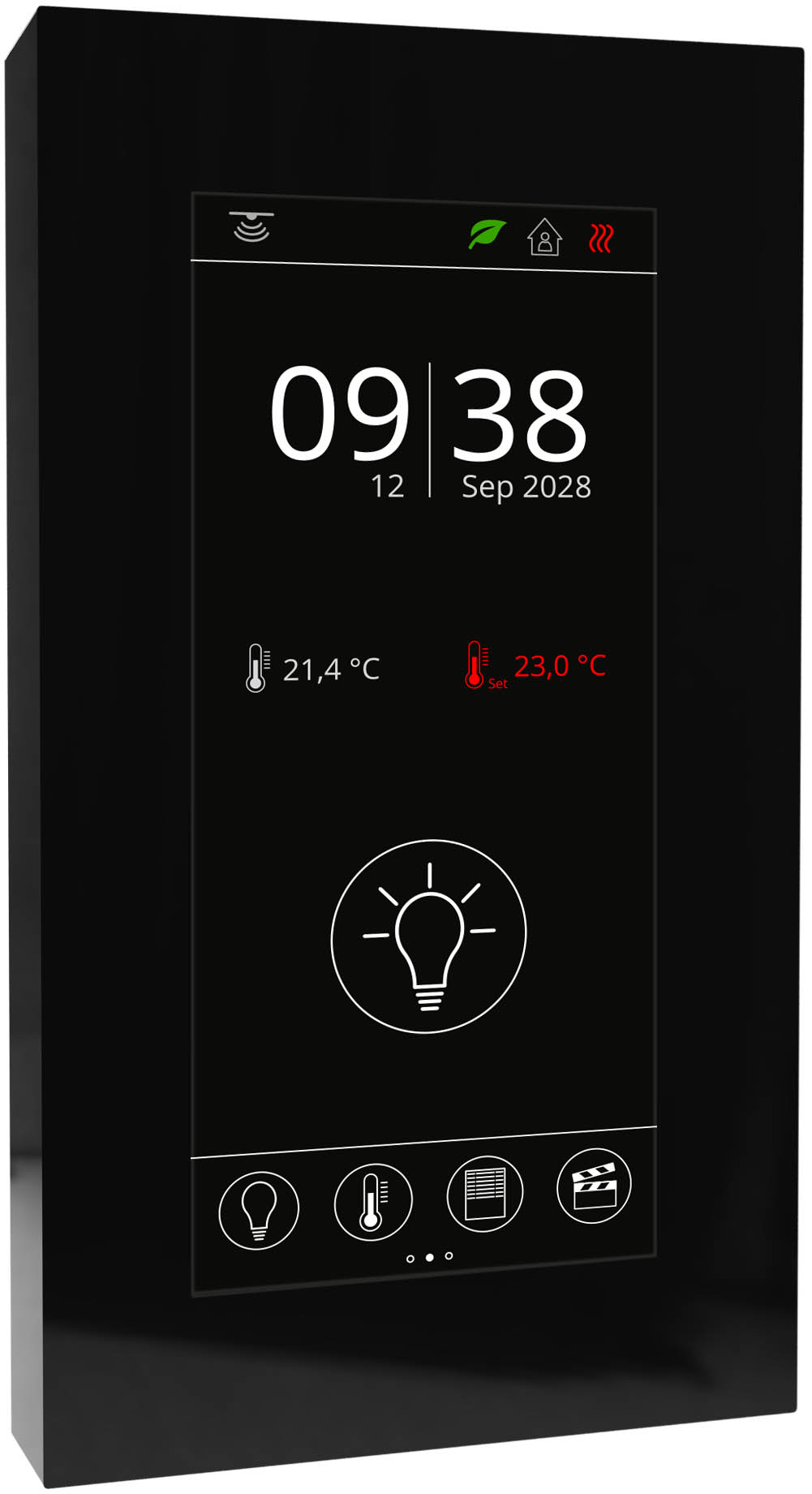

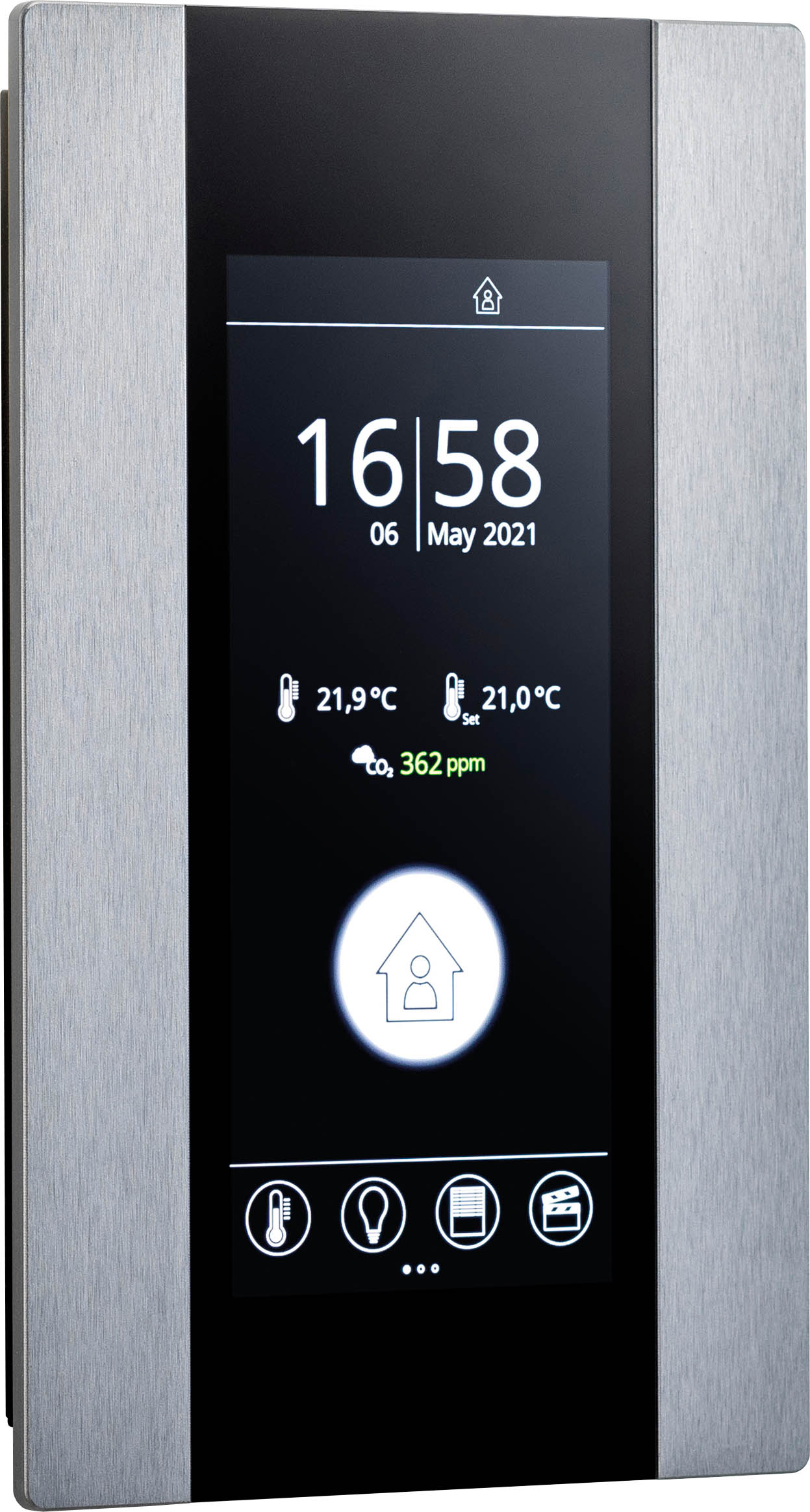

thanosEvo is available in white and black. In addition, various design frames (gold, silver, graphite, black) are available on request.
Functions of thanos EVO room control unit:
- Advanced lighting control:
On/Off/Dimming | Color temperature | RGB Change - blind Control
- Climate control
- Sensors for Temp, rH available (depending on model)
- Optional connection to building control system with different interfaces:
KNX and Modbus, as well as LON, BACnet (on request) - NEW: Together with Casambi® and thanos EVO you now have all possibilities in one device. Please feel free to contact us
Accessories for the Thanos EVO room control unit:
Here you can order optional accessories >>> Link
Technical data:
| Measured variables | temperature, optionally humidity depending on device |
| Network technology | KNX or Modbus, others available on request (LON, BACnet) |
| Power supply | 24 V = (±10%) SELV |
| Power consumption | typ. 2,5 W (24 V =) |
| Measuring range temperature | 0..+50 °C |
| Accuracy temperature | ±0,5 K (typ. at 21 °C) |
| Measuring range humidity (optional) | relative humidity: 0..100% rH enthalpy: 0..85 KJ/kg absolute humidity: 0..50 | 0..80 g/m³ dew point: 0..+50 | -20..+80 °C |
| accuracy humidit | ±2% between 10..90% rH (typ. at 21 °C) |
| Operating functions | Presence detection, light on/off/dim, call up scenes, blind up/down, slat adjustment, fan steps, setpoint adjustment, ECO function, RGB color temperature / measured value display & history |
| Display | TFT 4,8", 1120x480 px, capacitive touch technology |
| Color | white or black |
| Case | PC V0 and glass, design surface glass |
| Protection class | IP30 according to DIN EN 60529 |
| Ambient condition | 0..+50 °C, max. 85% non-condensing |
| mounting | in standard flush-mounting box (Ø=60 mm), lower part of housing can be pre-assembled and wired separately from upper part of housing |
History (Previous) from Thanos EVO room Control
- Thermokon X-TK-613439 - Thanos dS room control
For more information, please refer to the data sheet in the download tab.
| ·Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio, KNX |
|---|
