TCI PROFESSIONALE DALI NFC 38W 300-1050mA

TCI PROFESSIONALE DALI NFC 38

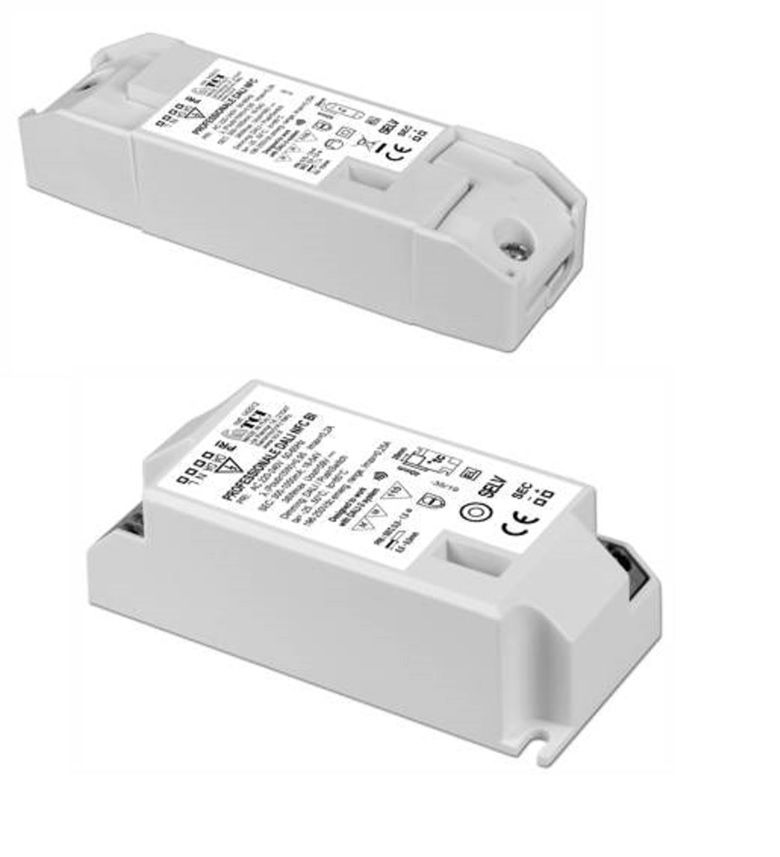

With the TCI PROFESSIONALE DALI NFC 38W "300-1050mA" LED driver, you can experience a new dimension in LED lighting control. Discover the next level of LED lighting control with the TCI 142010 and TCI 142012 BI LED driver, a masterpiece of technology and design, made in Italy to the highest standards. Versatile multi LED driver DALI, where the operating current can be set precisely to 1mA, constant current from 300-1050mA. This multi LED driver has an integrated NFC interface.

Features and functions:

• Multipower driver supplied with NFC for the selection of the output current.
• IP20 independent driver, for indoor use (PROFESSIONALE DALI).
• Class II protection against electric shock for direct or indirect contact (PROFESSIONALE DALI).
• Driver for built-in use (PROFESSIONALE DALI BI).
• It can be used for lighting equipment in protection class I and II (PROFESSIONALE DALI BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm (PROFESSIONALE DALI).
• Driver can be secured with slot for screws

Protective measures:

• against overheating and short circuits;
• against mains voltage peaks;
• against overload.
• Thermal protection = C.5.a.

Operating mode:

• WIRELESS PROGRAMMING through NFC antenna
• Programmable Features:
  • Output current Setting, step 1mA;
  • PUSH-SWITCH (enable/disable);
  • Password (lock/unlock programming);
• Compatible with standard DALI interface.
• Features DALI dimming (0/1 - 100%, Minimum output current 7 mA):
  • Memory function for sets or light groups;
  • recall of stored functions
• Dimming method is AMPLITUDE.
• Light Regulation 0/1- 100 % by means of PUSH SWITCH function (mains voltage):
  • a short push to turn on and off;
  • a longer push to increase or decrease light intensity;
  • Regulation otomatically stops at Minimum and maximung values;
  • for another on, Regulation or off command, release the push button and give the desired command again;
  • dimming Level Memory ar mains restore.

Technische Daten

!!! Note the programmable characteristics of the driver !!!

For further information, please refer to the current data sheet under Downloads.
