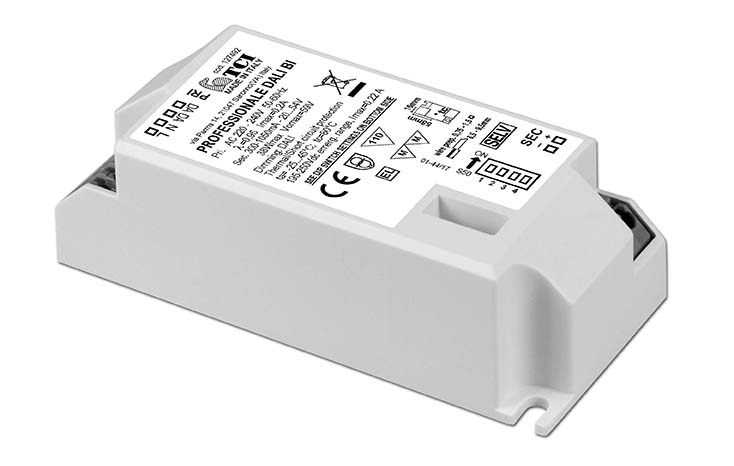

TCI Professionale DALI 38

Direct current dimmable electronic drivers with DIP-SWITCH #127490, #127492

Features of Professionale DALI 38

• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use (PROFESSIONALE DALI).
• Class II protection against electric shock for direct or indirect contact (PROFESSIONALE DALI).
• Driver for built-in use (PROFESSIONALE DALI BI).
• It can be used for lighting equipment in protection class I and II (PROFESSIONALE DALI BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm
• (PROFESSIONALE DALI).
• Driver can be secured with slot for screws.
• Protections:
  • against overheating and short circuits;
  • against mains voltage spikes;
  • against overloads.
• Thermal protection = C.5.a.

Operation Mode

• Features DALI dimming (0/1 - 100 %):
  • memory function for sets or light groups;
  • recall of stored functions;
  • compatible with standard DALI interfaces.
• DALI dimming is the default setting ((3) DALI 2.0 ready)
• Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):
  • a short push to turn on and off;
  • a longer push to increase or decrease light intensity;
  • regulation automatically stops at minimum and maximum values;
  • for another on, regulation or off command, release the push button and give the desired command again;
  • dimming level memory at mains restore;
  • keep enabled the SWITCH for at least 10 seconds to reset the dimming level to 30%;
  • keep enabled the SWITCH for at least 60 seconds to enable

Characteristics of this constant current driver:

BILEVEL N function:

• keep pressed for 100% level;
• FADE OFF time is 30 seconds, light level 10%;
• PROLONG time is 30 minutes, then OFF.

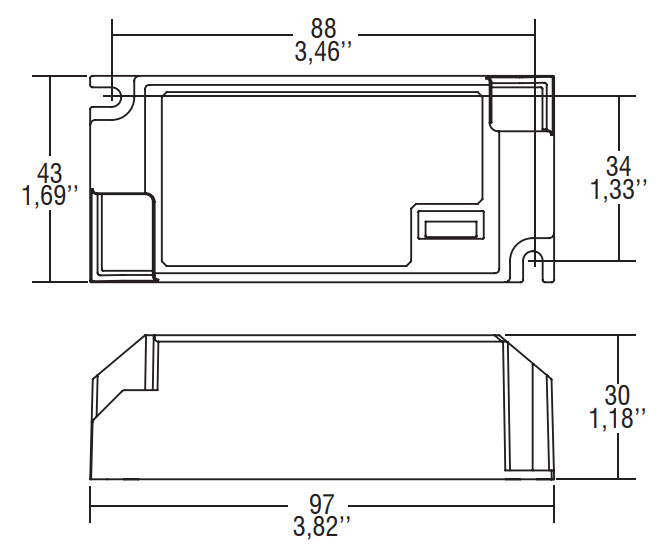

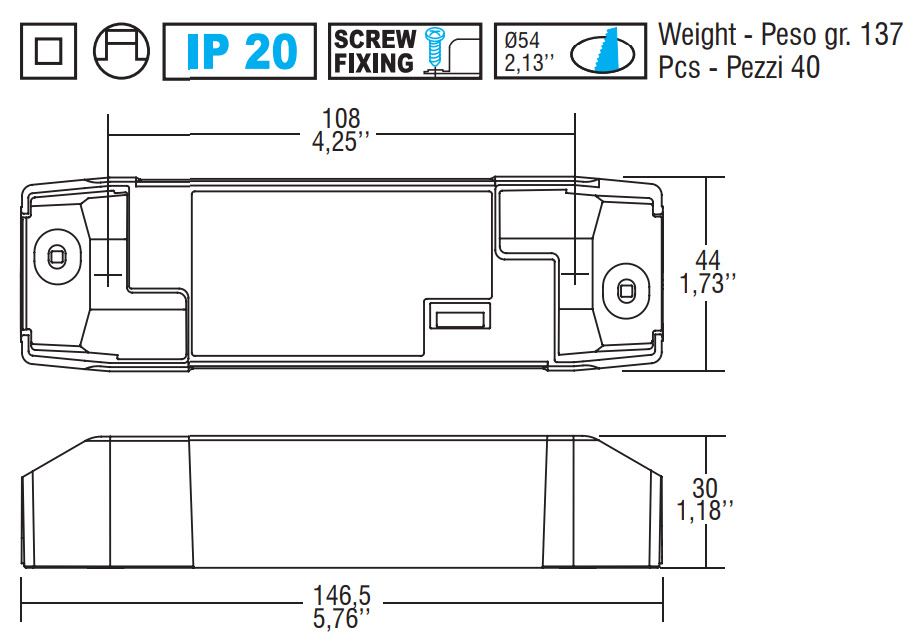

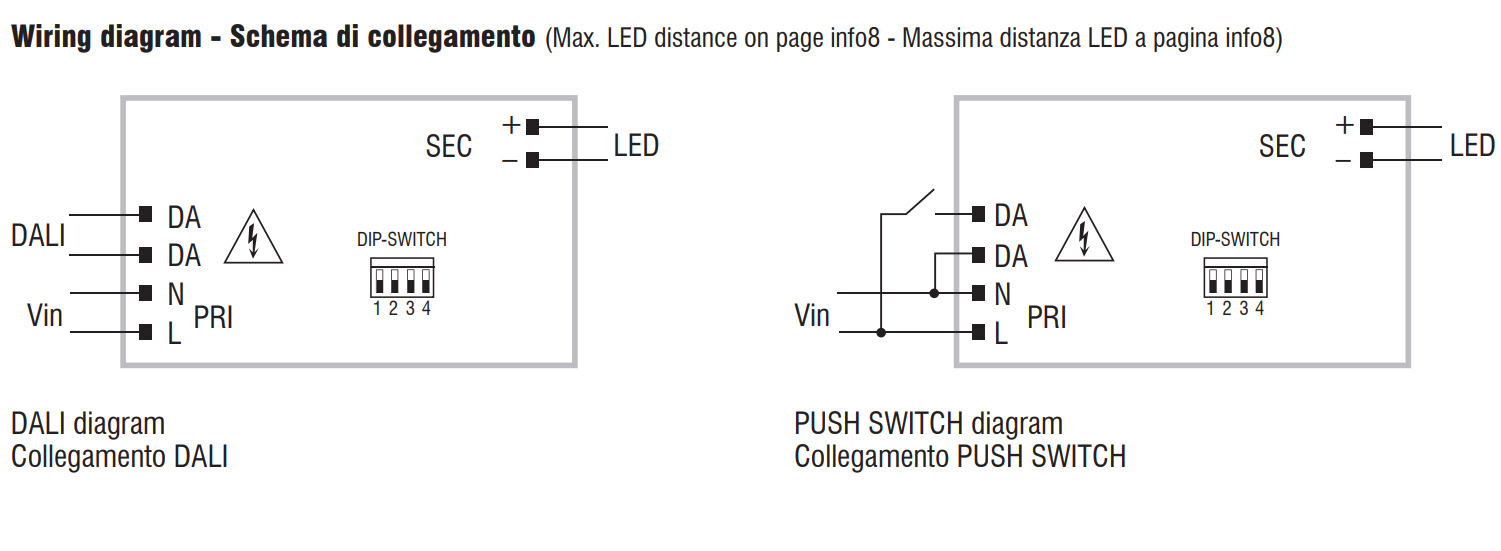

Wiring diagram:

Dip-SW	Power	Voltage out DC	Current out DC
Position 1	16 W	10..54V	300mA const.
Position 2	18 W	10..54V	350mA const.
Position 3	21 W	10..54V	400mA const.
Position 4	24 W	10..54V	450mA const.
Position 5	27 W	10..54V	500mA const.
Position 6	29 W	10..54V	550mA const.
Position 7	32 W	10..54V	600mA const.
Position 8	35 W	10..54V	650mA const.
Position 9	38 W	10..54V	700mA const.
Position 10	38 W	10..51V	750mA const.
Position 11	38 W	10..48V	800mA const.
Position 12	38 W	10..45V	850mA const.
Position 13	38 W	10..43V	900mA const.
Position 14	38 W	10..40V	950mA const.
Position 15	38 W	10..38V	1A const.
Position 16	38 W	10..36V	1,05A const.
