TCI MINI MD LP

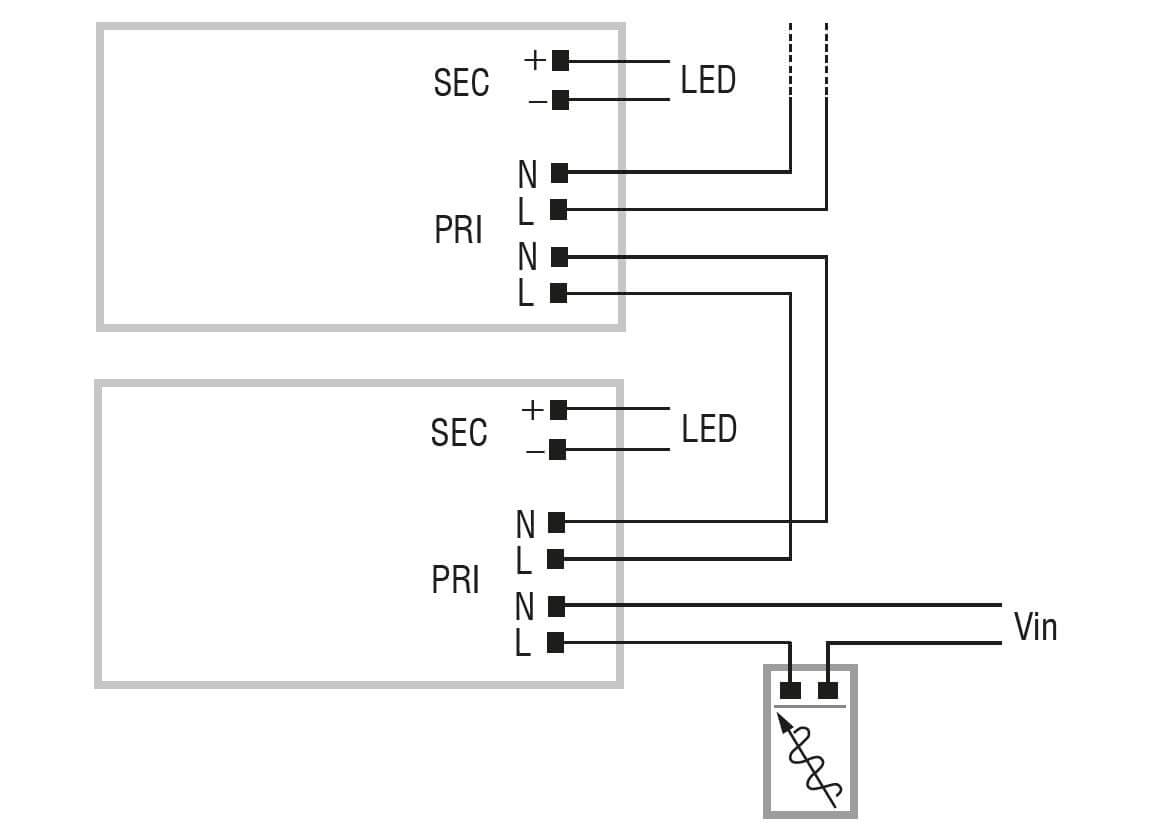

An electronic LED converter to supply constant current and double input terminals for grinding other drivers. Equipped with an active energy factor corrector. Current regulation ±8% including temperature fluctuations. Input and output terminals on the same side (wire cross-section up to 1. 5 mm2 / AWG15). - Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm / SEC 3-5 mm.
- Rated Voltage: 220 - 240 V
- Frequency: 50-60 Hz
- AC Operation range: 198 - 264 V
- Power: 8 - 20 W
Technische Daten
| Article | Code | P out W | V out DC | I out DC | U out V | ta °C | tc °C | max Power Factor | max. Effiziency |
| Konstanter Stromausgang | |||||||||
| MINI MD 250 LP | 127444 | 12,5 | 25...50 | 250 mA | 59 | -25...+50 | 70 | 0,95 | > 89 |
| MINI MD 350 LP | 127445 | 18 | 25...51 | 350 mA | 59 | -25...+50 | 70 | 0,95 | > 89 |
| MINI MD 500 LP | 127446 | 20 | 16...40 | 500 mA | 50 | -25...+45 | 75 | 0,95 | > 89 |
| MINI MD 700 LP | 127447 | 20 | 16...28 | 700 mA | 50 | -25...+45 | 75 | 0,95 | > 88 |
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Power range: | 5 - 20 W |
| ·Dimmable/Control: | Linear/AM, Phase-Cut (Triac) |
| ·Constant Current: | 0,25A, 0,35A, 0,5A, 0,7A |
TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)
is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) for Germany and Europe.
Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
Login
Similar Products
TCI Mini MD is available with different output currents or as a built-in (BI)
