TCI Flat 10 DALI

TCI Pro Flat 10 DALI Driver (142016/142017)

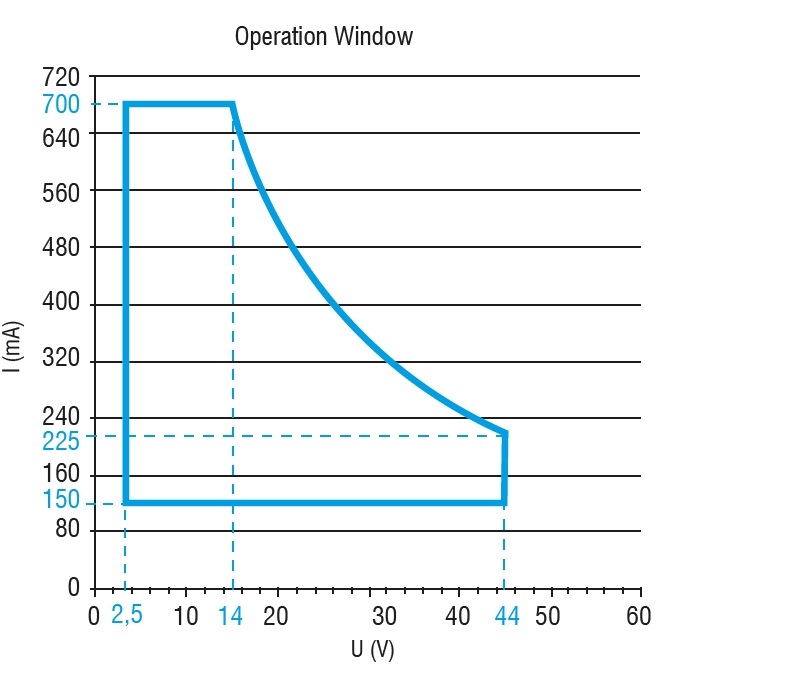

TCI Pro Flat 10 DALI is a flat, electronic driver for constant current with 10W and 150-700mA, which is to be set exclusively via DALI programmer (no coding switch). The driver must be programmed independently, alternatively programming by us is possible on request.
The Pro Flat 10 DALI is dimmable via DALI or Push Switch. The dimming is done by amplitude modulation.

Features of this flat driver (142016/142017 BI-Version)

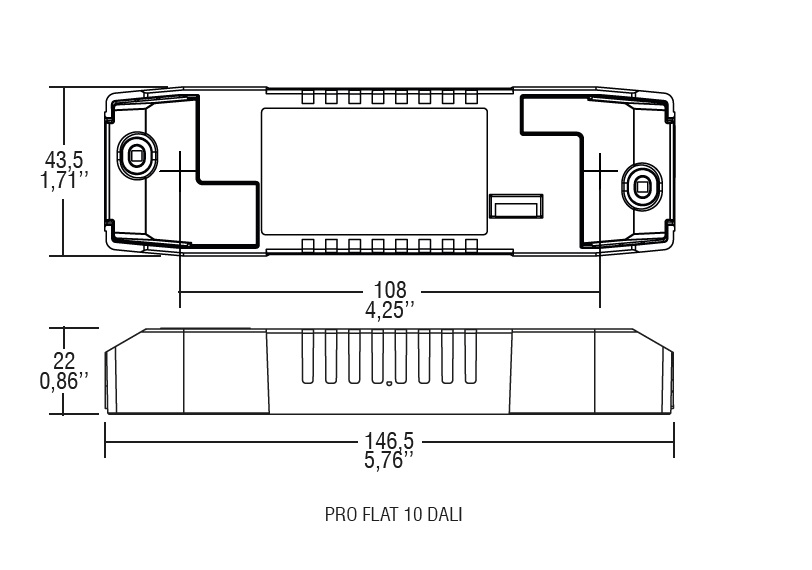

• IP20 independent driver, for indoor use (PRO FLAT DALI).
• Class II protection against electric shock for direct or indirect contact (PRO FLAT DALI).

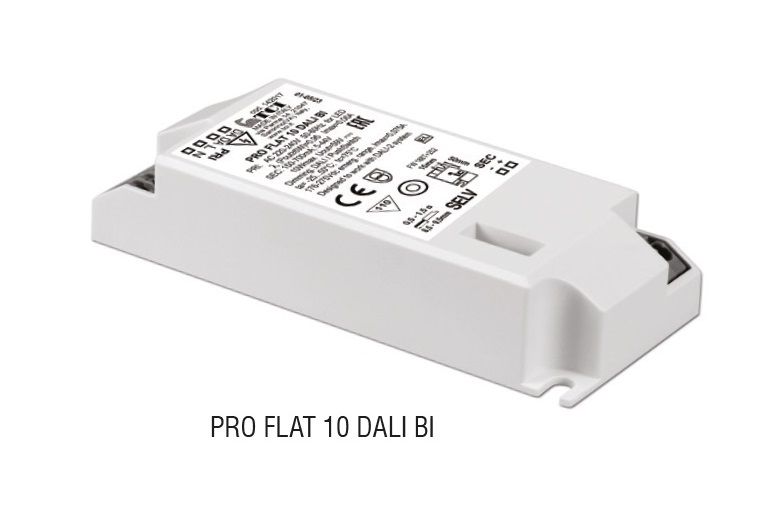

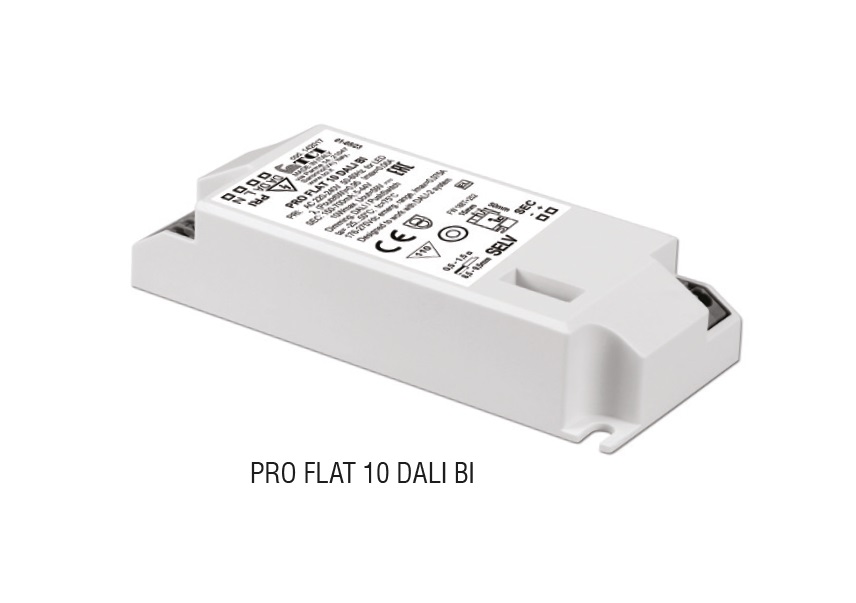

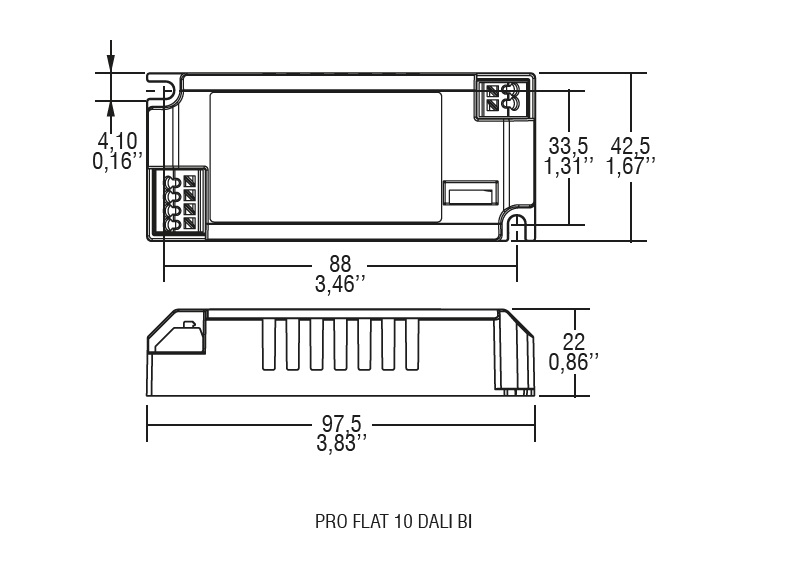

• Driver for built-in use (PRO FLAT DALI BI).
• It can be used for lighting equipment in protection class I and II (PRO FLAT DALI BI).
• Active Power Factor Corrector.
• Current regulation ±7 % including temperature variations.
• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm (PRO FLAT DALI).
• Driver can be secured with slot for screws.
•  Protections:
  against overheating and short circuits;
  against mains voltage spikes;
  against overloads.
• Thermal protection = C.5.a.
• Flicker (Output Ripple) < 3 %

Operation Mode

• Programmable features: PUSH-SWITCH (enable/disable); Password (lock/unlock programming).
• AOC (Adjustable Output Current) via DALI port with DALI PROGRAMMER.
• Compatible with standard DALI interfaces.
• Features DALI dimming (0/1 - 100 %, minimum output current 5 mA):
  memory function for sets or light groups; recall of stored functions.
•  Dimming method is AMPLITUDE.

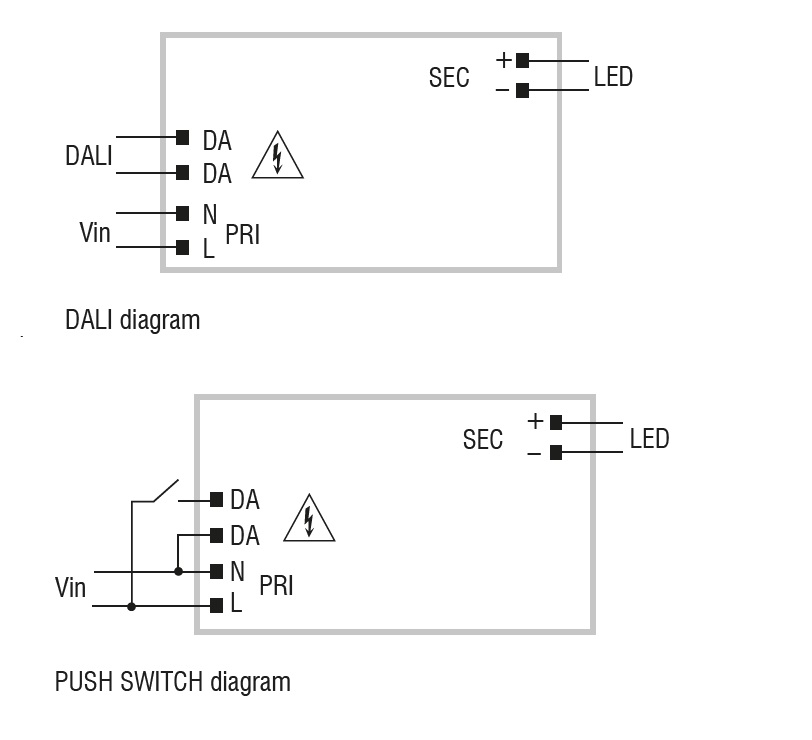

• Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):
  a short push to turn on and off;
  a longer push to increase or decrease light intensity;
  regulation automatically stops at minimum and maximum values;
  for another on, regulation or off command, release the push button and give the desired command again;
  dimming level memory at mains restore.
