Product information "Strada 50 adjustable"
Illuxtron Strada 50
These Illuxtron LED downlights are available in 2700K, 3000K and 4000K. Different housing colours are selectable. They are available for 500mA (5.7W) or 230VAC (6.6W). Suitable for 55mm hole diameter.
The Strada series has a more robust appearance and is easy to install. It is also a lighting solution that brings light to life, ideal for restaurants, hospitality and residential applications.
Compact, technologically innovative and economical.
What makes these little powerhouses so special are the reflectors with micro-facets. These micro facets of the Strada 50 series provide perfect illumination of objects and rooms.
The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good colour rendering
Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.
The not adjustable version can be found here as Strada 35.
The most important technical details of the Strada 50 series:

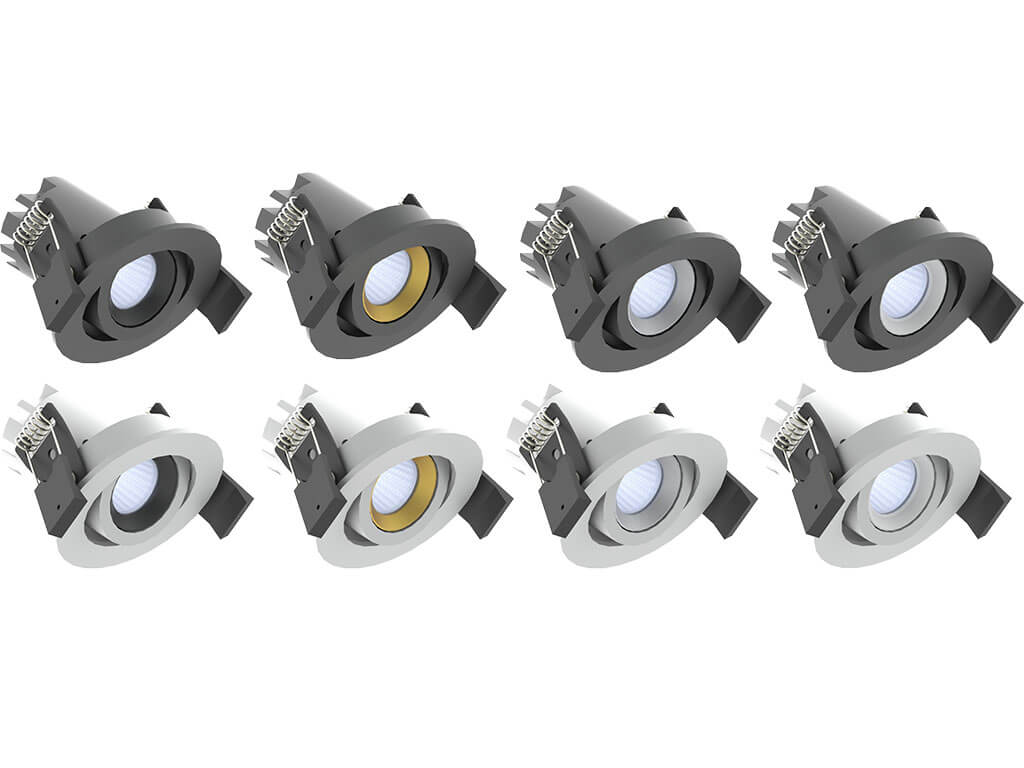

| Housing colour | matt white RAL9016 / gold (XX=61) matt white RAL9016 / silver (XX=63) matt white RAL9016 / white (XX=64) matt white RAL9016 / black (XX=62) matt black RAL9005 / gold (XX=71) matt black RAL9005 / silver (XX=74) matt black RAL9005 / white (XX=75) matt black RAL9005 / black (XX=72) |
| Material | Housing: Die-cast aluminium Reflector glass: Polycarbonate |
| Dimensions | 40 mm x 46,3 mm |
| Hole diameter | 35 mm |
| Required installation depth | > 80 mm |
| Usage | Innenbereich |
| Beam angle (FWHM) | 40° (65° FWTM) |
| UGR | 15,0 / 15,2 / 15,4 |
| CRI / Ra (typ.) | 82 |
| Colour Consistency(MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Safety signs | EN60598 / EN62031 / EN62471 |
| EMV-Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |

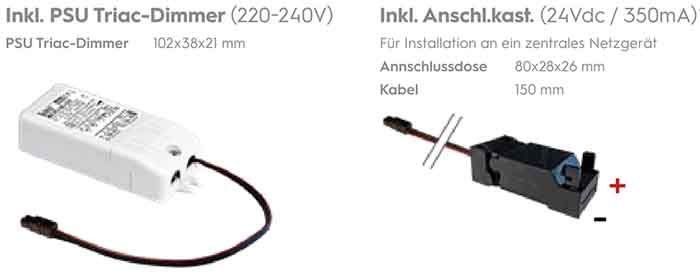

Strada 50 LV - 100-240 V
The power supply is already available in this version. This version is only dimmable (1-10V&Push, DALI, Triac) available.
Further information about Strada 50 LV - 100-240 V Mini Downlights can be found in the data sheet.
| Art.No. | 851A03XX0102 | 851A03XX7202 | 851A03XX0202 |
| Colour temperature | 2700K | 3000K | 4000K |
| Luminous flux | 375 lm | 400 lm | 425 lm |
| Type | Incl. PSU | ||
| Input | 100-240 V | ||
| Power | 6,6 W | ||
| Lm/W (with EVG) | 72 | 76 | 80 |
| Powerfactor | 0,6 | ||
| Protection class | II | ||
| Ripple | < 3% | ||
| Input | 20A 170µS | ||
| Efficiency | 73 | ||
| Dimmability | 1-10V&Push (*Note) | ||
*Note: This version is also available as DALI and Triac dimmable.
Strada 50 LVC - 500 mA
This version has the extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver.
You can order these additionally here: To the overview of suitable 500mA constant current sources (LED drivers).
Further information about Strada 50 LVC - 500 mA Mini Downlights can be found in the data sheet.
| Art.No. | 851903XX01E2 | 851903XX72E2 | 851903XX02E2 |
| Colour temperature | 2700K | 3000K | 4000K |
| Luminous flux | 375 lm | 400 lm | 425 lm |
| Type | Incl. connection box | ||
| Input | 500mA | ||
| Power | 5,7 W | ||
| Lm/W (without EVG) | 83 | 88 | 92 |
| Protection class | III | ||
| Dimmability | Alternative: DALI, 1-10V, Push, Triac(phase dimming) depending on LED driver Selection | ||
For data sheets of the Strada 50 series mini downlights, see download tab.
Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K |
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
| ·Hole diameter: | 50mm |
| ·Lamp shape: | Recessed ceiling |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
