Product information "Lunatone power supply PS 24"
24 V Power Supply Lunatone PS 24
The 24V Power Supply from Lunaton is the ideal solution for your power supply requirements and offers many different application possibilities. This power supply is available in three versions, each offering different output currents to allow flexible customisation to your specific requirements. Thanks to its IP20 protection, the power supply unit is ideally suited and protected for indoor use.

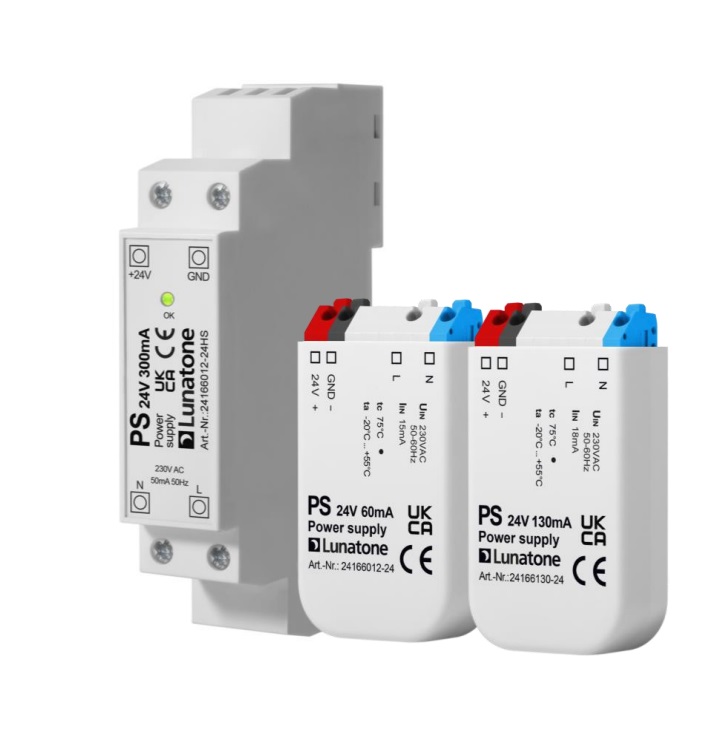

Variants of the 24 V power supply

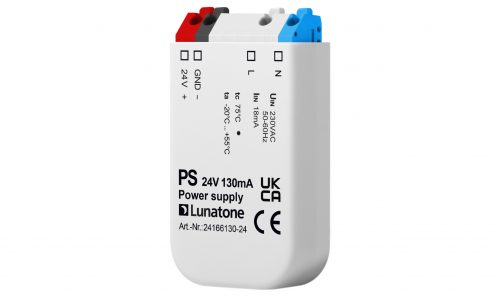

- 130mA output current - socket installation
- 60mA output current - box installation
- 300mA output current - DIN rail mounting
Features of the Lunatone PS 24 power supply
- 24V DC power supply: Stable and reliable supply for your electrical devices.
- Output current: Depending on the variant selected, the power supply unit offers a maximum output current of 130mA, 60mA or 300mA.
- 24166012-24 and 24166130-24: Installation as a box module, ideal for installation in standard installation boxes.

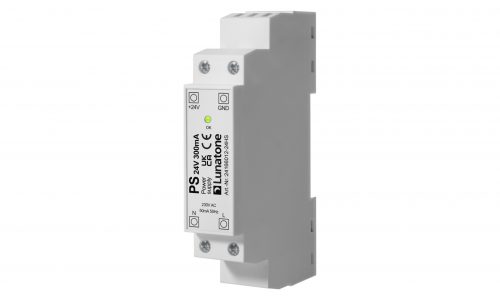

- 24166012-24HS: DIN rail module with status LED, perfect for mounting on DIN rails, allowing easy integration into control cabinet applications.
Advantages PS 24V
- Easy to install: The variants for installation boxes are ideal for conventional electrical installations, while the top-hat rail module with status LED enables quick and clear integration into industrial environments.
- Reliability: Robust design and high-quality components ensure a long service life and reliable operation.
| Type | PS 24V 60mA | PS 24V 130mA | PS 24V 300mA |
| Artiklenumber | 24166012-24 | 24166130-24 | 24166012-24HS |
| Electrical data | |||
| input voltage | 230 V AC | 230 V AC | 230 V AC |
| Input current | 15 mA | 18 mA | 50 mA |
| Output voltage | 24V DC | 24V DC | 24V DC |
| max. output current | 60mA | 130mA | 300mA |
| General data | |||
| Mounting | Installation box | Installation box | DIN rail |

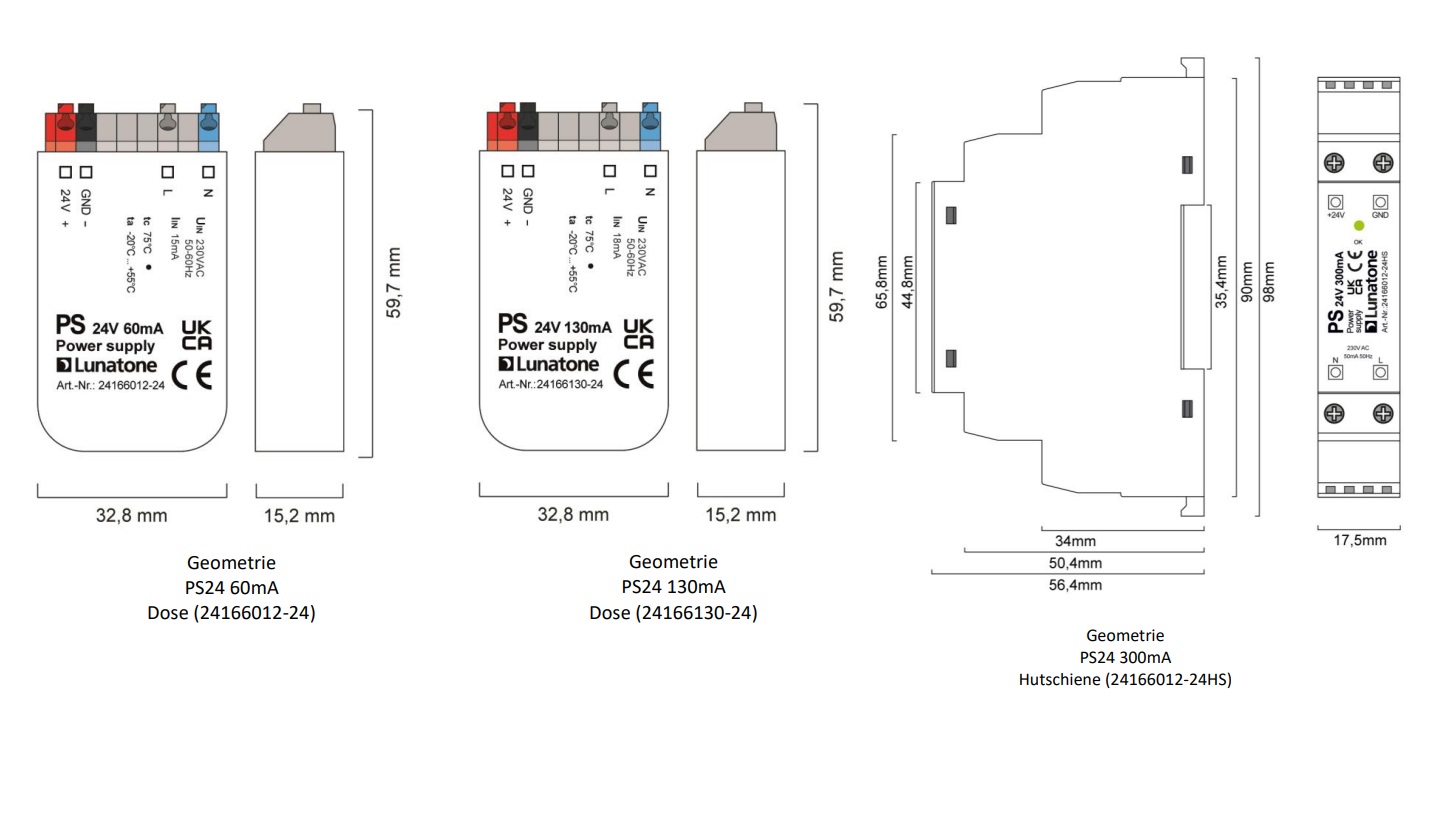

| Dimensions (L x W x H) | 60 x 33 x 15 mm | 60 x 33 x 15 mm | 98 x 18 x 56 mm |
| Protection class | II | ||
| Protection class | IP20 | ||
| Ambient conditions | |||
| Storage/transport temperature | -20°C … +75°C | ||
| Operating temperature | -20°C … +55°C | ||
Choose the 24V Power Supply from Lunaton and benefit from a stable and efficient power supply that can be seamlessly integrated into your existing systems.
Further data can be found in our download tab
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|
Lunatone Industrielle Elektronik GmbH
Lunatone started off in 1993 as a development office and spin-off from the Vienna University of Technology. A few years later, in 2000, Lunatone Industrielle Elektronik GmbH was founded due to the growing demand. From the beginning, customized solutions were offered in the areas of DALI lighting systems, electronic information technology and industrial electronics. Customer satisfaction has always been our highest Goal. The range extends from operating modules, control units & sensors, phase dimmers, actuators & signal converters, 230VAC, 48V, 24V operating devices, DALI bus supplies & extensions through to interfaces, tools & Gateways. For more than 10 years we have been offering more than 100 products from the manufacturer Lunatone worldwide.Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
Lunatone GmbH
Paukerwerkstraße 5 - 1210 Vienna - Austria
Login
Similar Products
Related Products

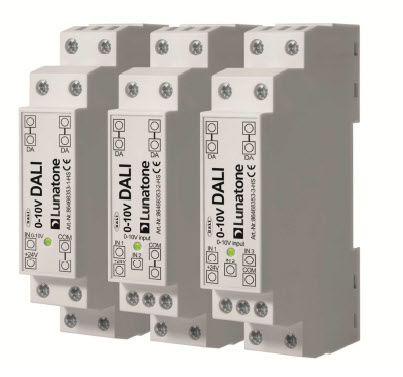

Implementation of 1-10V to DALI incl. 30mA DALI supply for DIN rail mounting
delivery time 2-4 Working days*
delivery time 5-10 Working days*
delivery time 5-10 Working days*

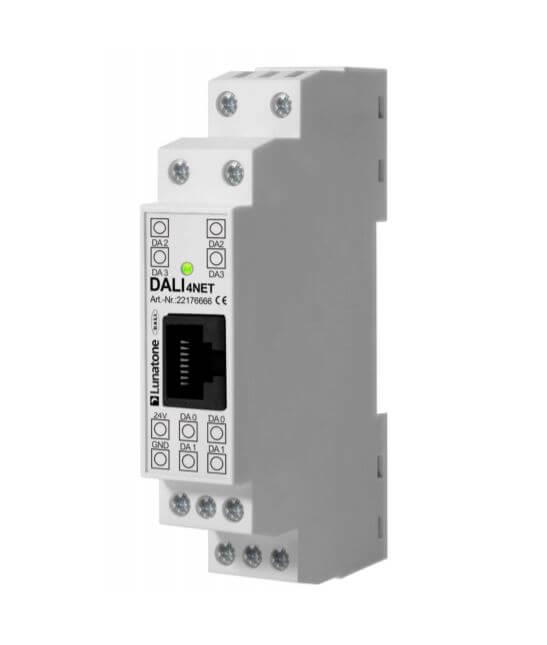

- Unabhängige Lichtsteuerung für bis zu 256 DALI Betriebsgeräten an 4 DALILinien
