Product information "Phase section rotary dimmer"
Phase section rotary dimmer for halogen and incandescent lamps
- Phase section rotary dimmer for powers of 20-315 W
- 230 V AC, 50 Hz
- For low-voltage halogen lamps (with electronic transformers) and incandescent lamps or HV halogen lamps
- Dimming principle: phase section
- Low noise, with temperature switch
- With pressure changeover switch

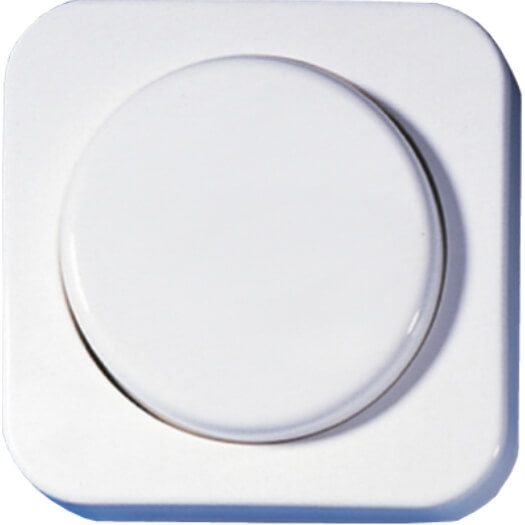

- Optionally available with cover frame (pure white - frame width 82 mm, rocker dimension 58.6 x 58.6 mm) and cover for rotary dimmer and potentiometer (pure white - rocker dimension 58.6 x 58.6 mm)
Technical specifications
| Rated capacity | 20-315W |
| Load type | universal |
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Dimensions | 70x70x35 mm |
| Diameter shaft | 4 mm |
| Dimming principle | trailing edge |
| Thermal fuse | yes |
| Pressure-way switch | yes |
| Method of operation | Rotary / pushbutton |
| Mounting | flush |
| Method of Mounting | clamping / screw |
| Protection type | IP20 |

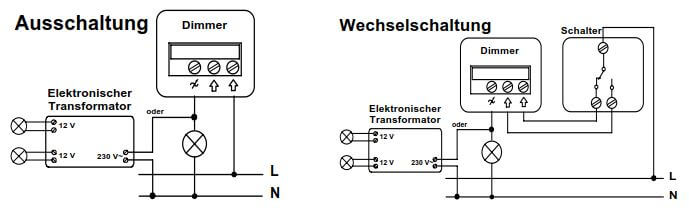

Further information as well as the Manual can be found in the Download tab.
| ·Dimmable/Control: | Phase-Cut (Triac) |
|---|
