Mini Casambi Interface

Product information "Mini Casambi Interface"

Mini CASAMBI interface from TCI dimmable

With this wireless CASAMBI interface dimming is made via 0/1-10V & Push-Button function.
It is switched in front of a LED driver with normal 1-10V dimmable control input, then you can remotely control your lighting via an app on your smart device, and via optionally available CASAMBI wall switches and / or a CASAMBI remote control.


Features:

  • Interface which can convert a WIRELESS CASAMBI signal into a 0/1...10 V signal.
  • Class II protection against electric shock for direct or indirect contact.
  • The converter can be powered directly from the mains (100 ÷ 240 VAC).
  • Protections:
- against input over voltages from mains;
- against short circuit and open circuit;
- thermal.

Additional features:

  • Rated Voltage:

-100V
-110-127V
-220-240V

  • Constant Current (for POWER LEDs)
  • Constant Voltage (for LEDs STRIP)
  • SELV <60
  • Wide range input voltage
  • Low voltage input (CL III)
  • 12V AUX. output
  • Plastic case: IP20 (Independent Use)

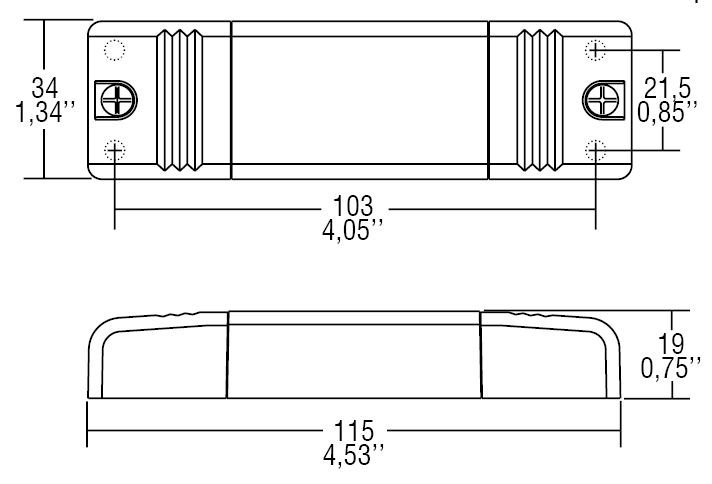

  • Minimum cut-out hole diameter: 40mm
Casambi Logo  SELV60V

ArticleArticle No.VAC inTypeta °Ctc °Clambda max.
Power Factor
Mini CASAMBI Interface TW127637100 ÷ 240CASAMBI - 1...10V-25...+50650,5 C
Mini CASAMBI Interface RGBW127638100 ÷ 240CASAMBI - 1...10V-25...+50650,5 C

12V-Sync  Mini Casambi IP20

Operation mode:

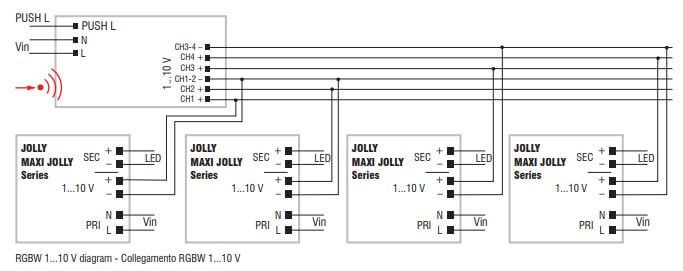

RGBW mode: 4 x 0/1-10V (4 x 10mA max) independent (CH1...4).

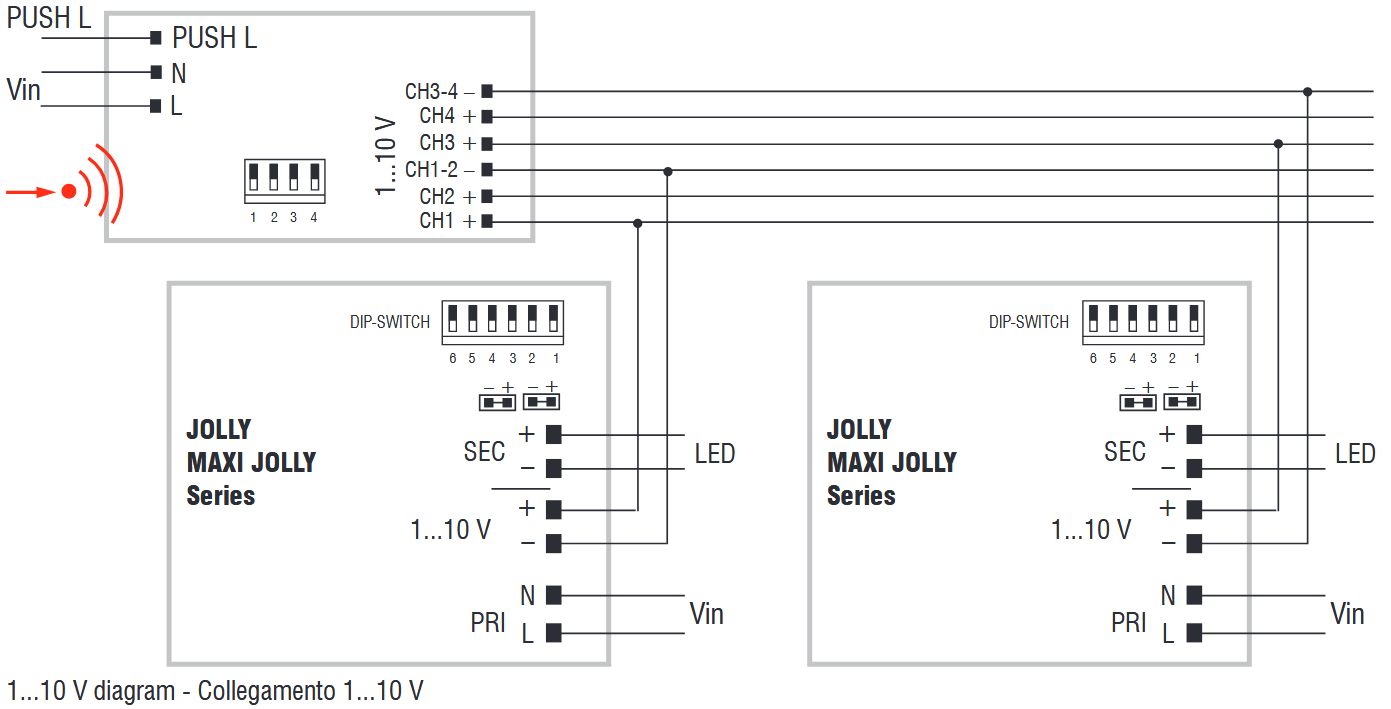

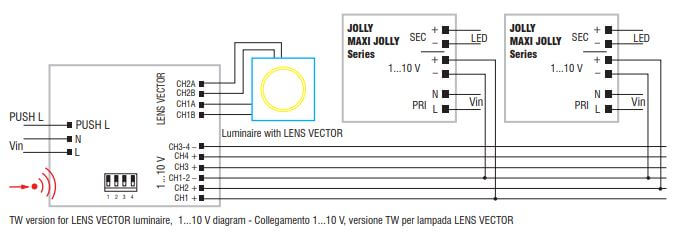

TW mode: 2 x 0/1-10V (2 x 10mA max) independent (CH1-2).

CASAMBI QR-Code and Links (direct download)
Check signal level when close to metal surfaces or inside metal box.
The data shown are preliminary and may change


For more information please refer to the data sheet:
Properties "Mini Casambi Interface"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: RGBW/4-Ch, Tuneable White
·Constant Voltage: 12V
·Dimmable/Control: 1..10V, Casambi radio, Push-Button
Datasheet & further Infos about this product

Data sheet Mini Interface

Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) worldwide.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma, 14 – Saronno 21047 (VA) – Italy


E-Mail: m.librandi@tci.it
