Meanwell NPF-60 power supply
€29.27*
net-price: €24.60delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Meanwell NPF-60 power supply"

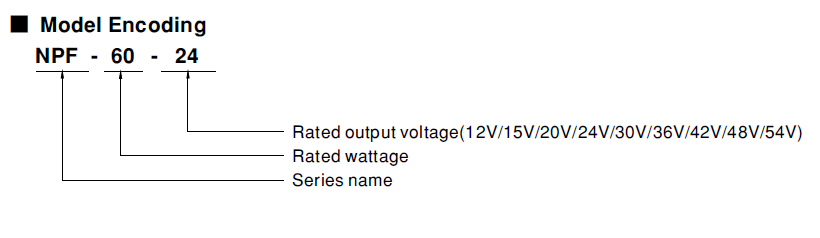

Meanwell NPF-60-xx "type"
Power supply of Meanwell NPF-60 has a 60W single output and an integrated active PFC function. The power supply operate with input voltage 90 to 305 V AC and has a very short setup time of <500 ms.This LED power supply is ideal for energy saving. The product offers higher efficiency, lower power loss and compliance with the latest international lighting regulations.
Due to the rugged design and high protection against dust and moisture, it can be used in many indoor and outdoor LED applications.
This LED power supply provides a constant current, constant voltage or a combination of constant voltage and current with fixed or adjustable values.
Thus, the Meanwell NPF-60 LED switching power supply is ideal e.g. in version -12 for the operation of 12V lamps, such as low-voltage LED spotlights MR16 / GU5.3 or MR11, as well as LED stripes. Up to a power of 40W, several lamps can be connected to a single transformer. Cost savings!
NPF-60 Features (type dependent):
• 5 years manufacturer guarantee• Type NPF for use according to Class II
• Universal AC input up to 305V AC
• Overload protection by current limiting, auto recovery

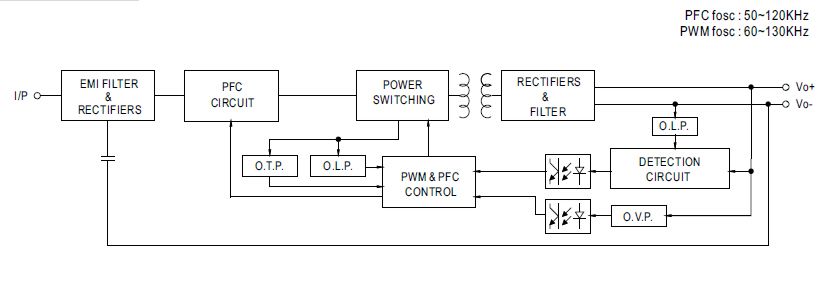

• Integrated PFC circuit
• Low idle power
• Plastic housing
• Self Cooling by free air convectiond (temperature protection)
• Protection against short circuit, overvoltage and overload (temperature protection)
• IP67 protection for outdoor installation
• LED lighting, especially street lighting

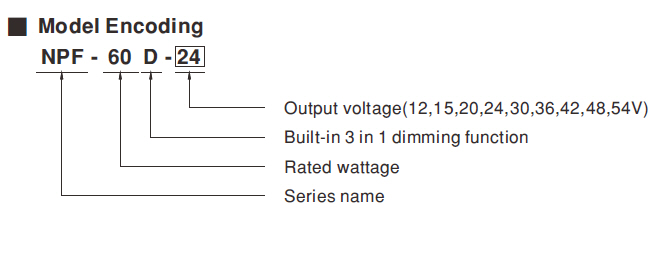

Meanwell NPF power supplies are also available as a NPF-60D variant. This power supply is distinguished by its 3 in 1 dimming function (external voltage 1 to 10 Volt DC, PWM, potentiometer).
For more information about dimming via DALI and PWM, please refer to this article:
DALI PWM solution for dimming of LED technology
Technical data for the Meanwell power supply NPF:
| Model | switching power supply |
| Rated Power | 60 - 60,48 W ( voltage depending, see datasheet) |
| Input voltage | 90 - 305 VAC / 127 - 431 VDC |
| Output and operating parameters | See data sheet |
| Frequency range | 47 - 63 Hz |
| Efficiency | 90% |
| Switch on current Max. | 50 A at 230 VAC |
| Temperature range | -40 ... + 70 ° C |

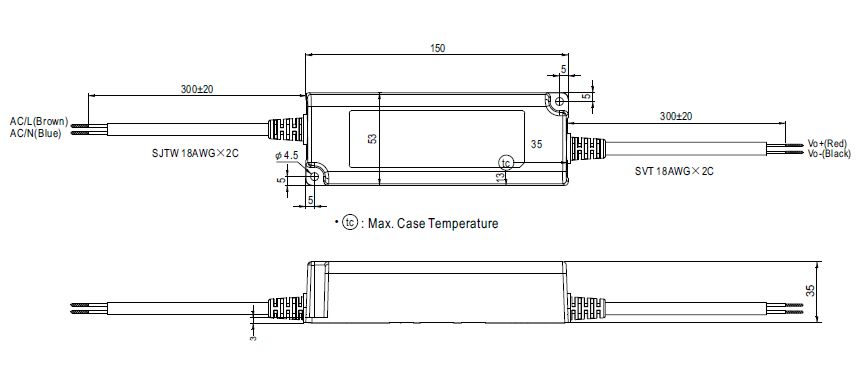

| Dimensions | 150mm x 53mm x 35mm (H x W x D) |
On request, we also offer type and voltage ranges
| ·Application/IP-Code: | IP65/67 (Outdoor) |
|---|---|
| ·Constant Current: | 1,2A, 1,4A, 1,6A, 4,0A |
| ·Constant Voltage: | 12V, 24V |
| ·Dimmable/Control: | PWM |
| ·Meanwell Series: | NPF |
| ·Power range: | 50 - 100 W |
Mean Well
Founded in 1982, MEAN WELL is one of the world's few manufacturers dedicated to standard power supply products. In the late 1990s, MEAN WELL started taking off the European business. To further serve the European market, MEAN WELL Europe was established in 2006 in Amstelveen, the Netherlands, as Europe's sales and product engineering support centre. As a globally proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supply units are tried and tested in many different ways, and the HLG series and ELG series in particular have become very popular in the LED industry.
For more than 10 years we have been offering more than 100 products from the manufacturer Mean Well worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
