Product information "Meanwell LCM-60 multi-current LED driver up to 1400mA"
Meanwell 60W universal constant current source LCM-60, LCM60DA, LCM60EO

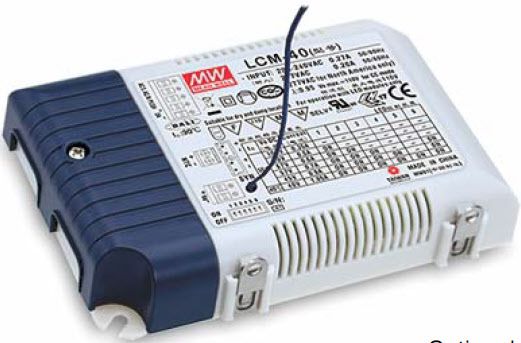

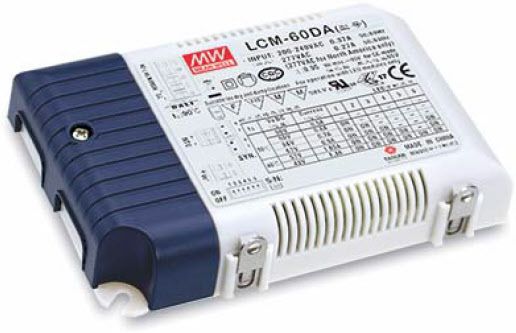

The MEANWELL products LCM-60 and LCM-60DA (or optionally with integrated Enocean module, LCM-60EO) are LED drivers with a constant current, which can be set via DIP switches. The DA versions also have a DALI interface and conform to IEC62386-207.
The LCM power supply units can be operated in the input range of 180 - 295VAC (as well as for emergency power operation also over 254 - 417VDC) and provide a constant, adjustable output current in the range of 350mA up to 1400mA.

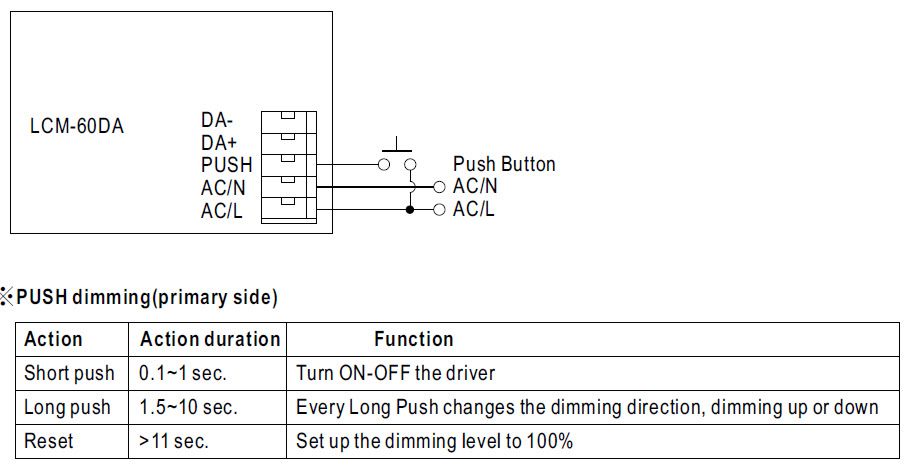

Thanks to the high efficiency (86-92%) and the fanless design, the product series can be operated under free air convection in an operating temperature range of -30 ° C to 90 ° C. In addition, the standard version of the LCM power supplies has a 3 in 1 dimming function (0 ~ 10Vdc, 10V PWM signal or 100kOHm potentiometer), while the DA version is equipped with a DALI interface and push dimming.

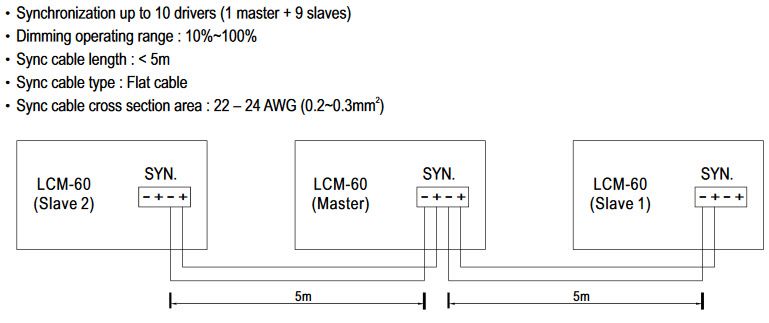

In addition, the LCM series can be synchronized with up to 10 units, in which case only one DA version is needed for the control.
All this makes the MEANWELL LCM product line a versatile and flexible power supply series that can be used in many LED lighting applications.
Technical characteristics of the MEANWELL LCM series 60W
- Constant current output mode; Various levels freely selectable via DIP switch constant current level: 500mA ~ 1400mA
- Plastic housing with protection class II
- Built-in active PFC function
- Standby power consumption < 1W, (DALI <05W)
- Functions: 3 in 1 dimming function (0 ~ 10Vdc, 10V PWM signal, potentiometer), "dim to off"
- Synchronization with up to 10 units possible
- Operating temperature range: -30 °C ~ + 90 °C
- Efficiency up to 92%
- Suitable for LED interior lighting, LED office lighting, LED panel lighting
- Input range: 180 ~ 295VAC
- 3 years warranty
Electrical data for LCM60:
| Adjustable currents via dip switch position | ||||||
| Amperage | 500mA | 600mA | 700mA(default) | 900mA | 1050mA | 1400mA |
| Power | 60,3W | |||||
| Voltage range | 2-90V | 2-90V | 2-86V | 2-67V | 2-57V | 2-42V |
| Max. output voltage without load | 95 - 102V (depending on type) | 73 - 76V (depending on type) | ||||
For further information please refer to the data sheet in the Download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Constant Current: | 0,5A, 0,6A, 0,7A, 0,9A, 1,05A, 1,4A |
| ·Dimmable/Control: | 1..10V, Casambi radio, DALI, Enocean (868 MHz), KNX, PWM, Push-Button |
| ·Meanwell Series: | LCM |
| ·Power range: | 50 - 100 W |
