Maxi Jolly SV Easy DALI 70W 650-1400mA | 142104

Multipower LED driver MAXI JOLLY SV 70 EASY DALI| 142104

The TCI Maxi Jolly SV Easy DALI is a versatile LED driver with customisable output current. With an output power of 70W, versatile dimming options and an adjustable current range from 650mA to 1400mA , this converter offers broad adaptability for a wide variety of LED applications.

Features Maxi Jolly SV Easy DALI 70W 142104

• The output current can be set precisely between 650mA and 1400mA via a coding switch (dip switch), enabling optimum adaptation to different LED requirements.
• DALI-2 dimming: Supports DALI-2 with a dimming control of 0/1-100 % and a minimum output current of 7 mA. Stores lighting groups and allows recall of stored settings. It also offers memory function for sets or lighting groups, recall of memorised functions and is compatible with standard DALI interfaces.
• ADIM: 0/1-10 V interface for local control with 1.2 mA or 100 kOhm Potentiometer
• Dimming with AM + PWM (1-12 % PWM, 12-100 % AM), the driver uses a combination of amplitude modulation (AM) and pulse width modulation (PWM) for dimming.
• Synchronisation of up to 10 drivers (1 master + 9 slaves).
• DC emergency power function: In the event of a power failure, the driver ensures that the lighting continues to function in emergency power mode, which is particularly important in safety-relevant areas.
• CLO (Constant Light Output): This function keeps the luminous flux constant by compensating for age-related efficiency losses of the LEDs. This means that the light output remains stable over a longer period of time.
• PUSH-SWITCH: This function allows the lighting to be controlled via a normal switch (mains voltage). A short or long press of the switch can be used to switch the lighting on and off and adjust the brightness.
• Active power factor corrector (PFC): Ensures high efficiency and stable performance.
• Extensive protection functions: Overheating protection, short-circuit protection, overvoltage protection, overload protection

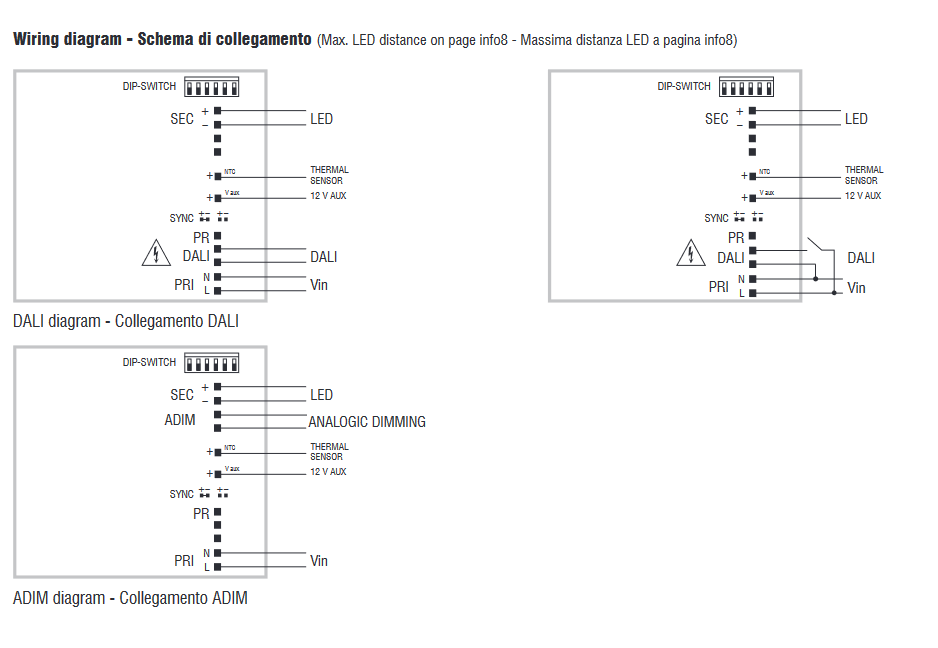

• Input and output terminals on the same side for easy connection (cable cross-section up to 2.5 mm² / AWG13). Screw terminals for primary and secondary circuits, suitable for cables with a diameter of 3 mm to 8 mm.

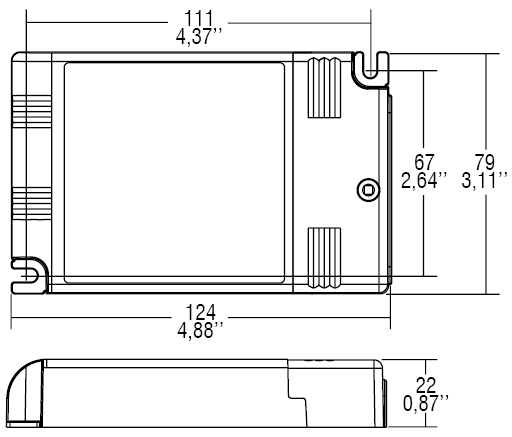

• Compact size with 124 x 22 x 79 mm, weight: 215 grams

Read also this technical article on the dimming types PWM / AM / Hybrid.

Technical details Maxi Jolly SV Easy DALI 70 W

*valid for 230 V, power for 110 V can be found in the data sheet

For further information and technical details, please refer to the data sheet under Downloads.
