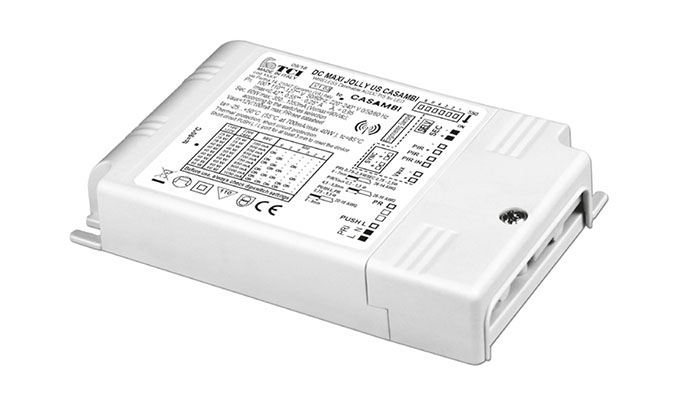

Maxi Jolly SV Casambi

LED driver 50W - wireless dimmable via Casambi with Dip-Switch

This is a dircet current LED driver from TCI that is dimmable with an integrated Casambi wireless module.
Selectable constant current, constant voltage via dip-switch. The dimmable LED driver can be controlled by pressing a button (push button).
Switch on / off by pressing briefly. The brightness can be changed by a longer pressure.

Features of the LED driver:

• Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless Casambi module.
• IP20 independent driver, for indoor use
• Class II protection against electric shock for direct or indirect contact.
• Active Power Factor Correct
• Analogical input (NTC) for thermal sensor connect
• Auxiliary output 12 V max. 100 m
• Current regulation ±5 % including temperature variation
• Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13)
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
• Protections:
  • against overheating and short circuits;
  • against mains voltage spikes
  • against overloads.
• Thermal protection = C.5.a.
• Flicker ( Output Ripple ) <= 3%

   Efficiency as a function of power: >92

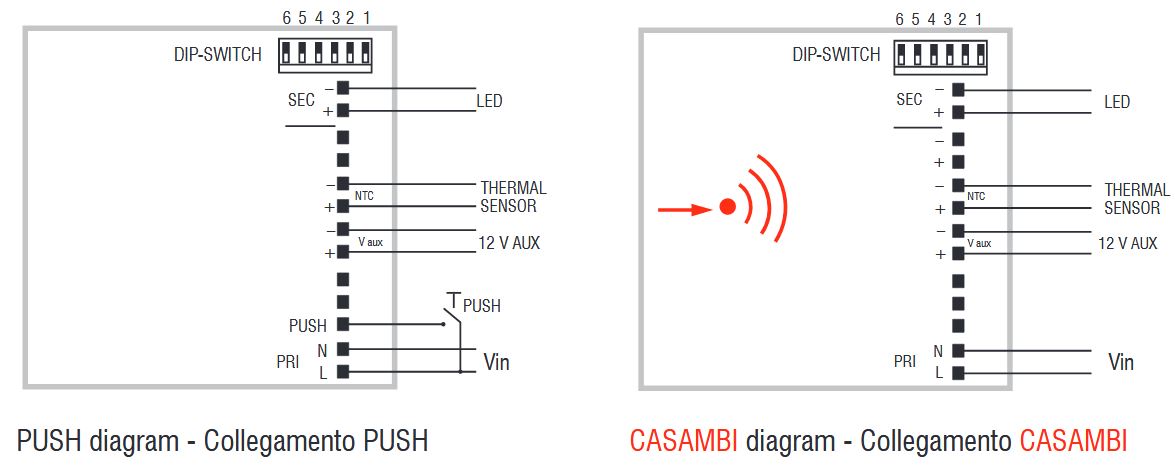

Operation mode:

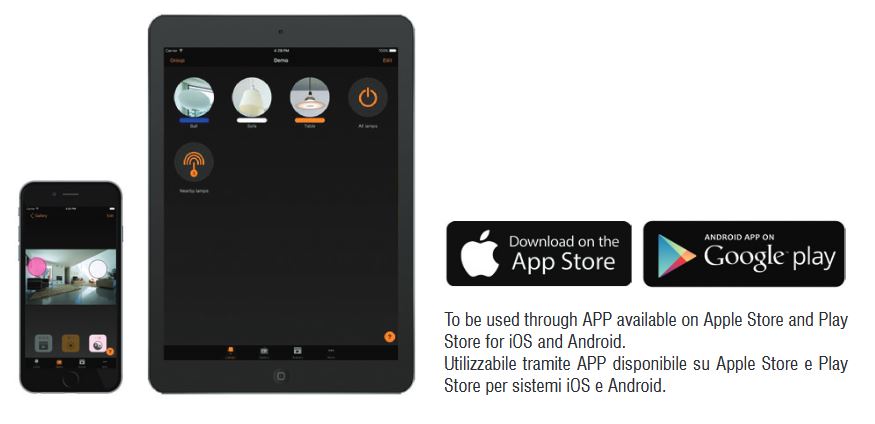

• Light regulation 0/0,5 - 100 % by means of PUSH function and APP or compatible devices for CASAMBI integrated WIRELESS module
• Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):
  • A short push to turn on and of;
  • A longer push to increase or decrease light intensity;
  • Regulation automatically stops at minimum and maximum values
  • For another on, regulation or off command, release the push button and give the desired command again;
  • Dimming level memory at mains restore.
• Possibility to use PUSH function to 4/5 driver.

More information regarding the TCI Maxi Jolly SV Casambi can be found in the data sheet in the Dowload tab.
