Product information "Luxmeter - Lightmeter LM10 by Fauser"

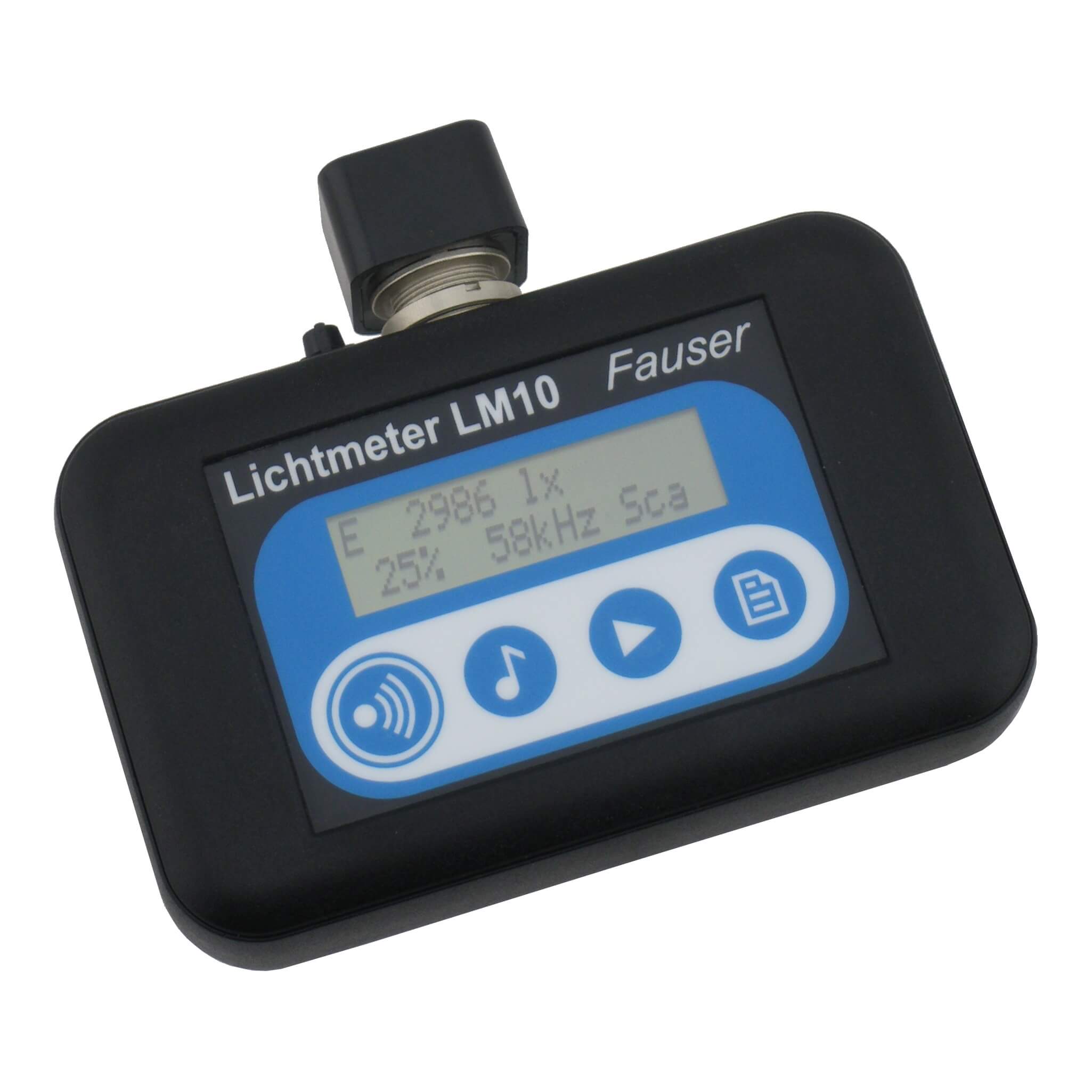

Luxmeter - Lightmeter LM10 by Fauser

The luxmeter LM10 is more than just a light meter but also an innovative new development for determination
of illuminance (up to class A, DIN5032 depending sensor), flicker and flicker frequency. Through out optional meaurments like color temperature and
spectrum of colors in visible, infrared even ultraviolet range can be analyzed. Moreover an ultrasound probe is available.

The specials of Luxmeter LM10:

The flicker of the light source can be reproduced acoustically through a loudspeaker
Universal application by various measuring sensor

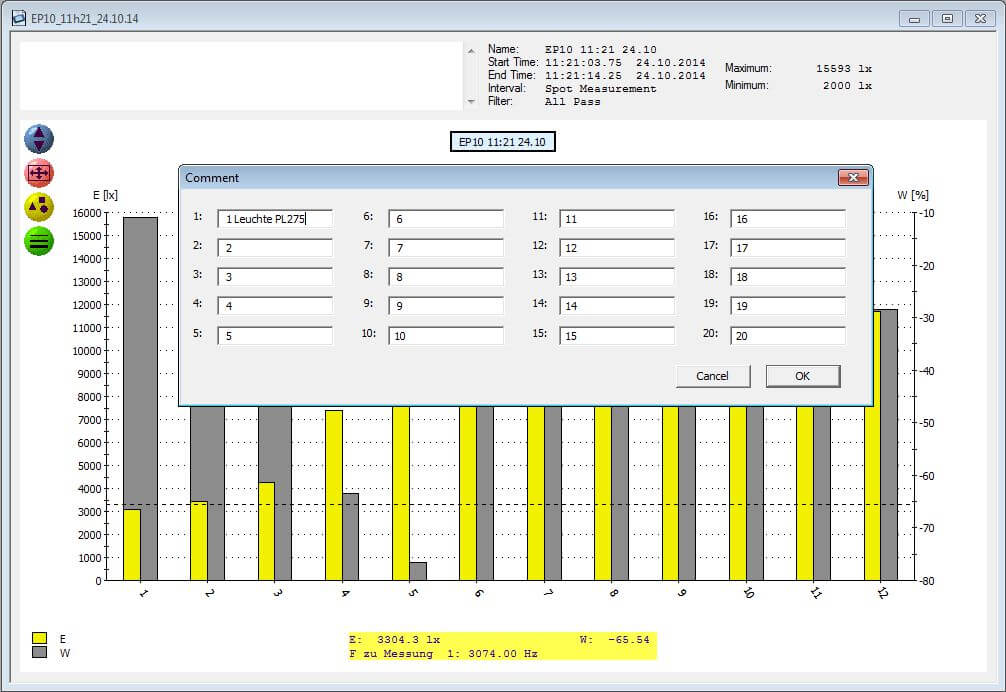

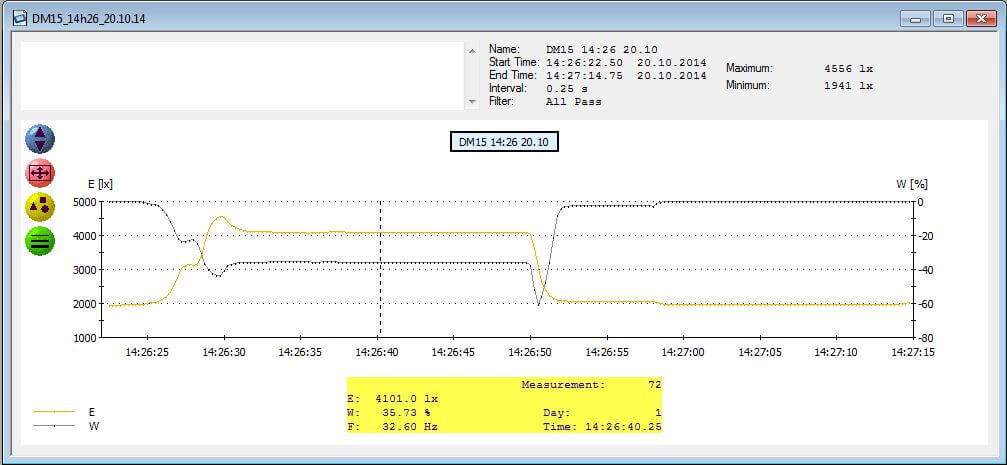

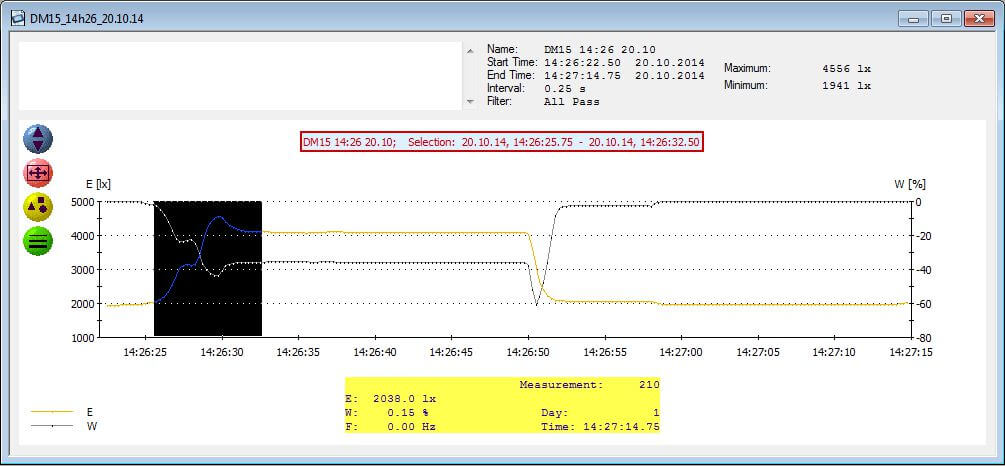

Optional software for data managment
Multifunctional display with high-contrast, backlighting display

Technical data of Luxmeter LM10:

Measuring range
Visibility	480..680nm(10% acc. V-Lambda), bzw. 390..720 nm(1%)
IR	790..1050 nm
UV	220..365 nm
Resolution	1 lux
Flicker frequency	0 Hz..400kHz
Display	LCD lighted
Display function	Light intensity (accuracy depending sensor) Flicker rate in % Flicker frequency in Hz
Acoustig rendering
Audible range	50 Hz..15 kHz
Ultraschall	10..400 kHz
Interface (LM10L)	USB 2.0
Output voltage (LM10LS)	quadruple 0..2000 mV_AC
Power supply	2 x Mignon AA
Dimension	120x79x28 mm
Operating temperature	0..+40°C

There are four different luxmeter options available:

Variant:	Delivery contents:
Light meter LM10	Light meter LM10 Measure sensor for visible range Extension cable Manual Batteries Carrying case
Light meter LM10S	Light meter LM10S Measure sensor for visible range Extension cable Manual Batteries Carrying case Quadruplicate voltage output
Light meter LM10L	Light meter LM10L Include Datal ogger Measure sensor for visible range Extension cable USB-Cable Software-CD LM-DATA Manual Batteries Carrying case
Light meter LM10LS	Light meter LM10LS With multi-output AC and Data-Logger Measure sensor for visible range Extension cable USB-Cable Software-CD LM-DATA Manual Batteries Carrying case

Please select from the options list over.

If you wish more products, then please choose every separate in your shopping cart.

Datasheet & further Infos about this product

Datasheet LM10 For further technical data and information download  Datasheet
Guide LM10 Guide for Luxmeter LM10 by Fauser
