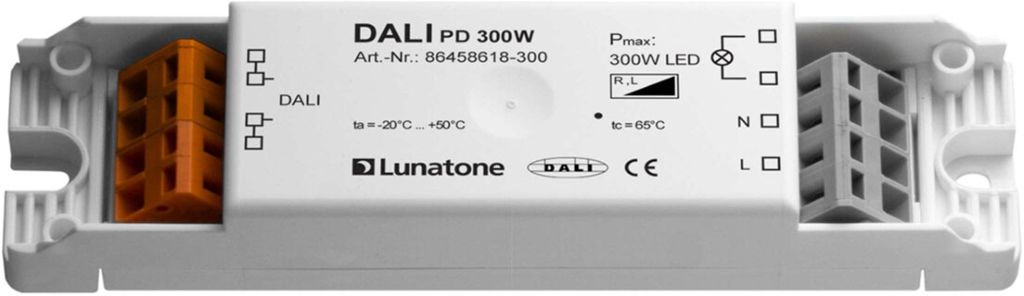

Lunatone DALI phase dimmer (300W)

DALI phase dimmer for retrofit lamps

and other loads such as ohmic resistors, inductors and/or other capacities of 10W - 300W.

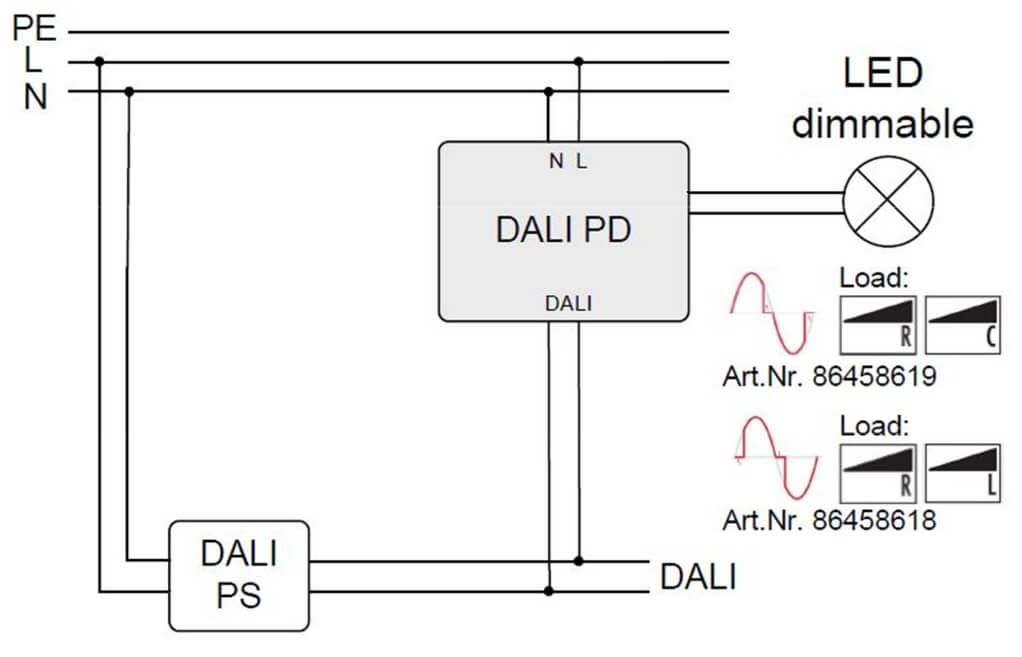

The universal Lunatone DALI phase dimmer for retrofit light sources is also suited for ohmic, inductive and capacitive loads. The universal dimmer is supplied as a trailing edge dimmer for capacitive loads. After having applied the mains voltage, any connected inductive load is identified by the universal dimmer and switched to leading edge dimming.

Are you looking for a phase dimmer with DALI input for smaller loads? Then select one which can be used for outputs of 3W - 25W.

Product features

• For example, for dimming 230V LED retrofit lamps via DALI (device type 4, firmware 3.0 and higher).
• The minimum dimming level (MIN LEVEL) can be adjusted via DALI.
• Conversion of the DALI 8 bit arc power level into the corresponding phase voltage with trailing edge control or leading edge control.
• Module to integrate “dimmable” 230V light sources into a DALI circuit.
• Double terminals for the simple through-connection of the DALI bus.
• The module represents a bus user and can be addressed accordingly.
• Designed for loads of 10W up to 300W.
• Four different types available.
• Modell HS for Top-Hat Rail Mounting

Technical data

• Typical current consumption: 6mA
• Power supply: via DALI bus
• Number of DALI addresses used: 1
• Input: DALI
• Trailing/leading edge phase angle: 0°- 180°
• Mains voltage: 230V at 50Hz
• Temperature range: -20 °C - +50 °C
• Output load range: 10W - 300W
• Assembly: ceiling installation
• Dimensions (LxWxH): 120x30x20 mm
• Cross-section of connecting wires: 1.5 - 2.5 mm2

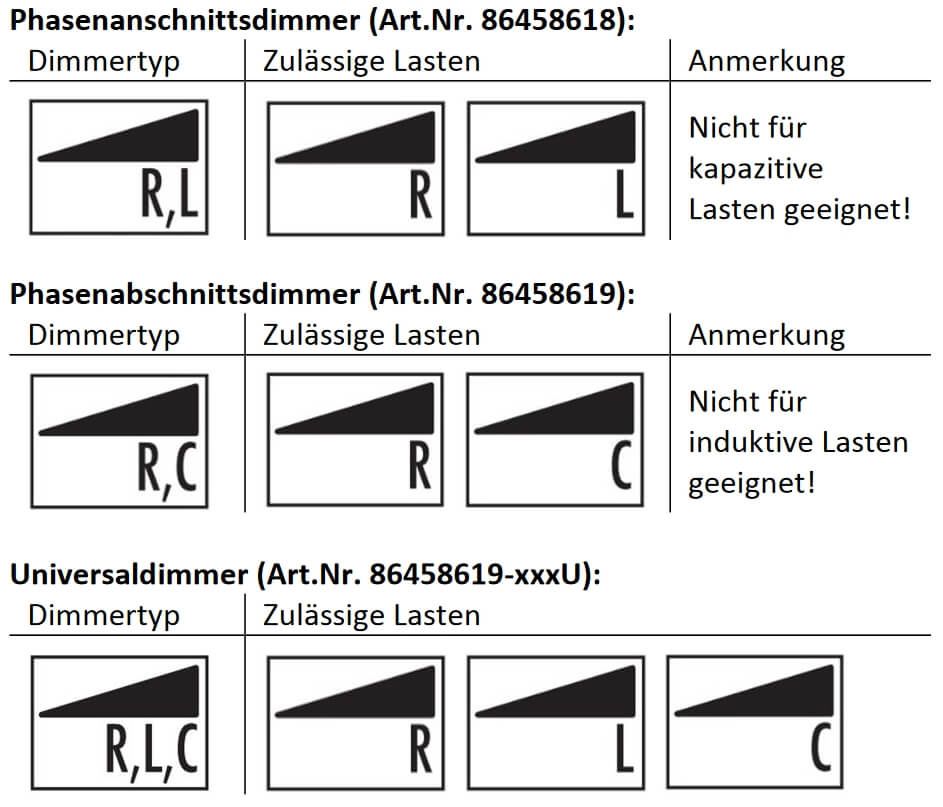

Variants with the following specifications are available:
