Product information "Lunatone DALI Daylight Interface Bluetooth"

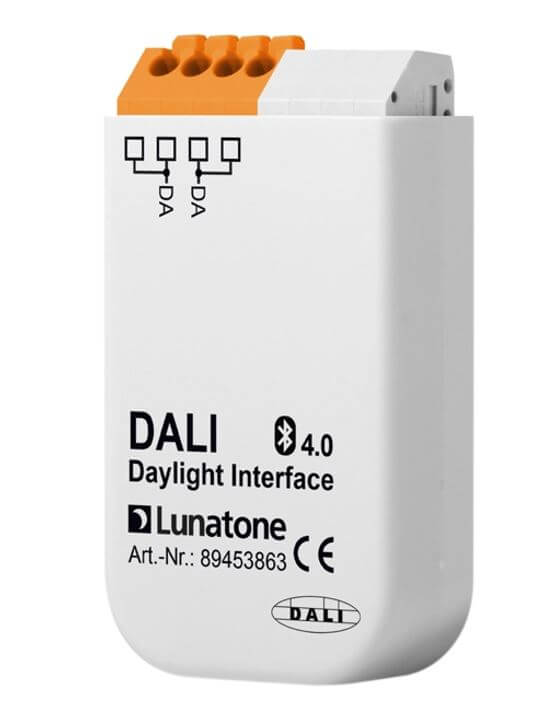

DALI Daylight Interface for Controlling/Parameterizing DALI Devices

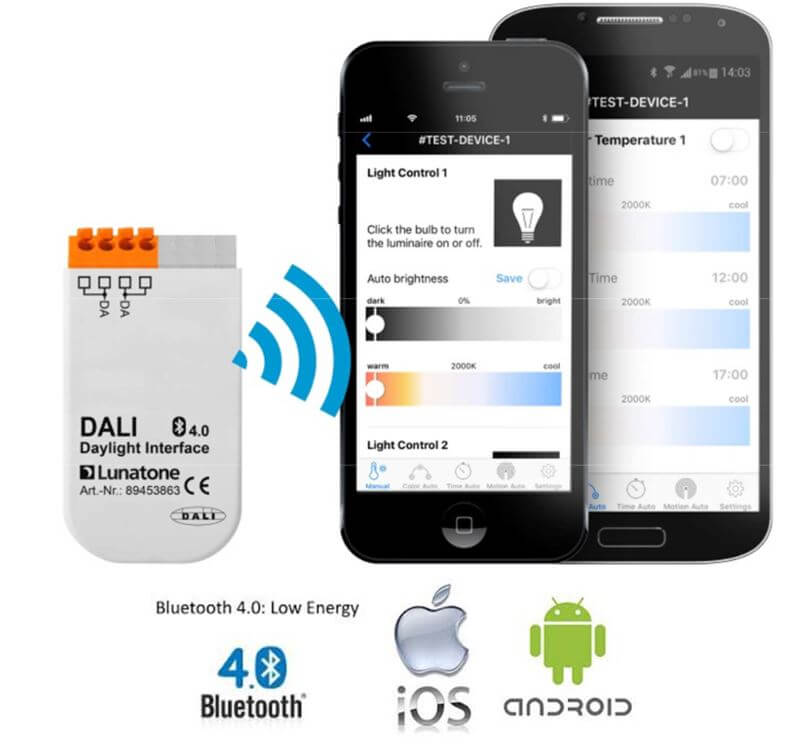

This DALI interface is suitable for convenient control via a smartphone app from Lunatone (DALIDaylight), which is available for Apple and Android. In this way, this DALI Daylight Interface allows convenient setting of parameters of various DALI devices. After the corresponding basic settings have been defined in the DALI Cockpit, daylight progression, timers, schedules, brightness, color temperature and much more can be easily adjusted to individual requirements via mobile device. Added to this is the multimaster capability of this interface, i.e. several modules can be installed per DALI circuit. This makes the DALI Daylight Interface particularly suitable for the operation of smart floor-standing luminaires.
Product Overview / Features:
- DALI Daylight Interface for adjusting system parameters of a DALI system via mobile device
- Implements Bluetooth 4.0: Low Energy
- Lunatone app for DALI control available for Android and IOS.
- Display of all DALI Daylight modules in the reception area
- Configuration of the DALI Daylight moudle via DALI Cockpit (define devices to be parameterized)
- Access protection via PIN
- Multi-master capable (several modules per DALI circuit)

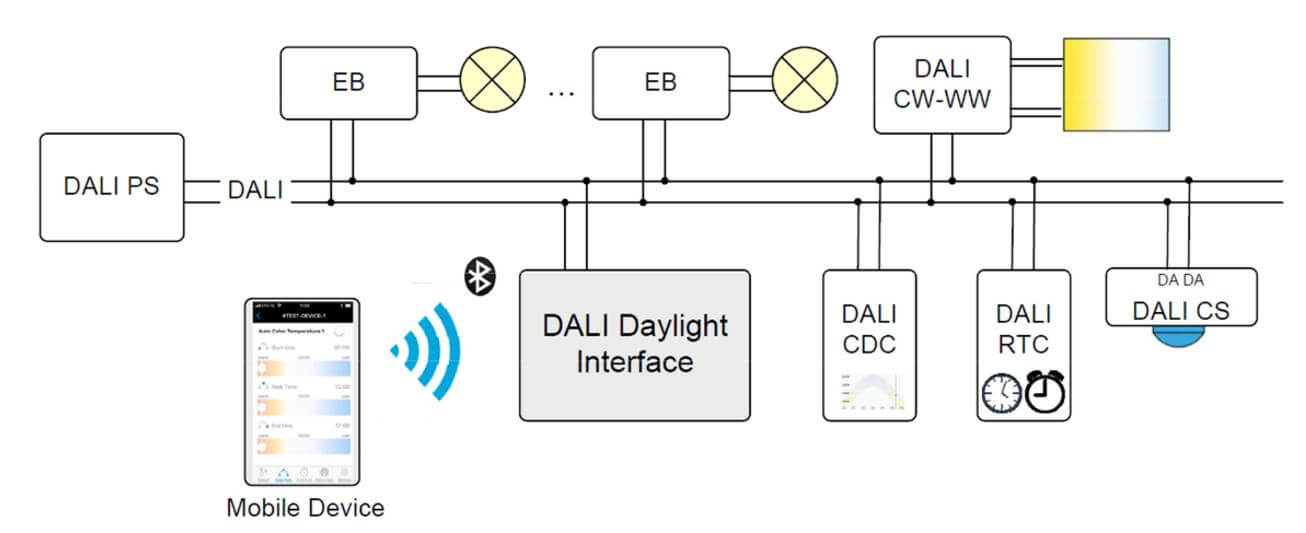

- Supply directly via DALI line
- Areas of application and configuration options summarized in the following table
| Brightness control (DALI LS) | Switching between manual brightness control and automatic, specification of the setpoint |
| Circadian course (DALI CDC) | Change the circadian course (start / peak / stop) |
| Motion detector | Setting the switch-on value and follow-up time |
| RTC timer | Definition of 2 switch-on intervals per weekday |
Note:
The attached data sheet contains further helpful information related to:
- Connection and assembly,
- Addressing and configuration,
- Operation via app.
Furthermore, step-by-step operating instructions for the DALI Daylight control module can be found in the download tab.
Technical Data:
| Type | DALI Daylight Interface |
| Article number | 89453863 |
| Device type | Control unit / interface |
| Pwer supply | From DALI bus |
| Typical current consumption | 4 mA |
| Output | DALI |
| Storage temperature | - 20 ° C ... + 75 ° C |
| Operating temperature | - 20 ° C ... + 75 ° C |
| Protection class | IP20 |
| Connection wires cross-section | 0.5-1.5 mm² |
| Assembly | Socket installation |
| Max. number of areas | 5 |
| Max. number per device type (sensor, CDC, RTC) | 5 |
| Case color | Gray |

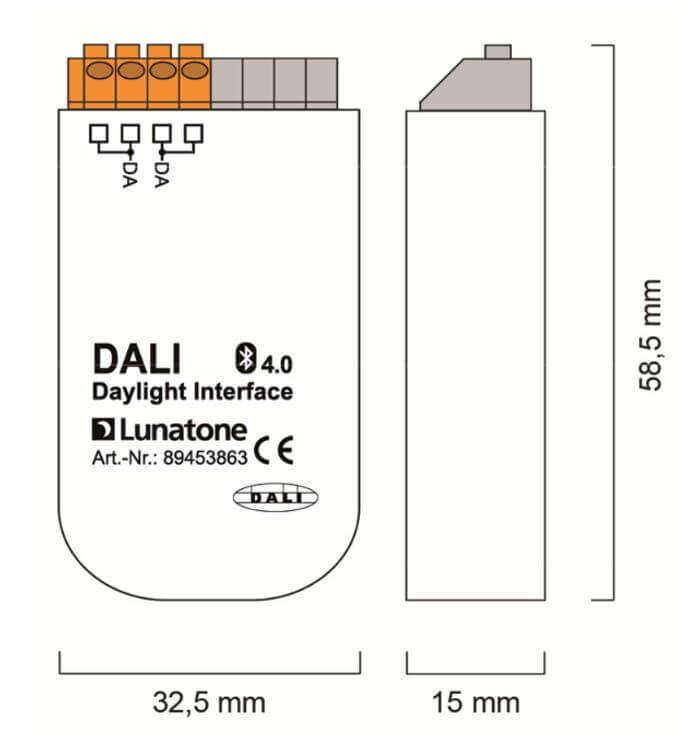

| Dimensions (LxWxH) | 59 x 33 x 15 mm |
Links to the Lunatone mobile smartphone app (here for direct download):
For further information on the DALI Daylight Bluetooth Interface, please refer to the data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | DALI |
| ·Lamp shape: | Recessed ceiling |
