Linessa 3L
€381.99*
net-price: €321.00delivery time 1-3 Weeks*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Linessa 3L"
Illuxtron Linessa 3L (1720x112)
Sustainability
Less is more. Or in the case of Linessa: Making technical innovation affordable by clever product design. The end result is a lighting panel that only has 7 parts and no glue, screws or tape. Linessa has a very minimalist design. At the end of life it is very easy to take the product apart or implement a new LED module. In this scenario we minimize the waste of materials, keeping it as low as possible. Compare this to hazardous fluorescent lamps that need to be replaced frequently.
Bartenbach Darklight Technology - UGR11
Normal diffuser panels distribute light in all directions and create a lot of glare. The Bartenbach Institute helped us to develop special reflector cups that ensure all of the light is reflected in ways that you need. Less glare in an office means less mistakes, less head aches and greater wellbeing for your employees.
Best in class Lux/Watt
The normal amount of lux for an office desk is around 500Lux. With the Linessa series this can be achieved with less energy. Compared to a normal diffuser LED panel of 25-40W it saves 25-40%.
No Multi Shadows
As soon as you try to focus light on to an object with multiple reflectors there will be an annoying multi shadow effect. By using 10 times more reflector cups than normal this effect will dissapear.
Bespoke Versions
The metal plate can be easily changed to different dimensions. It is even possible to integrate a sensor into the plate or air sleeves for ventilation.
Less Light Pressure
Existing LED reflector technology panels have low glare, but were uncomfortable to work under. By adding more reflector cups we managed to achieve the best comfort available in any LED panel on the market. The pressure from the LEDs is divided by an enormous amount of LEDs.
Features and benefits
• Application of Bartenbach's special Dark Light Technology with ultra-low UGR rating.
• Ideal for office applications
• Extremely low wattage for necessary lux level
The most important technical details of the Linessa 3L series:
| Housing colour | matt white RAL 9016 (XX=MW) | |||
| Material | Reflector cups: Chrome | |||
| Dimensions | 1720 x 112 mm | |||
| Usage | Indoors | |||
| Colour Consistency (MacAdam) | SDCM3 | |||
| IP Code | IP20 / IP44 | |||
| IK Code | IK03 | |||
| Colour temperature (Ta) | -20°C / +45°C | |||
| Life time | bei 25°C | |||
| L70B50 | > 100.000 h | |||
| L80B50 | > 100.000 h | |||
| L90B50 | > 54.000 h | |||
| Safety signs | EN60598 / EN62031 / EN62471 | |||
| EMV-Directive | EN55015 | |||
| Guarantee | 7 years | |||
| Energy class | A++ | |||
Linessa 3L

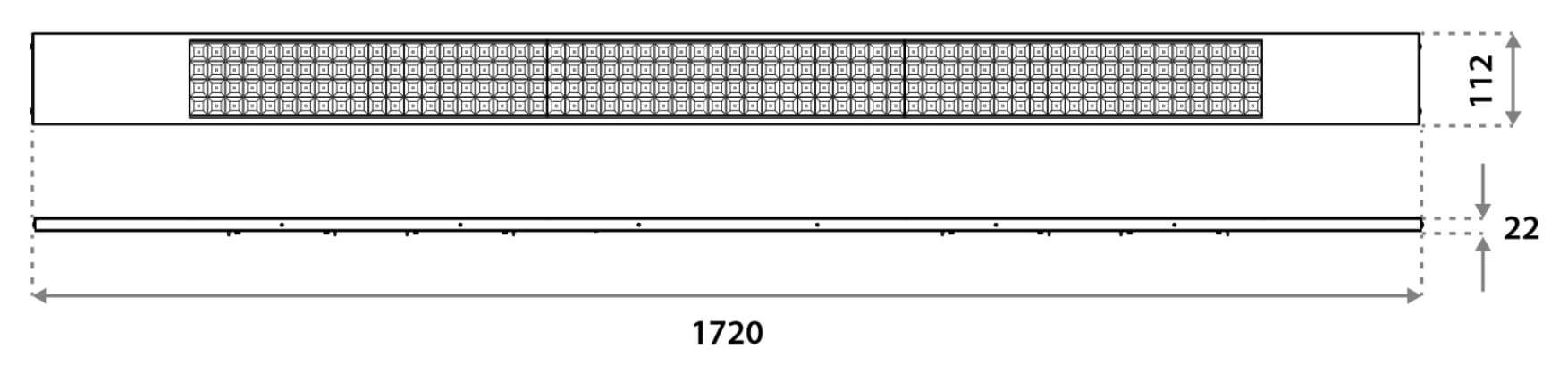

This panel is available in the size 1720 x 112 mm.
For further information about Linessa 3L please see the respective data sheet.
Linessa 3L
| Dimmability | Not dimmable 1-10V&Push, DALI (*Note) | DALI Casambi (*Note) | |||
| Art. No. | 3DC603CHXA02 | 3DC603CHSG02 | 3DC603CHXB02 | 3DC603CHSH02 | 3DC603CHSJ02 |
| Colour temperature | 3000 K | 4000 K | 2700 - 6500 K | ||
| UGR | 15,1 | 16,2 | 15,2 | 16,3 | 15,2 |
| Luminous flux | 3500 lm | 4800 lm | 3650 lm | 5000 lm | 3650 lm |
| Lm/W (with EVG) | 147 | 143 | 153 | 149 | 153 |
| CRI | 83 | ||||
| Type | Inc. connection box | ||||
| Input | 220-240 V | ||||
| Power | 23,8 | 33,6 | 23,8 | 33,6 | 23,8 |
| Protection class | II | I | II | I | |
| Pf | 0,95 | 0,9 | |||
*Note: This table shows only the switchable version (3000K and 4000K), and the DALI version (2700-6500K). This panel is also dimmable as DALI, Casambi and 1-10V&Push.
For data sheets of the Linessa 3L-series see Download Tab:
Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 3000K, 4000K |
| ·Dimmable/Control: | 1..10V, Casambi radio, DALI |
| ·Lamp shape: | LED Grid Inlay |
