Linessa 2L - 1720x112

Variant

€311.78*

net-price: €262.00

Content: 1

Prices incl. VAT plus shipping costs

delivery time 1-3 Weeks*

Product number: IL1391-3DC503CHXB02

Manufacturer: Illuxtron International BV

Manufacturer product number: 3DC503CHXB02

Weight: 0.123 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "Linessa 2L - 1720x112"

Illuxtron Linessa 2L (1720x112)

Sustainability

Less is more. Or in Linessa's case: making technical innovation affordable through clever product design. The end result is a light panel that consists of only 7 parts and does not need any glue, screws or tape. Linessa has a very minimalist design. At the end of its life, it is very easy to disassemble the product or implement a new LED module. In this scenario, we minimize material waste and keep it as low as possible. Compare this to common fluorescent lamps, which often need to be replaced.

Bartenbach Darklight-Technology - UGR11

Normal diffuser plates spread the light in all directions and create a lot of glare. The Bartenbach Institute helped us develop special reflector shells that ensure all the light is reflected the way you need it. Less glare in a Büro means fewer mistakes, fewer headaches and more well-being for your employees.

Best in class Lux/Watt

The normal lux number for a Büro desk is about 500 lux. With Linessa series, this can be achieved with less energy. Compared to a normal diffuser LED panel of 25-40W, it saves 25-40%.

No multiple shadows

As soon as you try to focus light on an object with several reflectors, a disturbing multishadow effect occurs. If you use 10 times more reflector shells than normal, this effect disappears.

Bespoke Versions

The metal plate can be easily changed to different dimensions. It is even possible to integrate a sensor into the plate or air sleeves for ventilation.

Less Light Pressure

Existing LED reflector technology panels have low glare, but were uncomfortable to work under. By adding more reflector cups we managed to achieve the best comfort available in any LED panel on the market. The pressure from the LEDs is divided by an enormous amount of LEDs.

Features and benefits

- Application of Bartenbach's special Dark Light Technology with ultra-low UGR rating
- Ideal for office applications
- Extremely low wattage for necessary lux level

The most important technical details of the Linessa 2L series:

Housing colour	matt white RAL 9016 (XX=MW)
Material	Reflector cups: Chrome

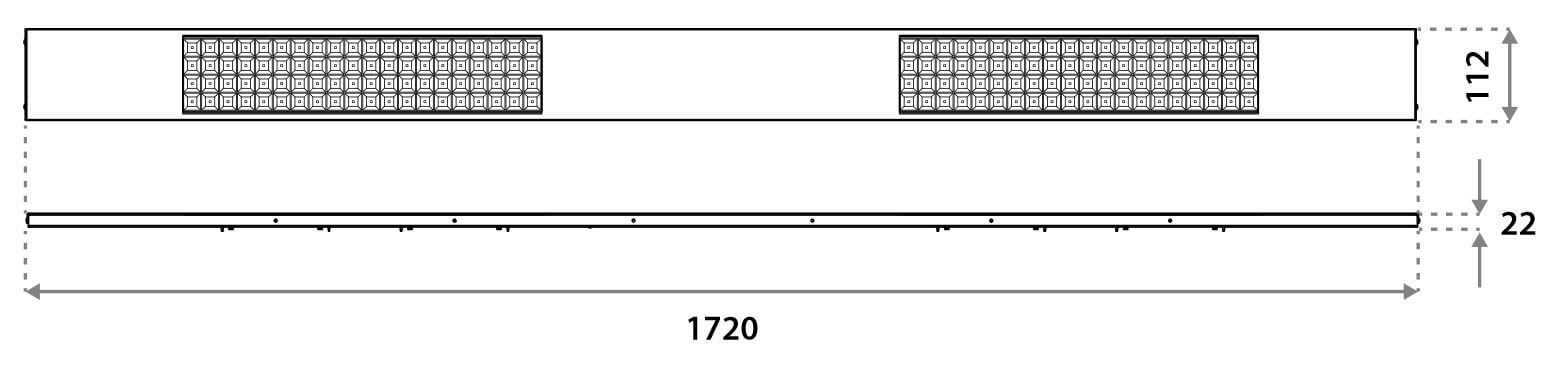

Dimensions	1720 x 112 mm
Usage	Indoors
Colour Consistency (MacAdam)	SDCM3
IP Code	IP20 / IP44
IK Code	IK03
Colour temperature (Ta)	-20°C / +45°C
Life time	bei 25°C
L70B50	> 100.000 h
L80B50	> 100.000 h
L90B50	> 54.000 h
Safety signs	EN60598 / EN62031 / EN62471
EMV-Directive	EN55015
Guarantee	7 years
Energy class	A++

Linessa 2L

This panel is available in the size 1720 x 112 mm.
For further information about Linessa 2L please see the respective data sheet.

Dimmability	Not dimmable 1-10V&Push, DALI (*Note)				DALI Casambi (*Note)
Art. No.	3DC503CHXA02	3DC503CHSG02	3DC503CHXB02	3DC503CHSH02	3DC503CHSJ02
Colour temperature	3000 K		4000 K		2700 - 6500 K
UGR	13,8	14,9	14,0	15,1	14,0
Luminous flux	3300 lm	4550 lm	3450 lm	4750 lm	3450 lm
Lm/W (with EVG)	139	135	145	141	145
CRI	83
Type	Inc. connection box
Input	220-240 V
Power	23,8	33,6	23,8	33,6	23,8
Protection class	II	I	II	I
Pf	0,95				0,9

*Note: This table shows only the switchable version (3000K and 4000K), and the DALI version (2700-6500K). This panel is also dimmable as DALI, Casambi and 1-10V&Push.

For data sheets of the Linessa 2L-series see Download Tab:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.

Properties "Linessa 2L - 1720x112"

·Application/IP-Code:	IP20 - IP44 (Indoor)
·Color Temperature/Color:	3000K, 4000K
·Dimmable/Control:	1..10V, Casambi radio, DALI
·Lamp shape:	LED Grid Inlay

Datasheet & further Infos about this product

Illuxtron datasheet

Linessa 2L 1720x112

Manufacturer "Illuxtron International BV"

ILLUXTRON

with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.

For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland

Related links of the manufacturer

Manufacturer website

No reviews found. Share your insights with others.

FAQs rund um LED-Leuchten

Sammlung über häufig gestellte Fragen rund um LED-Leuchten (Nicht LED-Lampen)

Where can I get support and advice on recessed ceiling spots/downlights?

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:

Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
Color temperature dimmability - We recommend modern options such as DALI or Casambi.
Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.

What different LED luminaires are available?

It is a challenging topic. A basic distinction can be made between these types of LED luminaires:

designer luminaires (the eye pays the price regardless of the technical design)
luminaires with replaceable LED light sources (less sustainable)
luminaires with permanently integrated LED boards and their own LED driver (most sustainable solution with the best efficiency and flexible options for dimming via DALI, 1-10V, etc.)
technical luminaires with special lighting tasks such as LED downlights.

What is the difference between lights and lamps?

Colloquially, they are often equated with each other. However, lighting experts make a clear distinction between lamps and luminaires.

This also applies to LEDs. A lamp is the typical light source (e.g. a light bulb) that is screwed into the socket of a luminaire. That already explains it. Luminaire is the system consisting of lamp, base, lampshade, etc. LED luminaires are available with a replaceable LED light source (lamp) and with a permanently installed LED module. The advantages and disadvantages can be found in another FAQ.
