Product information "Linea 75 HV"

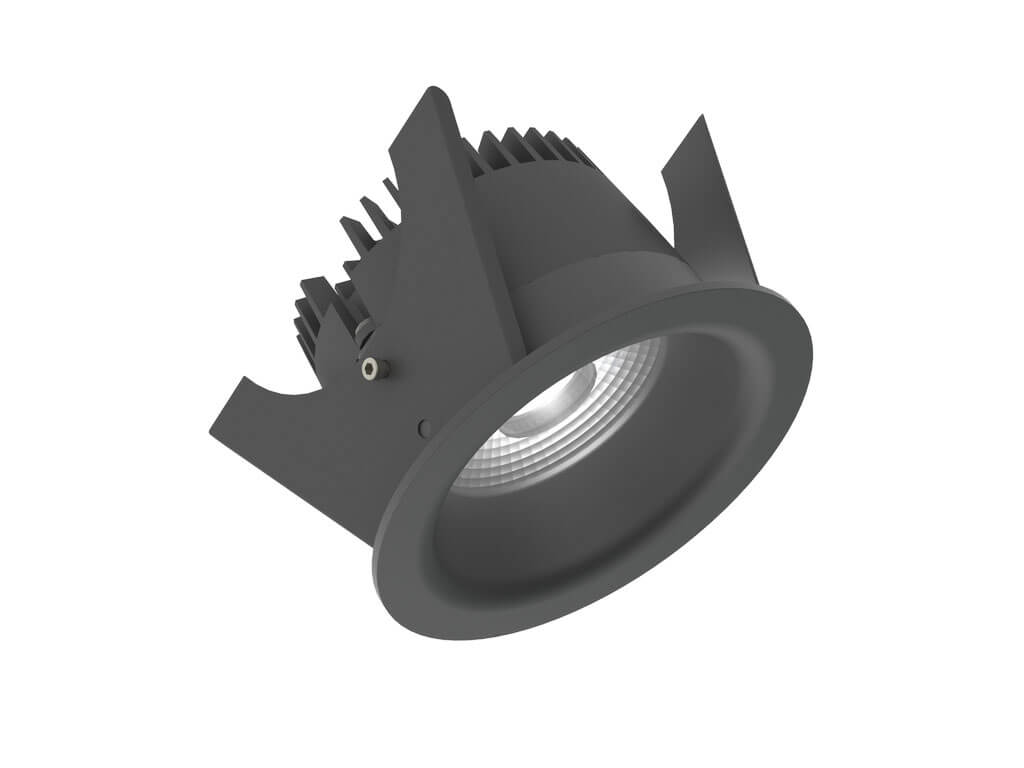

Illuxtron Linea 75 HV (High Voltage) Downlight
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
| Version | Power range | Beam angle | Special feature |
| HV-FD (High Voltage - Flimmerfree Dimmtechnology) This Version | 10,1-10,3 W | 40° / 80° | directly connectable to 220-240V |
| HV-WD This Version | 11,2 W | 80° | directly connectable to 220-240V, Powerfactor (>90) |

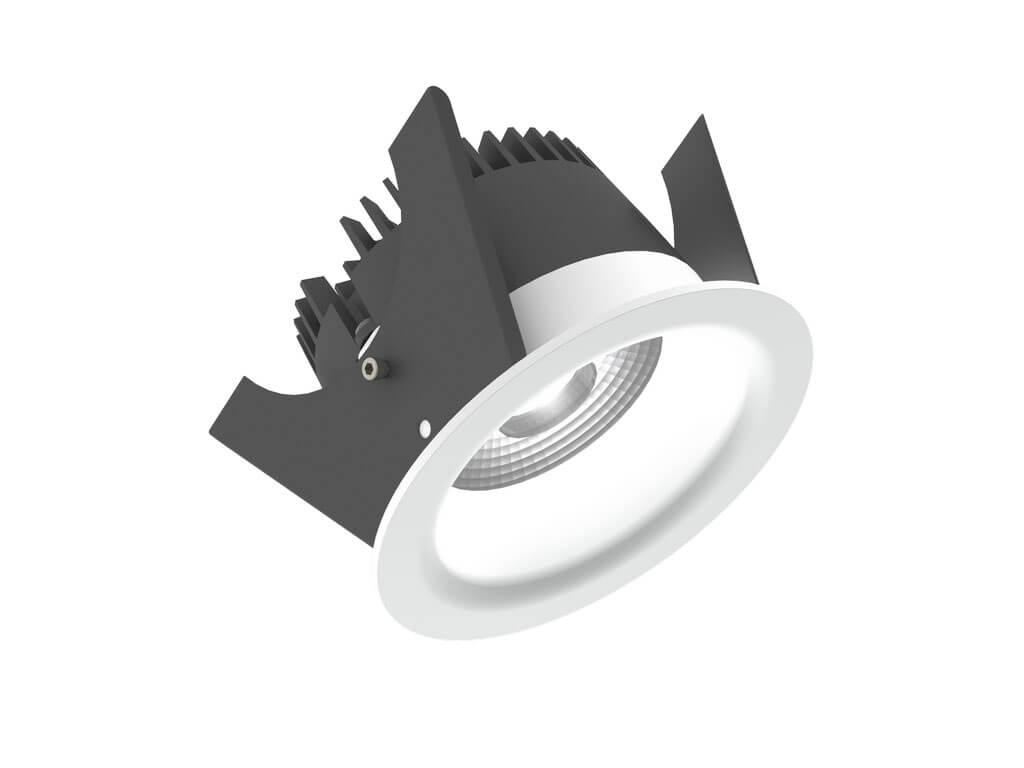

| LV (Low Voltage) | 13,8 W | 24° / 60° / 80° | CRI-97 Standard, inklusive Treiber |
| LV-TW (Low Voltage- Tuneable White) | 11,4 W | 60° / 80° | Tuneable White Technology |
| Sensor | 6 / 7 W | 24° / 60° | Sensor activated downlight |
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Linea 75 series provide perfect illumination of objects and rooms. The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good colour rendering
Further details of these technical features can be found in the Illuxtron Mini recessed spotlight overview.
The most important technical details of the Linea 75 series:
| Housing colour | matt white RAL 9016 (XX=MW) |
| Material | Housing: Die-cast aluminium Reflector glass: Polycarbonate |
| Dimensions | ø 90 mm |
| Required installation depth | > 65 mm |
| Ceiling cut-out | 75 mm: Usage of ceiling springs. |
| Usage | Indoors |
| Colour Consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Lifetime | at 25°C |
| L70B50 | > 70.000 h |
| L80B50 | > 70.000 h |
| L90B50 | > 54.000 h |
| Safety signs | EN60598 / EN62031 / EN62471 |
| EMV-Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |
Linea 75 High voltage flicker-free dimming technology (HV-FD)
Flicker-free - no stroboscopic effect
Studies associate flickering light with health problems. Although flickering at this frequency is not visible without aids, there is evidence that the human brain can perceive flickering up to 200Hz. Possible problems include headaches, eye strain, impaired vision or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker content of 1-3%, while high-voltage technology has a flicker content of only 0.4%.
Flicker-free - Patented dimming up to 0.1%.
The level of dimming depends on the quality of the dimmer. With a high quality dimmer a dimming range of 0.1-100% can be covered. Even at the lowest dimming level, this technology always stays below 2.4% flicker.
Perfect for video recording
Flicker effects should be taken into account when recording video, otherwise the images will be traversed by several black lines, which makes reasonable filming impossible.
For further information on Linea 75 HV-FD downlights, please refer to the respective data sheet.
This version is available in different mounting types and without connection cable.
Linea 75 HV-FD
| Dimmability | Triac | |||
| Art.No. | 912A03XX5B02 | 912A03XX5D02 | 912A03XX5F02 | 912A03XX5H02 |
| Colour temperature | 2700 K | 3000 K | 4000 K | 2200 - 3000 K |
| UGR | 24,5 | |||
| Luminous flux | 800 lm | 600 lm | ||
| Lm/W (with EVG) | 76 | 78 | 59 | 58 |
| Type | Incl. Connection cable | |||
| Input | 220-240 V | |||
| Power | 10,5 W | 10,3 W | 10,1 W | 10,3 W |
| Protection class | I | |||
| Pf | 0,99 | |||
*Note: This table shows only the version with a beam angle of 80° and concrete spring mounting. This downlight is also available with a beam angle of 40°, as well as with different mounting options.
Linea 75 HV-WD
This version is available in different mounting types. A connection cable is required.
Further information about the additional connection cable.
Further information on Linea 75 HV-WD downlights can be found in the respective data sheet.
Linea 75 HV-WD
| Dimmability | Triac |
| Art.No. | 912A03XXBY77 |
| Colour temperature | 2200 - 3000 K |
| UGR | 23,5 |
| Luminous flux | 900 lm |
| Lm/W (withEVG) | 80 |
| Type | Incl. Connection box |
| Input | 220-240 V |
| Power | 11,2 W |
| Protection class | I |
| Pf | 0,99 |
*Note: This downlight is also available with different mounting options.
For data sheets of the Linea 75 series downlights, see Download tab:
Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K, Dim2Warm |
| ·Dimmable/Control: | Phase-Cut (Triac) |
| ·Hole diameter: | 75mm |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
