Linea 185 LV

Product information "Linea 185 LV"

Illuxtron Linea 185 LV Downlight

These recessed spotlights are available in 2700K, 3000K and 4000K, with 13.8 / 20.1W depending on the version and various dimming options, beam angles and mounting types.

This downlight is also available in the following versions:

Version	Power range	Beam Angle	Special
LV (Low Voltage) This Version	13,8 - 20,1W	24° / 60° / 80°	CRI-97 Standard, inclusive PSU
LV-TW (Low Voltage - True White)	11,4W	60° / 80°	Tuneable White technology

Low heat generation
To achieve optimum performance and longest life, the maximum junction temperature never exceeds 70°C. Under normal conditions (ambient temperature of 25°C), the highest measured temperatures were at the specified locations:

1250 Lm - 49°C
2000 Lm - 57°C
3000 Lm - 68°C

The luminaire is equipped with an integrated heat conduction system. If the electronics detect overheating, the lamp is switched off to prevent damage.

The most important technical details of the Linea 185 LV Series:

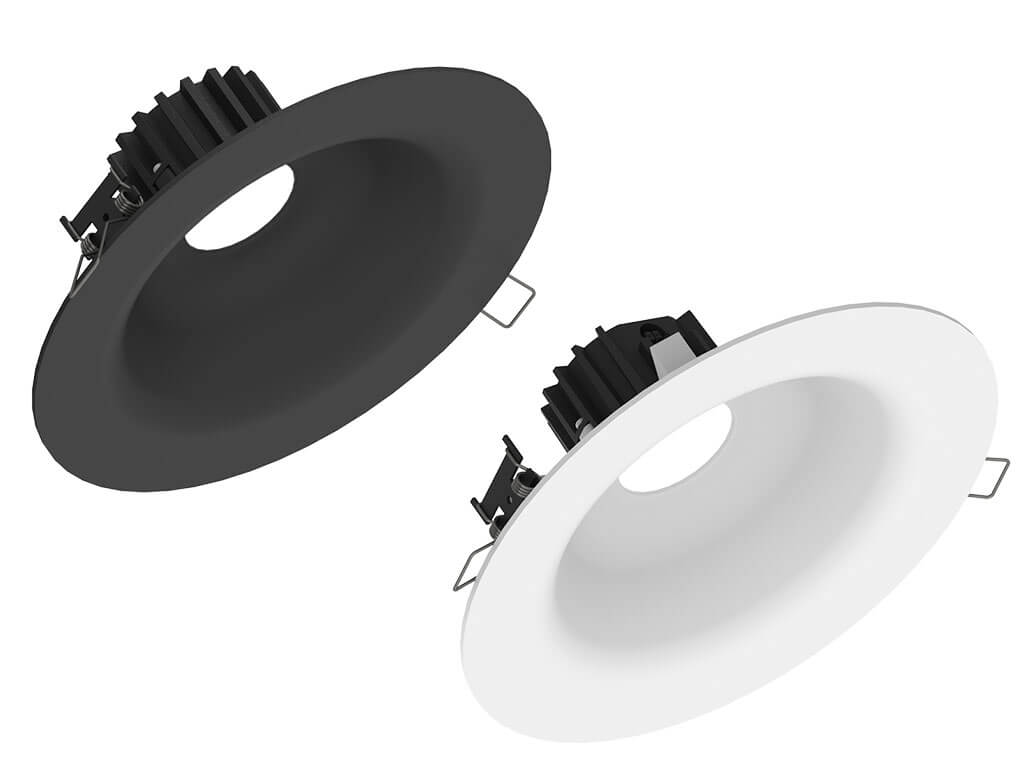

Casing color	matt white RAL 9016 (XX=MW) matt black RAL 9005 (XX=BL)
Material	housing: die-cast aluminium Reflector glass: Polycarbonate

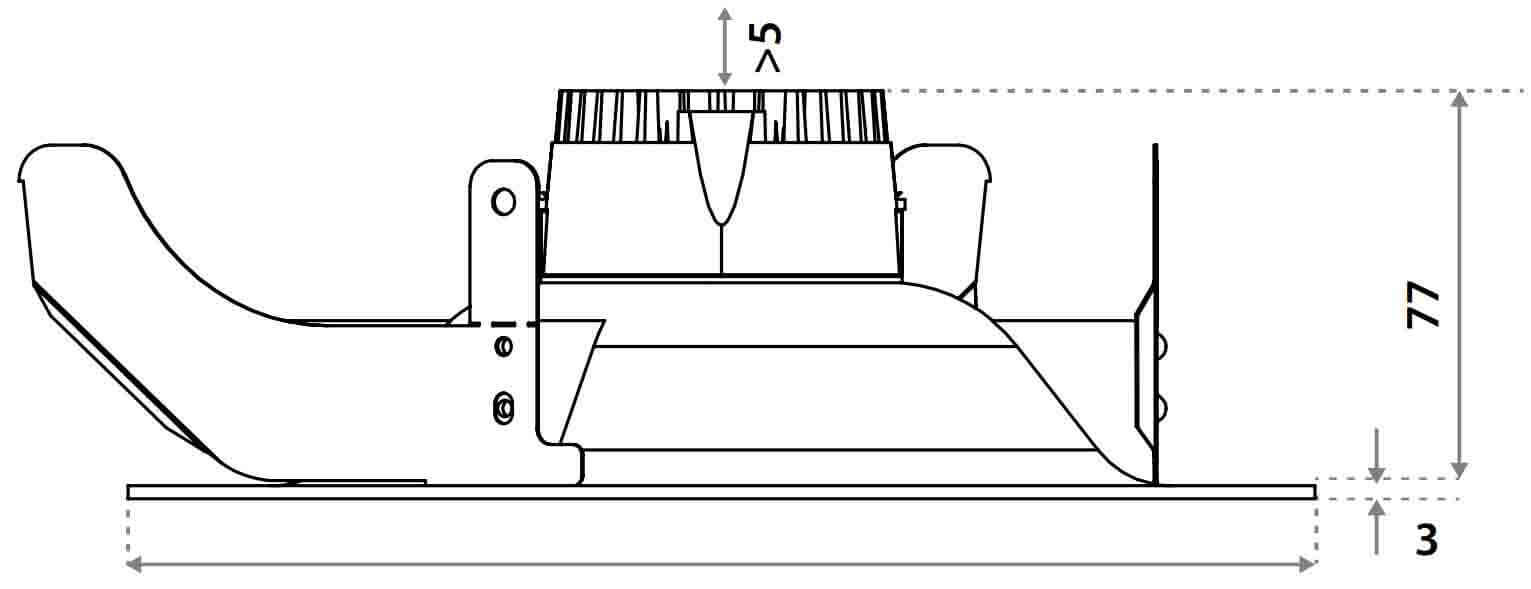

Dimensions	239 mm x 70 mm
Required installation depth	> 75 mm
Application	Inside area
beam angle (FWHM)	24° / 60° / 80°
CRI / Ra (typ.)	97
Colour consistency (MacAdam)	SDCM3
IP Code	IP20 / IP44
IK Code	IK03
Operating temperature (Ta)	-20°C / +45°C
Lifetime	at 25°C
L70B50	278.800 h
L80B50	165.900 h
L90B50	66.400 h
Safety sign	EN60598 / EN62031 / EN62471
EMV Directive	EN55015
Guarantee	7 years
Energy class	A

Curion 185 - LV (low voltage)

Properties and advantages:

Highest performance and highest CRI through patented TrueWhite technology from Cree
Ideal solution for lighting museums, galleries and retailers where faithful colour rendering is important
Extremely small installation depth on models with lower power
The lenses provide a uniform white appearance, whether switched on or off

Curion 185 LV

Dimmability	No		Triac		DALI		Casambi
Article number	875A03XX2U02	875B03XX2U02	875A03XX2K02	875B03XX2K02	875A03XX2L02	875B03XX2L02	875A03XX2M02	875B03XX2M02
colour temperature	2700 K	3000 K	2700 K	3000 K	2700 K	3000 K	2700 K	3000 K
luminous flux	1150 lm	1250 lm	1150 lm	1250 lm	1150 lm	1250 lm	1150 lm	1250 lm
Lm/W (with EVG)	83	91	83	91	83	91	83	91
Type	Incl. PSU
Input	220-240 V
power	13,8 W
Input current	5A 50µS
Protection class	II
Pf	0,95				0,92		0,95

Note: This table shows only the versions with 24° beam angle and Gyproc springs; Please refer to the data sheets for other beam angles.
for other beam angles.
Data sheets of the downlights Linea 185 LV-series see Download Reiter:

Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.

Properties "Linea 185 LV"

·Application/IP-Code:	IP20 - IP44 (Indoor)
·Color Temperature/Color:	2700K, 3000K, 4000K
·Dimmable/Control:	1..10V, Casambi radio, DALI, Phase-Cut (Triac)
·Hole diameter:	170mm, 175mm, 185mm, 200mm, 210mm

Datasheet & further Infos about this product

Datasheet Illuxtron

Linea 185 LV

Manufacturer "Illuxtron International BV"

ILLUXTRON

with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.

For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland

Related links of the manufacturer

Manufacturer website

No reviews found. Share your insights with others.

In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Where can I get support and advice on recessed ceiling spots/downlights?

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:

Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
Color temperature dimmability - We recommend modern options such as DALI or Casambi.
Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
