Product information "Lichtzwerg Dimmer Wireless receiver Pushbuttons 5-36Vdc, 1x8A"
LED dimmer for 12-36Vdc LED technology, mesh network optionally controllable via radio and button input
This LICHTZWERG LED dimmer, wireless receiver, is compatible with the LICHTZWERG LED dimmer remote control to switch your single-color LED technology on/off and to dim it.
Increase the wireless range of the mesh-enabled LED controller. Devices with the possibility of establishing a mesh connection offer the advantage that each individual mesh device serves as a signal amplifier. With mesh-enabled products, you can achieve better radio coverage if you want to control LEDs beyond a room. The Lichtzweg LED dimmer can be dimmed simultaneously with a button and via radio. Several components from the LICHTZWERG LED dimmer series can be taught to one or more receivers and dimmed as desired with the appropriate item, e.g., with wall switches mounted at various points in the room or by remote control.

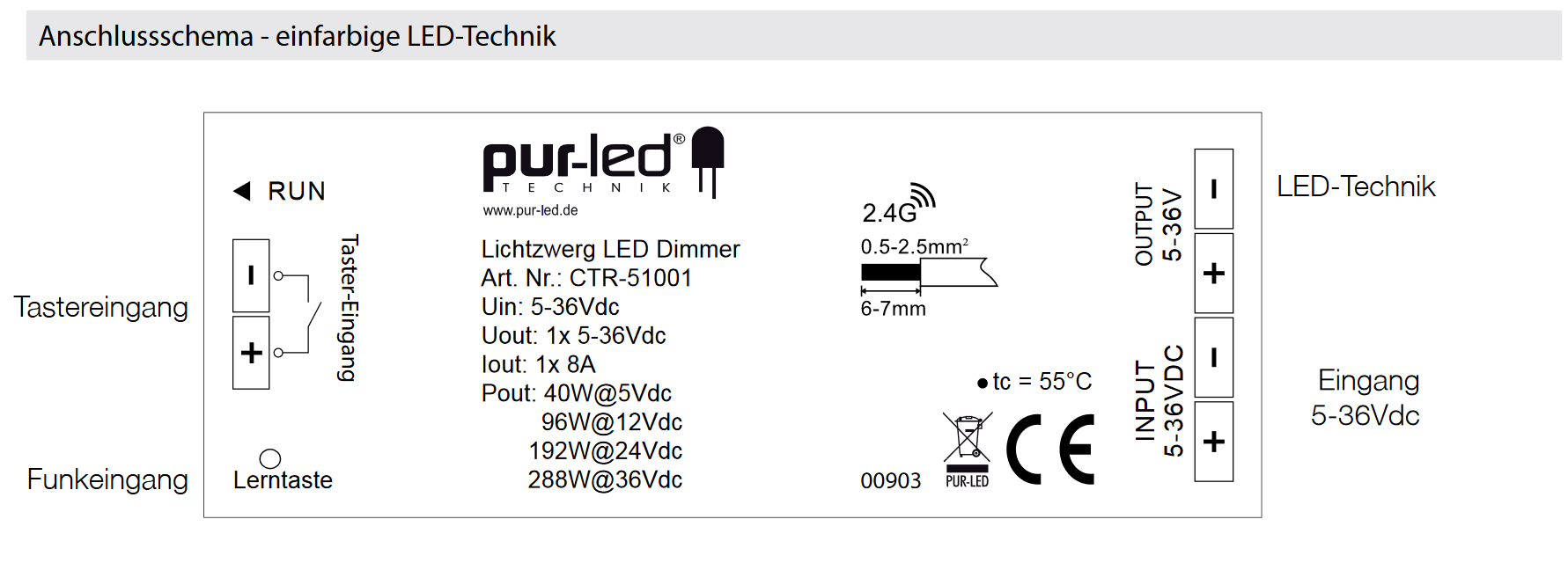

Technical data of the "Lichtzwerg" Led Dimmer:
| Power supply: | 5-36Vdc |
| Current consumption: | 1x8A max. |
| Input Signal: | LICHTZWERG LED dimmer series or button input |
| Output voltage: | 1x 5-36Vdc |
| Output current: | 1 x 8A |
| Output power: | 40W @ 5Vdc / 96W @ 12Vdc / 192W @ 24Vdc / 288W @ 36Vdc |
| Frequency: | 500MHz |
| Dimming function: | 4096 levels, 0-100% |
| Temperature range: | -30 - +55°C |
| Dimensions (LxWxH) in mm: | 97x33x18 |
Scope of delivery:
- 1x LICHTZWERG LED dimmer, wireless receiver, with push button input, 5-36Vdc, 1x8A
This device must be installed by an electrician!
Further technical data and information can be found in the data sheet under Downloads.
| ·Constant Voltage: | 5V, 10V, 12V, 15V, 20V, 24V, 28V, 30V, 36V |
|---|---|
| ·Dimmable/Control: | Push-Button |
| ·Power range: | 100 - 250 W |
