Product information "LED power supply 24Vdc 75W TRIAC dimmable | Indoor"

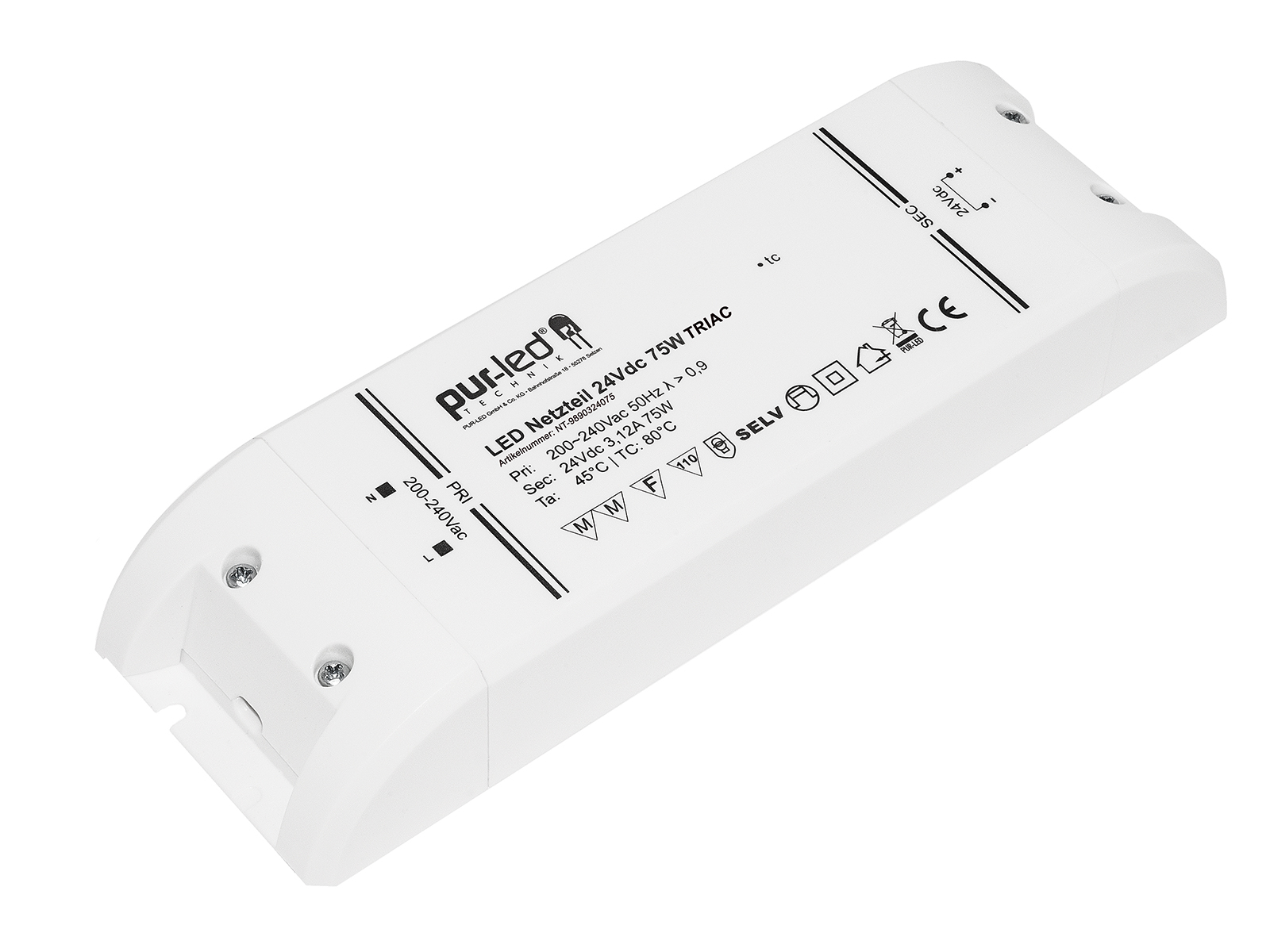

LED power supply 24Vdc 75W Triac dimmable | Indoor
Give your interiors the perfect lighting touch - simple, efficient and dimmable according to your wishes.
With the LED power supply24Vdc 75W TRIAC dimmable | Indoor from PUR-LED, you are investing in a high-quality, flexible and reliable operating device that ideally meets your daily lighting requirements.
Rigid and inflexible lighting is a common challenge in many households and working environments. With the LED power supply unit 24Vdc 75W TRIAC dimmable | Indoor, you can solve this problem efficiently. You have the freedom to individually design and adapt your lighting, which significantly improves your living and working comfort. No more dazzling or overly dark rooms - just perfect light whenever you need it.
This power supply unit offers 24Vdc at the output and can be dimmed at the input on the 230Vac side. This means that LED Strips, LED strips and other LED technology with 24Vdc supply voltage, 24-75W maximum output can be dimmed via leading and trailing edge phase Control.
Our LED 24Vdc transformer is also marked with the MM symbol, which means that it can be safely installed on normally flammable surfaces. It also carries the furniture mark, which allows it to be installed in and around furniture.
What advantage does this product offer?
Dimmability with TRIAC technology:
This power supply unit is suitable for TRIAC dimming technology, which means that you can continuously adjust the brightness of your LED lights. This creates a pleasant atmosphere and allows you to adjust the lighting perfectly to your needs and moods.
High performance and efficiency:
With an output power of 75W and a current of 3.125A, this power supply unit offers enough capacity to power even more demanding LED lighting projects. It ensures a stable and uniform light output, without flickering or brightness fluctuations.
Easy integration:
The compact and robust design makes integrating this power supply into various indoor applications effortless. It is ideal for homes, offices, stores and other indoor areas where constant and customizable lighting is crucial.
Durability and reliability:
Manufactured by PUR-LED Technik, this power supply stands for the highest quality standards. It is durable and reliable, so you can rely on long-term and maintenance-free use.
Technical data of the LED power supply 24Vdc 75W Triac dimmable | Indoor
| Item number | NT-9890324075 |
| Input voltage | 230Vac |
| Input range | 220-240Vac 50/60Hz |
| Output voltage | 24Vdc stabilised PFC |
| Output current | 3,125A max |
| Power | 24-75W (allow 10% reserve) |
| Dimmability | TRIAC, leading & trailing edge phase Control |
| Dimming voltage range | 10%-100% |
| Residual ripple | 240mV Vp-p |
| Efficiency | 85% |
| Housing colour | white |
| Temperature range | -20°C to +45°C (tc=75°C) |
| Maximum cable length Output | 2m |
| Complies with standards | EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61547 |
| Safety | SELV, MM, F, protection class 2, IP20 |
| Protection | Protection against overcurrent, short circuit, overtemperature |

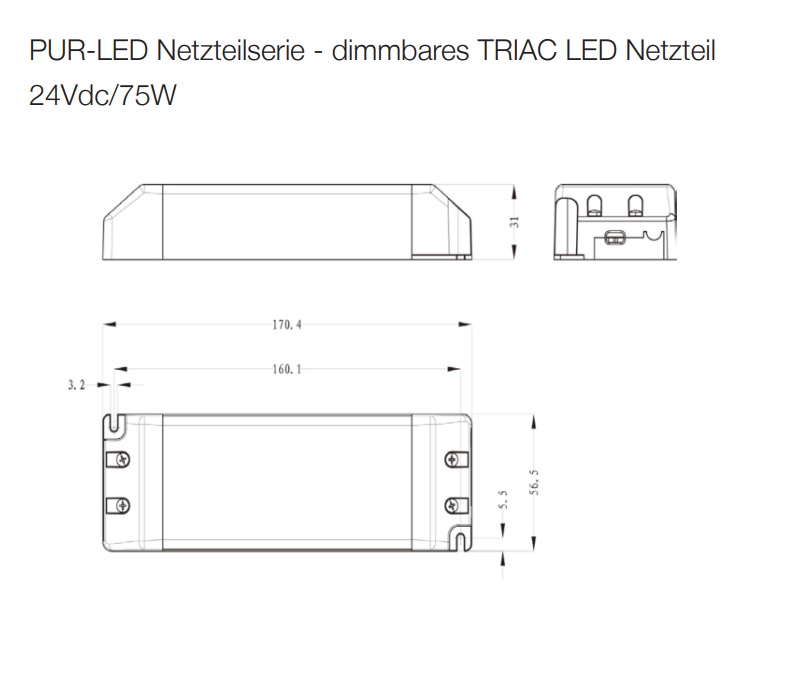

| Dimensions (LxWxH) in mm: | 171x57x31 |
This device must be installed by a qualified electrician!
Further information can be found in the data sheet under Downloads.
Additional information on LED strips:
-24Vdc power supply for our 24Vdc strips. Please do not use halogen transformers or various "cheap power supplies" for LEDs!
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Constant Voltage: | 24V |
| ·Dimmable/Control: | Phase-Cut (Triac) |
| ·Power range: | 50 - 100 W |
