LED driver Linear T-LED 80/350 DALI Slim 127091

€63.96*

net-price: €53.75

Prices incl. VAT plus shipping costs

1 Review

Just 1 pieces available

Available, delivery time: 1-3 days*

Product number: 127091

Manufacturer: TCI TELECOMUNICAZIONI ITALIA S.R.L.

Manufacturer product number: 127091

Weight: 0.2 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "LED driver Linear T-LED 80/350 DALI Slim 127091"

TCI 127091 - T-LED 80/350 LED driver linear dimming via DALI

LED driver with 80 watts, max. constant current 350mA, programmable via dip-switch.
TCI 127091 (ex.127085) is dimmable via DALI or push-button function.

No flicker due to linear regulation

Multi-current or multi-voltage converter - universally applicable. Ext. temperature sensor optional.

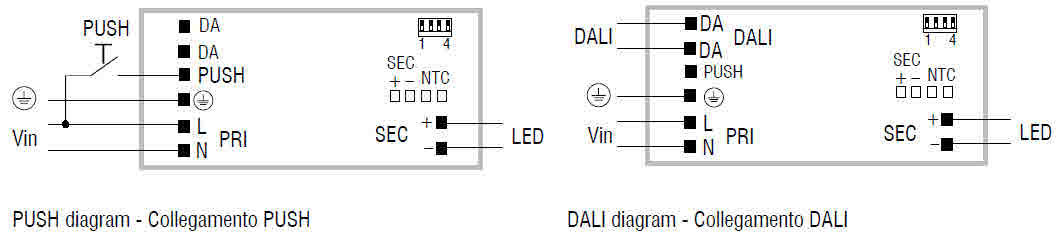

Control via DALI interface or pushbutton.
On / Off by pressing the button briefly, changing the brightness with the button held down.
Dimming from 1% -100%
For built-in use e.g. luminaires
Flicker free - linear control
Stand-by power < 0,5W
Efficacy >93%

Currents on T-LED 80/350 DALI selectable via dip switch:

Dip-SW	Power	Voltage out	Current out	# LED
Position 1	35 W	30...250 V	140mA const.	max 80
Position 2	38 W	30...250 V	155mA const	max 80
Position 3	42,5 W	30...250 V	170mA const	max 80
Position 4	46 W	30...250 V	185mA const	max 80
Position 5	50 W	30...250 V.	200mA const	max 80
Position 6	53,5 W	30...250 V	215mA const	max 80
Position 7	57,5 W	30...250 V.	230mA const	max 80
Position 8	61 W	30...250 V.	245mA const	max 80
Position 9	65 W	30...250 V	260mA const	max 80
Position 10	68,5 W	30...250 V	275mA const	max 80
Position 11	72,5 W	30...250 V	290mA const	max 80
Position 12	76 W	30...250 V	305mA const	max 75
Position 13	80 W	30...250 V	320mA const	max 75
Position 14	80 W	30...235 V	335mA const	max 70
Position 15	80 W	30...228 V	350mA const	max 70

For a detailed description, please refer to the data sheet.

Properties "LED driver Linear T-LED 80/350 DALI Slim 127091"

·Application/IP-Code:	IP20 - IP44 (Indoor)
·Constant Current:	0,1A, 0,14A, 0,18A, 0,2A, 0,22A, 0,25A, 0,26A, 0,3A, 0,34A, 0,35A
·Dimmable/Control:	DALI, Linear/AM, Push-Button
·Power range:	50 - 100 W

Datasheet & further Infos about this product

Technical notes 127085
Data sheet TCI 127091

Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) worldwide.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
