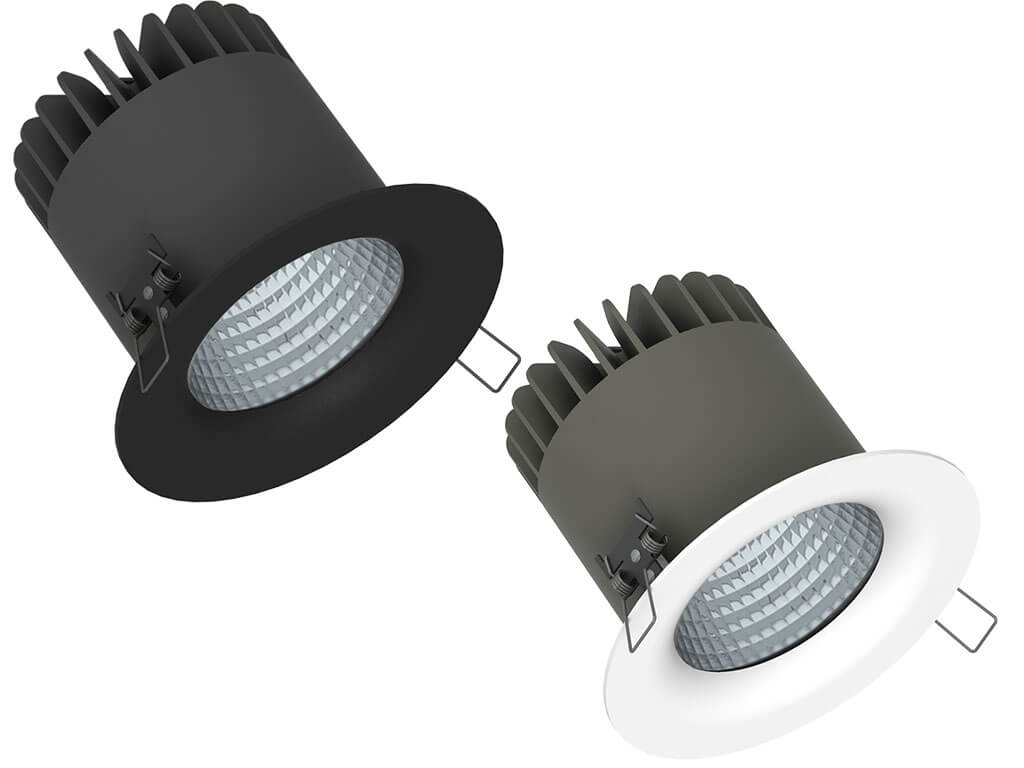

Large Downlight Linea DS-F 150

Variant

€141.61*

net-price: €119.00

Content: 1

Prices incl. VAT plus shipping costs

delivery time 1-3 Weeks*

Product number: AR1320-180503MWJL02

Manufacturer: Illuxtron International BV

Manufacturer product number: 180503MWJL02

Weight: 1.738 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "Large Downlight Linea DS-F 150"

Illuxtron Linea DS-F 150 Downlight

The latest generation of high performance chip-on-board LEDs (COB).

TE Connectivity

The patented COB-LED connector provides optimal heat dissipation through the body during its entire lifetime.

front protection glass

has been proven that corrosion, smoke and dust deposits on the mirror of an LED lamp can cause a loss of up to 50% of the light output over time. Illuxtron COB-LEDs are equipped with a front protection glass, which protects the LED and Re?ektorspiegel reliably from Umweltein? and guarantees lifetime high performance.

3-phase adapter

The Odion and Linea Track spots are equipped with a 3-phase adapter from Nordic Aluminium. The additional retaining clip on the bracket keeps the lamp firmly in place on the track and even allows vertical wall mounting.

Special features and characteristics

Attractive price-performance ratio
Various light colours, beam angles and CRI options
Excellent thermal conductivity over the entire service life
Latest generation of high-power „chip on board “ (COB) LEDs
Front glass protects the reflector against dust and smoke deposits
Maximum temperature of the refrigerated body below 70°C; C
ENEC/EMC-compliant power supplies
Active power factor correction (PFC)
Electronic components in A-brand quality

The most important technical details of the Linea DS-F 150 series:

Housing colour	matt white RAL 9016 (XX=MW) matt black RAL 9005 / Gold (XX=BL)
Material	Housing: Die-cast aluminium Reflector glass: Polycarbonate

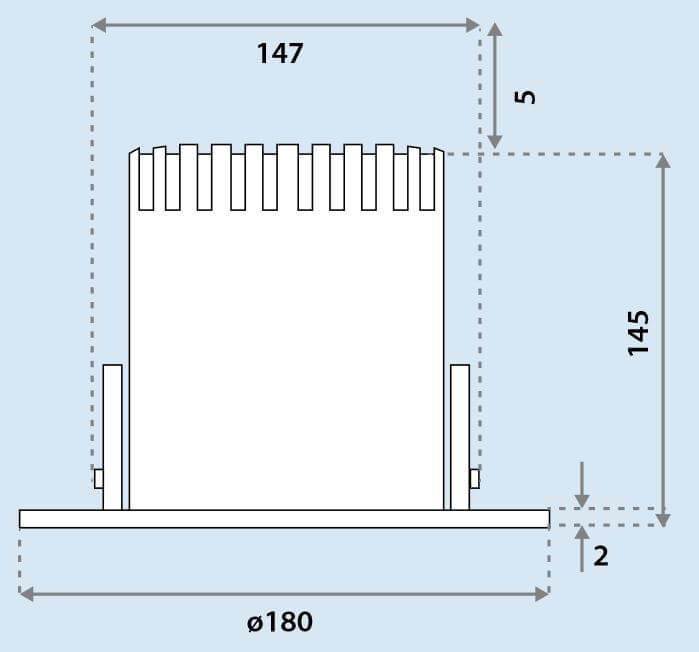

Dimensions	ø 180 mm
Required installation depth	> 145 mm
Ceiling cut-out	160 mm: For soft mineral fibre ceilings we recommend the use of a wooden board or a ceiling ring on the back of the board 150-165 mm: For plasterboard ceilings or similar hard materials
Usage	Indoors
Beam angle (FWHM)	45° / 65°
CRI / Ra (typ.)	80 / 96
Colour Consistency (MacAdam)	SDCM3
IP Code	IP20 / IP44
IK Code	IK03
Operating temperature (Ta)	-20°C / +45°C
Lifetime	bei 25°C
L70B50	165.000 h
L80B50	105.000 h
L90B50	51.000 h
Safety signs	EN60598 / EN62031 / EN62471
EMV-Directive	EN55015
Guarantee	7 Jahre
Energy class	A+

Linea DS-F 150

For further information on Linea DS-F 150 downlights, please refer to the respective data sheet.
Linea DS-F 150

Dimmability	No (*Note)
Item code	180503XXCX02	180503XXJA02	180503XXCP02	180503XXCK02	180503XXJC02	180503XXCM02
Colour temperature	3000 K				4000 K
UGR	15,6	17,4	15,0	16,4	16,0	17,8
Luminous flux	2500 lm	3000 lm	3400 lm	3750 lm	5000 lm	5700 lm
Lm/W (mit EVG)	108	100	90	75	122	114

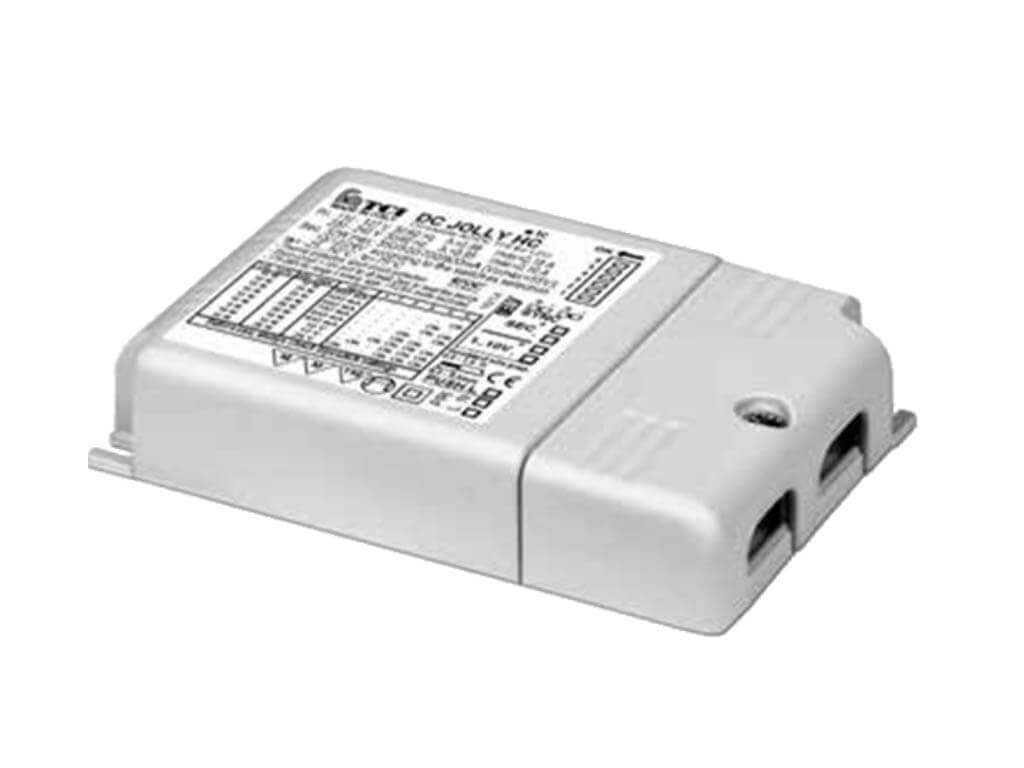

Type	Incl. PSU
Input	220-240 V
Power	27,9 W	49,8 W	27,9 W	49,8 W	27,9 W	49,8 W
Protection class	II
Pf	0,95	0,98	0,95	0,98	0,95	0,98

*Note: This table shows only the switchable version with the beam angle 45°. This downlight is also available as dimmable DALI and 1-10V&Push, as well as with a beam angle of 65°.

Data sheet of the downlights Linea DS-F 150 series see download tab:

Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specifications. This also explains the longer delivery time of 1-3 weeks depending on the workload.

Properties "Large Downlight Linea DS-F 150"

·Application/IP-Code:	IP20 - IP44 (Indoor)
·Color Temperature/Color:	3000K, 4000K
·Dimmable/Control:	1..10V, DALI
·Hole diameter:	150mm, 160mm, 165mm

Datasheet & further Infos about this product

Datasheet Illuxtron

Linea DS-F 150

Manufacturer "Illuxtron International BV"

ILLUXTRON

with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.

For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland

Related links of the manufacturer

Manufacturer website

No reviews found. Share your insights with others.

In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Where can I get support and advice on recessed ceiling spots/downlights?

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:

Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
Color temperature dimmability - We recommend modern options such as DALI or Casambi.
Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
