K-VIEW LED downlight with ZigBee/DALI DT8/Casambi daylight profile
€474.81*
net-price: €399.00delivery time 1-3 Weeks*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "K-VIEW LED downlight with ZigBee/DALI DT8/Casambi daylight profile"
PI-LED downlight K-VIEW - Dimming via DALI DT8 or NeoLink/ZigBee
The Kiteo K-VIEW LED recessed downlight is the ideal lighting solution for rooms that benefit from dynamic daylight distribution. It impresses with its soft light mixture and uniform light distribution. The various available beam angles (45°, 61°, 70° and asymmetrical) enable flexible lighting design. The 45° model in particular achieves a UGR value of less than 9, while the 61° model with a UGR value of less than 17 is ideal for glare-free light in working environments.
With an adjustable colour temperature of 1,800 K to 16,000 K and an excellent colour rendering index (CRI) of over 90, the K-VIEW downlight ensures that any environment, whether office, salesroom, living area or restaurant, is optimally illuminated. The automatic daylight control not only promotes the well-being and productivity of users, but also ensures a harmonious and stress-free room ambience.
Whether for increasing employee satisfaction in the office, promoting purchasing decisions in shopping worlds or creating feel-good moments at home - this downlight adapts flexibly to any environment and any time of day and creates a dynamic lighting mood.
Another highlight is the innovative control options of the K-VIEW LED downlight:
- Smart lighting control with NeoLink / ZigBee
- Control of complex lighting systems with DALI DT8
- series of measurements with the PI-LED spots from Kiteo
- Control via Casambi
Product overview and Features:
- available colours: white or black
- High colour location stability thanks to microcontroller-controlled LED management (with temperature compensation and factory calibration)
- Uniform light distribution and soft light mixture
- Available with different beam angles: 45°, 61°, 70°, asymmetrical
Glare-free light: 45° with UGR < 9, 61° with UGR < 17 - Control via ZigBee, DALI DT8, Casambi
- Power: 31-44 W
- Luminous flux: 45° = 2,290 lm, 61° = 2,590 lm, 70° = 2,650 lm, asymmetrical = 1,760 lm
- Colour temperature range: 1,800 K - 16,000 K
- Colour rendering index (CRI): > 90
Technical data:
| Beam angle | 45 ° | 61 ° | 70 ° | asymm |
| Light source | LED-Modul (PI-LED) | |||
| Operating voltage | 230 VAC | |||
| Power | 44 W | 44 W | 44 W | 31 W |
| Luminous flux | 2290 lm | 2590 lm | 2650 lm | 1760 lm |
| Colour temperature | 1800 K - 16000 K | |||
| Colour rendering index (CRI) | > 90 | |||
| Control | NeoLink / ZigBee DALI DT8 Casambi | |||
| Dimming range | 1% – 100 % | |||
| Protection class | IP20 | |||
| Protection class | SKII | |||
| Service life | L70/B10 50.000h | |||
| Housing colour | white or black depending on selection | |||
| Mounting | Recessed | |||
| Dimensions | Ø 160 mm x 168 mm | Ø 160 mm x 139 mm | Ø 160 mm x 123 mm | Ø 120 mm x 149 mm |
Please note:
Kiteo products are customised to your specifications and manufactured especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilisation.
For further information, please refer to the data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White |
| ·Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio, DALI, DALI DT8, Zigbee |
| ·Hole diameter: | 120mm, 160mm |
| ·Lamp shape: | Recessed ceiling |
| ·Power range: | 20 - 50 W |
KITEO GmbH
is a company that offers lighting solutions that revolve around the relationship between light and people, i.e. ambience and a feel-good atmosphere take centre stage and the lighting is geared towards your needs. KITEO relies on innovative PI-LED technology, which combines Human Centric Lighting and brilliant RGB colour effects in one colour source and brings daylight into every room in its natural course.
For more than 10 years we have been offering products from the manufacturer KITEO worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
KITEO GmbH & Co.KG
Landsberger Str. 310 - 80687 München - Germany
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
Similar Products
delivery time 1-3 Weeks*
delivery time 1-3 Weeks*
delivery time 1-3 Weeks*

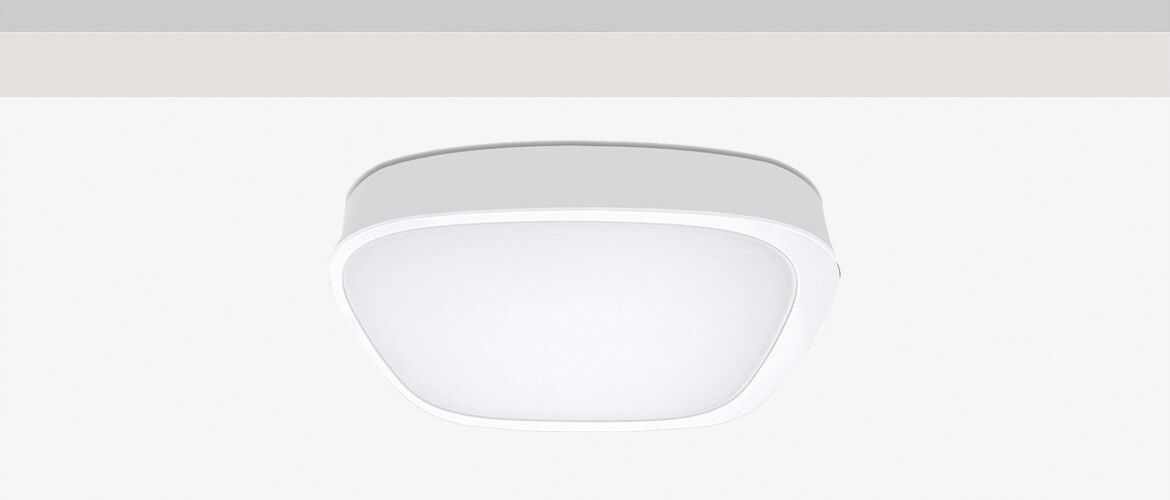

SOVT CAMPUS is a flexible surface mounted luminaire 35W 230VAC with PI-LEDs for 1800K-16000K, controllable via ZigBee, 1960lm, IP20
