K-AERA FLAT Luminaire 50W ZigBee/DALI DT8/CASAMBI

Product information "K-AERA FLAT Luminaire 50W ZigBee/DALI DT8/CASAMBI"

Bright panel light K-AERA FLAT 50W - DALI DT8 or NeoLink / ZigBee or CASAMBI dimmable

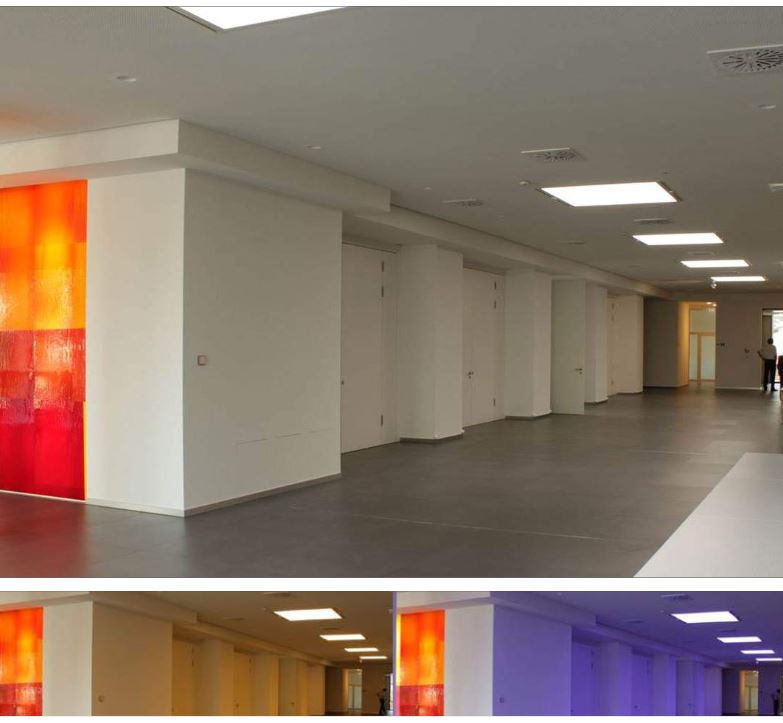

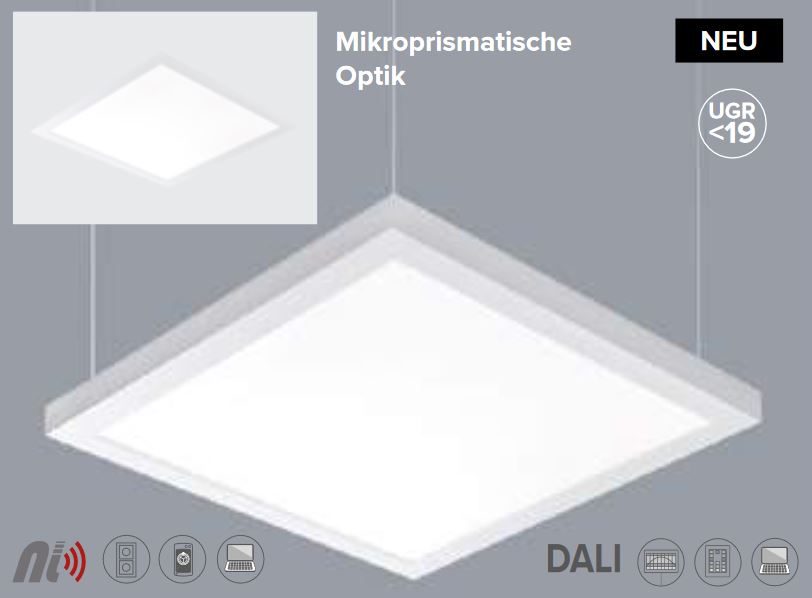

The use of PI-LED Edge Light modules gives this LED panel light its very flat design. By realistically reproducing the course of daylight, it follows the guiding principle "Brings the sun into the room" and is ideally suited for large indoor lighting. In particular, K-AERA FLAT offers optimal conditions for VDU workstations. A high colour location stability as well as uniform light distribution and mixing make a significant contribution to this. In addition, there is a reduced-glare microprismatic optic.
Depending on the control (NeoLink / ZigBee or DALI DT8 or CASAMBI) and design, the LED light is available in different versions.

Another highlight are the innovative control options of the K-AERA FLAT:

  • Smart lighting control with NeoLink / ZigBee
  • Control of complex lighting systems with DALI DT8

Product overview and features of the K-AERA FLAT:

  • Ideal indoor use as wide area lighting
  • Very flat design
  • Improved concentration and increase in performance at the workplace due to the simulated circadian daylight sequence
  • Functionality: Colour temperature 1,800 K to 16,000 K
  • High colour stability from micro-controller controlled LED management with temperature compensation and factory calibration
  • Uniform light distribution and mixing through edge lighting
  • Optimal conditions for the displays of work stations UGR<19
  • Operating temperature monitoring with automatic dimming function
  • Direct 230V mains connection

K-AERA FLAT Product features over view

Installation instructions:

  • Size according to the common grid dimensions

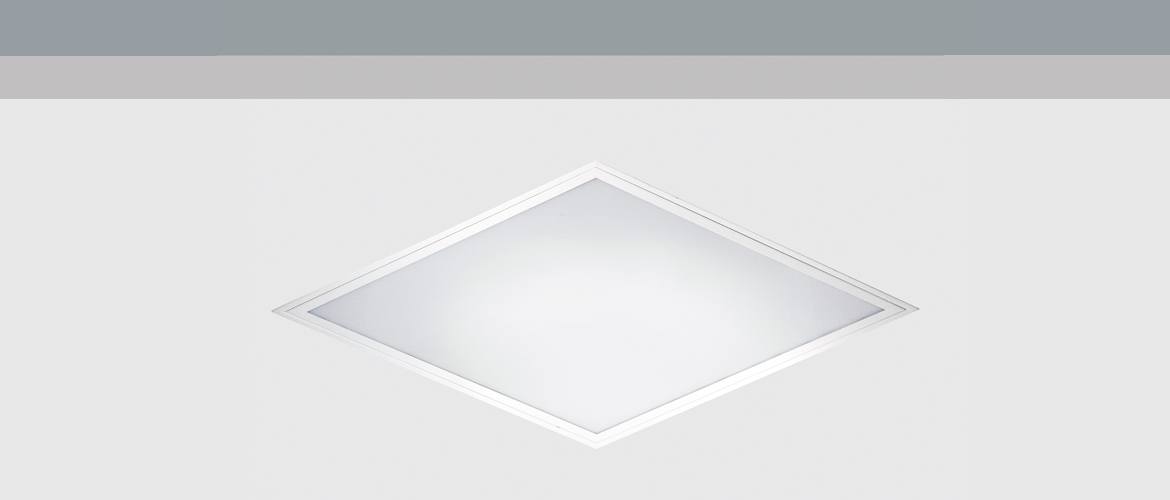

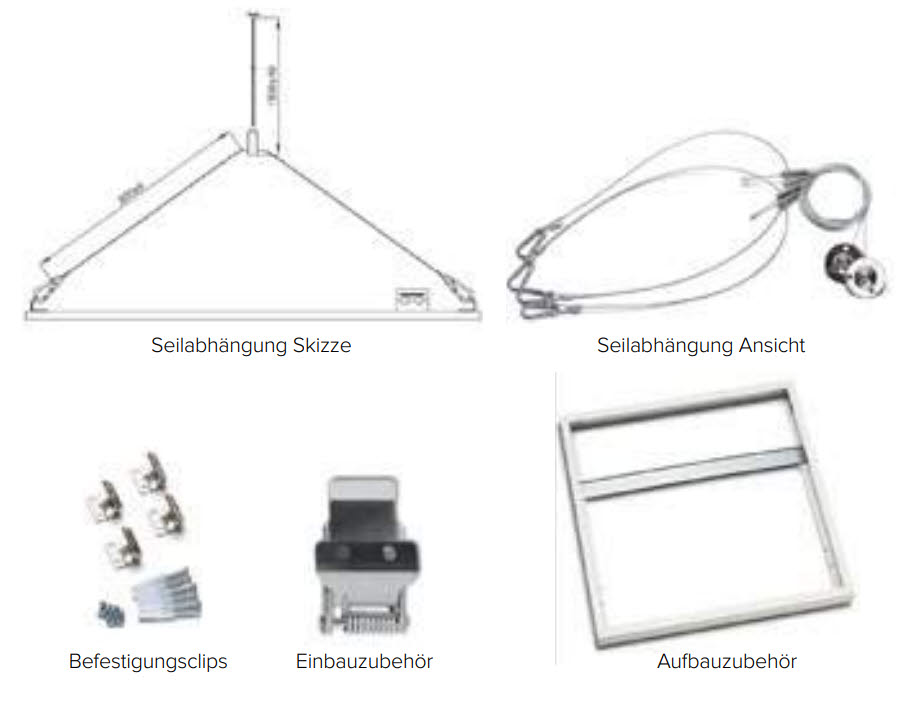

  • Depending on the installation, the K-AREA FLAT can be used flexibly as a recessed, surface-mounted or pendant luminaire.

Technical data:

Luminous sourceLED-Modul (PI-LED)
Operating voltage230 VAC
Power50 W (@ 4000K)
Luminous flux4100 lm (@ 4000K)
Colour temperature1800 K - 16000 K
Colour rendering index (CRI)90 (@ 4000K)
ControlNeoLink / ZigBee
CASAMBI
DALI DT8
Dimming rangeCCT/CIE-xy 5-100% / RGB 0-100%
Edge length595 mm620 mm595mm620 mm
Protection typeIP20
Protectopn classSKI
Service lifetimeL80/B10 50000 h

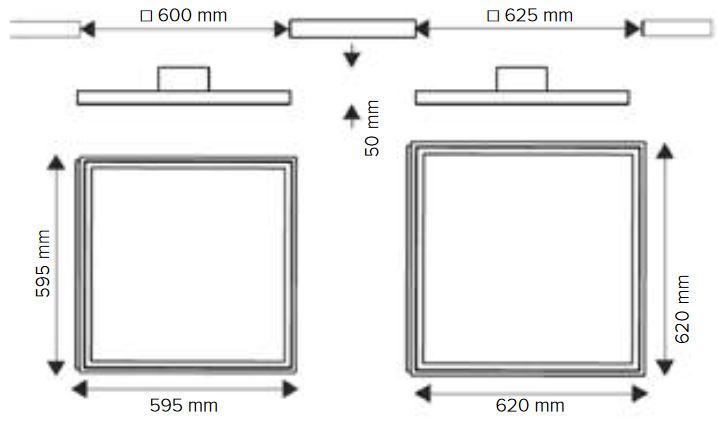

Dimensions595 x 595 x 50 mm (L * W * H)
620 x 620 x 50 mm (L * W * H)

Note:
The products of the manufacturer Kiteo are individually manufactured especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.

For further information please refer to the data sheet in the Download tab.

Properties "K-AERA FLAT Luminaire 50W ZigBee/DALI DT8/CASAMBI"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 3500K, 4000K, >5000K, Tuneable White
·Dimmable/Control: DALI, DALI DT8, Zigbee
Datasheet & further Infos about this product

Data sheet K-AERA FLAT

Manufacturer "KITEO GmbH"

KITEO GmbH

is a company that offers lighting solutions that revolve around the relationship between light and people, i.e. ambience and a feel-good atmosphere take centre stage and the lighting is geared towards your needs. KITEO relies on innovative PI-LED technology, which combines Human Centric Lighting and brilliant RGB colour effects in one colour source and brings daylight into every room in its natural course.

For more than 10 years we have been offering products from the manufacturer KITEO worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

KITEO GmbH & Co.KG
Landsberger Str. 310 - 80687 München - Germany


E-Mail: info@kiteo.eu
Related links of the manufacturer

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Similar Products

DEL Deckeineinbau eckiger Rahmen

Average rating of 5 out of 5 stars

LED recessed ceiling light 13W

Glare-free LED recessed ceiling light 13W dimmable via phase dimmer, 1-10V, DALI, touch dimming.

Product number: DEL13
Choose design
+2
Select ballast
+3

€60.30*

delivery time 3-5 Working days*

eckige Einbaurahmen für Deckenleuchte
LED recessed ceiling light 26W
Glare-free LED recessed ceiling light 26W dimmable via phase dimmer, 1-10V, DALI, touch dimming
Product number: DEL26
Choose design
+2
Select ballast
+3

€123.42*

delivery time 3-5 Working days*

COB LED downlight 6W weiß

Average rating of 5 out of 5 stars

COB LED Downlight 6W round and swiveling
Stylish 6W COB LED downlights for 68mm mounting diameter replaces 50W halogen spotlight. Versions in Alu-matt, white and as well as 2700K, 3000K and 4000K.
Product number: ELRS6
color temperature
+1
Surface

Variants from €25.20*
€49.60*

delivery time 5-10 Working days*

Einbaudownlight quadratisch weiss
LED Downlight COB 6W, square and swiveling
Stylish square swivel 6W COB LED downlights for 68mm mounting diameter replaces 50W halogen spotlight. Versions in Alu-matt or white and as well as 2700K, 3000K and 4000K.
Product number: ELES6
color temperature
Surface

Variants from €39.15*
€49.60*

delivery time 3-5 Working days*

Pendelleuchte PSL
LED pendant luminaire PSL 44W/57W
Elegant LED pendent luminaire 44W/57W Series PSL, 3 colour temperatures and 3 different body colours.
Product number: 3220
Select color temperature
Choose color/surface

Variants from €386.31*
€524.05*

delivery time 1-3 Weeks*

K-SPOT FLAT Produktbild
K-SPOT FLAT 14W DALI DT8 / ZigBee
K-SPOT FLAT represents a compact downlight14W 230V with built-in PI-LEDs, control via ZigBee or DALI DT8, IP30, SKII
Product number: KSPOT
Control
+1
Surface

Variants from €284.41*
€260.61*

delivery time 1-3 Weeks*

K-Forum Strahler Produktbild

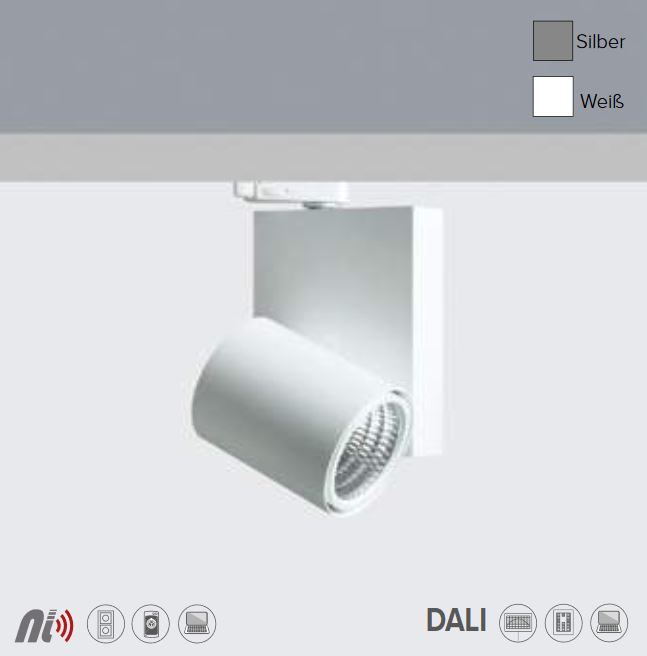

LED Track light K-FORUM 34W ZigBee/DALI DT8
