LED power supply unit with constant current - 24V 350mA / 12V 700mA
€17.14*
net-price: €14.40delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "LED power supply unit with constant current - 24V 350mA / 12V 700mA "
Independent LED power supply unit with constant current and voltage 24V 350mA / 12V 700mA - for high-power LEDs
This LED power supply unit with 8 W and constant current is ideal for operating high-power LEDs. The independent module has screw terminals and can be used both as a power supply unit with constant output current and as one with constant output voltage.
Further Features:
- Independent Power supply with constant output current for high power LEDs
- With screw terminals
- Do not insert switches into the secondary circuit!
- CC: Only connect high power LEDs in series!
- CV: Connect LEDs in parallel
- Lifetime: 60.000 hours
Note:
Do not insert switches into the secondary circuit!
Only connect high power LEDs in series!
Technical data:
| Nominal output current | 350 mA | 700 mA |
| Article number | 039121 | 039122 |
| Type | NU352-8 | NU701-8 |
| Input voltage | 110..220..240 Vac; 176..264 Vdc | |
| Frequency | 50..60 Hz | |
| Nominal output voltage CV | 24 Vdc | 12 Vdc |
| Output power CC/CV | 1,05..8,4 W / max. 8,4W | 2,1..8,75 W / max. 8,75 W |
| Operating output voltage | 3..24 Vdc | 3..12,5 Vdc |
| Max. output voltage | 24 Vdc | 12 Vdc |
| Power factor acc. to EN61000-3-2 | 0,6 | |
| Ambient temperature | -25..+50 °C | |
| Rated max. temperature | 75 °C | |
| Thermal protection | yes | |
| Overload protection | yes | |
| Short circuit protection | yes | |

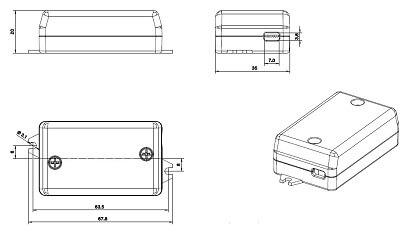

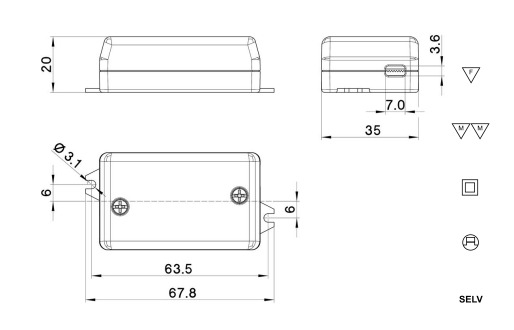

| Dimensions | 67,5x35x20 mm | |
For further information please refer to the data sheet in the Download tab.
Article 039121 replaces article 401177
Article 039122 replaces article 401176
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Constant Current: | 0,35A, 0,7A |
| ·Constant Voltage: | 12V, 24V |
| ·Power range: | 5 - 20 W |
