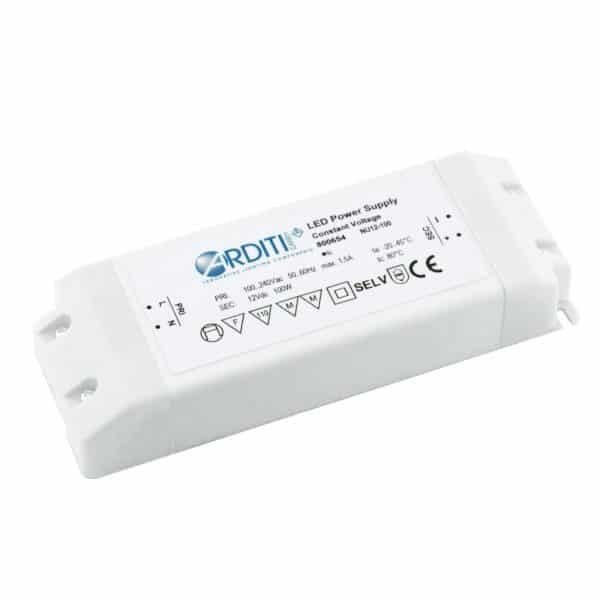

Product information "Independent LED power supply up to 150W"
Powerful LED power supply with constant voltage 12V / 24V - high efficiency, short-circuit protection
This highly efficient LED power supply can be operated with regulated output voltage (12V / 24V) by connecting the LEDs in parallel. The independent LED module has screw terminals, impressing with comprehensive protection against overheating, overload and short circuit as well as a high power factor. It is available in four versions with a power of 100W, 132W, 150W and corresponding constant voltage.
Further features:
- Independent power supply with regulated output voltage
- Only connect LEDs in parallel
- With screw terminals
- Protection against overheating, overload and short circuit
- Power factor >0,9
Note:
It is imperative that you do not switch in the secondary circuit.
Technical data:
| Article number | 800654 | 800655 | 800656 | 800657 |
| Type | NU12-100 | NU24-100 | NU12-132 | NU24-150 |
| Input voltage | 100..240 Vac | 200..240 Vac | ||
| Frequency | 50..60 Hz | |||
| Nominal output voltage | 12 Vdc | 24 Vdc | 12 Vdc | 24 Vdc |
| Output power | 100 W | 100 W | 132 W | 150 W |
| Power factor acc. to EN61000-3-2 | >0,9 | |||
| Ambient temperature | -20..+45 °C | |||
| Rated max. temperature | 80 °C | |||
| Overload protection | yes | |||
| Short circuit protection | yes | |||

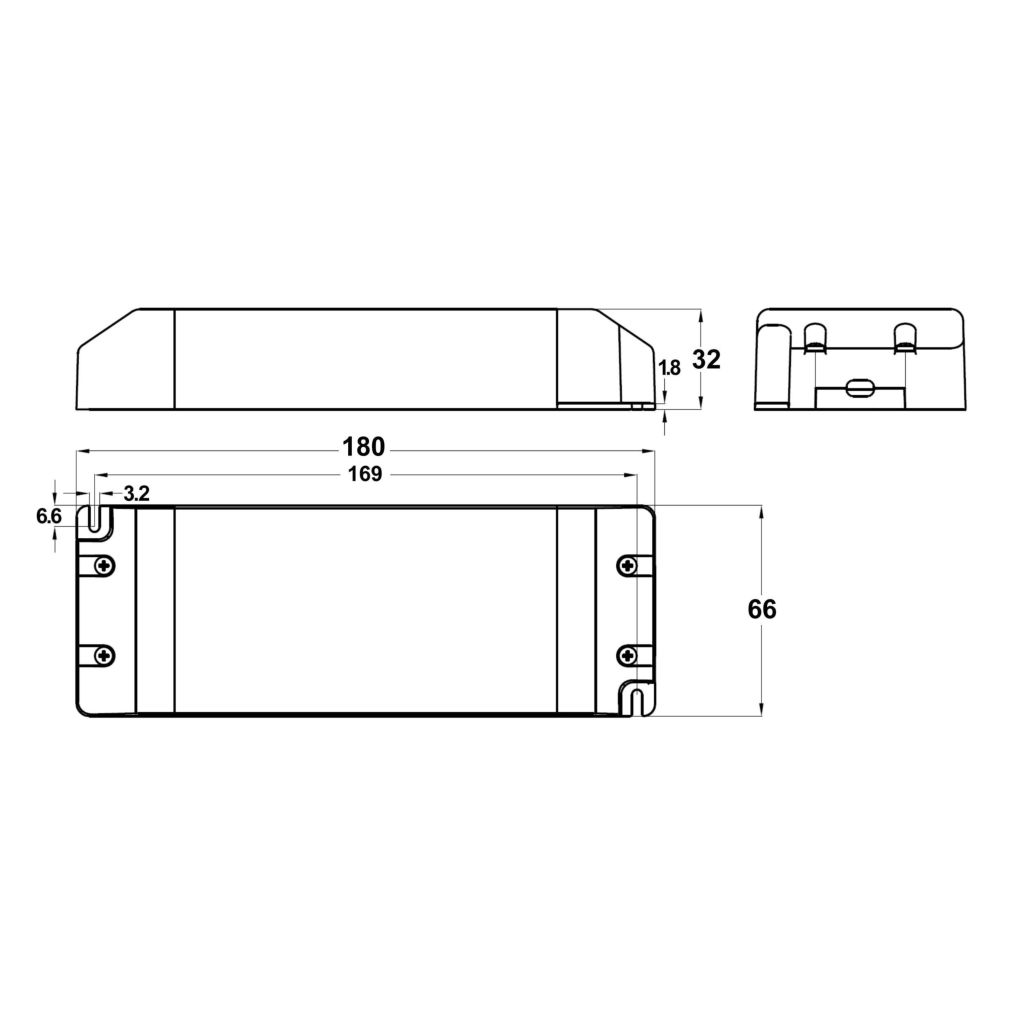

| Dimensions | 180x66x32 mm | |||
For further information please refer to the data sheet in the Download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Constant Voltage: | 12V, 24V |
| ·Power range: | 50 - 100 W, 100 - 250 W |
