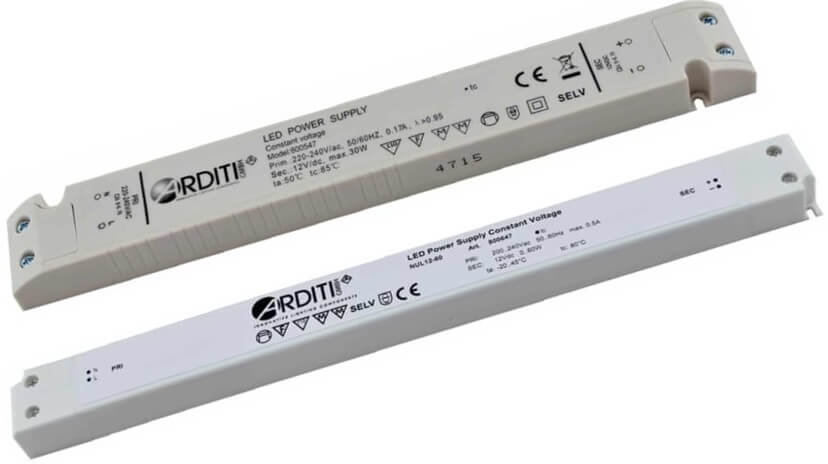

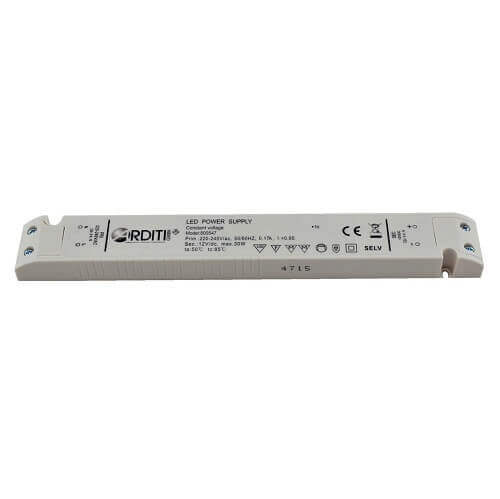

Independent LED power supply slim up to 60W 12V/24V
€35.53*
net-price: €29.86delivery time 4-6 Weeks*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Independent LED power supply slim up to 60W 12V/24V"
Slim LED power supply with constant voltage 12V / 24V - highly efficient, short-circuit protection
This highly efficient LED power supply can be operated with regulated output voltage (12V / 24V) by connecting the LEDs in parallel. The independent LED module has screw terminals, impressing with comprehensive protection against overheating, overload and short circuit as well as a high power factor. It is available in four versions with a power of 30W and 60W, each with 12V or 24V constant voltage.
Further features:
- Independent LED power supply with controlled output voltage
- Slim shape
- Do not insert switches into the secondary circuit!
- Protection against overheating, overload and short circuit
- Power factor >0,9
Technical data:
| Article number | 800547 | 800548 | 800647 | 800648 |
| Type | NUL12-30 | NUL24-30 | NUL12-60 | NUL24-60 |
| Input voltage | 220..240 Vac | |||
| Frequency | 50..60 Hz | |||
| Nominal output voltage | 12 Vdc | 24 Vdc | 12 Vdc | 24 Vdc |
| Ausgangsleistung | 30 W | 60 W | ||
| Power factor acc. to EN61000-3-2 | >0,9 | |||
| Ambient temperature | -20..+45 °C | |||
| Rated max. temperature | 85 °C | 80 °C | ||
| Thermal protection | yes | |||
| Overload protection | yes | |||
| Short circuit protection | yes | |||

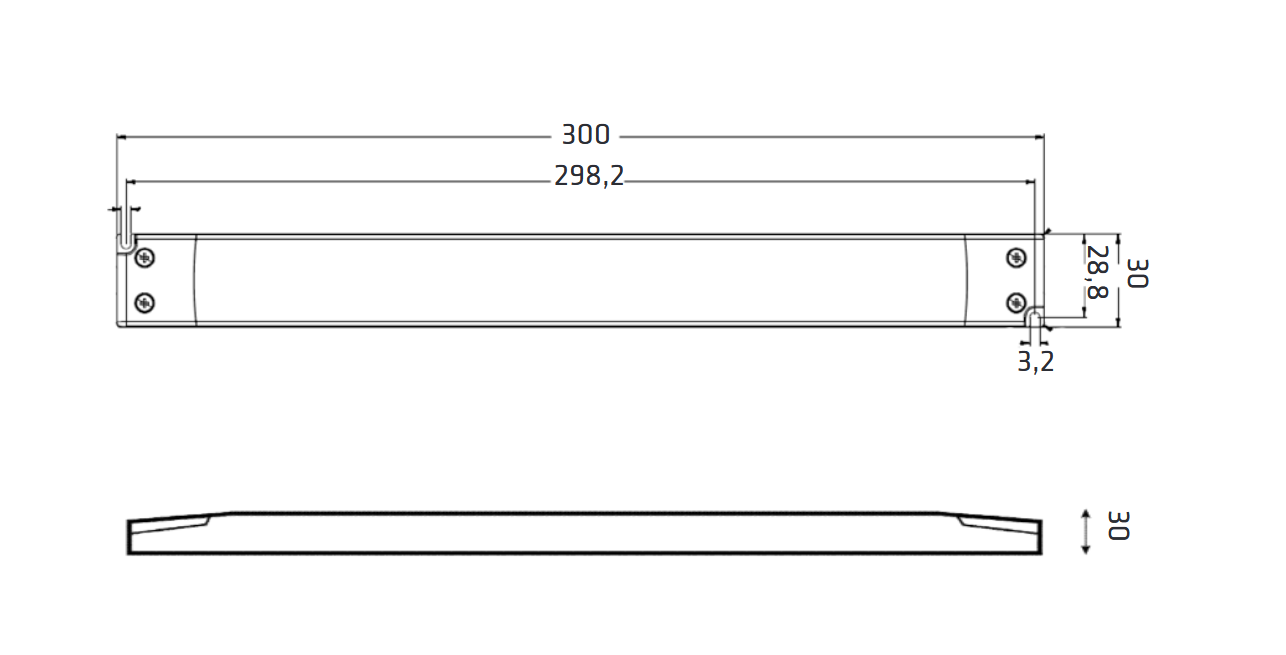

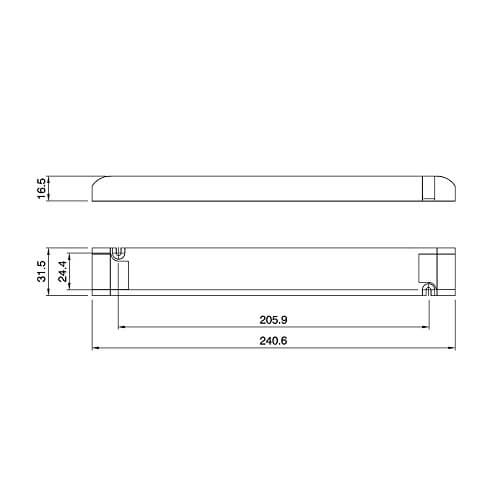

| Dimensions | 240,6×31,5×16,5 mm | 305x30x17 mm | ||
For further information please refer to the data sheet in the Download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Constant Voltage: | 12V, 24V |
| ·Power range: | 20 - 50 W, 50 - 100 W |
