Product information "Illuxtron Fluxe 50 adj LV GEN 2"

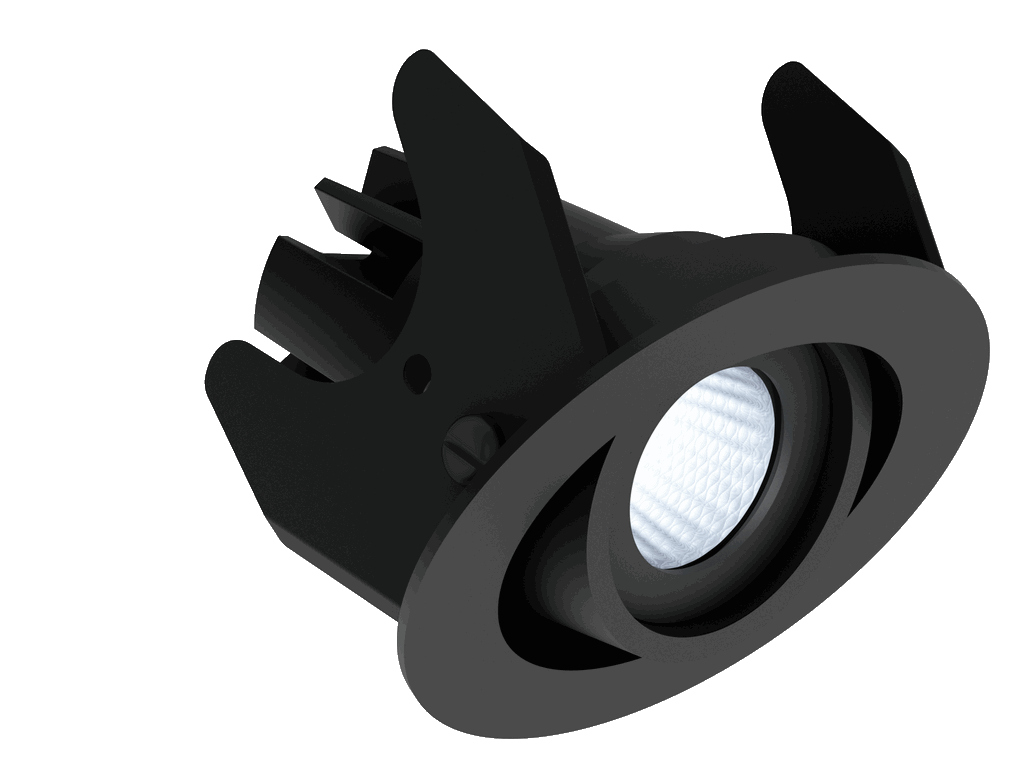

Illuxtron Fluxe 50 - the 2nd generation of dimmable, adjustable mini downlights
The adjustable Fluxe 50 mini recessed spotlights from Illuxtron are real powerhouses! Suitable for 50 mm hole diameters, available in two colours, with two mounting options and various dimming options.
The second generation of the Fluxe 50 impresses with a higher luminous efficacy and a version for 500 mA.
These adjustable recessed LED spotlights impress with their compact dimensions, first-class light quality and diverse customisation options.
These mini downlights are available in 2700K, 3000K and 4000K. You can also choose between the version for 220-240 V with integrated PSU (optionally Triac or DALI dimmable) or the version with 500 mA for which various external drivers are available.
What makes these little powerhouses so special are the reflectors with microfacets. These microfacets from the Fluxe 50 series ensure perfect illumination of objects and Rooms.
The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits:
Special features of these so-called Dark Light - Reflectors
- High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology
- low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of LED light spectra for very good colour rendering
More detailed details of these technical features can be found in the Illuxtron Mini Recessed Spotlight Overview.
The most important technical details of the Fluxe 50 GEN 2 series:

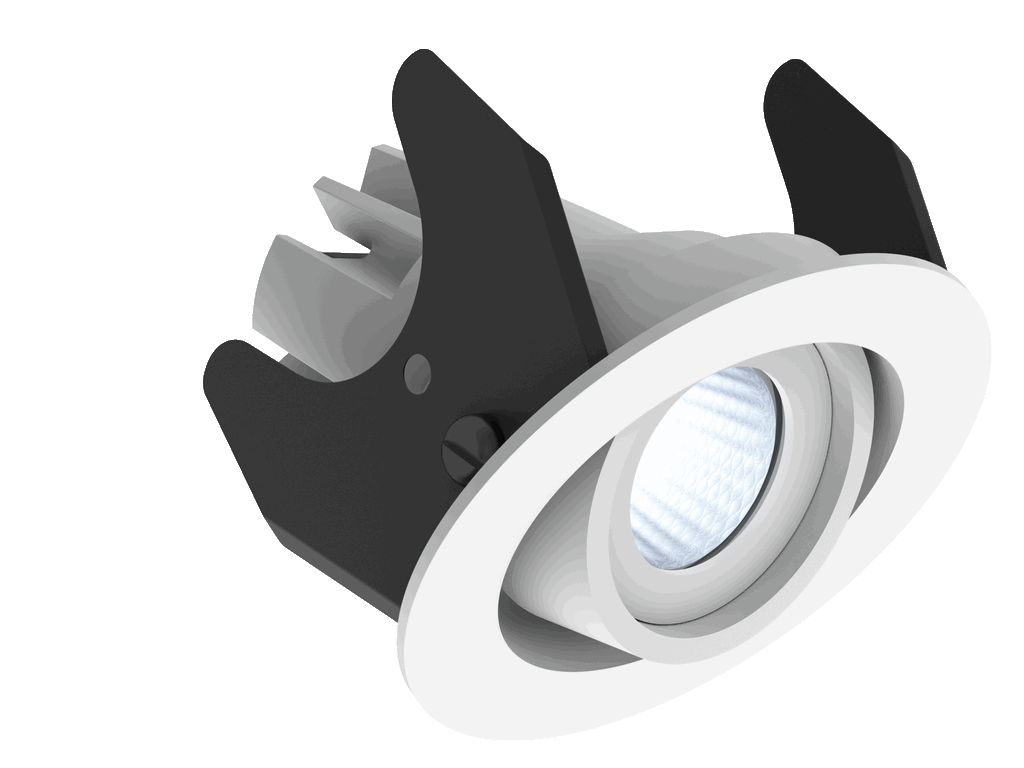

| Casing color | matt white RAL 9016 (XX=MW) matt black RAL 9005 (XX=BL) |
| Material | housing: die-cast aluminium Reflector glass: Polycarbonate |
| Dimensions | 55 mm x 45 mm |
| Hole diameter | 50 mm |
| Required installation depth | > 50 mm |
| Application | Inside area |
| beam angle (FWHM) | 40° (65° FWTM) |
| Adjustable angle | +/- 30° |
| CRI / Ra (typ.) | 82 |
| Colour consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Safety sign | EN60598 / EN62031 / EN62471 |
| EMV Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | F (2700K/3000K) / E (4000K) |
Fluxe 50 - 220-240V GEN 2
The power supply is already included in this version. This version is DALI or Triac dimmable.
For more information on Fluxe 50 220-240 V Mini Downlights, please refer to the data sheet.
Product specifications Fluxe 50 GEN 2 220-240 V:
| Art. No. | 861A03XX0102 | 861A03XX7202 | 861A03XX0202 |
| Color temperature | 2700 K | 3000 K | 4000 K |
| Luminous Flux | 475 lm | 500 lm | 525 lm |
| Type | Incl. PSU | ||
| Input | 220-240V | ||
| W | 6,6 | ||
| Lm/W (with EVG) | 72 | 76 | 80 |
| UGR | 15 | 15,2 | 15,4 |
| Pf | 0,96 | ||
| Protection class | II | ||
| Input current | 2A 50µS | ||
| Ripple | < 20% | ||
| B-16A Fuse | 50 pcs | ||
| Dimmability | Triac *DALI | ||
*Note: This table only shows the Triac version with concrete spring mounting. This downlight is also available with wire spring mounting and as dimmable DALI version.
Fluxe 50 500mA GEN2
This version has extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver.
To the overview of matching 500mA constant current sources (LED driver).
For further information about the Fluxe 50 Mini Downlight please refer to the data sheet.
Product specifications Fluxe 50 GEN 2 500mA:
| Art. No. | 861A03XX01E2 | 861A03XX72E2 | 861A03XX02E2 |
| Color temperature | 2700 K | 3000 K | 4000K |
| Luminous Flux | 475 lm | 500 lm | 525 lm |

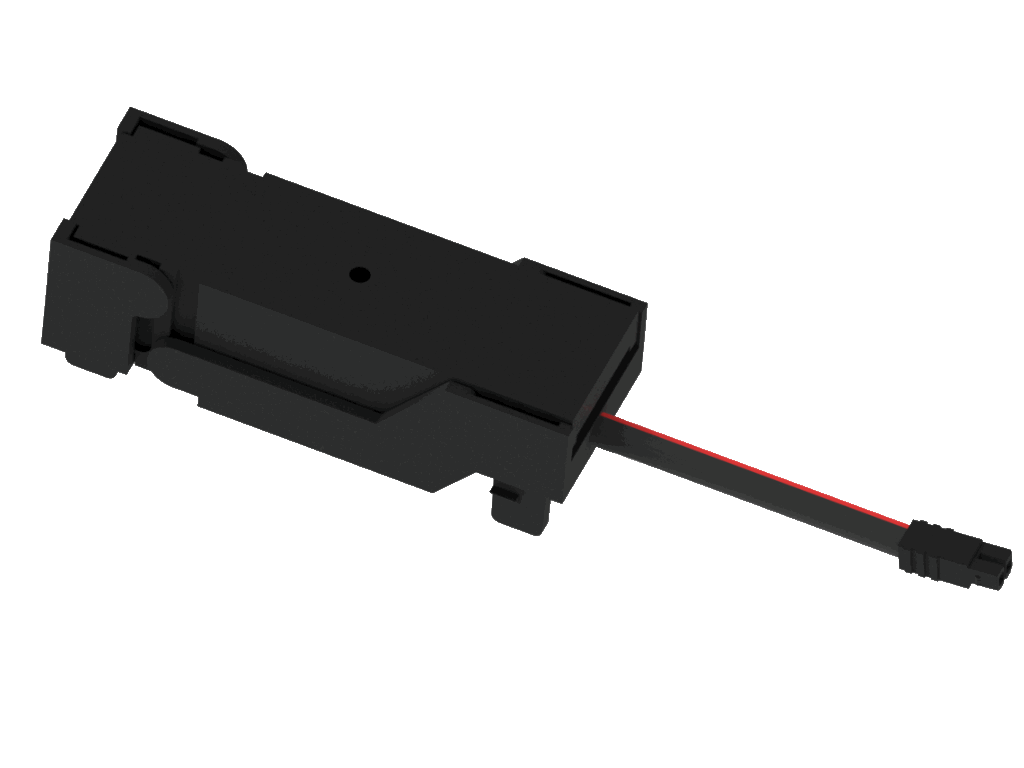

| Type | Incl. Connection Box | ||
| Input | 500mA | ||
| Vf | 11,9 | ||
| W | 5,7 | ||
| Lm/W (with EVG) | 83 | 88 | 92 |
| UGR | 15 | 15,2 | 15,4 |
| Protection class | III | ||
| Dimmability | Alternativ: DALI, 1-10V, Push, Triac(Phase dimming) depending on LED driver selection | ||

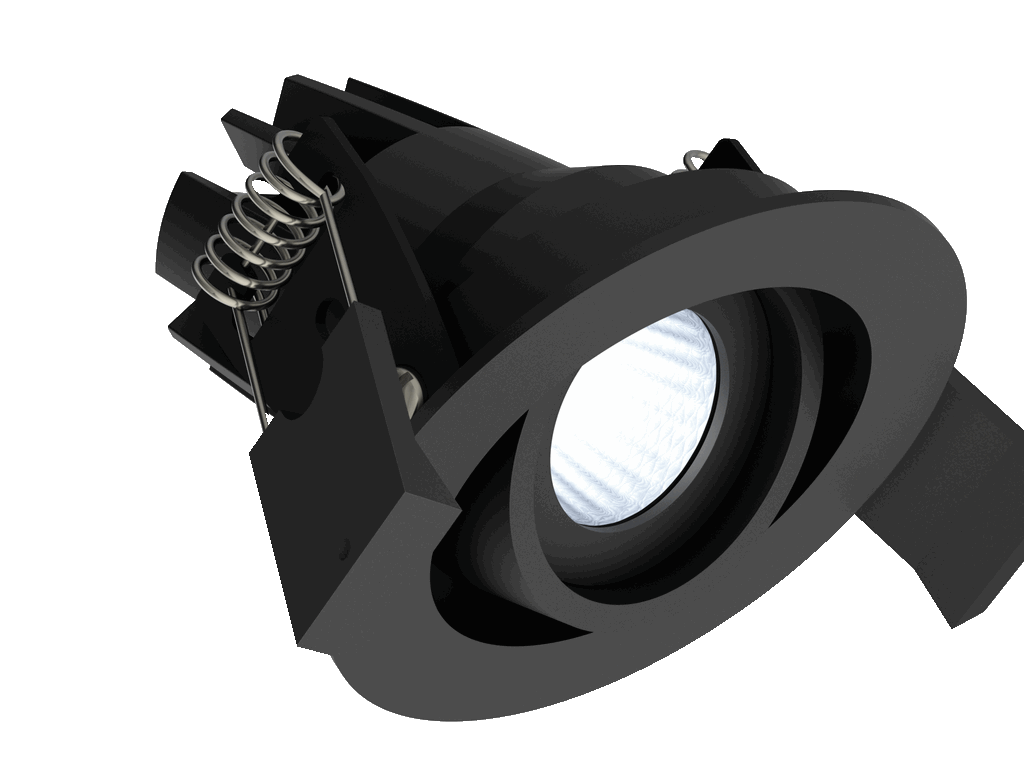

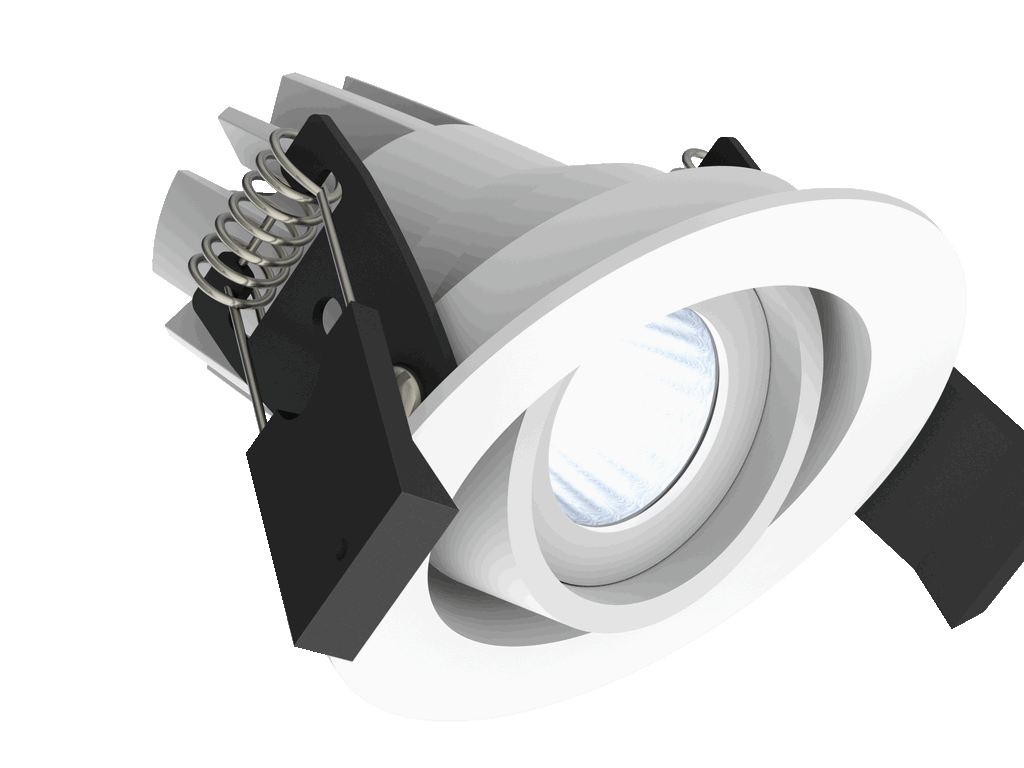

*Note: This table shows only the version with concrete spring mounting type. This version is also available with wire spring mounting.
For the data sheet of Mini Downlights Fluxe 50 series please check the download tab.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K |
| ·Constant Current: | 0,5A |
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
| ·Hole diameter: | 50mm |
| ·Lamp shape: | Recessed ceiling |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
