Product information "Illuxtron Fido Wall Light 105 HV-FD 800lm"

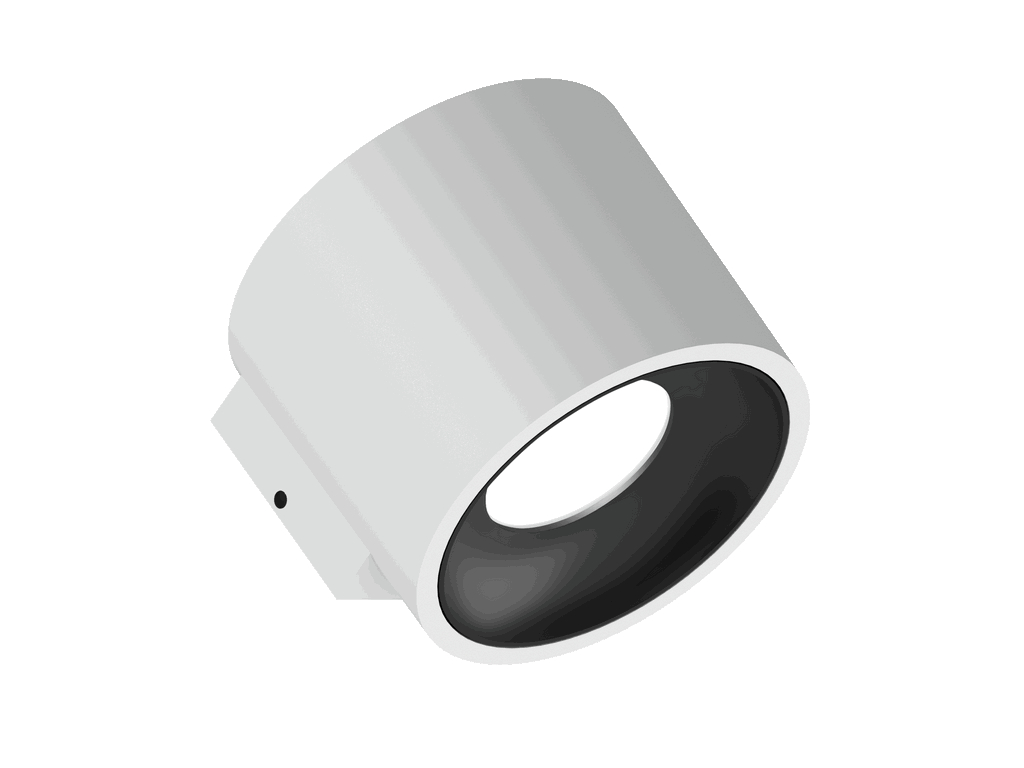

Illuxtron Fido WL 105 HV-FD - Wall Light
The Illuxtron Fido WL 105 HV-FD wall light is a stylish and versatile lighting solution designed for indoor use. Ideal for use in residential, commercial environments and showrooms, this wall light offers smooth, flicker-free dimming and a warm dim version for the perfect atmosphere. HV-FD stands for high voltage flicker-free dimming technology.
This wall light is a practical and stylish solution for illuminating your walls. This luxury wall light from Illuxtron can be connected directly to the mains supply without a driver, ensuring easy installation. You can easily dim the wall light to less than 1% using a standard triac wall dimmer. In addition, the wall light can shine both downwards and upwards, creating an atmospheric effect. The luminaire is available in three different colour temperatures (2700K, 3000K, 4000K) and in a dimm-to-warm version, so that it can be optimally adapted to different lighting moods. The different colour options also offer numerous design possibilities and enable perfect integration into any design concept.
Main Features and Technical Specifications of Illuxtron Fido WL 105 HV-FD
This wall light is a reliable solution without the need for an external power supply. It has smooth dimming functions down to 0.1% (see dimmer list in the data sheet) and virtually no inrush current. The housing is made of die-cast aluminium with a polycarbonate reflector glass, ensuring durability and quality.
- Input voltage: 220-240Vac
- 2 Beam angles available: 40° / 80°40° / 80°40° / 80°
- 220-240Vac220-240VacFor indoor use with an IK value of IK03
- Operating temperature: -20°C to +45°C
- Warranty: 7 years
- Colour consistency: MacAdam Step 3

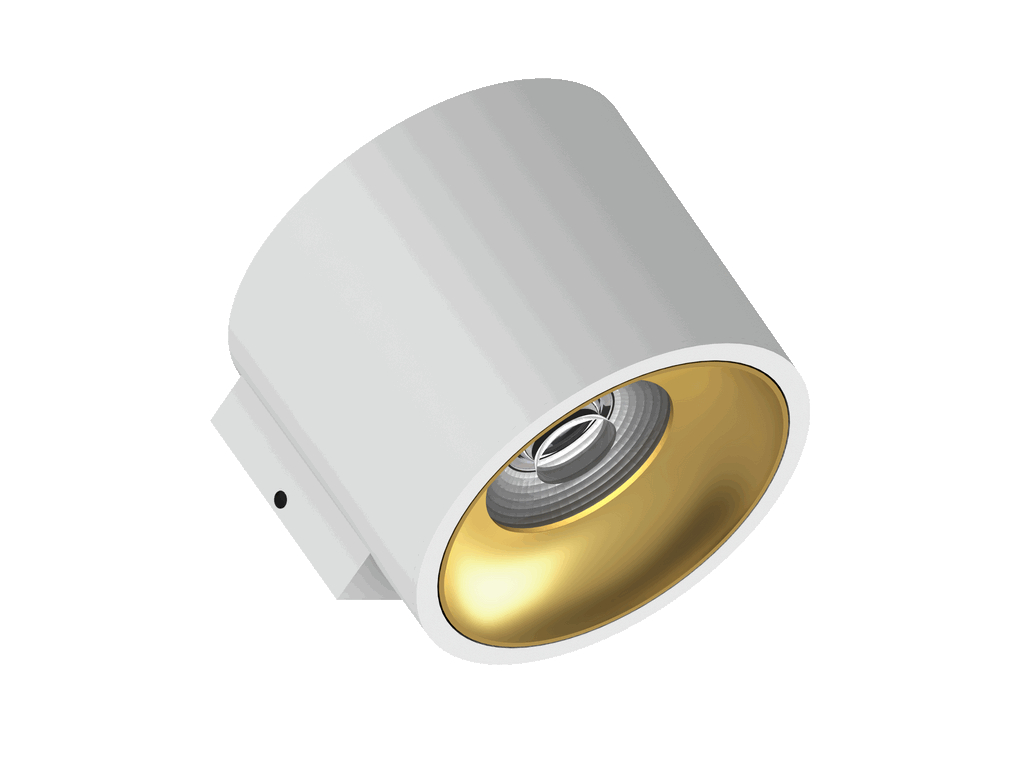

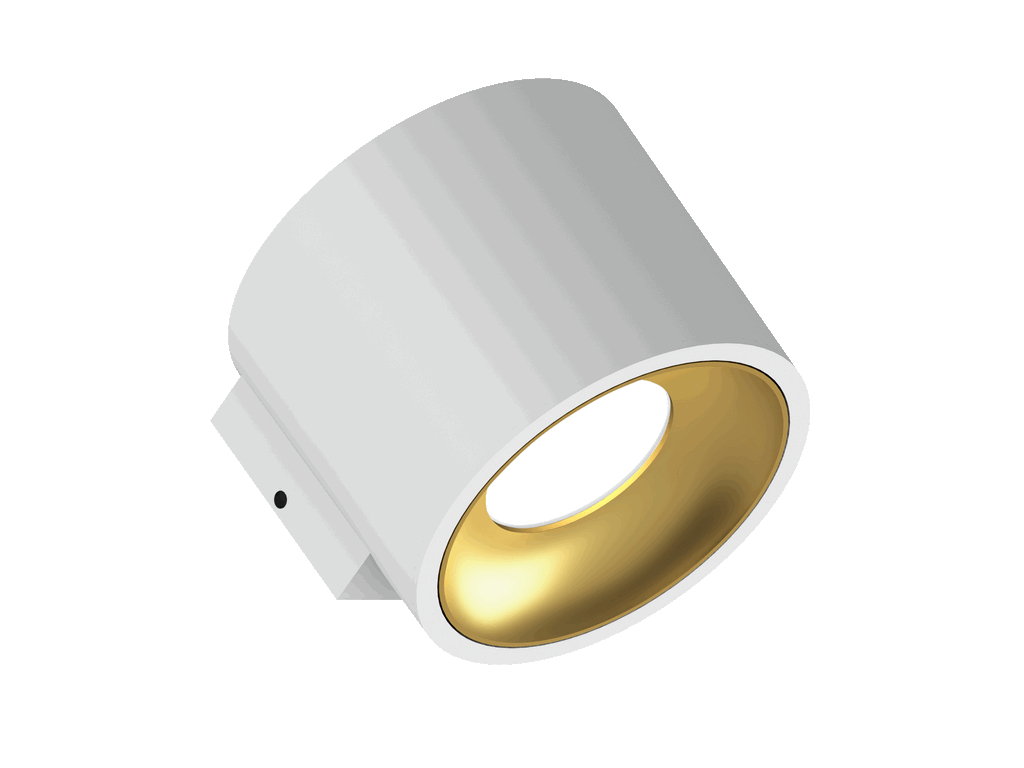

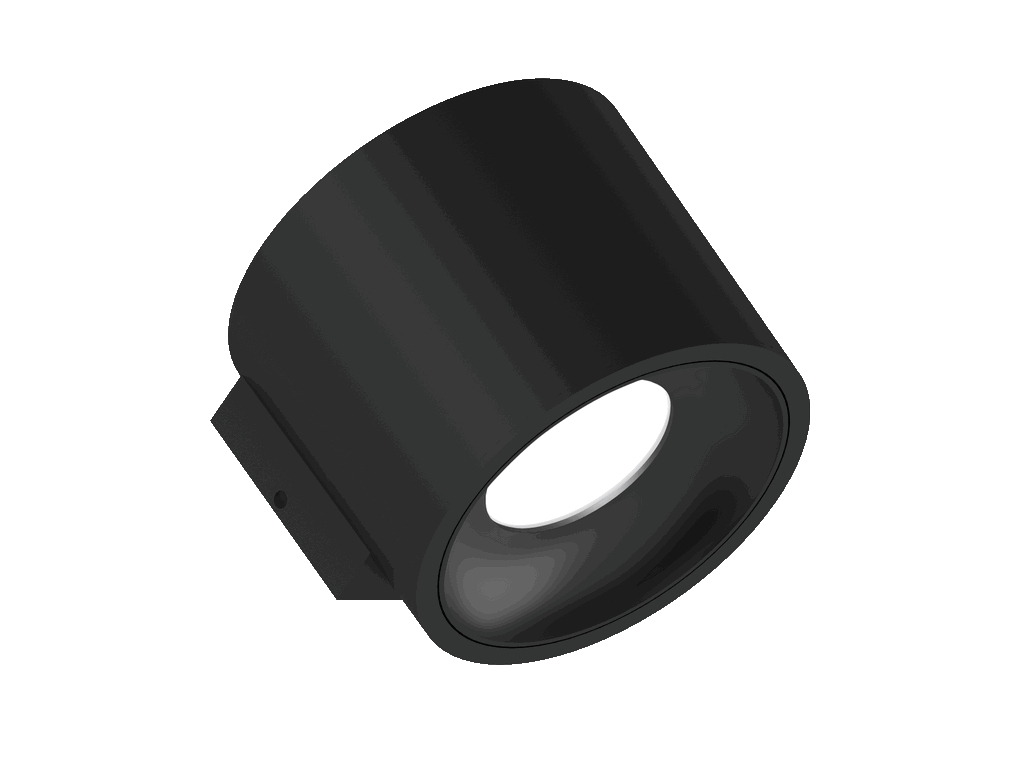

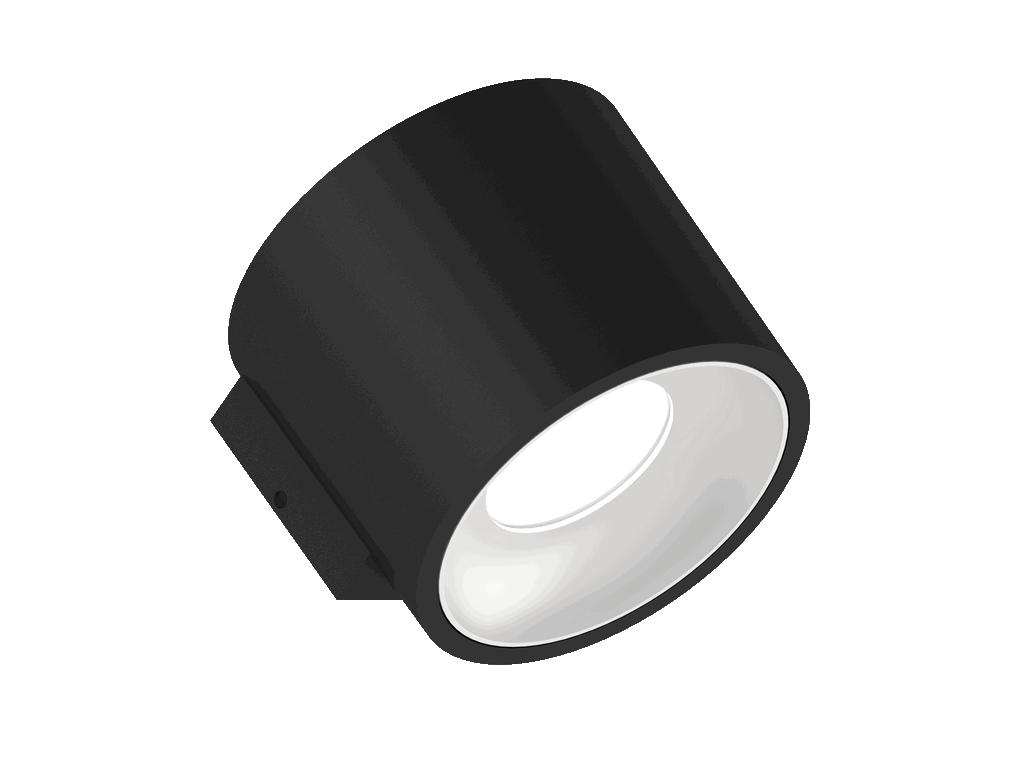

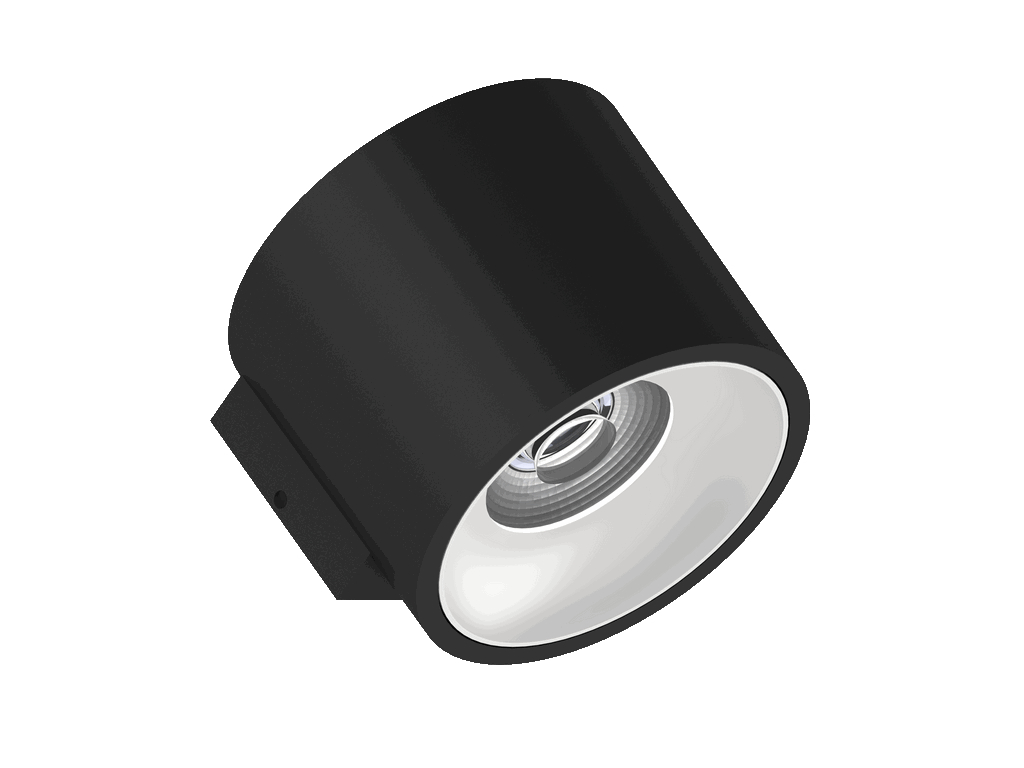

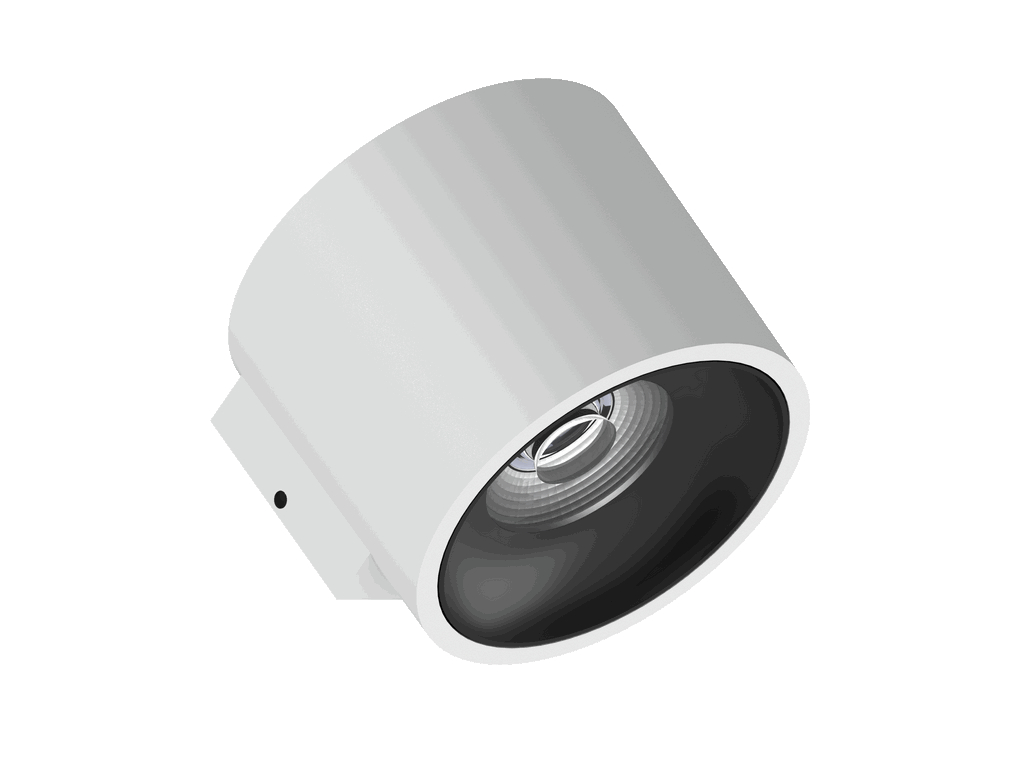

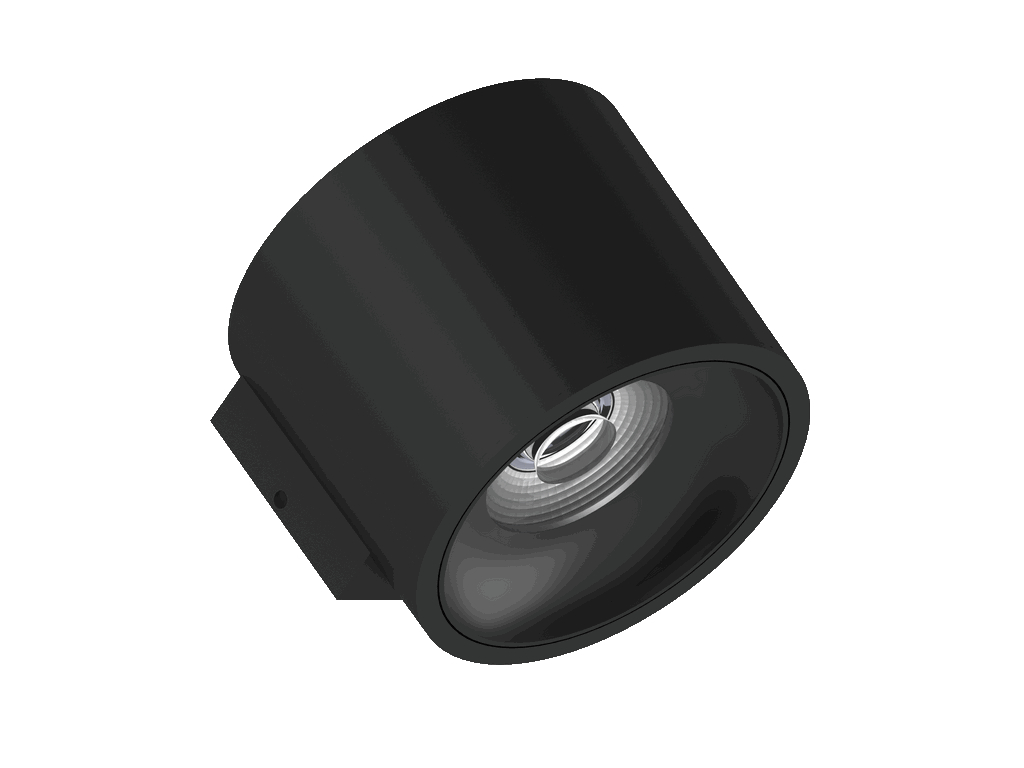

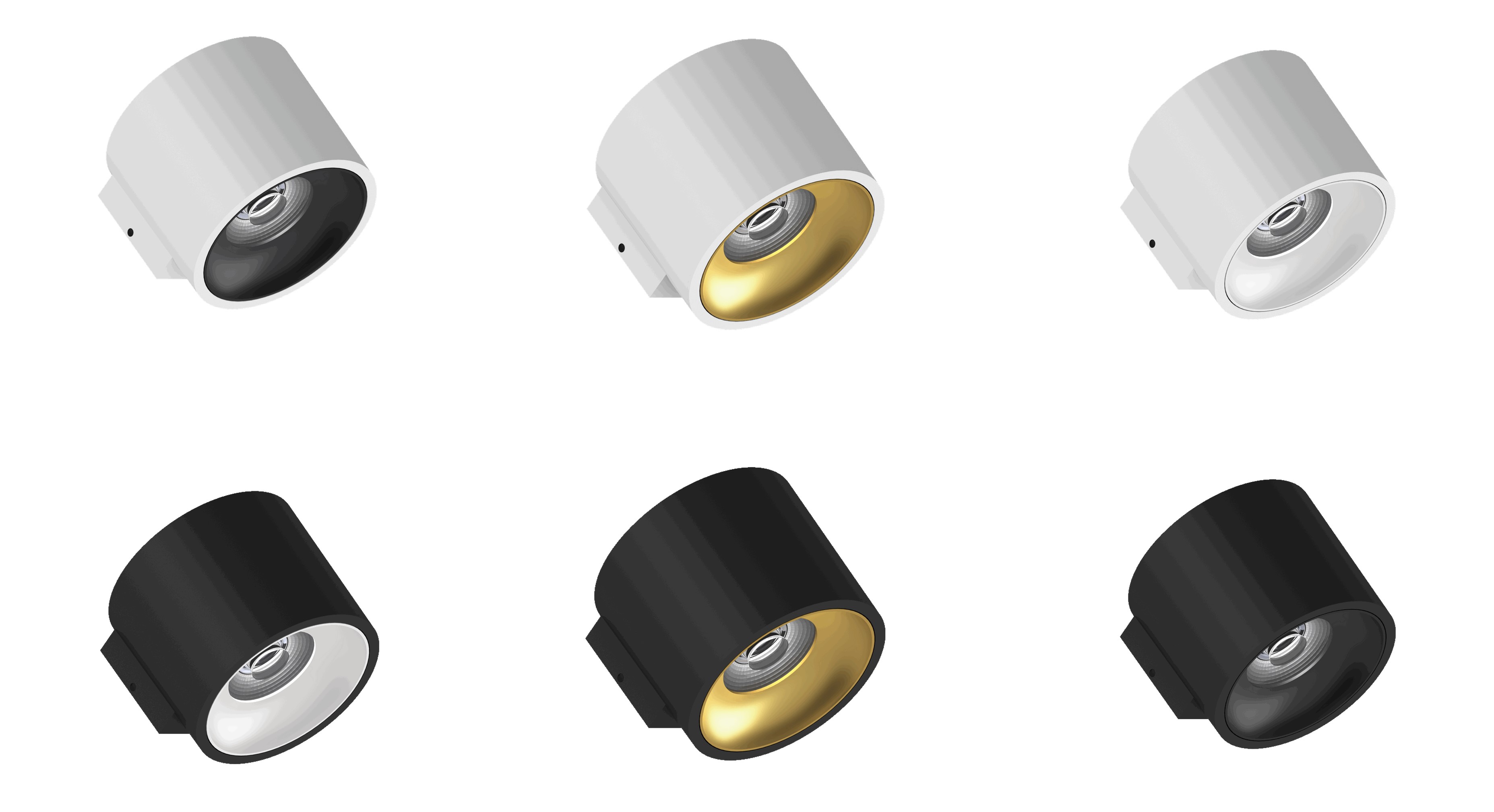

Available Colour Variants for Illuxtron Fido WL 105 HV-FD
| Nr | Housing | Inside Ring |
|---|---|---|
| XX=61 | Matt white | Gold |
| XX=62 | Matt white | Black |

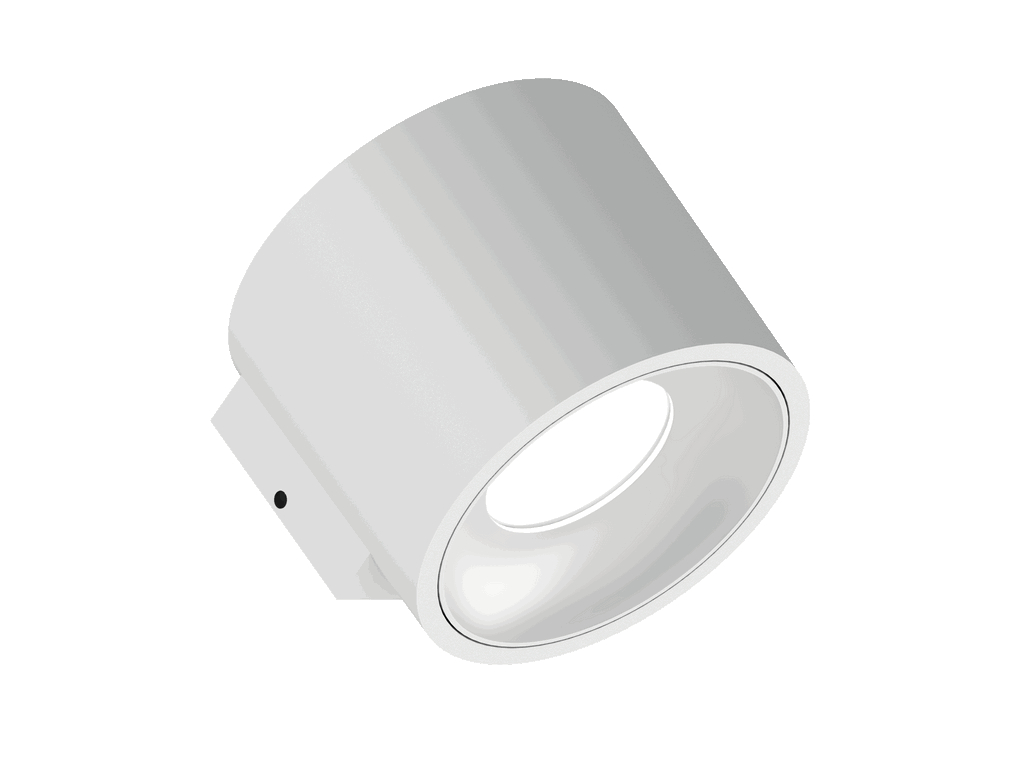

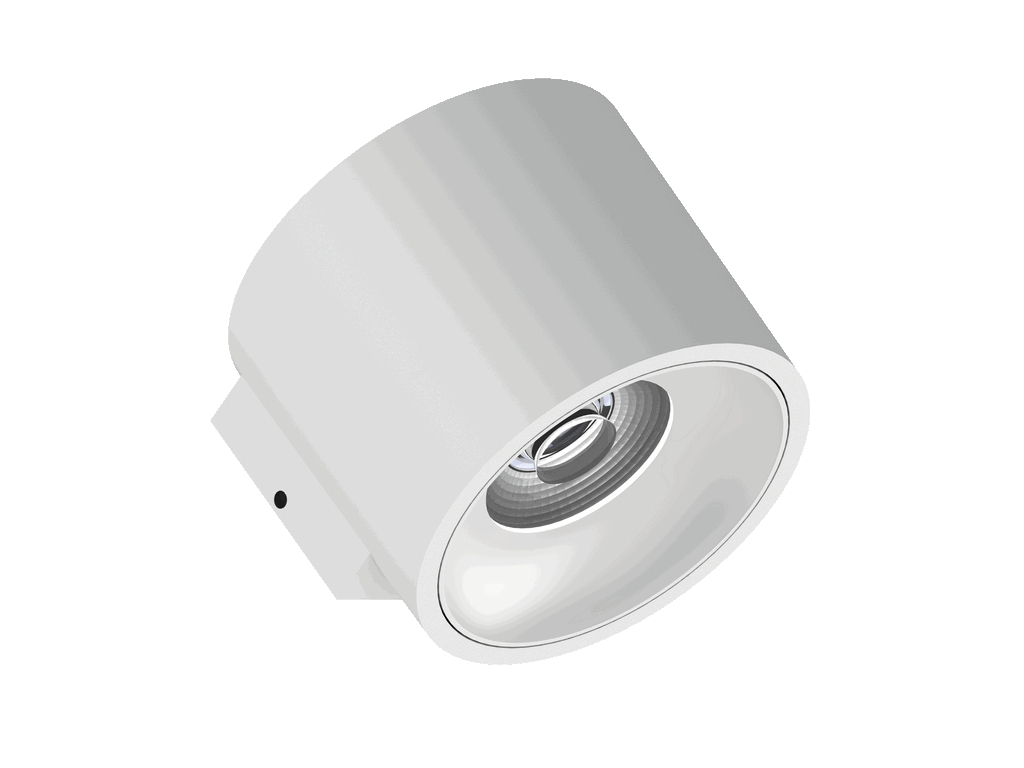

| XX=65 | Matt white | White |

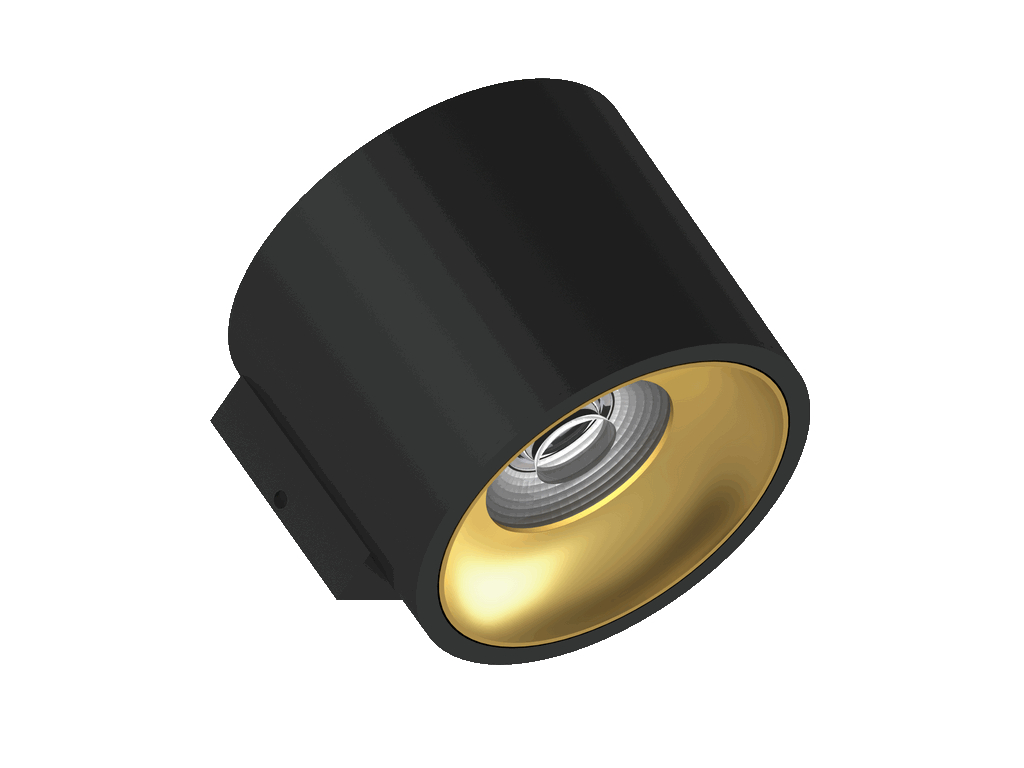

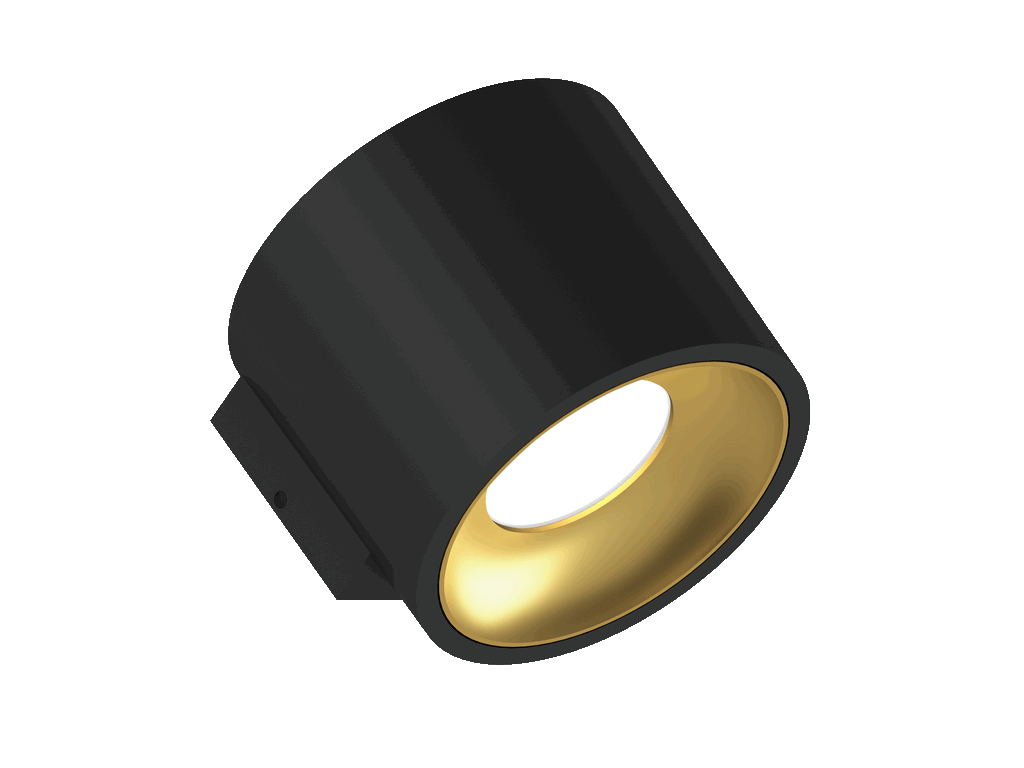

| XX=71 | Matt black | Gold |
| XX=72 | Matt black | Black |
| XX=76 | Matt black | White |
Item Specifications for Illuxtron Fido WL 105 HV-FD
| Description | Item Code | CCT | CRI | Lichtstrom | Leistung |
|---|---|---|---|---|---|
| Fido WL 105 HV-FD 2700K 800 Lm 40° Triac dim | F42A03XX5A02 | 2700K | 93 | 800 Lm | 10.5 W |
| Fido WL 105 HV-FD 3000K 800 Lm 40° Triac dim | F42A03XX5C02 | 3000K | 93 | 800 Lm | 10.3 W |
| Fido WL 105 HV-FD 4000K 800 Lm 40° Triac dim | F42A03XX5E02 | 4000K | 93 | 800 Lm | 10.1 W |
| Fido WL 105 HV-FD 2200-3000K 800 Lm 40° Triac dim | F42A03XX5G02 | 2200-3000K | 93 | 800 Lm | 10.3 W |
| Fido WL 105 HV-FD 2700K 800 Lm 80° Triac dim | F42A03XX5B02 | 2700K | 93 | 800 Lm | 10.5 W |
| Fido WL 105 HV-FD 3000K 800 Lm 80° Triac dim | F42A03XX5D02 | 3000K | 93 | 800 Lm | 10.3 W |
| Fido WL 105 HV-FD 4000K 800 Lm 80° Triac dim | F42A03XX5F02 | 4000K | 93 | 800 Lm | 10.1 W |
| Fido WL 105 HV-FD 2200-3000K 800 Lm 80° Triac dim | F42A03XX5H02 | 2200-3000K | 93 | 800 Lm | 10.3 W |
Safety and Compliance
The Illuxtron Fido WL 105 HV-FD complies with the safety standards EN60598, EN62031 and EN62471 as well as the EMC standard EN55015. It has a mains overvoltage capability of 2 kV (differential mode) and 4 kV (common mode), which ensures reliable performance in various conditions. This product contains an energy efficiency class F light source.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further details please see the linked data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K, Dim2Warm |
| ·Dimmable/Control: | Phase-Cut (Triac) |
| ·Lamp shape: | Ceiling/wall mounting |
| ·Power range: | 5 - 20 W |
