Product information "Illuxtron Fido CL 105 HV-FD"

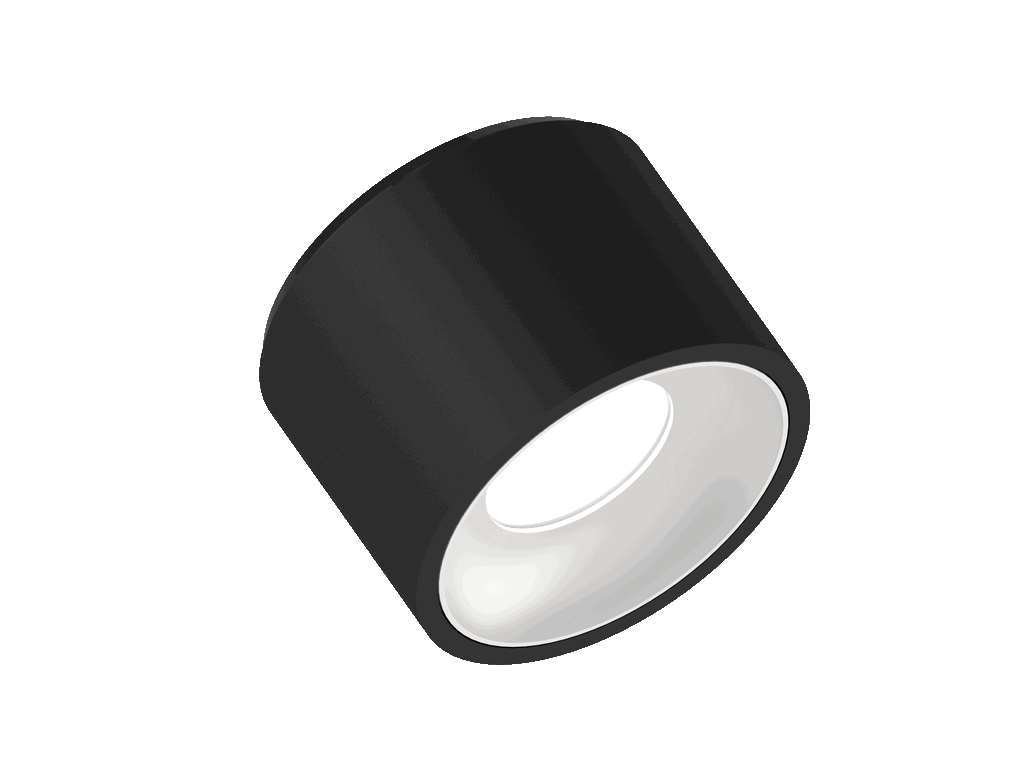

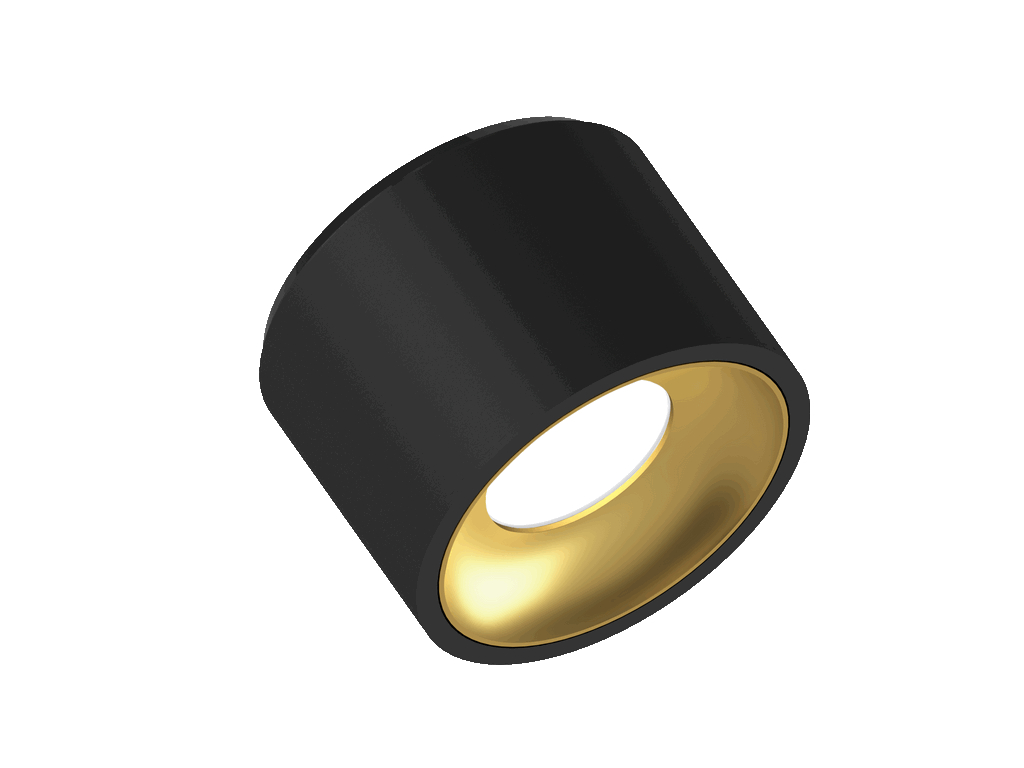

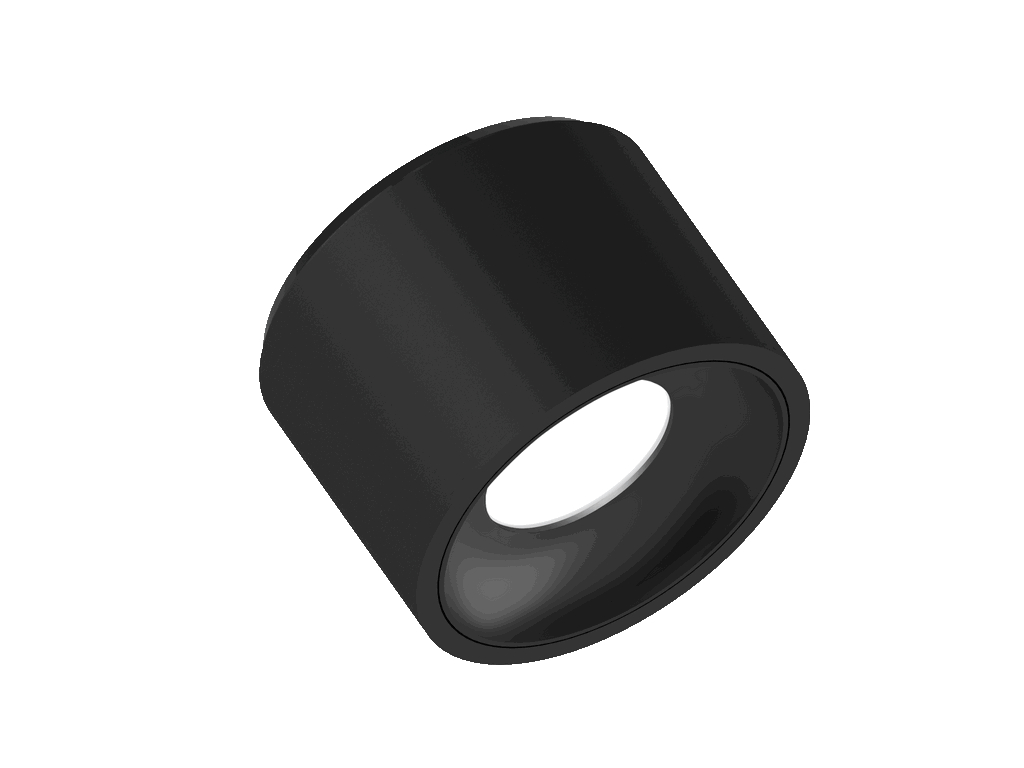

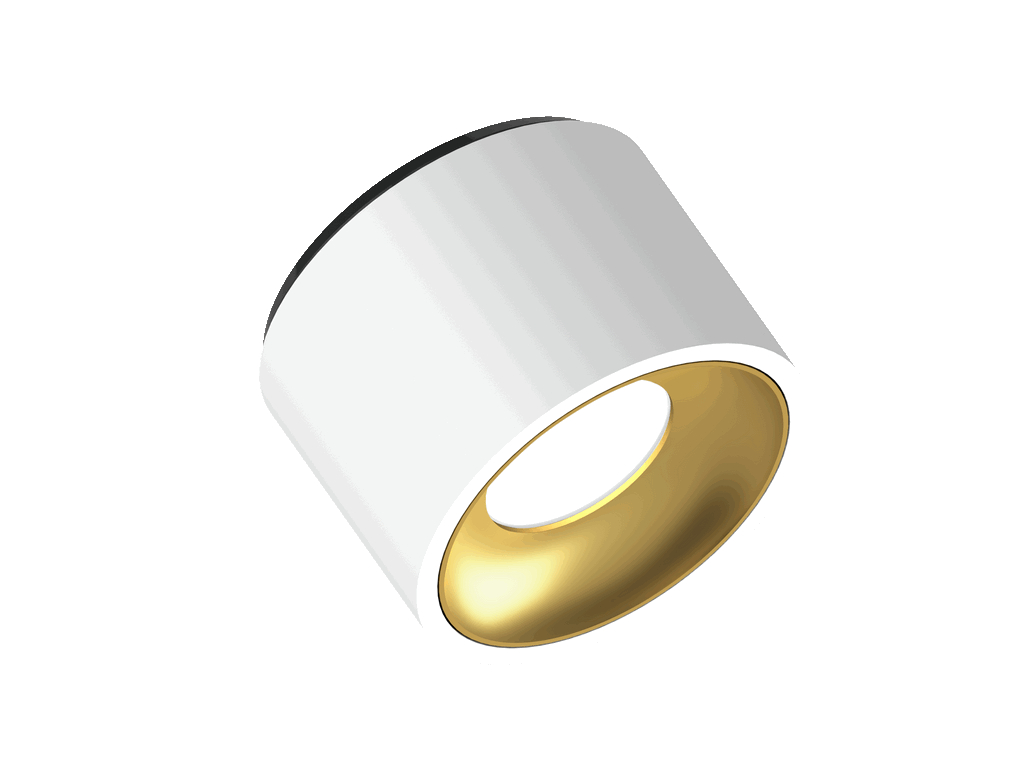

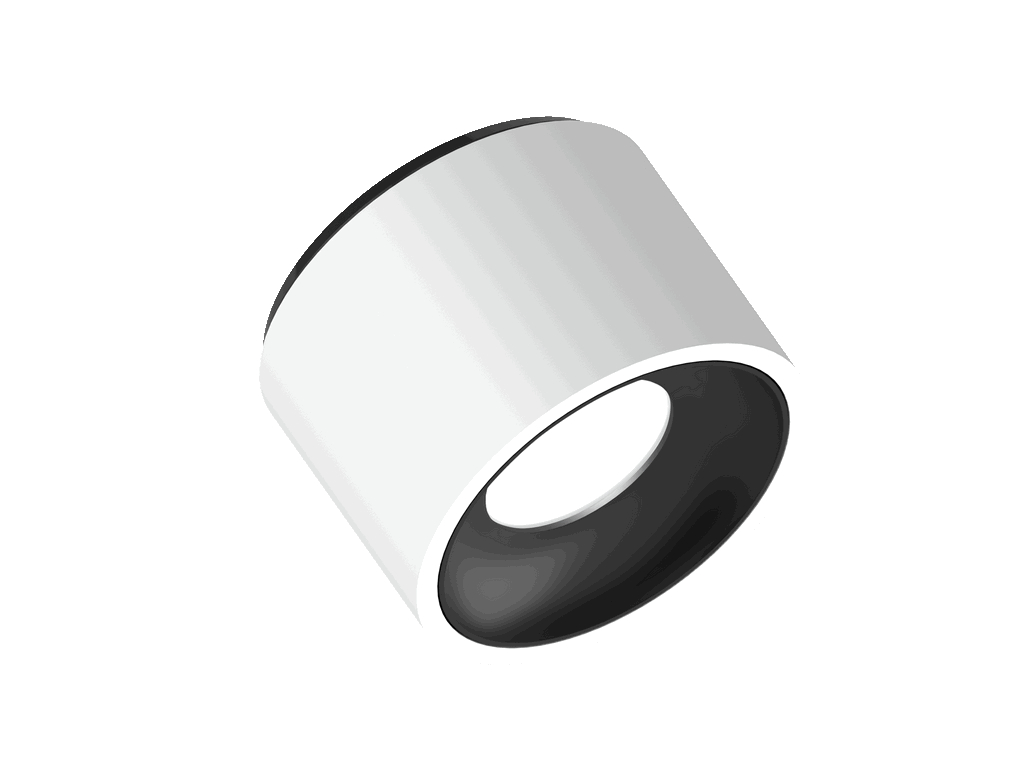

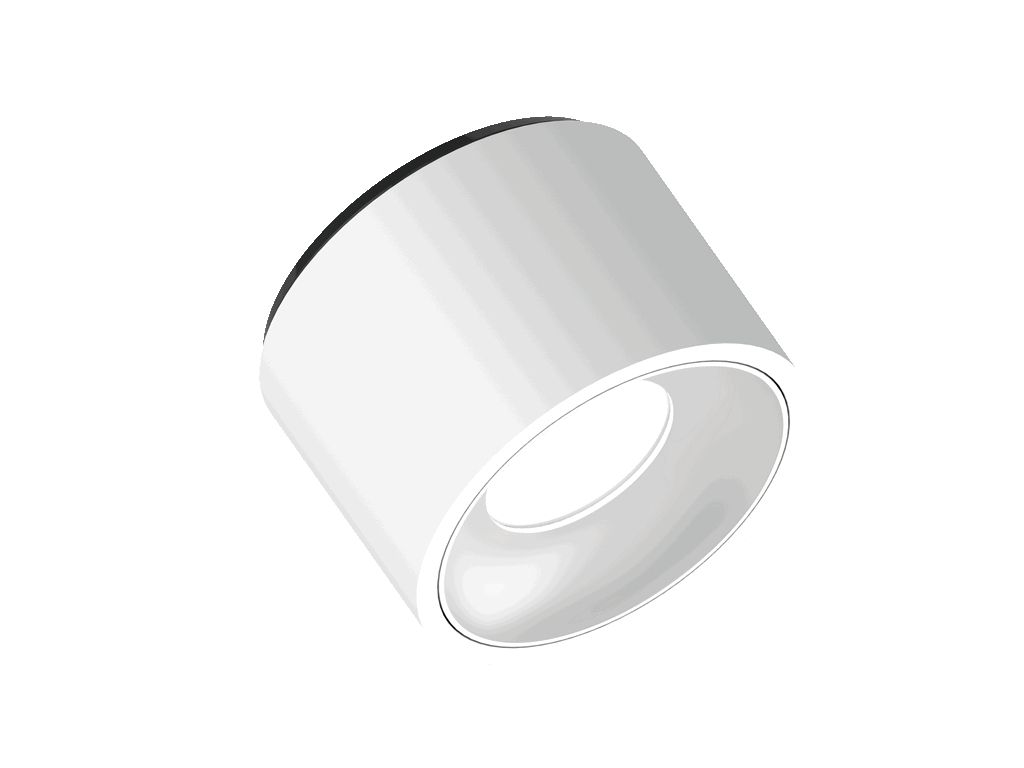

Illuxtron Fido CL 105 HV-FD ceiling light - Surface-mounted spotlight
The Illuxtron Fido CL 105 HV-FD is a stylish and versatile ceiling light. Ideal for use in living spaces, commercial environments and showrooms, the surface-mounted spotlight offers a gentle, flicker-free dimming option and a warm dim version for the perfect cosy atmosphere. The HV-FD stands for high voltage flicker-free dimming technology.
The Illuxtron Fido CL 105 HV-FD surface-mounted spotlight can be connected directly to the mains supply without a driver, ensuring simple installation. You can easily dim the ceiling light to less than 1 % using a triac dimmer. The ceiling light is available in three different colour temperatures (2700K, 3000K, 4000K) and in a dimm-to-warm version so that it can be optimally adapted to different lighting moods. The various colour options of the surface-mounted spotlight also offer numerous design options and enable perfect integration into any design concept.
Ideal for applications such as exhibition spaces or any room requiring high quality lighting, the Illuxtron Fido CL 105 ensures excellent performance with minimal inrush current.
Main Features and Technical Specifications
Illuxtron Fido CL 105 HV-FD is a reliable solution without the need for an external power supply. The decorative luminaire has smooth dimming functions down to 0.1% (see dimmer list in the data sheet) and virtually no inrush current. The housing is made of die-cast aluminium with a polycarbonate reflector glass, ensuring durability and quality.
- Input voltage: 220-240Vac
- 2 beam angles available: 40° / 80
- For indoor use with an IK value of IK03
- Operating temperature: -20°C to +45°C
- Warranty: 7 years
- Colour consistency: MacAdam Step 3
Available colours for Illuxtron Fido CL 105 HV-FD
| Available Colours Housing/inner ring | Article Number |
|---|---|
| Matt white / Gold | XX=61 |
| Matt white / Black | XX=62 |
| Matt white / White | XX=65 |
| Matt black / Gold | XX=71 |
| Matt black / Black | XX=72 |
| Matt black / White | XX=76 |
Illuxtron Fido CL 105 HV-FD Item Specifications
| Description | ItemCode | CCT | CRI | Lichtstrom | Leistung |
|---|---|---|---|---|---|
| Fido CL 105 HV-FD 2700K 800 Lm 40° Triac dim | F32A03XX5A02 | 2700K | 93 | 800 Lm | 10.5 W |
| Fido CL 105 HV-FD 3000K 800 Lm 40° Triac dim | F32A03XX5C02 | 3000K | 93 | 800 Lm | 10.3 W |
| Fido CL 105 HV-FD 4000K 800 Lm 40° Triac dim | F32A03XX5E02 | 4000K | 93 | 800 Lm | 10.1 W |
| Fido CL 105 HV-FD 2200-3000K 800 Lm 40° Triac dim | F32A03XX5G02 | 2200-3000K | 93 | 800 Lm | 10.3 W |
| Fido CL 105 HV-FD 2700K 800 Lm 80° Triac dim | F32A03XX5B02 | 2700K | 93 | 800 Lm | 10.5 W |
| Fido CL 105 HV-FD 3000K 800 Lm 80° Triac dim | F32A03XX5D02 | 3000K | 93 | 800 Lm | 10.3 W |
| Fido CL 105 HV-FD 4000K 800 Lm 80° Triac dim | F32A03XX5F02 | 4000K | 93 | 800 Lm | 10.1 W |
| Fido CL 105 HV-FD 2200-3000K 800 Lm 80° Triac dim | F32A03XX5H02 | 2200-3000K | 93 | 800 Lm | 10.3 W |
Safety and Compliance
The Illuxtron Fido CL 105 HV-FD complies with the safety standards EN60598, EN62031 and EN62471 as well as the EMC standard EN55015. It has a mains overvoltage capability of 2 kV (differential mode) and 4 kV (common mode), which ensures reliable performance in various conditions. This product contains an energy efficiency class F light source.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further details please see the linked data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 3500K, Dim2Warm |
| ·Dimmable/Control: | Phase-Cut (Triac) |
| ·Lamp shape: | Ceiling/wall mounting |
| ·Power range: | 5 - 20 W |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
