Product information "Illuxtron Fido 98 LV-TW"

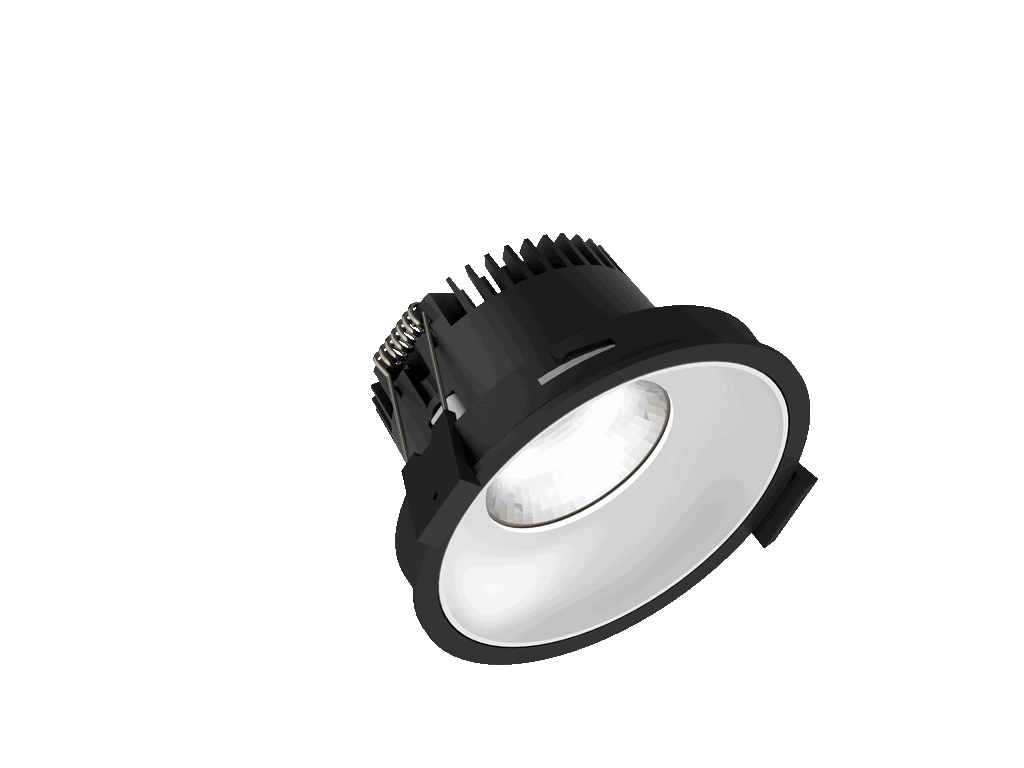

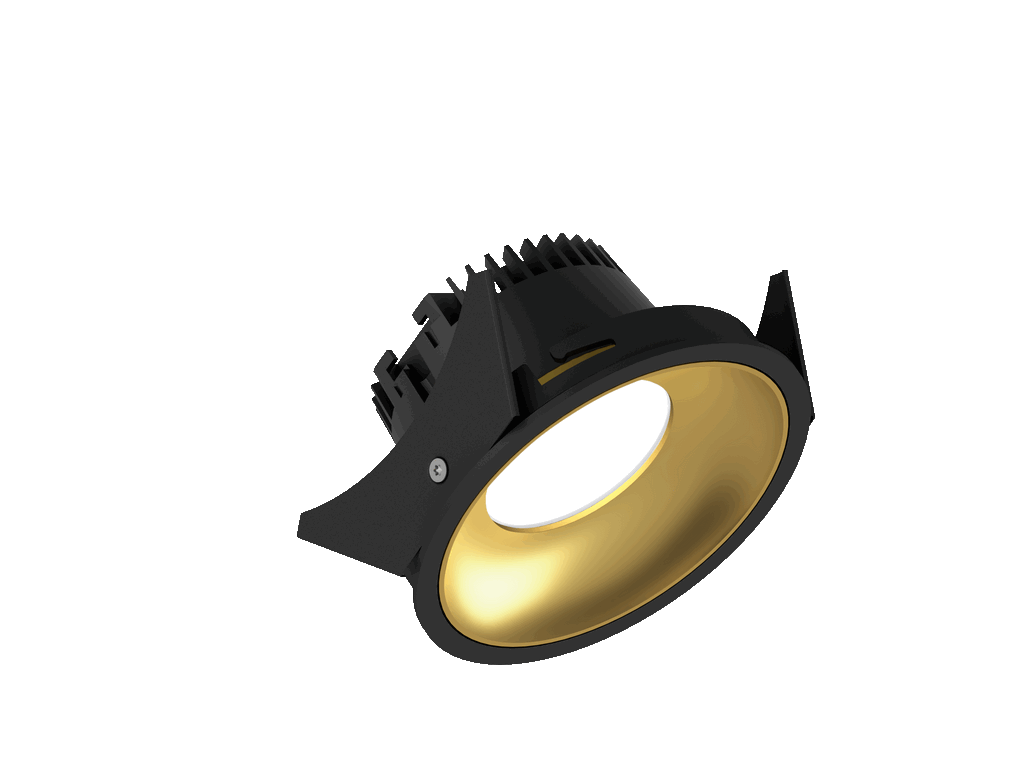

Illuxtron Fido 98 LV-TW: Advanced Lighting Solutions
The Illuxtron Fido 98 LV-TW enables flexible adjustment of the colour temperature between 2700K and 6500K. This function is ideal for Human Centric Lighting (HCL) concepts as it dynamically adapts the artificial light to the natural circadian rhythm. The downlight creates warm light for a relaxed atmosphere or cool light to increase concentration - ideal for versatile applications in living and working areas.

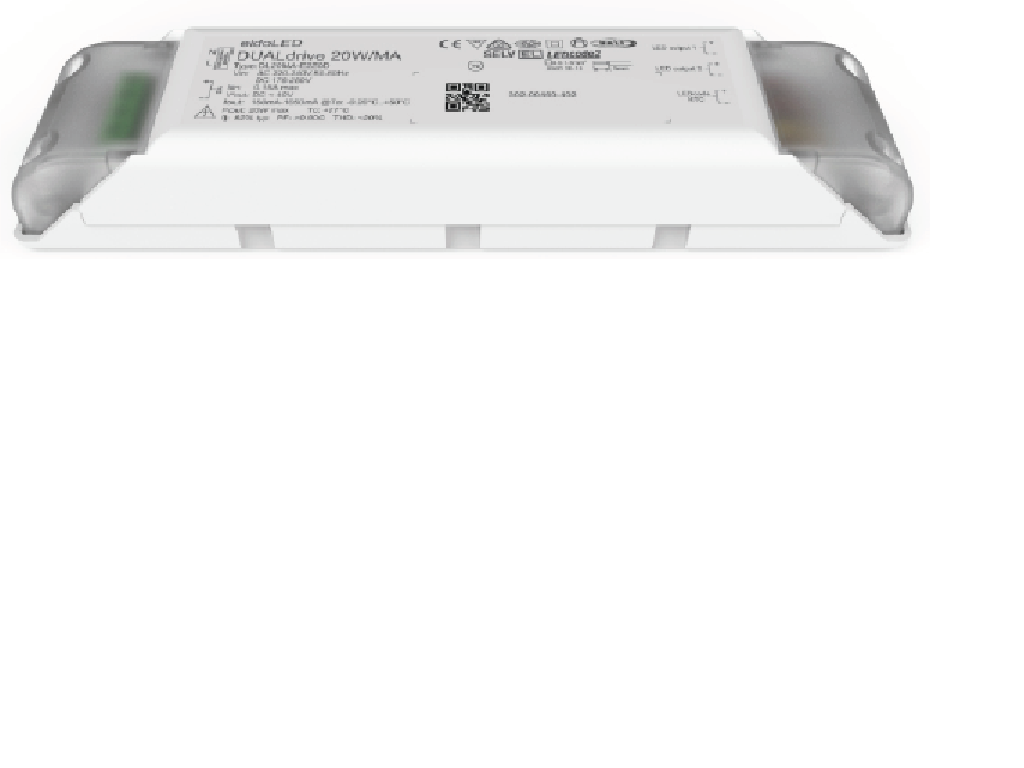

Thanks to the ENEC-approved 2-channel DALI-DT8 driver, the lighting can be precisely controlled and dimmed down to 0.1 %. This technology ensures seamless integration into smart home and building automation systems, significantly improving comfort and energy efficiency.
The minimalist recessed spotlight design with ultra-thin edge ensures a virtually rimless look that blends modernly and discreetly into any environment. The Fido 98 is suitable for a hole diameter of 98 mm, making it easy to install in existing ceiling cut-outs.
Main Features and Technical Specifications
- for 98 mm hole diameter
- High LED efficacy of 110Lm/W
- ENEC approved 2 channel Dali DT8 driver
- Programmable LED module with CCT range of 2700-6500K
- Dimmable to 0.1%
- Fixture material: Die-cast aluminium housing and polycarbonate reflector glass
- Indoor use with IK rate IK03
- Operating temperature: -20°C to +45°C
- Safety marks: EN60598, EN62031, EN62471
- EMC compliance: EN55015
- Colour consistency: MacAdam step 3
- Warranty: 7 years
- Safety class: II
- Energy class: F (2700-6500K)

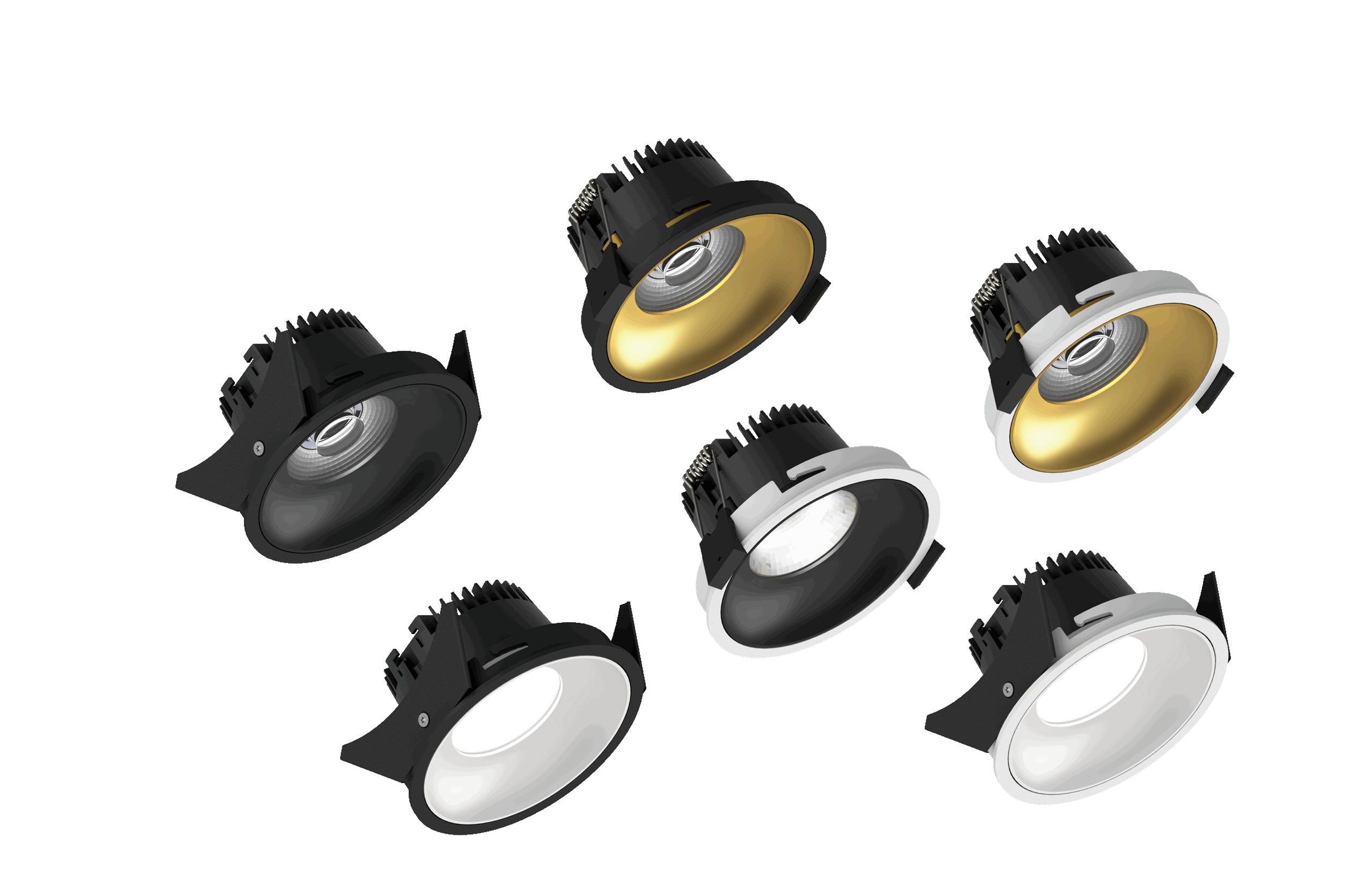

Available Colour Variants
| Nr | Housing | Inside ring |
|---|---|---|
| 61 | Matt white | Gold |
| 62 | Matt white | Black |
| 65 | Matt white | White |
| 71 | Matt black | Gold |
| 72 | Matt black | Black |
| 76 | Matt black | White |
Item Specifications for Illuxtron Fido 98 LV-TW
| Description | ItemCode | CCT | CRI | Lichtstrom | Leistung |
|---|---|---|---|---|---|
| Fido 98 LV-TW 2700-6500K 1250Lm 60° Dali | F16A03XX4W02 / F16A03XX9W02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
| Fido 98 LV-TW 2700-6500K 1250Lm 60° Casambi | F16A03XX4X02 / F16A03XX9X02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
| Fido 98 LV-TW 2700-6500K 1250Lm 80° Dali | F16A03XX4Y02 / F16A03XX9Y02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
| Fido 98 LV-TW 2700-6500K 1250Lm 80° Casambi | F16A03XX4Z02 / F16A03XX9Z02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
Safety and Compliance
The Illuxtron Fido 98 LV-TW was developed with safety and conformity in mind. It fulfils the safety standards EN60598, EN62031 and EN62471 and complies with the EMC standard EN55015. The product is categorised in safety class II and has energy efficiency class F.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further details please see the linked data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | Tuneable White |
| ·Dimmable/Control: | Casambi radio, DALI DT8 |
| ·Hole diameter: | 98mm |
| ·Lamp shape: | Recessed ceiling |
| ·Power range: | 5 - 20 W |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
