Product information "Illuxtron Fido 108 LV-TW Adjustable"

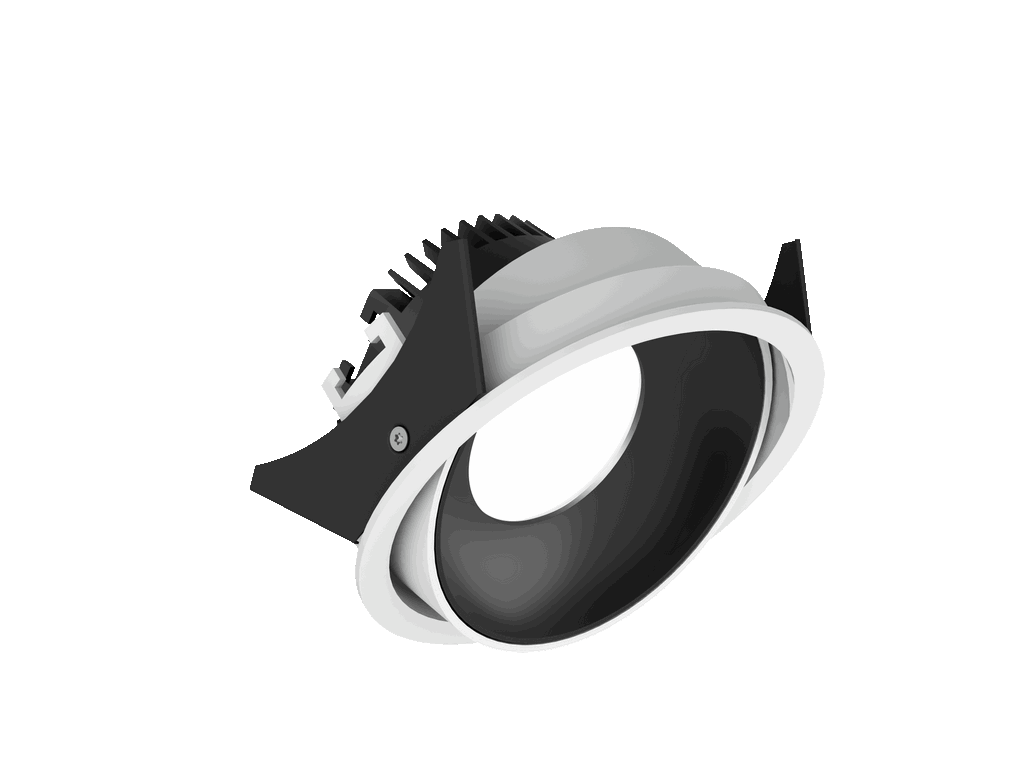

Illuxtron Fido 108 LV-TW Adjustable - Tuneable White for dynamic light
Illuxtron Fido 108 LV-TW Adjustable offers the option of flexibly adjusting the colour temperature in the range from 2700K to 6500K. This function is particularly advantageous for Human Centric Lighting (HCL) concepts, as it enables the artificial light to be dynamically adapted to the natural course of the day. From warm light for relaxation to cool light for increased concentration - the LV-TW is perfectly suited for various areas of application.
The ENEC approved 2-channel DALI-DT8 driver allows the light to be precisely controlled and even dimmed down to 0.1 %. The technology enables optimum integration into modern smart home and building automation systems, thereby increasing convenience and efficiency.
The recessed spotlight design of the Illutron Fido downlights with an extremely thin edge creates an almost rimless look that is modern and discreet.
Main Features and Technical Specifications
- High LED efficacy of 110Lm/W
- ENEC approved 2 channel Dali DT8 driver
- Programmable LED module with CCT range of 2700-6500K
- Two different beam angles available (60° / 80°)
- 2 different springs available: WS springs (for drywall/metal) or CS springs (for concrete)
- Housing material: die-cast aluminium housing and polycarbonate reflector glass
- For indoor use with an IK value of IK03
- Operating temperature: -20°C to +45°C
- Warranty: 7 years
- Colour consistency: MacAdam Step 3

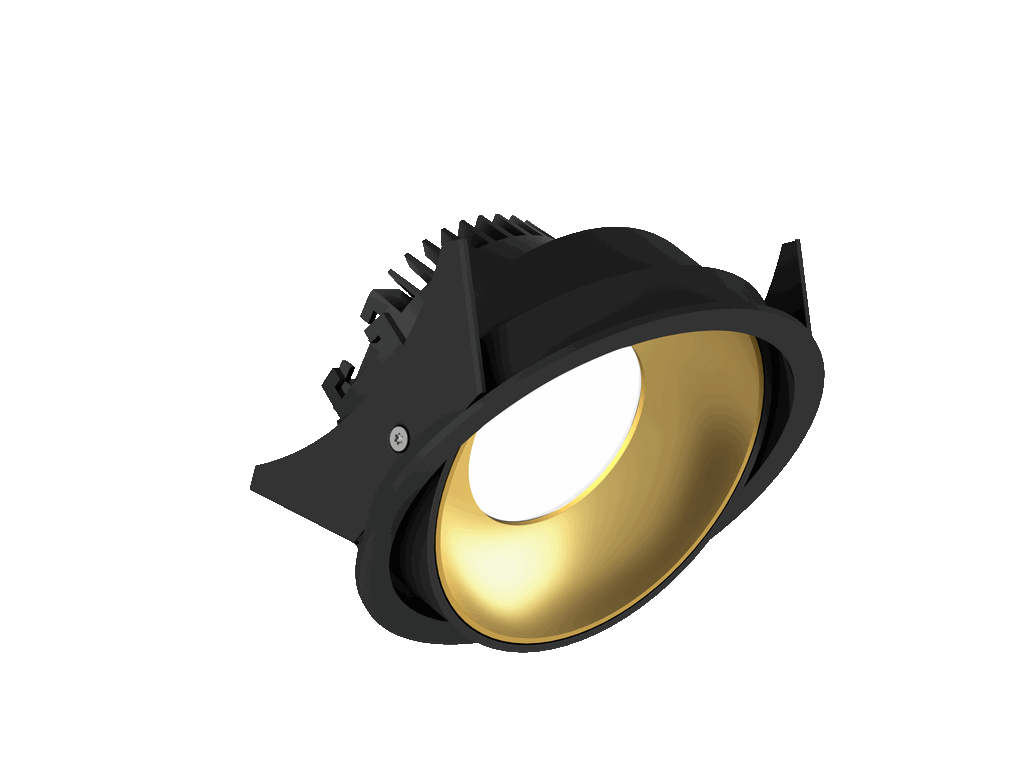

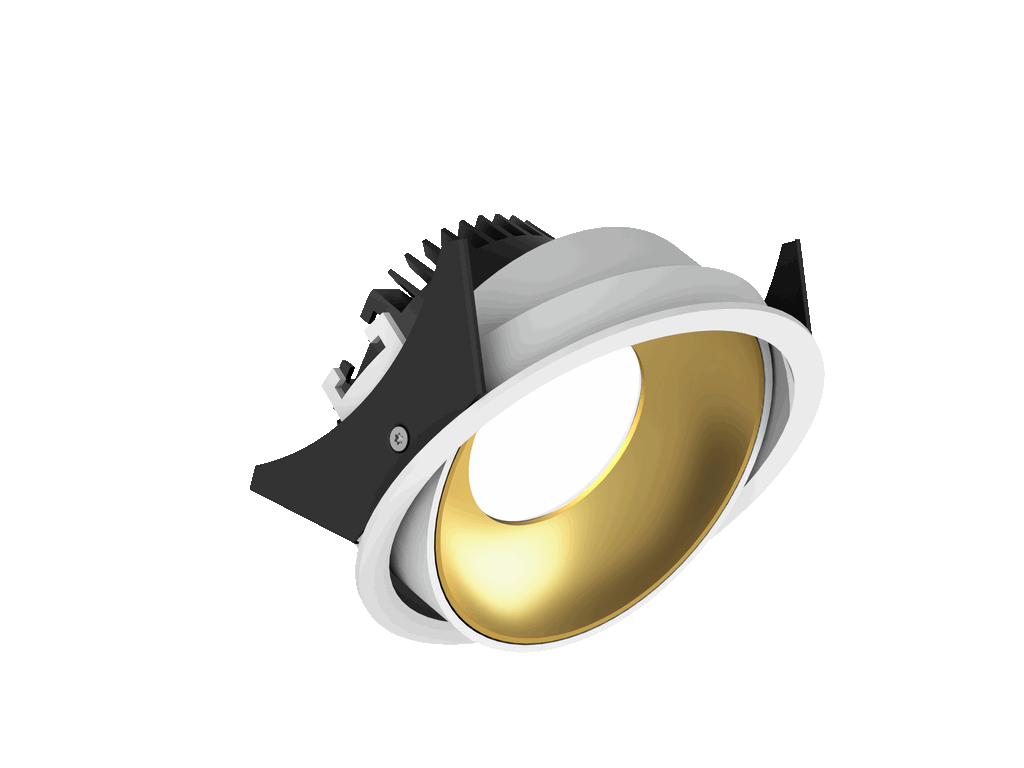

Available Colour Variants
| Nr | Housing | Inside ring |
|---|---|---|
| XX=61 | Matt white | Gold |
| XX=62 | Matt white | Black |
| XX=65 | Matt white | White |
| XX=71 | Matt black | Gold |
| XX=72 | Matt black | Black |
| XX=76 | Matt black | White |
Illuxtron Fido 108 LV-TW Adjustable Item Specifications
| Description | ItemCode | CCT | CRI | Lm | W |
|---|---|---|---|---|---|
| Fido 108 LV-TW 2700-6500K 1250Lm 60° Dali | F26B03XX4W02 / F26B03XX9W02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
| Fido 108 LV-TW 2700-6500K 1250Lm 60° Casambi | F26B03XX4X02 / F26B03XX9X02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
| Fido 108 LV-TW 2700-6500K 1250Lm 80° Dali | F26B03XX4Y02 / F26B03XX9Y02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
| Fido 108 LV-TW 2700-6500K 1250Lm 80° Casambi | F26B03XX4Z02 / F26B03XX9Z02 | 2700-6500K | 95/86 | 1250 Lm | 11.4 W |
Safety and Compliance
Illuxtron Fido 108 LV-TW Adjustable was developed with safety and conformity in mind. It fulfils the safety standards EN60598, EN62031 and EN62471 and complies with the EMC standard EN55015. The product is classified in safety class II and has energy efficiency class F.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further details please see the linked data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | Tuneable White |
| ·Dimmable/Control: | Casambi radio, DALI DT8 |
| ·Hole diameter: | 100mm |
| ·Lamp shape: | Recessed ceiling |
| ·Power range: | 5 - 20 W |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
