Product information "Illuxtron Fido 108 LV(-HE) Adjustable"

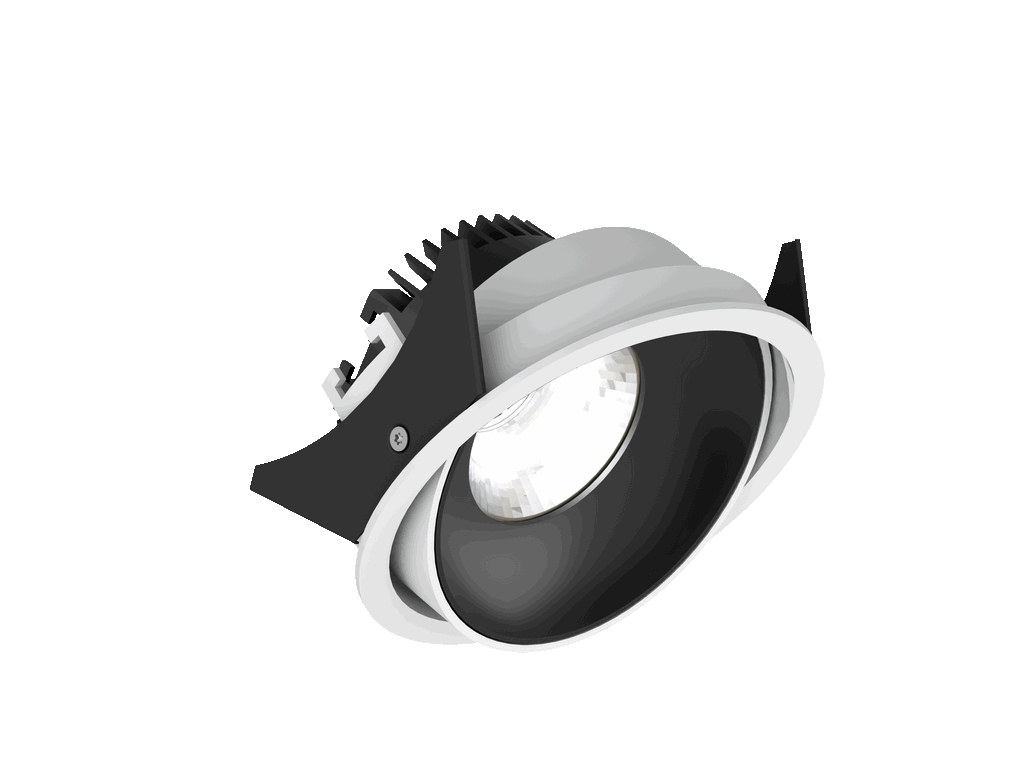

Illuxtron Fido 108 LV(-HE) Adjustable
The Illuxtron Fido 108 LV(-HE) Adjustable is a powerful and energy-efficient LED downlight for indoor use. With adjustable beam angles and high CRI values, it provides flexible, high-quality lighting that adapts perfectly to any room design. The Fido 108 therefore also guarantees excellent colour rendering.

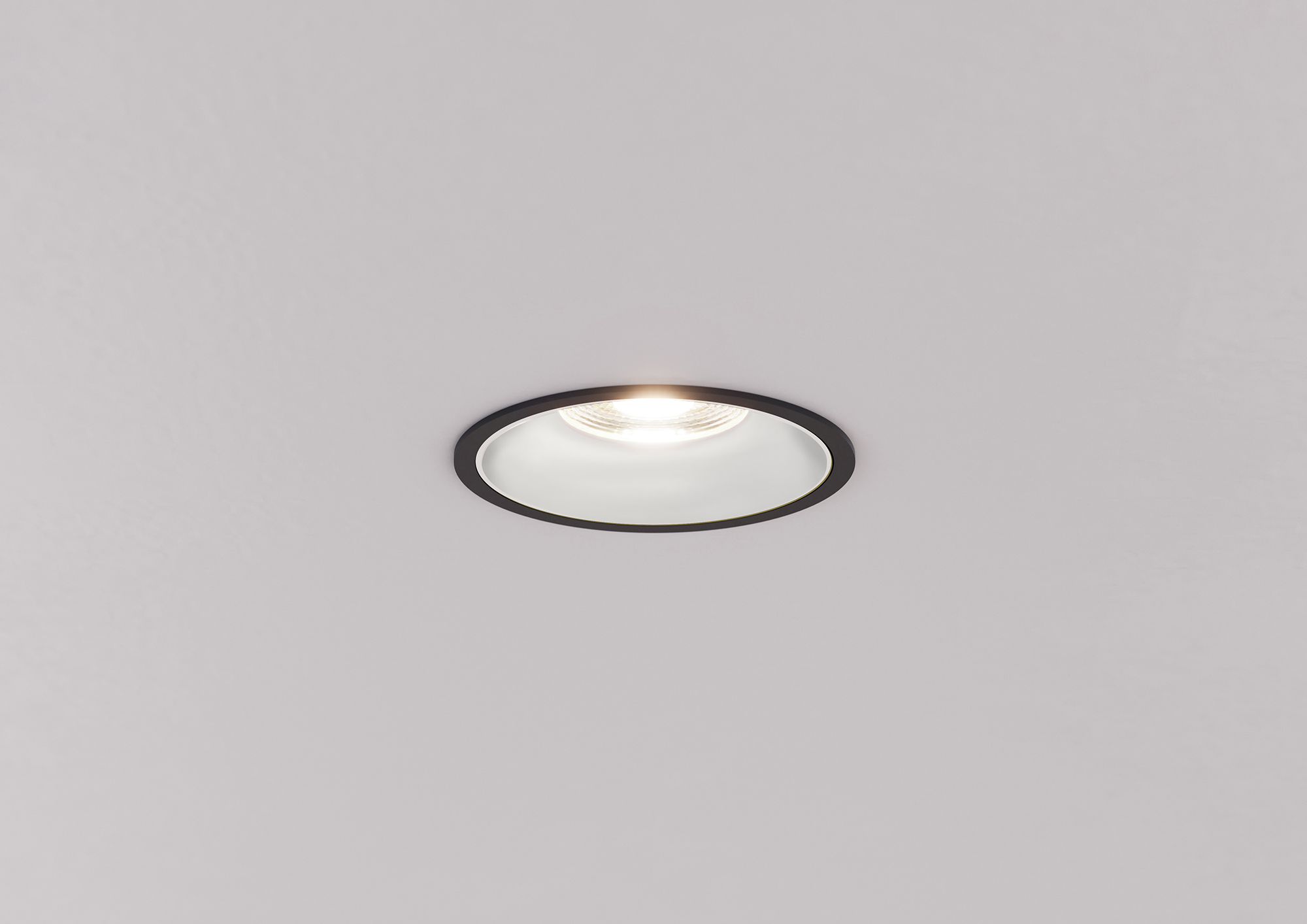

The recessed spotlight design with an extremely thin edge creates an almost rimless look that is modern and discreet. Available in a variety of colour combinations, the Fido 108 LV(-HE) offers individual customisation options for any ambience.
Thanks to the new LV-HE LEDs (Low Voltage High-Efficiency), Illuxtron focuses on maximum efficiency and sustainability. These LEDs utilise the innovative KSF technology, whose special phosphor coating reduces light loss and increases efficiency by 10-15% in lumens per watt. This makes the Fido 108 LV(-HE) ideal for environmentally friendly lighting projects.
Main Features and Technical Specifications
- High CRI LED optimized towards TM30
- ENEC approved drivers
- Warm dim version to 1800K available
- 3 different beam angles available (24° / 60° / 80°)
- 2 different springs available: WS springs (for drywall/metal) or CS springs (for concrete)
- Various dimming options available
- Fixture material: Die-cast aluminium housing, polycarbonate reflector glass
- Operating temperature: -20°C to +45°C
- Safety marks: EN60598, EN62031, EN62471
- EMC compliance: EN55015
- Colour consistency: MacAdam step 3
- Warranty: 7 years (Warranty Details)

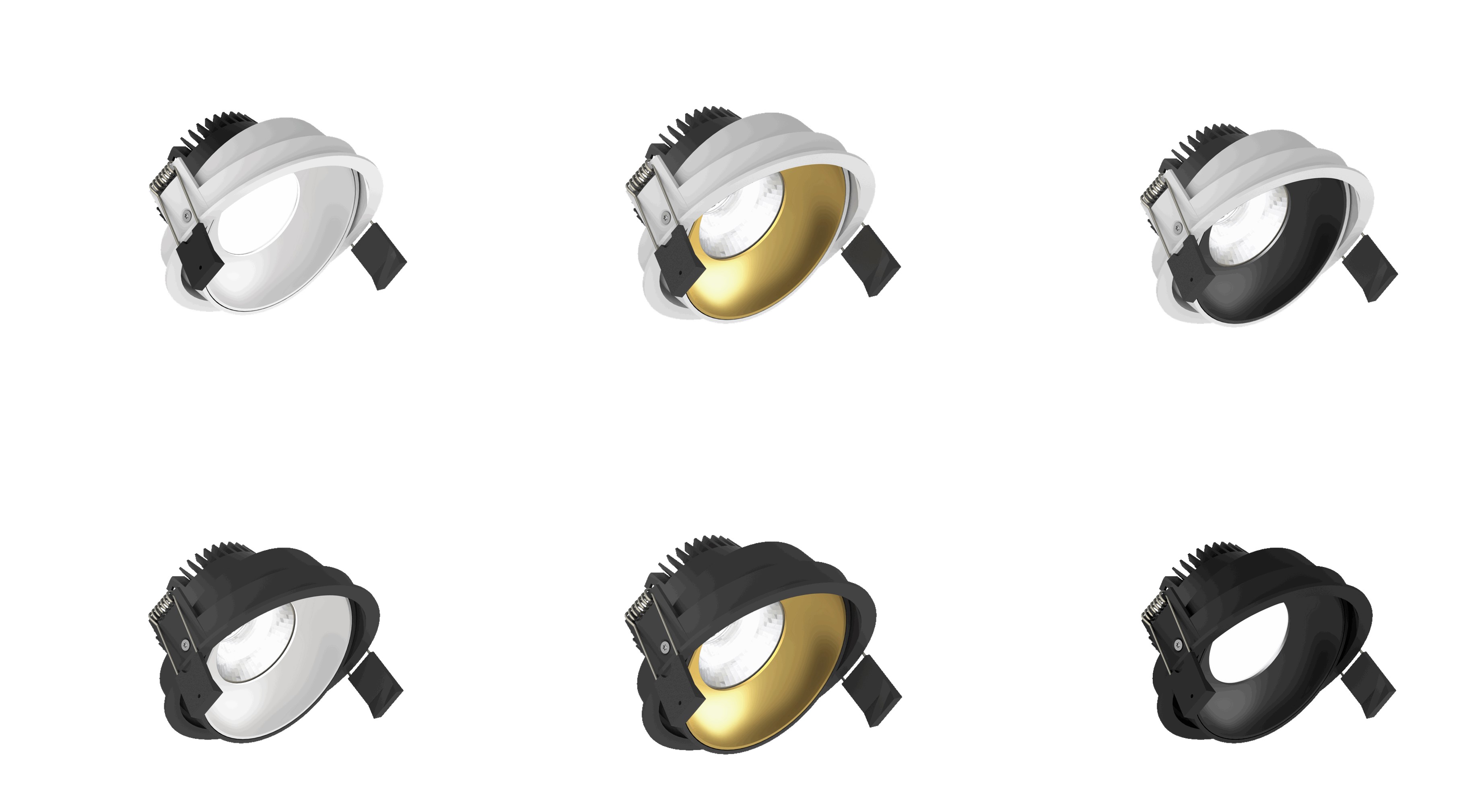

Available Colour Variants
| Nr | Housing | Inside ring |
|---|---|---|

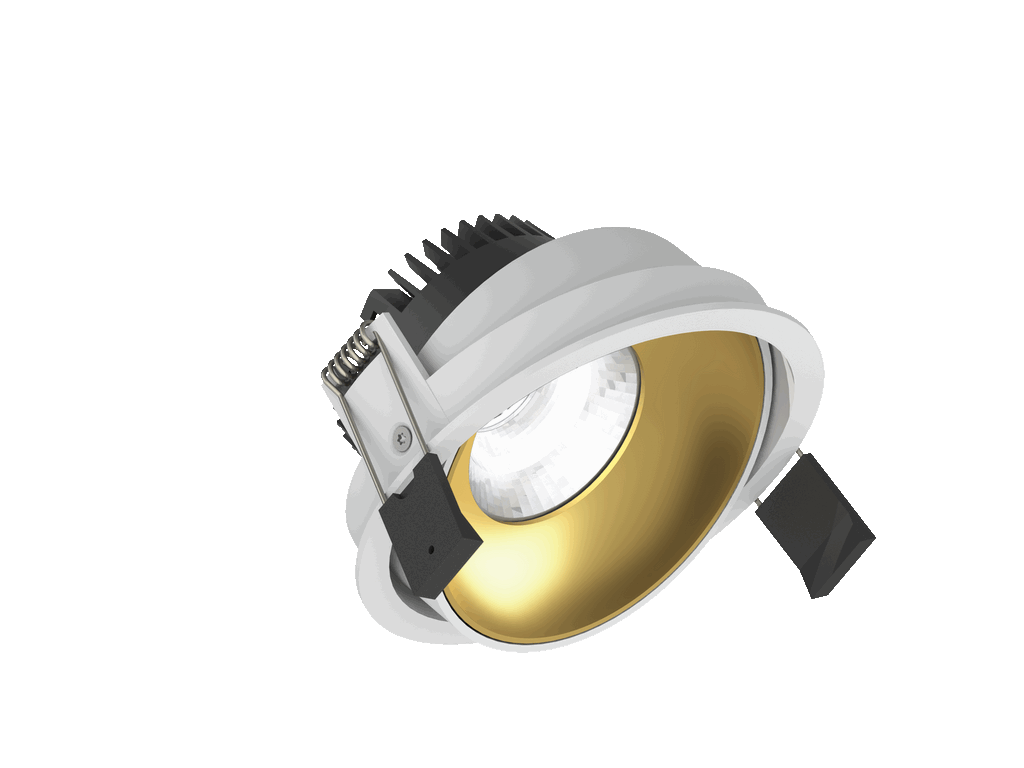

| 61 | Matt white | Gold |
| 62 | Matt white | Black |

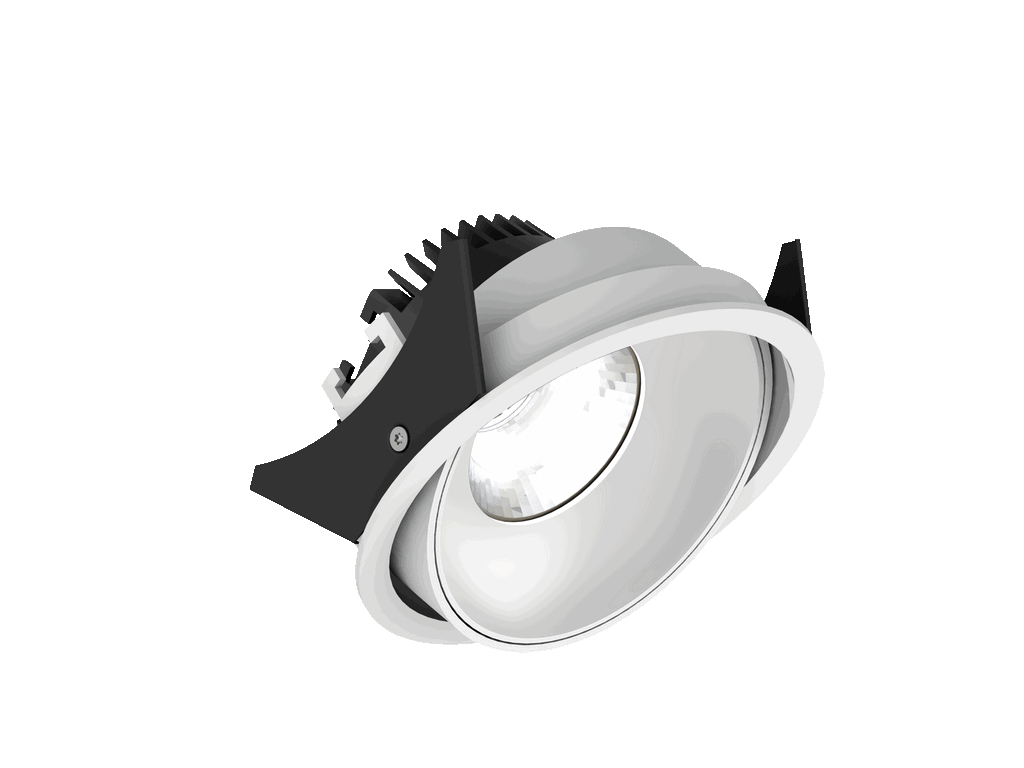

| 65 | Matt white | White |

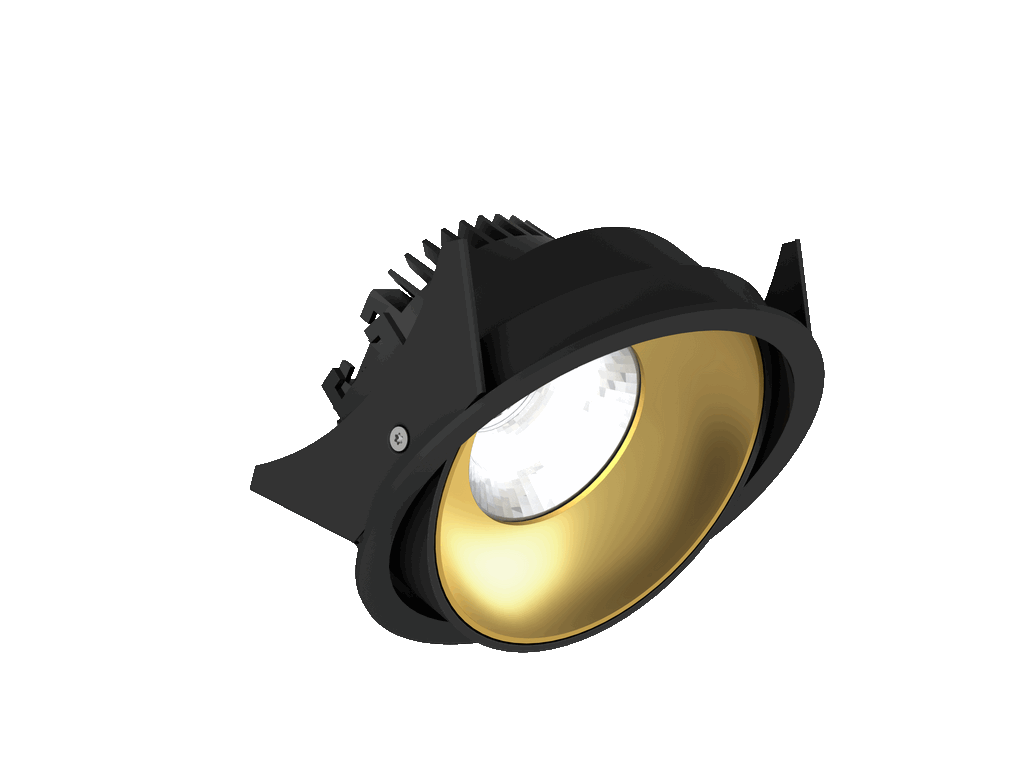

| 71 | Matt black | Gold |

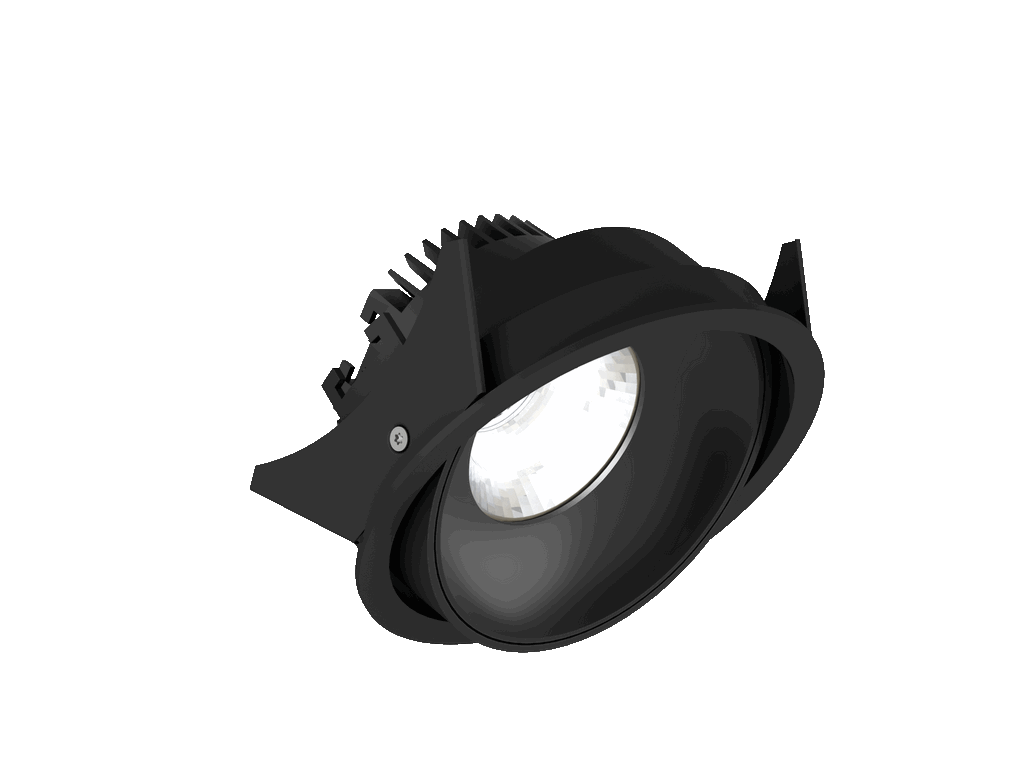

| 72 | Matt black | Black |

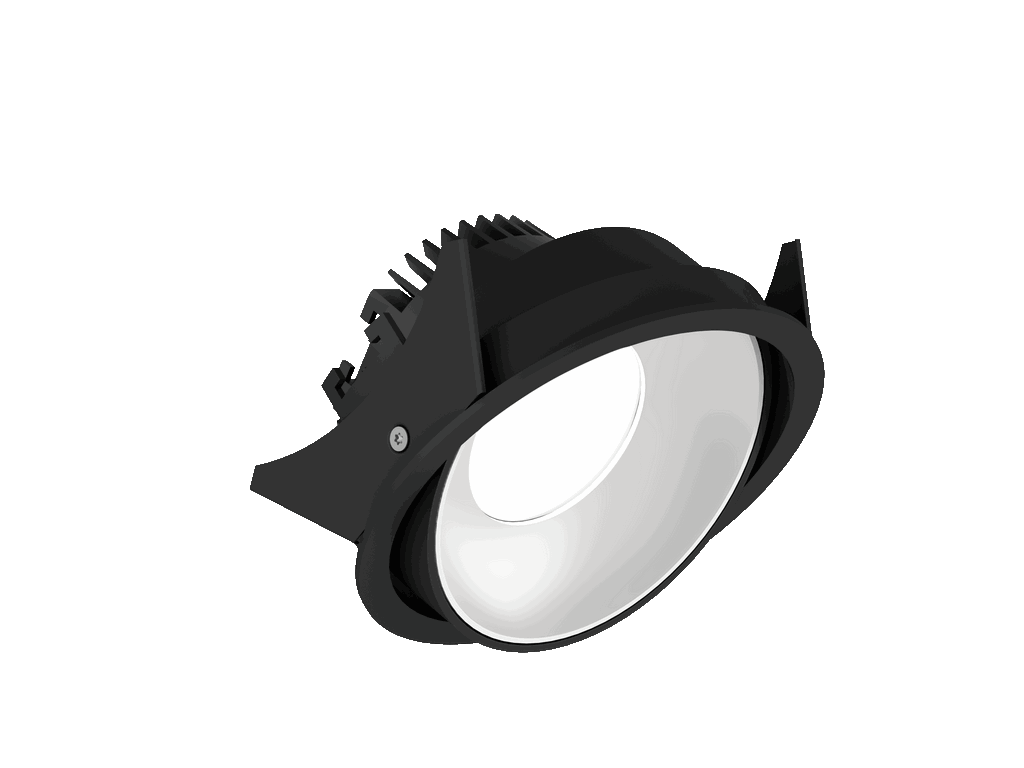

| 76 | Matt black | White |
Illuxtron Fido 108 LV(-HE) Adjustable Item Specifications
| Description | ItemCode | CCT | CRI | Lichtstrom (Lm) | Leistung (W) |
|---|---|---|---|---|---|
| Fido 108 LV-HE 2700K CRI82 | F23C03XX4K02 | 2700K | 82 | 1650 | 12.9 |
| Fido 108 LV-HE 3000K CRI82 | F23D03XX4K02 | 3000K | 82 | 1725 | 12.9 |
| Fido 108 LV-HE 4000K CRI82 | F23F03XX4K02 | 4000K | 82 | 1750 | 12.9 |
| Fido 108 LV 2700K CRI97 | F25C03XX4K02 | 2700K | 97 | 1150 | 13.8 |
| Fido 108 LV 3000K CRI97 | F25D03XX4K02 | 3000K | 97 | 1250 | 13.8 |
| Fido 108 LV 4000K CRI97 | F25H03XX4K02 | 4000K | 97 | 1350 | 13.8 |
| Fido 108 LV 1800-3000K CRI97 | F25F03XX4A02 | 1800-3000K | 97 | 1250 | 13.8 |
Safety and Compliance
The Illuxtron Fido 108 LV(-HE) Adjustable is designed with safety and compliance in mind. It meets the EN60598, EN62031, and EN62471 safety standards and complies with EMC standard EN55015. The product is classified under safety class II and energy efficiency classes ranging from G to D, depending on the CRI and CCT.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further details please see the linked data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K, Dim2Warm |
| ·Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio, DALI, Phase-Cut (Triac) |

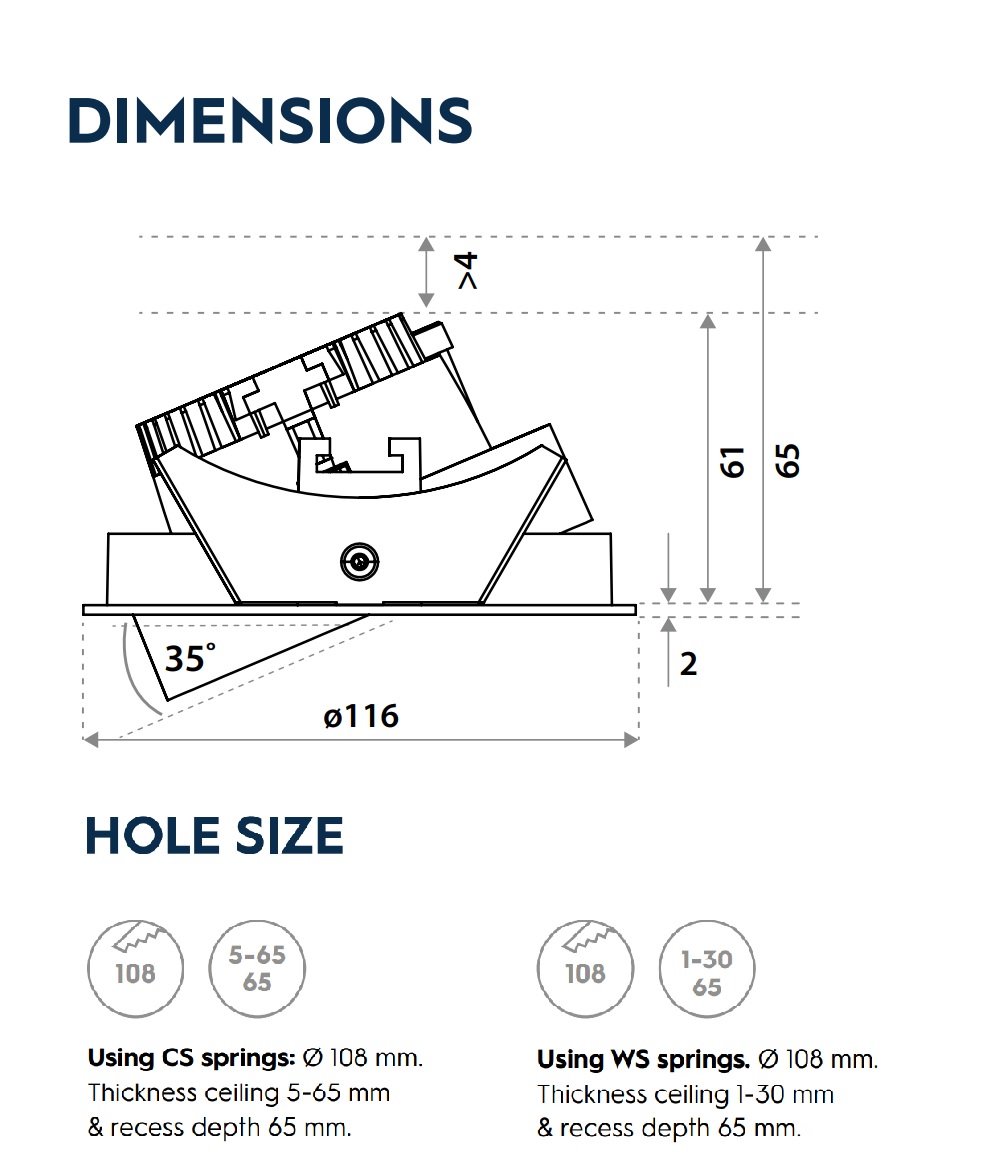

| ·Hole diameter: | 100mm |
| ·Lamp shape: | Recessed ceiling |
| ·Power range: | 5 - 20 W |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
