Product information "Illuxtron Fido 108 HV-FD"
Illuxtron Fido 108 HV-FD: high-voltage flicker-free dimmable downlight
The Illuxtron Fido 108 HV-FD is a powerful and energy-efficient LED downlight for indoor use. The Fido 108 HV-FD offers gentle, flicker-free dimming and a warm dim version for the perfect atmosphere. HV-FD stands for high voltage flicker-free dimming Technology. The Fido 108 is suitable for hole diameters of 108 mm.
This LED downlight from Illuxtron can be connected directly to the mains supply without a driver, ensuring easy installation. You can easily dim the wall light to less than 1 % using a standard triac wall dimmer
The recessed spotlight design with an extremely thin edge creates an almost rimless look that is modern and discreet. Available in a variety of colour combinations, the Fido 108 offers customisation options for any ambience.
Main Features and Technical Specifications
- Input Voltage: 220-240Vac
- for hole diameter 108 mm
- Beam Angle: 40° / 80°
- Fixture Material: Die-cast aluminium housing, polycarbonate reflector glass
- Environment: Indoor
- IK Rate: IK03
- Inrush Current: <100mA / 0 ?s (soft start)
- Mains Surge Capability: 2 kV (DM), 4 kV (CM)
- Flicker: Typical 0.4%, Flicker Index <0.1
- Dimming Range: 100-0.1%
- Operating Temperature: -20°C to +45°C
- Safety Marks: EN60598 / EN62031 / EN62471
- EMC Compliance: EN55015
- Colour Consistency: MacAdam step 3
- Warranty: 7 years
- Energy Class: F

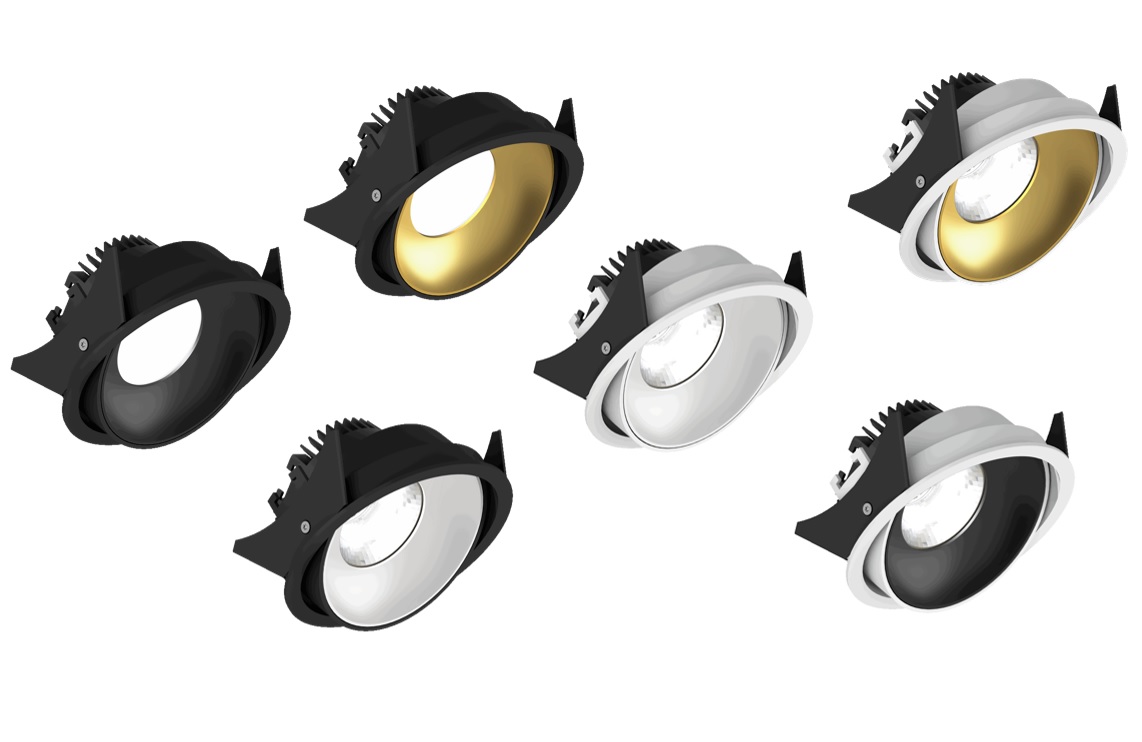

Available Colour Variants
| Nr | Housing | Inside Ring |
|---|---|---|
| 61 | Matt white | Gold |
| 62 | Matt white | Black |
| 65 | Matt white | White |
| 71 | Matt black | Gold |
| 72 | Matt black | Black |
| 76 | Matt black | White |
Item Specifications
| Description | Item Code | CCT | CRI | Lichtstrom (Lm) | Leistung (W) |
|---|---|---|---|---|---|
| Fido 108 HV-FD 2700K 800 Lm 40° Triac dim | F22B03XX5A02 / F22B03XX8A02 | 2700K | 93 | 800 | 10.5 |
| Fido 108 HV-FD 3000K 800 Lm 40° Triac dim | F22B03XX5C02 / F22B03XX8C02 | 3000K | 93 | 800 | 10.3 |
| Fido 108 HV-FD 4000K 800 Lm 40° Triac dim | F22B03XX5E02 / F22B03XX8E02 | 4000K | 93 | 800 | 10.1 |
| Fido 108 HV-FD 2200-3000K 800 Lm 40° Triac dim | F22B03XX5G02 / F22B03XX8G02 | 2200-3000K | 93 | 800 | 10.3 |
| Fido 108 HV-FD 2700K 800 Lm 80° Triac dim | F22B03XX5B02 / F22B03XX8B02 | 2700K | 93 | 800 | 10.5 |
| Fido 108 HV-FD 3000K 800 Lm 80° Triac dim | F22B03XX5D02 / F22B03XX8D02 | 3000K | 93 | 800 | 10.3 |
| Fido 108 HV-FD 4000K 800 Lm 80° Triac dim | F22B03XX5F02 / F22B03XX8F02 | 4000K | 93 | 800 | 10.1 |
| Fido 108 HV-FD 2200-3000K 800 Lm 80° Triac dim | F22B03XX5H02 / F22B03XX8H02 | 2200-3000K | 93 | 800 | 10.3 |
Flicker-free - no stroboscopic effect
Studies have linked flickering light to health problems. Although flicker at this frequency is not visible without aids, there is evidence that the human brain can perceive flicker of up to 200Hz. Possible problems include headaches, eye strain, impaired vision or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker content of 1-3%, while high-voltage technology has a flicker content of only 0.4%.
Flicker-free - patented dimming down to 0.1%
The level of dimming depends on the quality of the dimmer. With a high-quality dimmer, a dimming range of 0.1-100% can
Safety and Compliance
The Illuxtron Fido 108 HV-FD complies with EN60598, EN62031, and EN62471 safety standards, ensuring reliable and safe operation. It also meets EMC compliance with EN55015, providing assurance of its electromagnetic compatibility.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further details please see the linked data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K, Dim2Warm |
| ·Dimmable/Control: | BT4.0 (2,4 GHz), Phase-Cut (Triac) |
| ·Hole diameter: | 108mm |
| ·Lamp shape: | Recessed ceiling |
| ·Power range: | 5 - 20 W |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
