Fluxe 50 adjustable
Original images, see data sheet or manufacturer’s website
Variant
Product number: 3012-865303BL0211
Manufacturer: Illuxtron International BV
Manufacturer product number: 865303BL0211
Weight: 0.138 kg
Min. order quantity: 1
Our benefits
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Fluxe 50 adjustable"
Illuxtron Fluxe 50 Adjustable mini downlight
The Fluxe downlights are among the first luminaires from Illuxtron. The series has been expanded over the years and has grown with new technologies and now consists of 5 luminaires with different hole sizes and specifications. The adjustable mini recessed spotlights Fluxes 50 from Illuxtron are real powerhouses!Compact, technologically innovative and economical. So powerful in light output that they are also available in a dimmable version!
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with microfacettes. These microfacettes of the Fluxe 50 series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits:
Special features of these so-called Dark Light - Reflectors
- High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology
- low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of LED light spectra for very good colour rendering
The most important technical details of the Fluxe 50 series:
| Casing color | matt white RAL 9016 (XX=MW) matt black RAL 9005 (XX=BL) |
| Material | housing: die-cast aluminium Reflector glass: Polycarbonate |
| Dimensions | 55 mm x 45 mm |
| Hole diameter | 50 mm |
| Required installation depth | > 50 mm |
| Application | Inside area |
| beam angle (FWHM) | 40° (65° FWTM) |
| Adjustable angle | +/- 30° |
| CRI / Ra (typ.) | 82 |
| Colour consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Safety sign | EN60598 / EN62031 / EN62471 |
| EMV Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |
Fluxe 50 - 220-240V
The power supply is already included in this version. This version is DALI and Triac dimmable.For more information on Fluxe 50 220-240 V Mini Downlights, please refer to the data sheet.
Product specifications Fluxe 50 220-240 V:
| Art. No. | 865303XX4813 | 865303XX5913 | 865303XX5013 |
| Color temperature | 2700 K | 3000 K | 4000 K |
| Luminous Flux | 375 lm | 400 lm | 425 lm |
| Type | Incl. PSU | ||
| Input | 220-240V | ||
| W | 5,7 | ||
| Lm/W (with EVG) | 66 | 70 | 75 |
| UGR | 14,2 | 14,4 | 14,6 |
| Pf | 0,96 | ||
| Protection class | II | ||
| Input current | 2A 50µS | ||
| Ripple | < 20% | ||
| B-16A Fuse | 50 pcs | ||
| Dimmability | Triac *DALI | ||

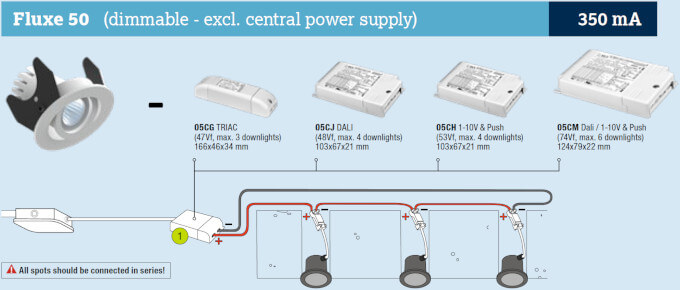

Fluxe 50 350mA
This version has extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver.
To the overview of matching 350mA constant current sources (LED driver).
For further information about the Fluxe 50 Mini Downlight please refer to the data sheet.
Product specifications Fluxe 50 350mA:
| Art. No. | 865303XX0111 | 865303XX7211 | 865303XX0211 |
| Color temperature | 2700 K | 3000 K | 4000K |
| Luminous Flux | 375 lm | 400 lm | 425 lm |
| Type | Inkl. Anschlusskabel | ||
| Input | 350mA | ||
| Vf | 11,9 | ||
| W | 4,5 | ||
| Lm/W (with EVG) | 83 | 89 | 94 |
| UGR | 14,2 | 14,4 | 14,6 |
| Protection class | III | ||
| Dimmability | Alternativ: DALI, 1-10V, Push, Triac(Phase dimming) depending on LED driver selection | ||
*Note: This table shows only the version with concrete spring mounting type. This version is also available with wire spring mounting.
For the data sheet of Mini Downlights Fluxe 50 series please check the download tab.
Note:
The 24Vdc version is a discontinued item and is only available on special request.
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
Properties "Fluxe 50 adjustable"
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K |
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
| ·Hole diameter: | 50mm |
| ·Lamp shape: | Recessed ceiling |
Manufacturer "Illuxtron International BV"
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
Related links of the manufacturer
Login
In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl
Where can I get support and advice on recessed ceiling spots/downlights?
Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
