Enertex MeTa² KNX room controller

Enertex MeTa² KNX room controller Standard & Premium

The evolution of the multilevel room controller - MeTa² KNX precise room unit control

The evolution of the multilevel room controller - MeTa² KNX precise room unit control

Ventilation control, room temperature control, temperature and humidity sensors, light sensor, a radar-based motion detector and alarm function - the MeTa² KNX room controllers from Enertex offer all of this.

With the MeTa² room controller, you get a KNX device that impresses with its elegant design, functionality and great technology. The smooth-running haptic "click" rockers offer unrivalled ease of use. The special feature - each rocker can be assigned up to ten functions. Thanks to the intuitive labelling, operation is child's play. Switching between functions is simply done using the separate menu button at the bottom of the controller. Precise temperature control, the all-aluminium housing with high-resolution display and modern TFT display are also impressive. The device is powered by the integrated bus coupler and requires no additional power supply. With the MeTa² room controllers, you get KNX device control with countless possibilities for your smart home.

The Enertex MeTa² KNX room controller brings innovation to your smart home. Experience the endless possibilities and increased ease of use of this advanced room Controller.

Special features of the MeTa² room Controller:

• Versatile rocker assignment: Each rocker can be assigned ten times and offers simple operation with up to 80 operating functions thanks to the intuitive labelling (Premium variant). Switching is easy using the separate menu button at the bottom of the controller.

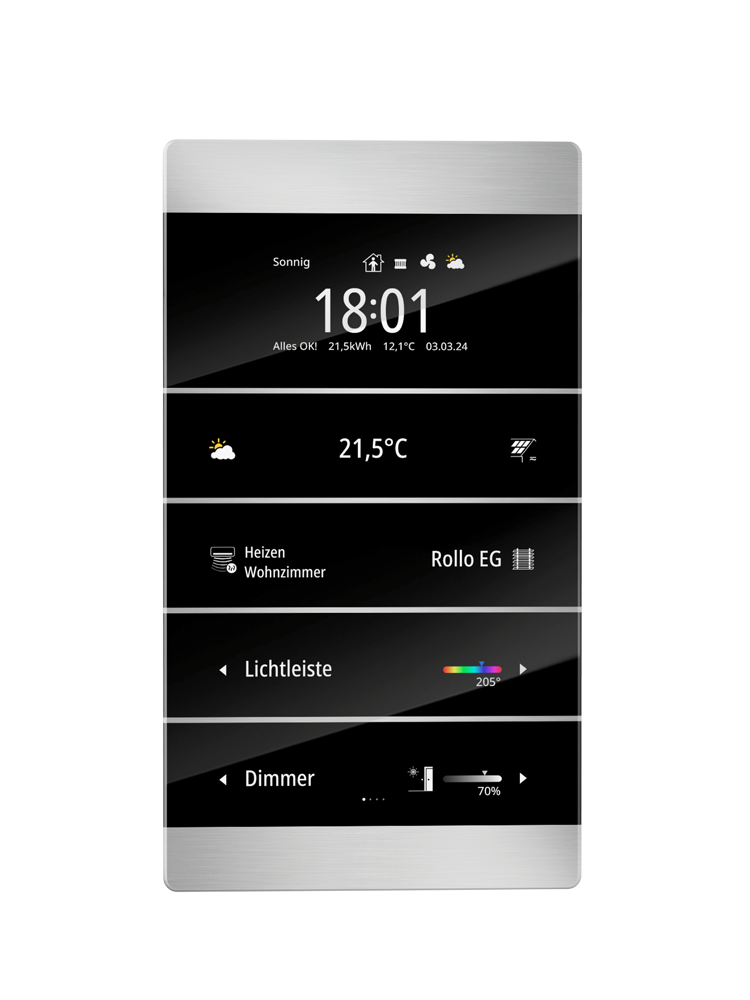

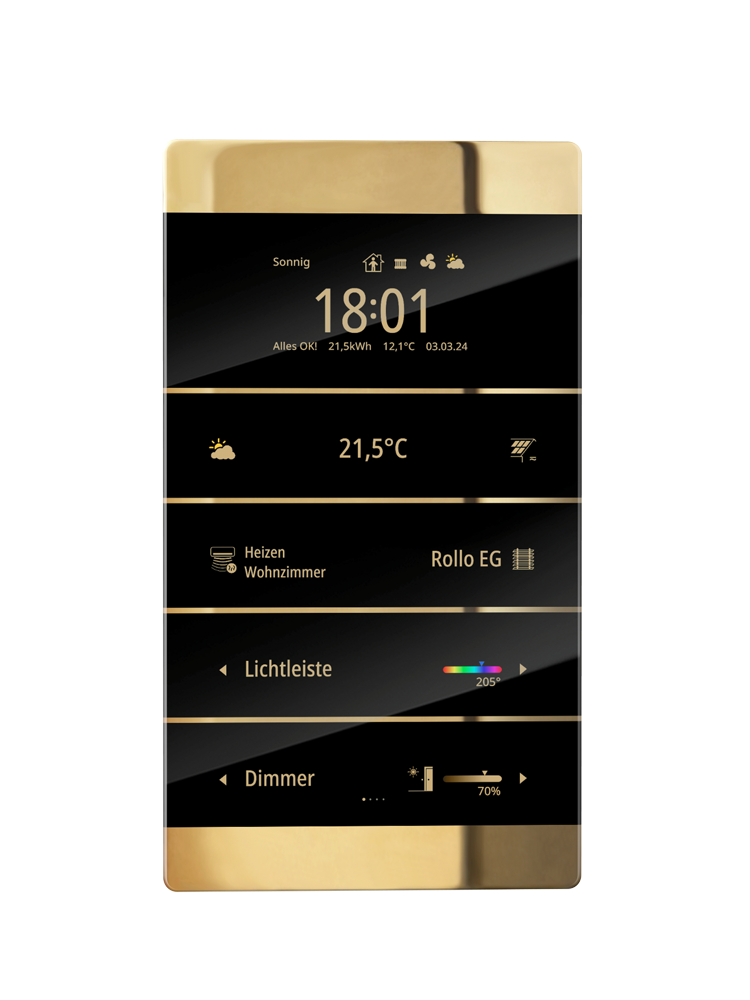

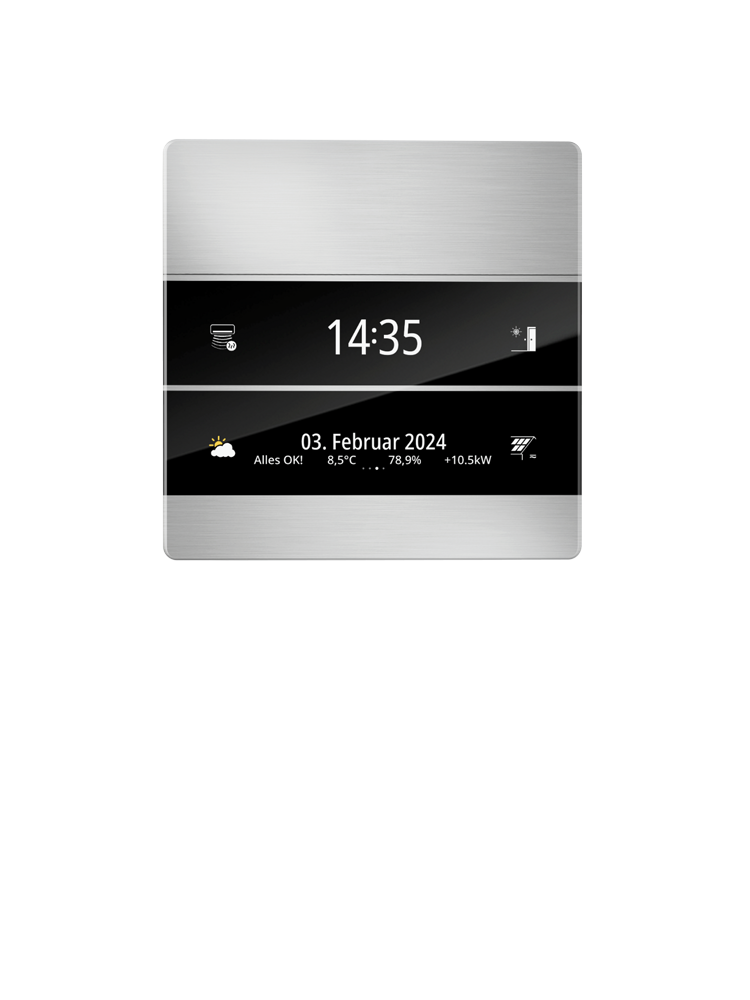

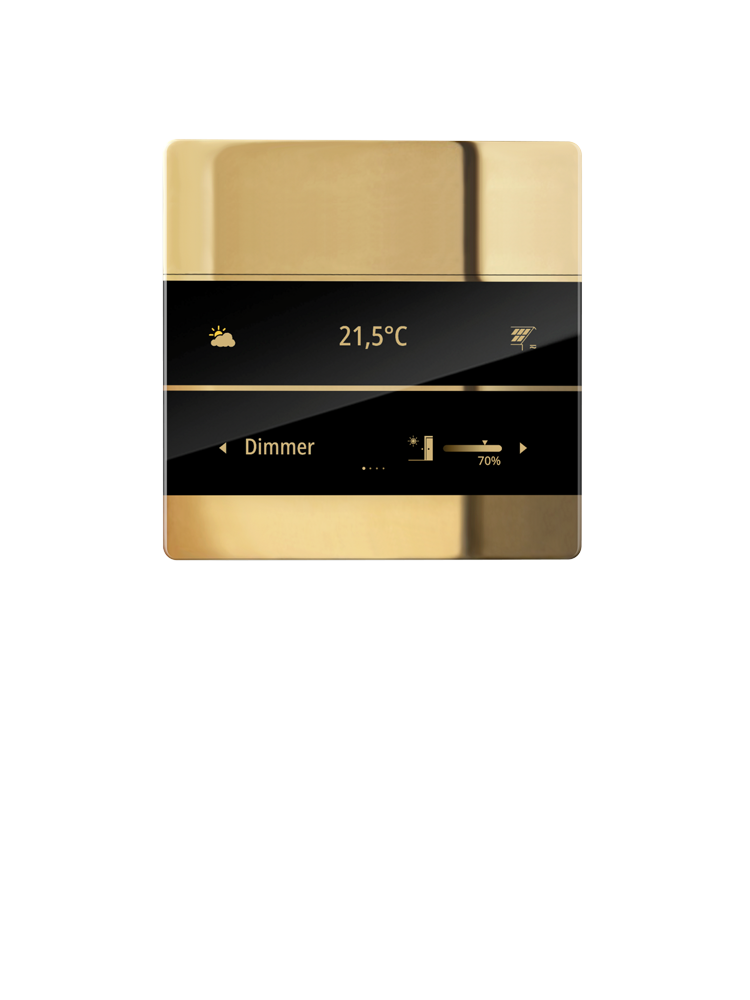

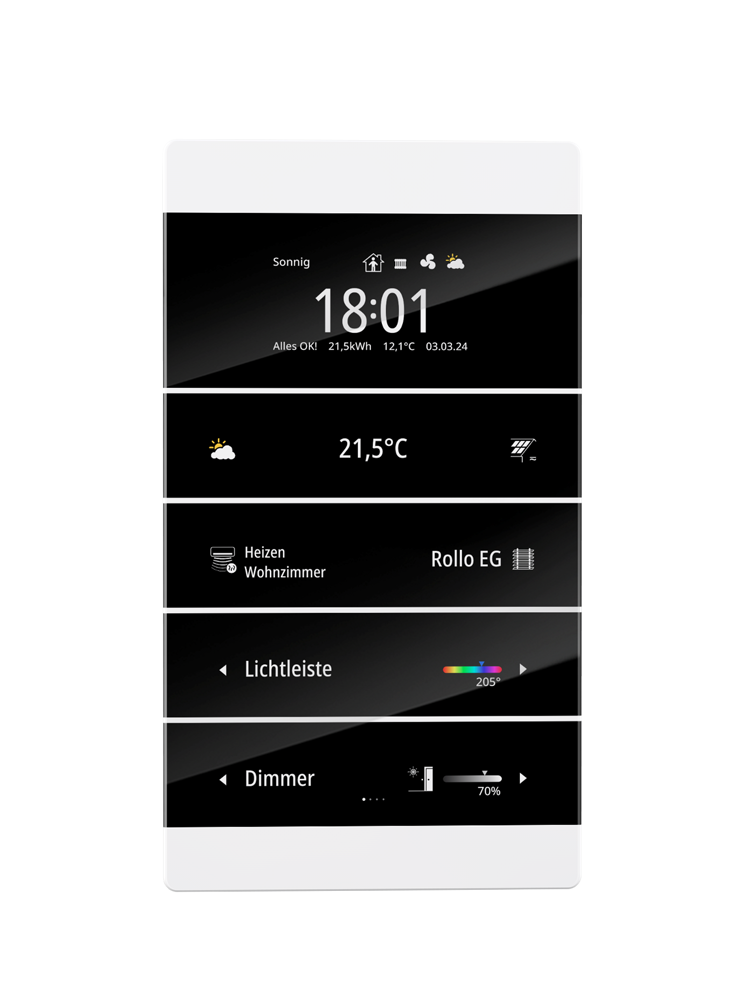

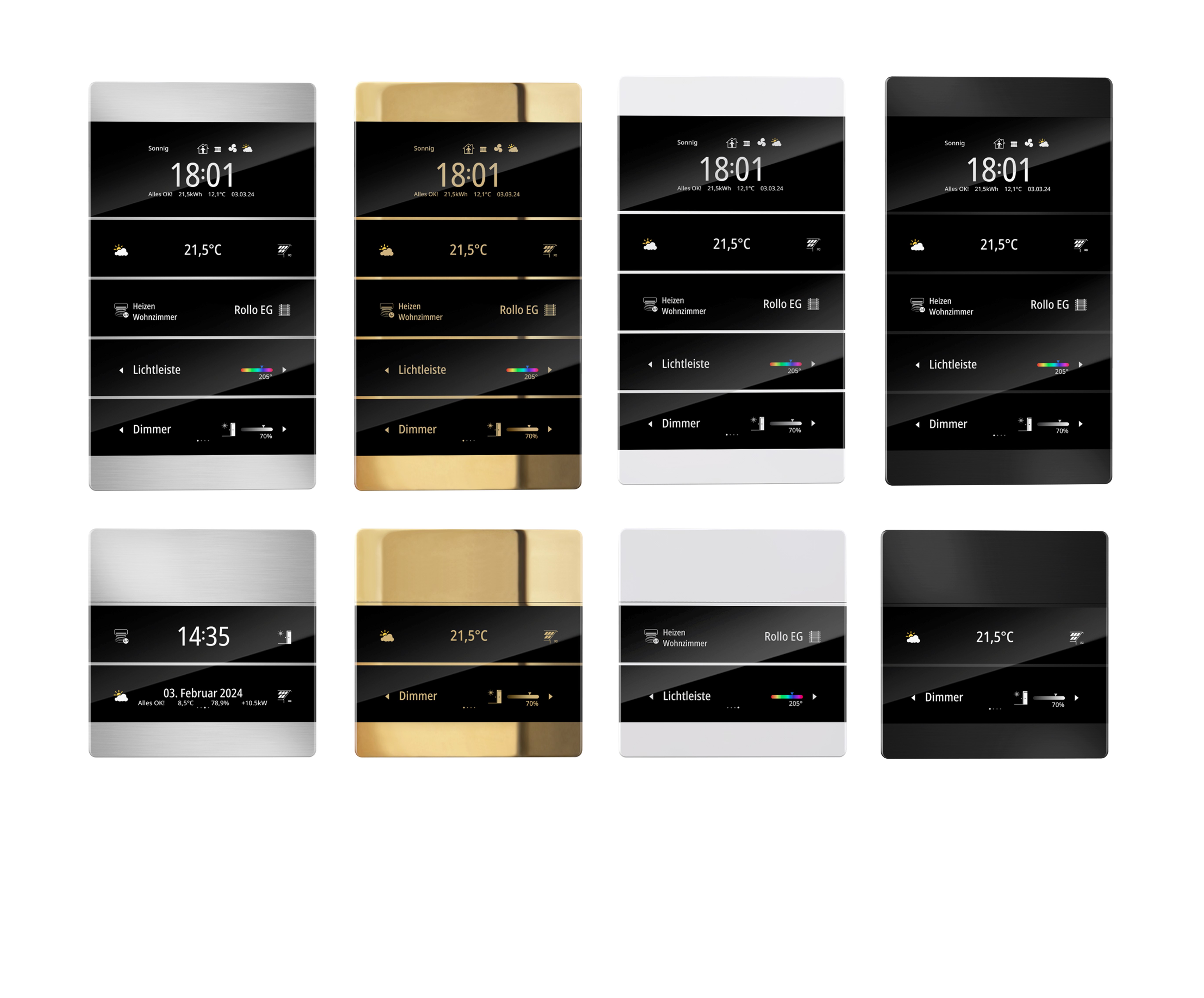

• High-quality materials and design: The elegant housing with high-quality all-aluminium front is available in various finishes: brushed aluminium, matt black anodised aluminium, glossy white powder-coated aluminium (RAL9010), glossy gold-plated brass
• Innovative control: Integrated bus coupling unit supplies the device via the KNX bus, no additional power supply required.

Variants of the MeTa² room controller and differences:

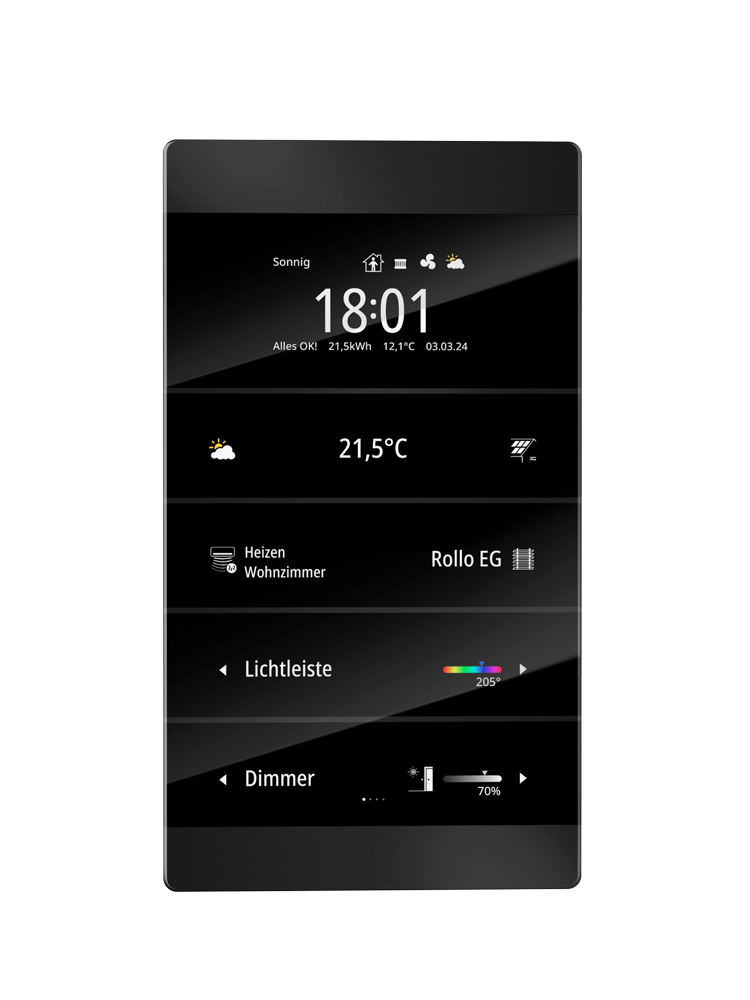

Premium variant:

• additional large display with colour TFT technology, 4 rockers with independent displays, additional 2 menu buttons
• Up to 80 individual switching functions
• Large-format display of time, date, temperature, etc.
• Visualisation of PV generation and consumption, wallbox and battery storage directly on the Display
• Free programmable info display (three lines) for multimedia or general messages

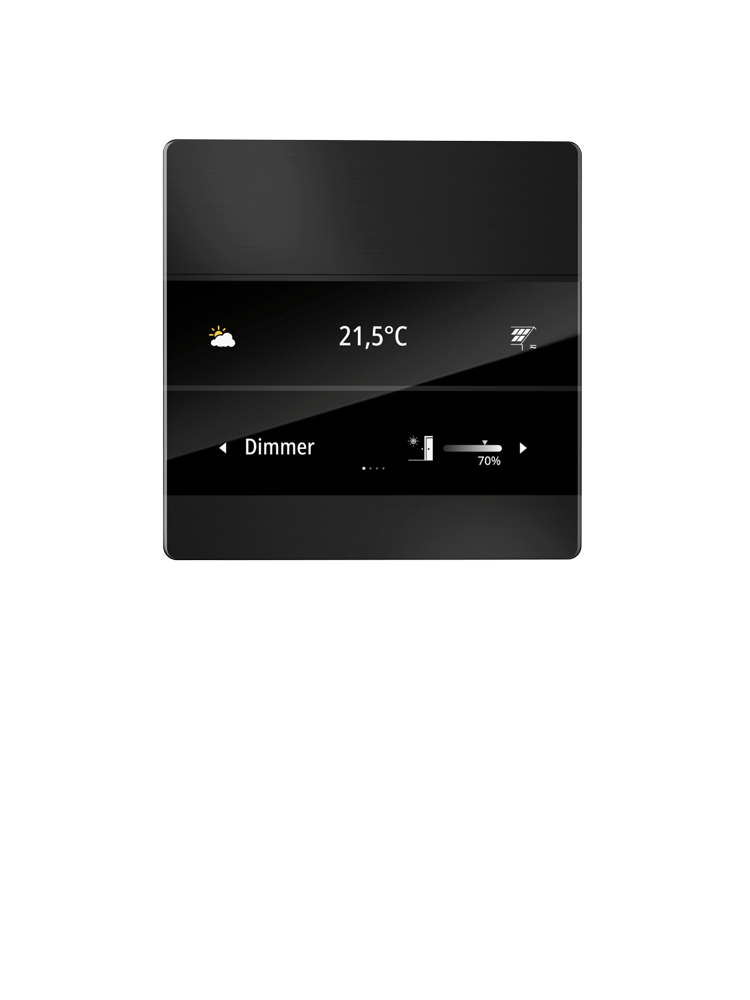

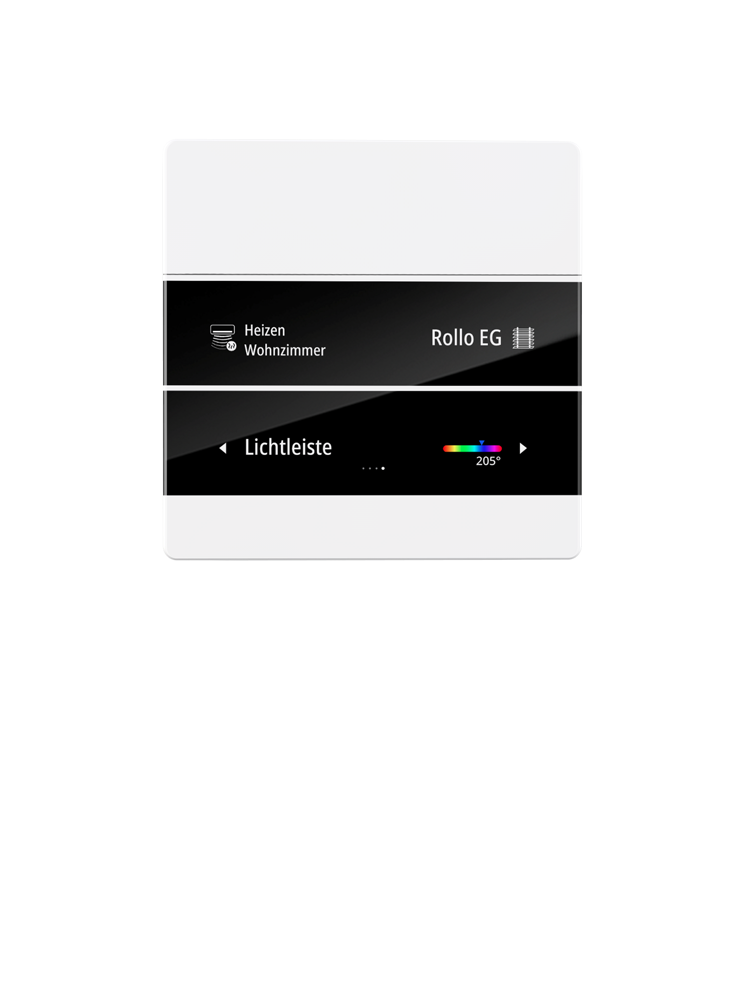

Standard variant:

• compact design with 2 rockers with independent displays, additional 2 menu Buttons
• Up to 40 switching functions

Functions and features of the KNX room Controller:

• High-resolution rocker display: The rocker display uses age-resistant colour TFT (IPS) technology. The seamless black background of the displays is integrated into the rockers.
• Room temperature control: Precise two-stage control with individual setpoint specification for heating and cooling. Control of up to four controller extensions and four split units.
• Comprehensive control: Integrated three-stage fan control, temperature and humidity sensor, light sensor and radar-based motion detector with a range of around three metres in three zones. The separate menu button makes it easy to switch between up to ten freely configurable menu levels. In addition, the room controller supports up to 32 channels, including switching, dimming, coloured light control, tunable white control, blind control, value transmitter, scene recall and multimedia control. Each of these channels can be assigned to a pair of rockers or individual buttons in addition to the controller and extension unit functions.
• Alarm functions: Six acoustic and/or visual signals. Parameterisable alarms with three different signal tones in two volumes.
• Multifunctional channels: Up to 32 channels for switching, dimming, coloured light control, multimedia control and more. Each channel can be assigned to rocker pairs or individual buttons.
• Customisability: Around 310 different icons, free choice of colours for texts and icons as well as fonts for different languages.
• Expandability: Two additional inputs for JUNG push-buttons, remote sensors or window contacts.

Technical data in comparison

For further information, please refer to the info flyer under Downloads.
