Enertex KNX PowerSupply 960

KNX power supply with 960 mA for DIN rail mounting

The Enertex® KNX PowerSupply 960 (1152-3) offers all bus parameters at a glance with its OLED display and serves as a timer or for time control of your smart home devices.

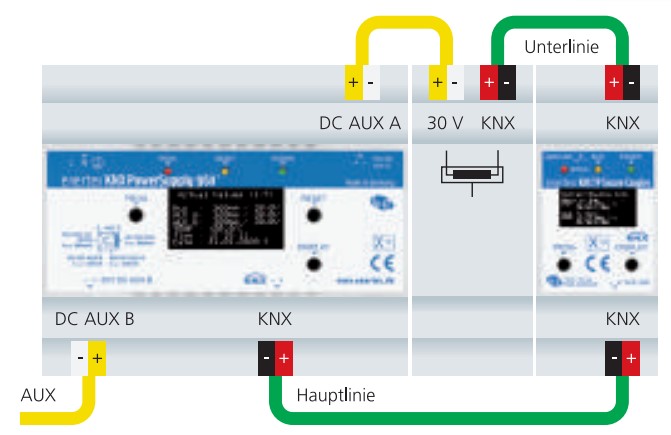

Enertex KNX PowerSupply 960 is an advanced KNX power supply with an OLED display that shows all bus parameters at a glance. This 6 TE DIN rail unit supplies 30 VDC at 960 mA and offers two additional auxiliary voltage outputs with 320 mA each, which are 100% overload-capable and can be used to supply additional devices or with external KNX chokes for additional KNX lines. With an integrated bus coupling unit that supports KNX Data Secure communication, the PowerSupply 960 offers numerous monitoring functions, a remote bus reset function and a comprehensive timer with up to 64 switching times.

The time switch can handle public holiday calendars, holiday calendars and astro functions. In addition, all common group objects can be controlled: switching, dimming, blinds, scenes, RGB colour, HSV colour, heating control.  The OLED display provides important diagnostic information and facilitates the evaluation of KNX line utilisation.

The Enertex KNX PowerSupply 960 ensures a reliable and efficient power supply and monitoring, making it ideal for any location where extensive time programmes need to be stored, such as in commercial, public or private buildings.

Functions KNX PowerSupply 960 (Enertex 1152-3)

• KNX power supply with integrated choke for an output current of 960 mA
• Two additional 30 V auxiliary voltage outputs (AUX A and AUX B) with 320 mA each without choke
• Both auxiliary voltage outputs are fully overload-capable
• Separate short-circuit and overcurrent protection for each output
• A short circuit on one output does not affect the other outputs
• High efficiency of over 90% at full load (measured before the choke)
• Output of measured values such as voltages, currents, power, telegram bus load, bus voltage failures and internal device temperature via KNX bus group objects
• Built-in bus coupling with optional KNX Data Secure communication
• OLED display for clear display of all important measurement and device data
• Display of current values including time and date on the display
• 16 comprehensive timers, each with 4 switching times and 4 group addresses, including a wide range of logic functions, public holiday calendar and astro function
• Integrated KNX timer with buffering in the event of a power failure (approx. 36 hours power reserve)
• Remote bus reset function (can be triggered via group address) for the KNX line
• Remote AUX reset function (can be triggered via group address) for the AUX A output
• Bus telegrams when set limit values are exceeded or not reached
• Energy meter for consumption on the KNX bus
• Configurable C14 text messages for the bus status
• Dimensions: 107,4 x 89,6 x 62,9 mm (L x W x H)

For more information, please refer to the data sheet and the manual under Downloads. The manual also provides extensive information on commissioning, setting time periods and much more.
