ELI Downlight 10W
€119.00*
net-price: €100.00delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "ELI Downlight 10W"

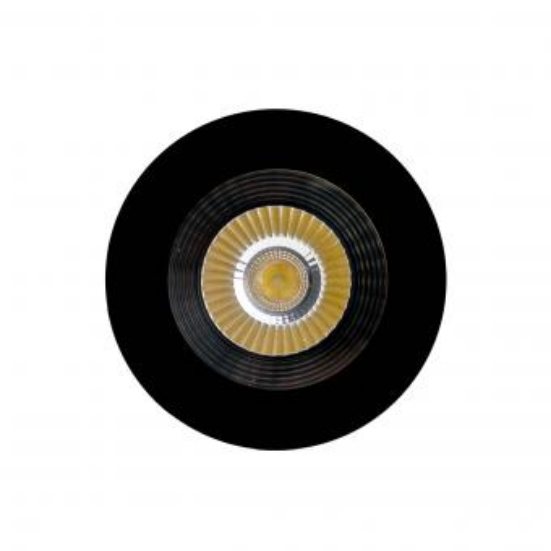

LED Recessed downlight
The LED recessed downlight ELI with 10 W from ALS is available in 2700 or 3000K for a 75mm ceiling cutout.
The lamp is equipped with a 2-pole cable for a 350mA connection with an external ballast (not included).
Technical characteristics of the ELI recessed downlight:
- Case made of aluminum
- Available in round and square
- High-quality decor design cover (clear glass, white or black)
- Powerful heat sink made of aluminum, black
- Faceted high-performance reflector, set back, rigid
- Expanding spring attachment
- High power LED module
- Degree of protection: IP20
- Protection class: II
Technical specifications:
| COB LED* | ||
| Color temperature | 2700K | 3000K |
| Luminous flux | 773 lm | 786 lm |
| Beam angle | 40° | |
| System performance | 10 W | |
| Operating current | 350 mA | |
| Color rendering-index | CRI > 80 | |
| Energy efficiency: | A++ - A | |
| design | round | square |
| Outer diameter | 85 mm | |
| Wall and ceiling cutout | 75 mm | 80 mm |
| Dimensions | H=82 mm | L=90*B=90*H=82 mm |
*COB - LED stands for Chip-On-Board-LED. Many LED chips together make up an LED area. In connection with a reflector it perfectly imitates the well-known halogen spots e.g. MR16
For more information, please refer to the data sheet in the download tab.
| ·Color Temperature/Color: | 2700K, 3000K |
|---|---|
| ·Hole diameter: | 75mm, 80mm |
A.L.S. GmbH
is a supplier and manufacturer of lighting systems as well as a service provider of lighting concepts.The main focus at A.L.S is the production of lighting elements, lamps and accessories.
For more than 10 years we have been offering more than 100 products form the manufacture ALS worldwide.
Below is our Portfolio of products. Tip: Use the filter function to quickly find the Light source you Need, or give us a call.
A.L.S. Architektonische Lichtsysteme GmbH.
Mastorter Straße 31 - 88069 Tettnang - Germany
E-Mail: info@als.de
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
