eldoLED is a world leader in design and manufacturer of intelligent driver solutions for LED lighting systems. eldoLED ECGs stand out due to their smart, innovative and especially efficient LED ballasts. Whether DALI or DMX, whether with internal power supply or as actuator with external power supply, as well as for constant current or constant voltage operation. eldoLED is trend-setting in terms of LED and lighting control.
dimmable LED driver - DMX and DALI, 720 Watt, 4 constant voltage LED outputs
- ·Application/IP-Code: IP20 - IP44 (Indoor)
- ·Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch
- ·Dimmable/Control: DALI, DMX
- ·Constant Voltage: 12V, 24V
delivery time 5-10 Working days*

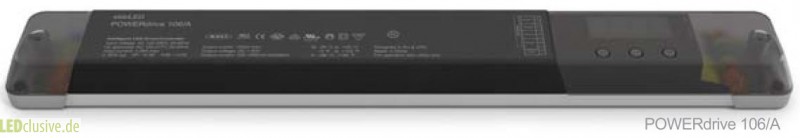

eldoLED POWERdrive 106
LED driver dimmable via DMX and DALI, 100 Watt, 4 constant current LED outputs
- ·Application/IP-Code: IP20 - IP44 (Indoor)
- ·Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch
- ·Dimmable/Control: DALI, DMX
eldoLED POWERdrive 180D
LED driver dimmable via DMX and DALI, 180 Watt, 4 constant current LED outputs
- ·Application/IP-Code: IP20 - IP44 (Indoor)
- ·Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch
- ·Dimmable/Control: DALI, DMX
- ·Constant Current: 0,2A, 0,25A, 0,35A, 0,5A, 0,7A, 1,05A, 1,2A, 1,4A
delivery time 1-3 Weeks*
- ·Application/IP-Code: IP20 - IP44 (Indoor)
- ·Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch, Tuneable White
- ·Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio
- ·Constant Voltage: 12V, 24V
LED driver dimmable via DMX and DALI, 720 Watt, 4 constant voltage LED outputs
- ·Application/IP-Code: IP20 - IP44 (Indoor)
- ·Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch
- ·Dimmable/Control: DALI, DMX
- ·Constant Voltage: 12V, 24V, 48V
Your desired product from eldoLED is not listed here? We are looking forward to your contact.
The eldoled LINEARdrive and POWERdrive LED drivers are fully controllable via DMX or DALI interface.
The following application case must be observed:
- DO you need constant voltage operation for use with e.g. LED Stripes? Power <100W --> Lineardrive 100
- Do you need constant voltage operation as before, but power >100W --> Lineardrive 720D
Use of one or more external LED transformer required. - Your LEDs are controlled directly via constant current? Power <100W --> Powerdrive 106
- Your LEDs are controlled directly by constant current? Power >100W --> Powerdrive 180D
External low voltage supply required for operation.
The following table provides an overview at a glance.
eldoLED - High quality LED transformers and LED drivers
Some models of the LINERdrive and POWERdrive series have 4 outputs and can be dimmed from 0-100% via DALI and DMX interface and are suitable for the control o
- RGB
- RGBW
- LEDs
When is which eldoLED transformer/driver required? Is an external power supply required
eldoLED as transformer (Constant voltage output) | eldoLED as LED driver (Constant current output) |
LINEARdrive 720DPower: 720 Watt Output: 4 x constant voltage Output voltage: 5V, 12V, 24V, 48V Dimmable: DMX and DALI External power supply required | POWERdrive 180DPower: 180 Watt Output: 4 x constant current Output current: 200-1400mA Dimmable: DMX and DALI External power supply required |
LINEARdrive 100Power: 100 Watt Output: 4 x constant voltage Output voltage: 12V, 24V Dimmable: DMX and DALI Integrated power supply | POWERdrive 106Power: 100 Watt Output: 4 x constant current Output current: 200-1050mA Dimmable: DMX and DALI Integrated power supply |
