EasySens Radio Switch BJ 63x63 EnOcean
€85.95*
net-price: €72.23 % €104.36* (17.64% saved)delivery time 5-10 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "EasySens Radio Switch BJ 63x63 EnOcean"
Universal EasySens Radio Switch 2-/4-Channel BJ 63x63 with Wireless EnOcean Radio Technology
This universally applicable EasySens® radio switch is used to control a status change of lights, blinds or shutters. The use of lighting and shading control is enabled by the wireless EnOcean radio technology. In addition, there is a simple and flexible installation/mounting on glass and plaster using adhesive pads or screws. The EnOcean wireless switch is ideal for Busch-Jaeger switch ranges with 63x63 mm inner diameter. Depending on the variant, one or two switch rockers (2-/4-channel) are available as operating elements. Furthermore, the power supply is ensured by an integrated electrodynamic energy generator. The device is also available in different housing colors.
Product Overview / Features:
- Universal wireless switch with EnOcean (IEC 14543-3-10 ) radio technology with a transmission power <10mW in different variations:
- Design and functionality: lighting, blinds / shutters

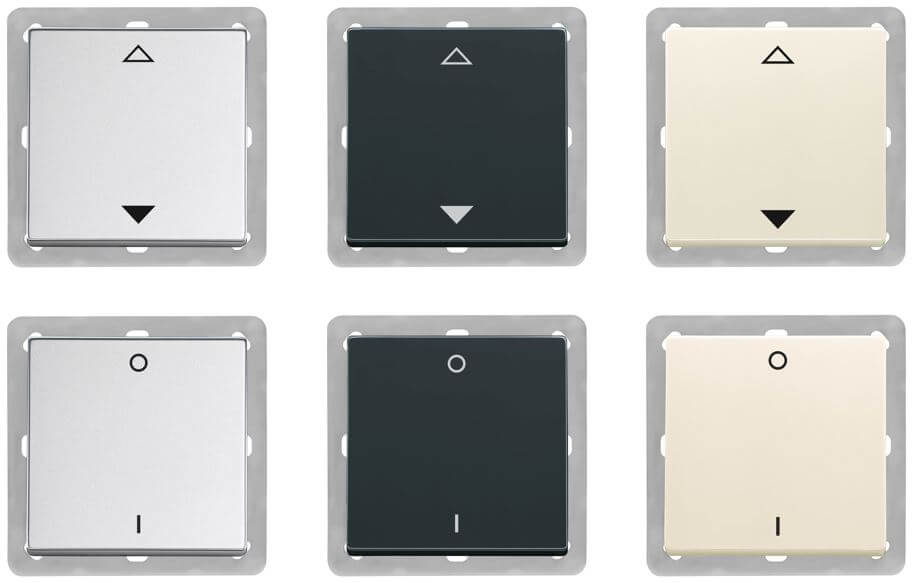

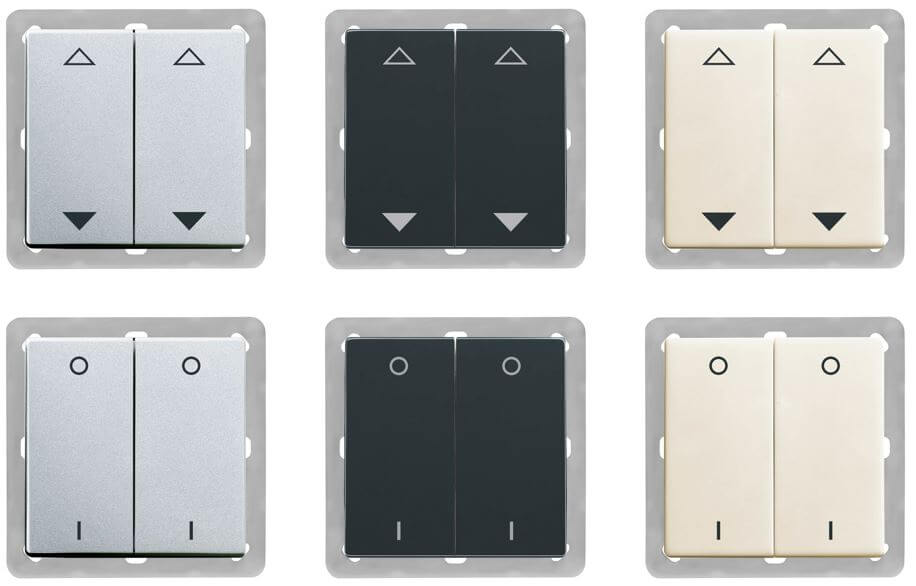

- Operating elements: 2-channel, 1 switch and 4-channel, 2 switches
- Housing colors: aluminum silver, anthracite, ivory white, studio white
- Maintenance-free electrodynamic energy generator for power supply
- Robustness against temperatures from -25° C to 65° C as well as up to 85% humidity
- Suitable for switch ranges of the manufacturer Busch-Jaeger with 63x63 mm inner diameter, also compatible with:
- Busch-Jaeger solo®
- future® linear
- Bush-axcent®
- carat® (on request)
Notes on operating functions and assembly:
The actuation force is is 7 N, whereby an actuation rahge of 2 mm is covered. The corresponding number/quantity of operating switching cycles is greater than 50,000.
During assembly, it is possible to glue the switch frame directly to the wall or to screw it onto existing flush-type boxes. Make sure that the surface is flat and free of dust in order to avoid malfunctions.
Plastic frame is part of the delivery content. On demand, you can order frames in other materials like glass and metal for an additional charge.
References:
- General information about easySens® radio and airConfig software
- Overview of EnOcean wireless telegrams
Technical Data:
| Purpose | Lighting, Scene and Shading control | |||
| Functions | Lighting | Blind / roller shutter | ||
| Operating functions | Light on / off | Blinds up / down | ||
| Labeling | {O / I} | {?/?} | ||
| Control elements | 2-channel | 4-channel | 2-channel | 4-channel |
| Radio technology | EnOcean (IEC 14543-3-10), radio telegram EEP F6-02-02 (RPS) | |||
| Transmission power | <10 mW | |||
| Frequency | 868 MHz | |||
| Data transmission / transmission interval | Immediately on using the switch | |||
| Operating range temperature | - 25° C to + 65° C | |||
| Operating range humidity | Max. 85% rH, non-condensing | |||
| Power supply | Maintenance-free electrodynamic energy generator | |||
| Enclosure | PC | |||
| Housing color | each aluminum silver, anthracite, ivory white, studio white (studio white matt and black matt on request) | |||
| Mounting | Flat on the surface, glue or diagonally | |||
| Delivery Content | Incl. 2 labels with read out transmission ID, including adhesive foil for mounting | |||
| Dimensions (LxWxH) | 73x73x15 mm | |||
| Packaging | Sustainable folding carton (case packaging) | |||
| Dimensions of packaging (LxWxH) | 90x90x35 mm | |||
Specification - Suitable switch ranges from the manufacturer:
| Busch-Jaeger |
| |||
For further information, please refer to the data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | Enocean (868 MHz) |
