DALI / DALI2 Control Module Sequencer 86459582 - 89453371

DALI / DALI2 control module sequencer for automatic sequences

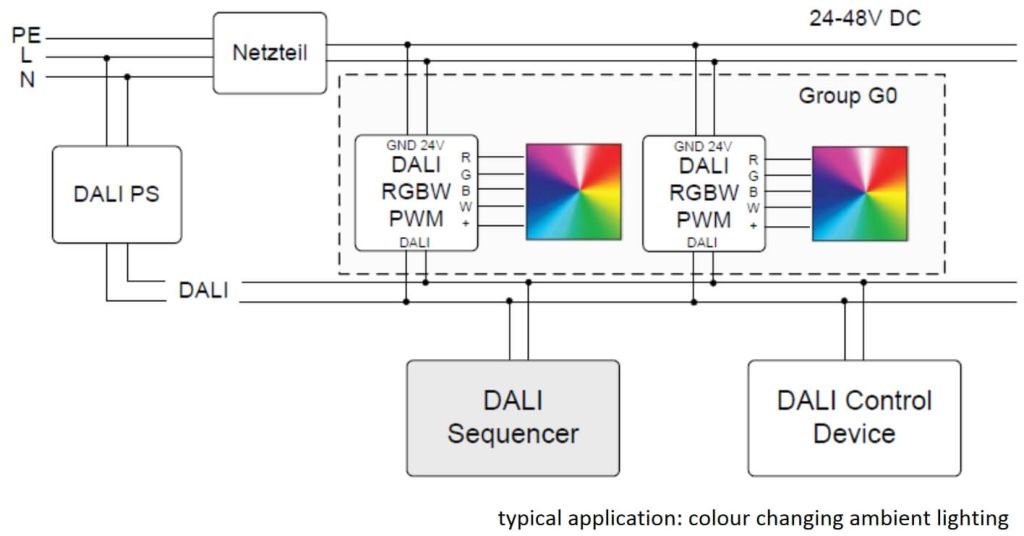

The DALI Sequencer or the DALI-2 Sequencer can be used to play DALI(2) command sequences. Both sequential scene calls and user-defined command sequences are supported. The DALI standard enables the digital control of lighting systems, allowing flexible and precise control of lighting. The sequencer offers various functions that make it possible to programme and control complex lighting scenarios, such as the programming of lighting sequences, time-controlled playback of lighting scenarios and other flexible control options.

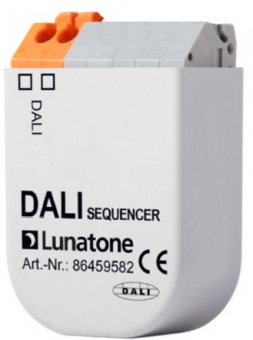

Product characteristics DALI Sequencer - 86459582

• Compact control module, enables automatically running sequences Memory for up to 4 sequences
• A command sequence can consist of up to 19 DALI commands

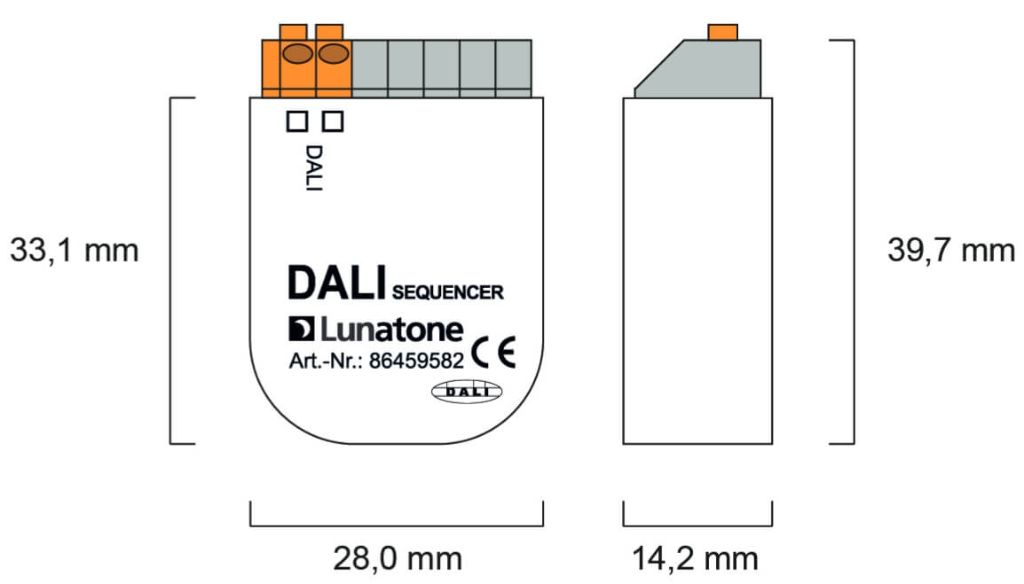

• The module fits into a flush-mounted box

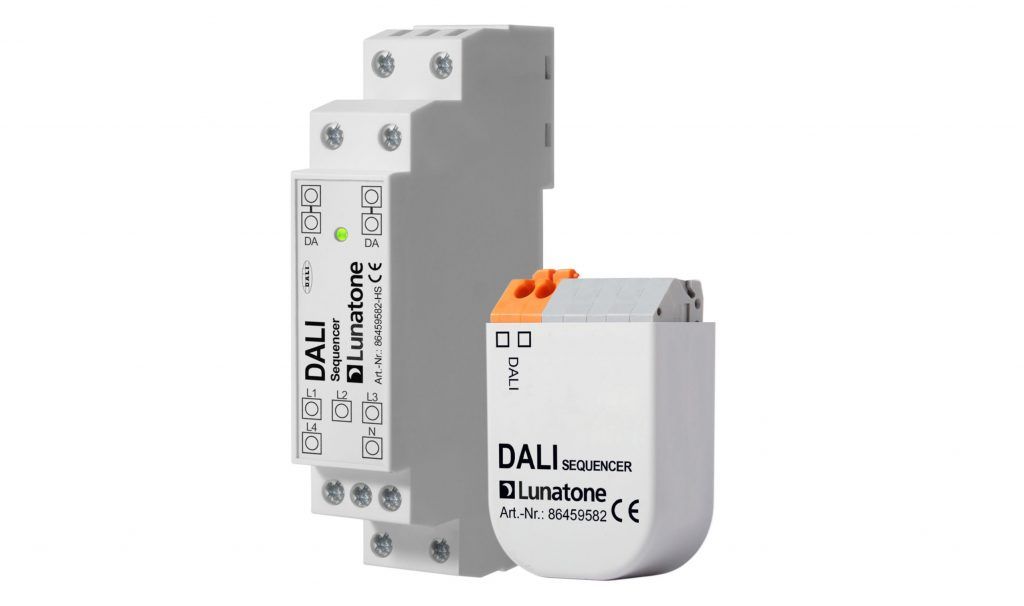

• Types for back box and dinrail mounting
• Din rail type provides 4 switching inputs for mains voltage
• A sequence can consist of any command sequences or scene calls
• If the sequencer is assigned to a group, a running sequence can also be stopped with group and broadcast commands
• The sequence can be executed once or cyclically
• Simple configuration via DALI cockpit
• y calling up scenes 0-3 at the sequencer address, the corresponding sequences can be started
• The module draws 2mA from the Dali circuit, an additional supply is not necessary
• Multimaster capable, multiple master modules can be installed in a DALI circuit

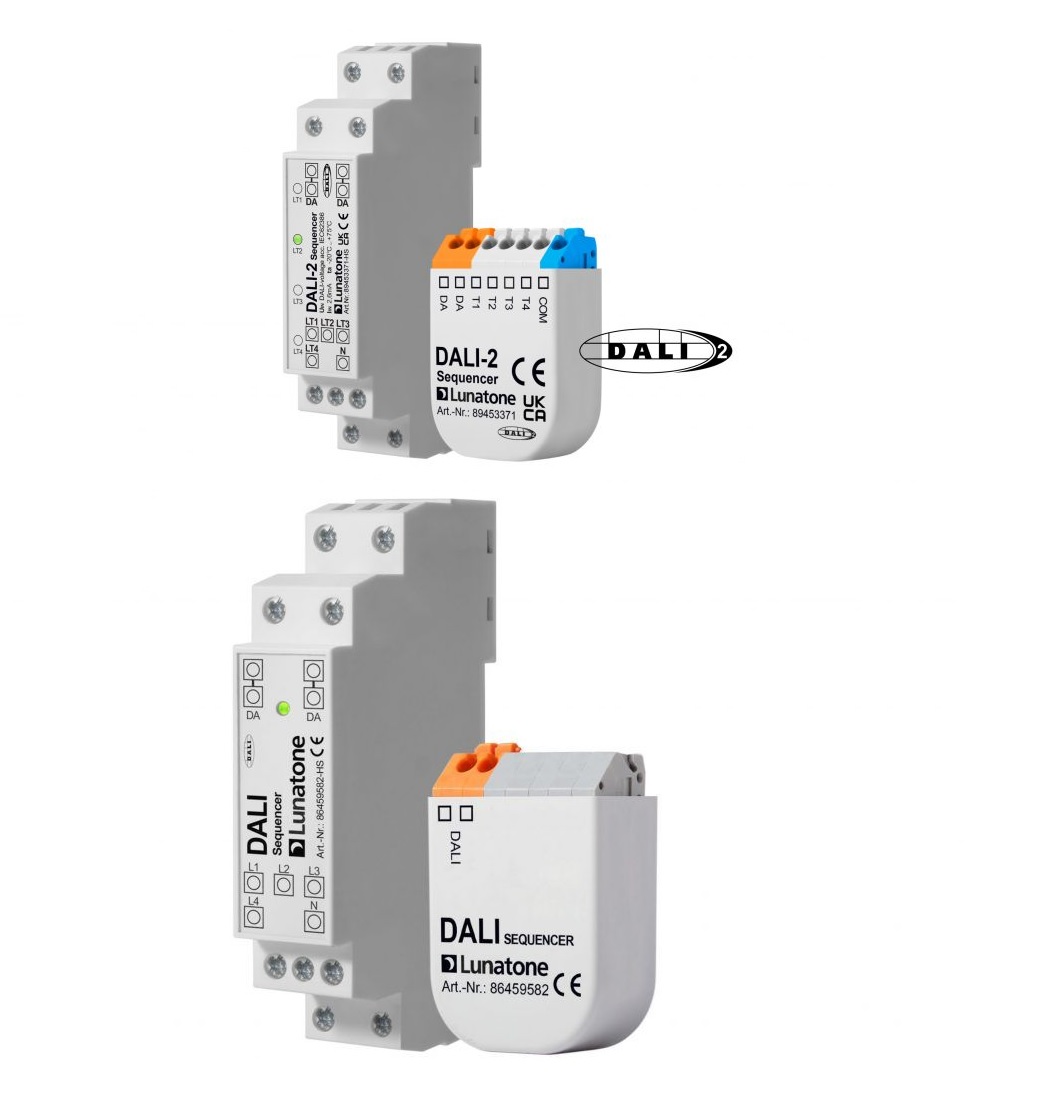

Product features DALI2 sequencer - 89453371

The DALI2 sequencer has the following additional features to those of the DALI sequencer mentined above:

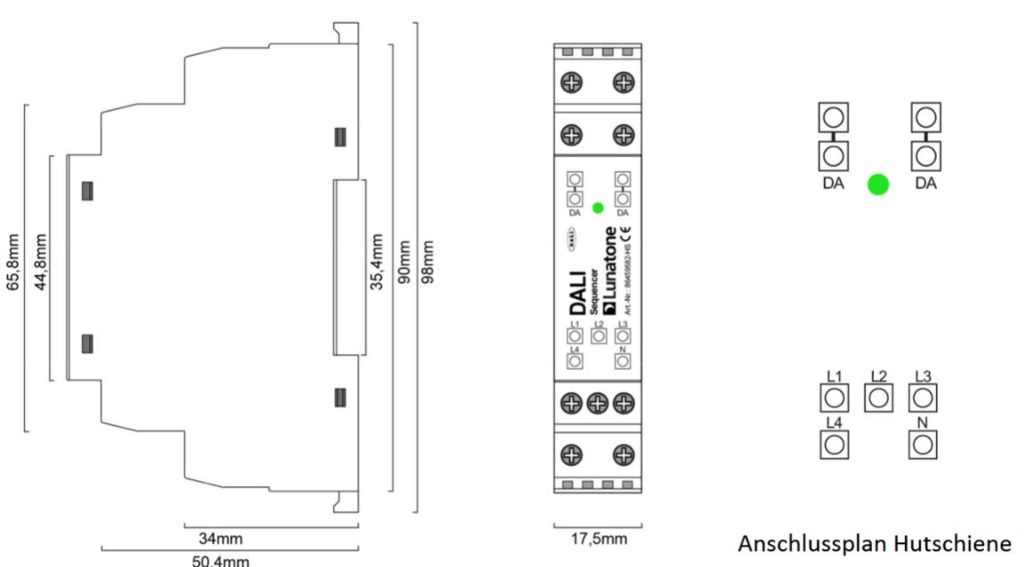

• The top-hat rail version has 4 switching inputs for mains voltage to start the sequences and an additional 4 LEDs to display running sequences.
• A sequence can contain up to 49 DALI commands.

Technical Data:
