DALI-2 touch panel 24035410 Lunatone

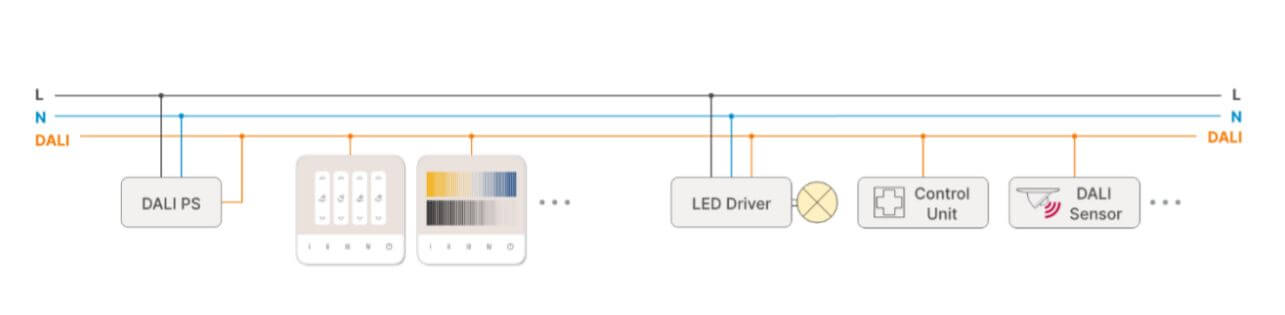

Multifunctional DALI-2 control module with flexible button layout. The DALI-2 touch panel serves as a universal module for controlling DALI-compatible lights.

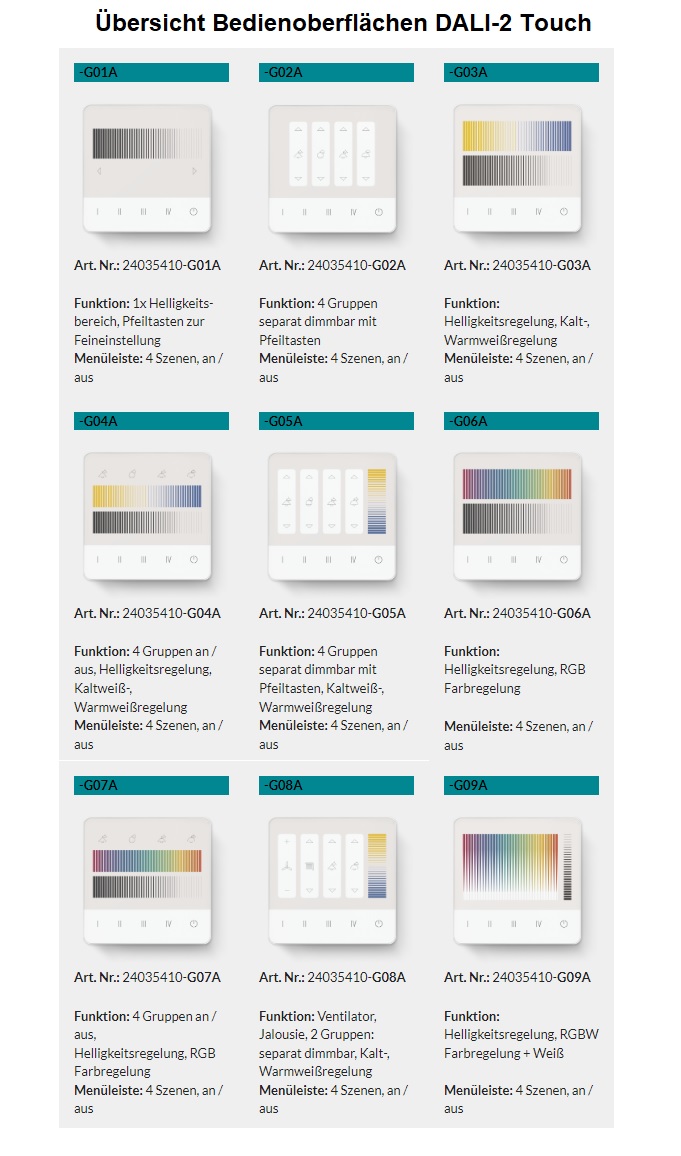

An overview of the different user interfaces available can be found here.
Properties
- Multifunctional operating device for DALI and DALI-2 systems
- Application Controller: Direct control of DALI devices
- Multimaster capable. Several modules can be installed in a DALI circuit and / or a DALI group.
- In addition to the standard DALI commands, the application controller also enables DALI DT8 TC and RGB (W) control and macros.
- Capacitive touch control surface
- Instance mode: Simple integration through 16 DALI-2 pushbutton instances and 5 DALI-2 analog instances (slider)
- Up to 16 configurable keys.
- Standard layouts and factory settings for easy installation without configuration
- Easy installation: mounting on a flush-mounted box
- Flexible layout - individual design & ndash; Layout exchange on site, additional printed layout glasses available as accessories
- The module is supplied by the DALI circuit, no additional supply necessary
- Version with integrated Dali Power Supply available
- Simple configuration via LUNATONE DALI USB interface and DALI cockpit software tool.
- DALI-2 control unit according to IEC62386-103.
- Control surface made of glass
- Frame material made of plastic (RAL 9016). Aluminum frames or customer-specific frame colors on request.
- Integrated DALI-2 application controller
Difference touch panel 04:
- The touch panel 03 is available here with 4 additional LED lights for visualisation.
Specifications of the DALI-2 touch panel
| Type of output | DALI, DALI-2, multimaster, supply |
| Voltage range | 9.5V? 22,5Vdc according to IEC62386 |
| typ. Current consumption DALI (at 16.5V) | 2 mA |
| Operating temperature | -20 ° C? + 45 ° C |

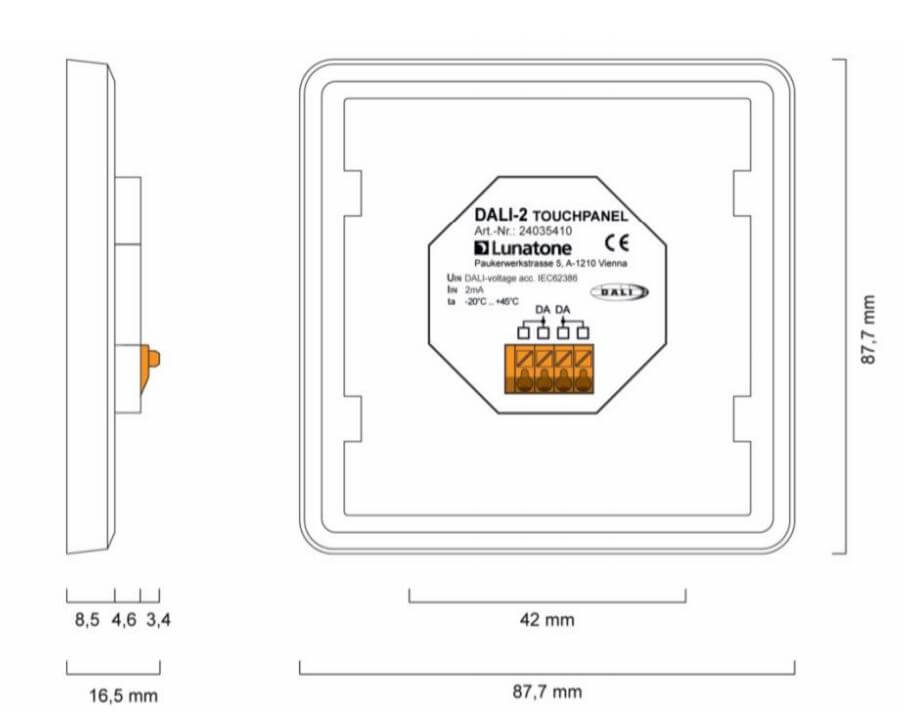

| Dimensions | 87.7mm x 87.7mm x 16.5mm |
| Assembly | Installation installation box Installation in protection class II devices |
| Expected lifetime | 100,000h |
| Manufacturer-specific operating modes | Application Controller, DALI-2 Instancemode |
Take further data from the download tab.
The "Extra Glass" variant requires an order using the Lunatone configurator
Various ready-made designs can also be loaded in the configurator or created individually online.
The configuration of an individual frame color is also possible using the configurator.
Please note: Additional costs may be due here, as well as the acceptance of a minimum order quantity.
If you are interested in an individual design, please feel free to contact us.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | DALI, DALI2, DALI DT8 |
